ELECTRIC DIAGRAMS

89D -40

89D

ENGINE WIRING

B41

02

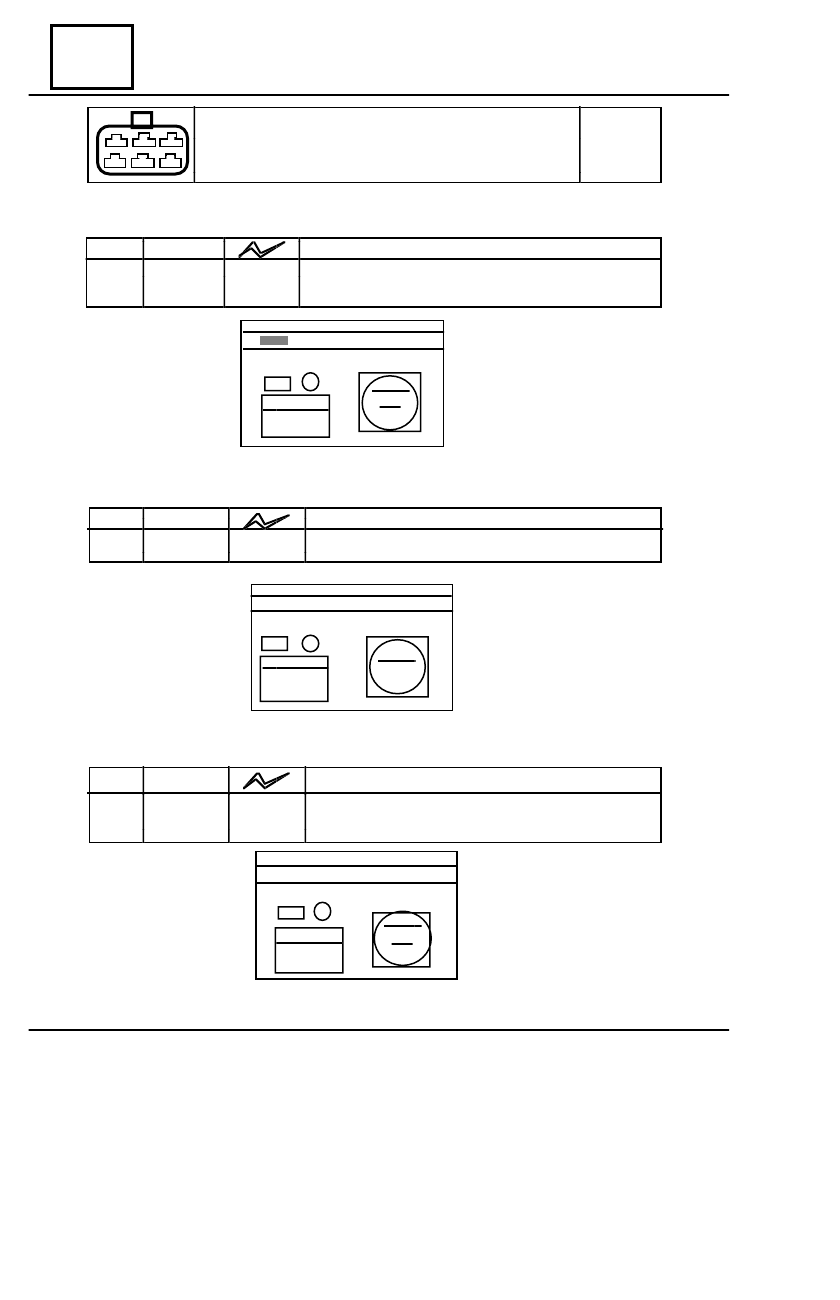

AIR CONDITIONING AND BLOWER COOLING



(FOR AIR CONDITIONING EQUIPPED VEHICLES)

AIR CONDITIONING COMPRESSOR CLUTCH

Pos. Sectioning

Destination

1

2,0

49B

CONTROL + BLOWER COOLING > BLOWER RESISTANCE

1

5,0

49B

CONTROL + BLOWER COOLING

2

5,0

M

MASS

38R

 X

NO

     171

Pos. Sectioning

Destination

1

1,0

  38R

CONTROL + AIR CONDITIONING COMPRESSOR CLUTCH

CONNECTORS AND CONNECTIONS WIRES FUNCTION

ELECTRIC DIAGRAMS

89D -41

89D

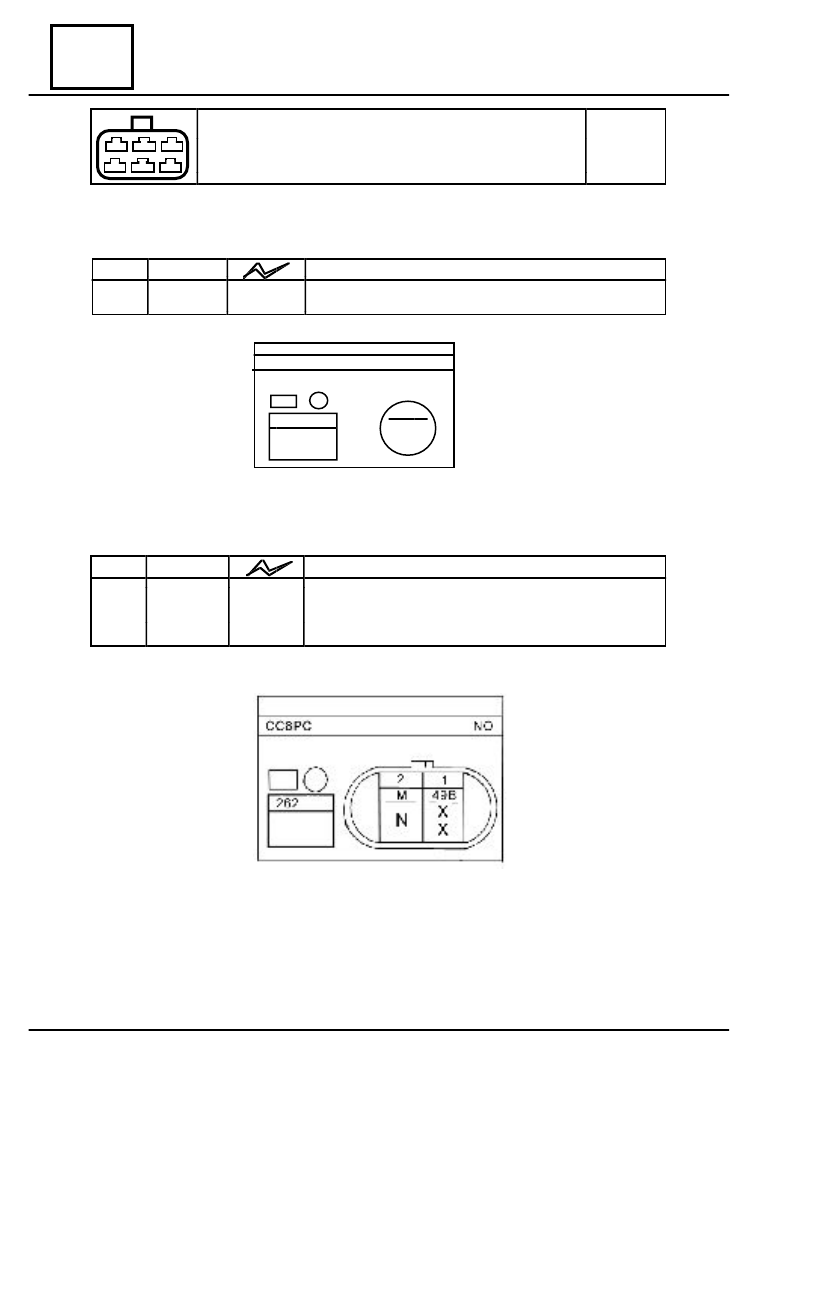

BLOWER COOLING

(FOR VEHICLES WITHOUT AIR CONDITIONING SYSTEM)

1

1,5







M

MASS

     2

1,5

  49B

CONTROL + BLOWER COOLING

BLOWER RESISTANCE

(FOR AIR CONDITIONING EQUIPPED VEHICLES)

ENGINE WIRING

B41

02

Pos. Sectioning

Destination

Pos. Sectioning

Destination

1

2

  49L

CONTROL + BLOWER COOLING RESISTANCE

2

2

  49B

CONTROL + BLOWER COOLING

CONNECTORS AND CONNECTIONS WIRES FUNCTION

ELECTRIC DIAGRAMS

89D -42

89D

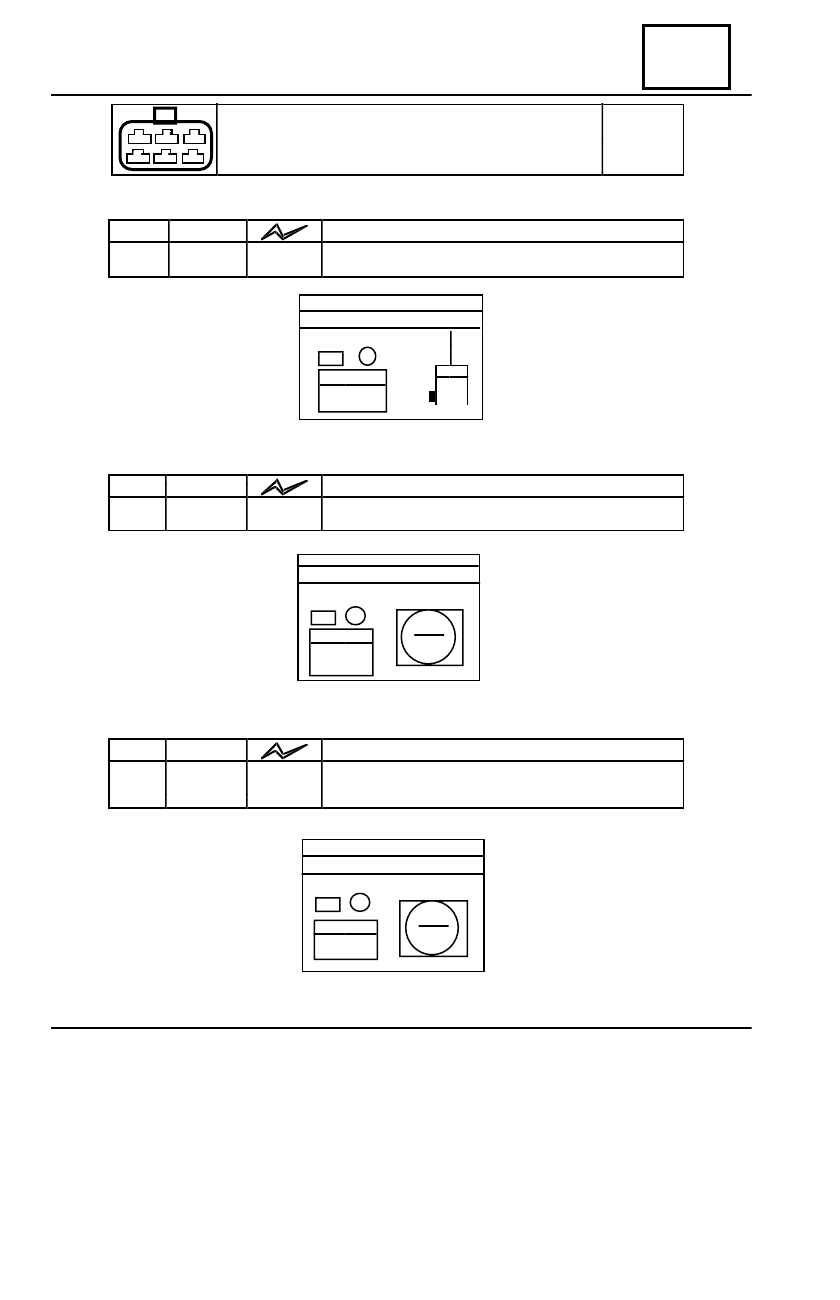

ALTERNATOR EXCITATION

STARTER

ALTERNATOR

ENGINE WIRING

B41

02

1





5,0

B

+ BATTERY > FUSE INLE

T F02

1

16,0

B

+ BATTERY > + STARTER

Pos. Sectioning

Destination

1

  0,6

2JD

+ ALTERNATOR EXCITATION > INSTRUMENT PANEL

Pos. Sectioning

Destination

Pos. Sectioning

Destination

1

  16,0

B

+ BATTERY

1





16,0

B

+ BATTERY >+ ALTERNATOR

        103  HA

   B

R
R

SL8C

       163 GA

   B

R
R

    2JD
   X

CA13E

       103 HB

CONNECTORS AND CONNECTIONS WIRES FUNCTION

ELECTRIC DIAGRAMS

89D -43

89D

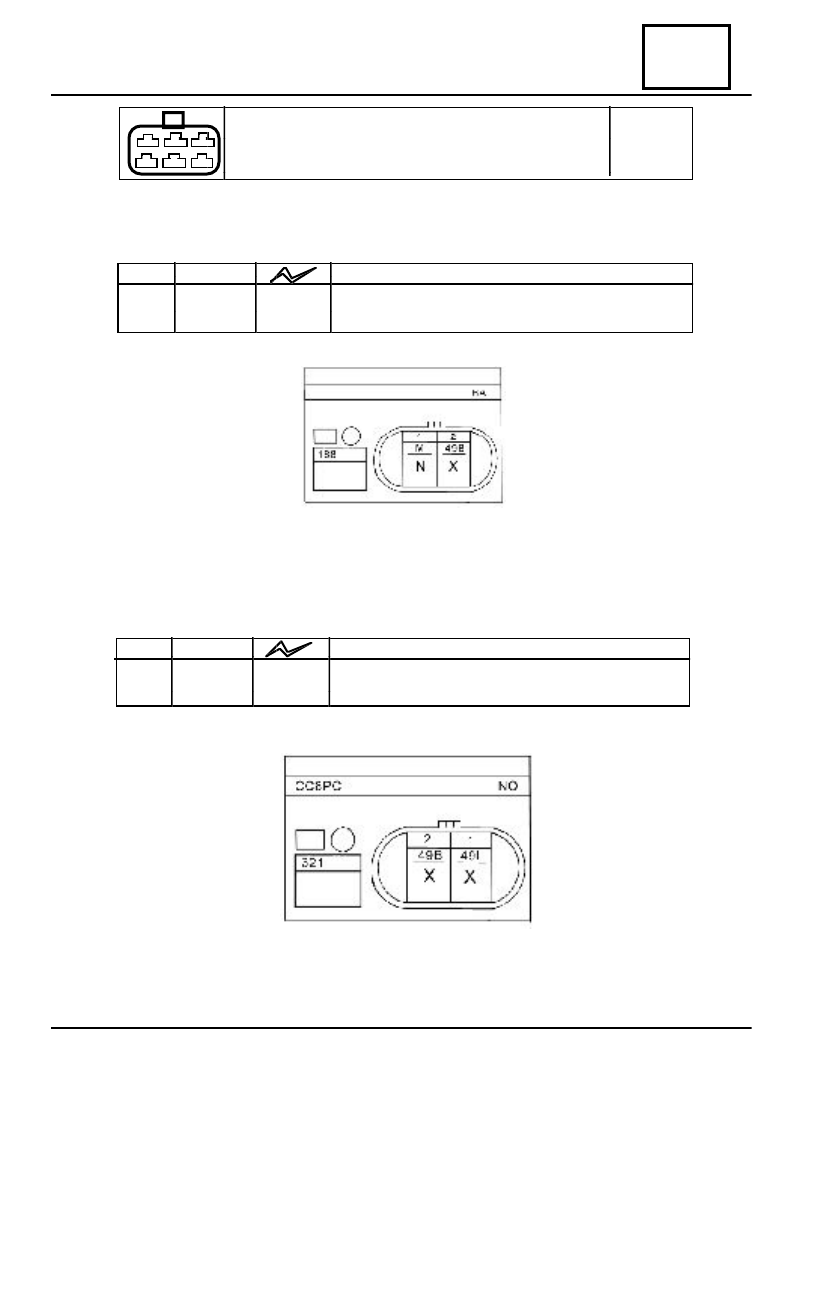

STARTER EXCITATION

BLOWER MASS

ENGINE ELECTRIC MASS

ENGINE WIRING

B41

02

Pos. Sectioning

Destination

1

3,0

D

+  STARTER CONTROL

Pos. Sectioning

Destination

1

5,0

M



MASS

Pos. Sectioning

Destination

1

4,0

ML

INJECTION COMPUTER MASS (PINS 3, 28 AND 33)

   M
   N

  ML
   N

MH - 121

SR 8L

CS6PI

     163 AB

6,3 MM

BA

D

A

CONNECTORS AND CONNECTIONS WIRES FUNCTION
