Dacia SuperNova (engine E7J). Manual - part 212

ELECTRIC DIAGRAMS

89D -8

89D

(after 15.02.2002)

 21
101
102
103
104
105
107
113
120
121
122
123
124
125
128
137
138
139
140
141
145
146
147
149
155
156
160
163
168
171
172
173
175
176
177
180
181
184
185
188
189
190
a191
192
193
194
195
196
199
205
209
210
212

Right signalling  anti-return diode
Electric lighter
Ashtray
Alternator
Anti-theft system
Acoustic alarm
Battery
Windscreen wiper timer
Injection computer (UCE)
Fog lights switch
Fog headlights switch
Door closing switch
Climate blower switch
Hazard switch
Rear window defrosting switch
Turning signalling relay
Right rear door actuator
Left rear door actuator
Left front door actuator
Right front door actuator
Windscreen wiper-washer switch
Detonation sensor
Atmospheric pressure sensor
RPM sensor
Reverse driving contact
Handbrake contact
Stop contact
Starter
Documents compartment lighting lamp
AC compressor clutch
Right rear lamp
Left rear lamp
Left fog lamp
Right fog headlight
Left fog headlight
Left front door contact
Right front door contact
Right front parking lamp
Left front parking lamp
Cooling motor fan
Right rear loud speaker
Left rear loud speaker
Right front door loud speaker
Left front door loud speaker
Injector 1
Injector 2
Injector 3
Injector 4
Fuel level transmitter and electric pump
Oil pressure contact
Lights, turning lights and horn switch
Electronic clock
Windscreen wiper motor

Right front brake pad
Left front brake pad
Windscreen washing  pump
Valve potentiometer
Diagnostic socket
Right headlamp
Left headlamp
Fog lamps relay
Fog headlights control relay
Cooling motor fan control relay
Fuel pump control relay
Actuators relay
Downstream oxygen sensor
Injection water temperature sensor
Instrument panel
Vehicle speed transducer
Right front turning lamp
Left front turning lamp
Cockpit fuse and relays box
Radio
Cooling motor fan and AC
Right side signalling lamp
Left side signalling lamp
Injection air temperature sensor
Rear window defrosting timer
Climate control lighting
AC starting button
Motor fan resistance ( for AC)
Right front ceiling lamp
Canister purging valve
UCE anti-intrusion
Engine hood contact
Siren
Volumetric  sensor
AC relay ( on board)
UCE decoder
AC compressor clutch control relay
Engine compartment  fuse and relays box
Climate control blower
STOP-S3 lamp
Step-by-step engine
Anti-starting bushing
Cooling blower low speed control relay
Ignition coil
FLASH relay
Upstream oxygen sensor
Chock sensor
Anti-intrusion indicator  LED
Braking system ICP
AC pressure sensor (pressure controller)
Front ashtray lighting
Climate control blower control relay

 216
 217
 221
 222
 225
 226
 227
 230
 231
 234
 236
 238
 242
 244
 247
 250
 255
 256
 260
 261
 262
 267
 268
 272
 294
 298
 319
 321
 329
 371
 427
 438
 442
 454
 474
 503
 584
 597
 600
 639
 649
 654
 700
 778
 857
 887
 927
 993
1091
1202
1335
1428

CODE



COMPONENT DENOMINATION

CODE



COMPONENT DENOMINATION

ELECTRIC COMPONENTS INDEX

ELECTRIC DIAGRAMS

89D -9

89D

COUPLING LIST

R53 =BATTERY MASS WIRING/MASS STRIPE (A) COUPLING
R89 = FRONT WIRING/ BRAKE PADS WEAR (B) COUPLING

R107 = FRONT WIRING/ DASHBOARD (C) COUPLING
R157 = REAR WIRING/HATCHBACK(H) COUPLING
R212 = FRONT WIRING/ ENGINE (J) COUPLING
R265 = FRONT WIRING/REAR (K) COUPLING
R318 = FRONT WIRING/DASHBOARD(M) COUPLING

MASS LIST

M6 = REAR WINDOW DEFROSTING MASS
MA = RIGHT FRONT  BODY MASS
MB = LEFT FRONT BODY MASS
ME = ELECTRIC MASS AT WINDSCREEN WIPER ATTACHMENT
MH = ENGINE ELECTRIC MASS
ML = LEFT FRONT LONGITUDINAL GIRDER ELECTRIC MASS
M M = ELECTRIC MASS AT THE STEERING COLUMN
MZ = LEFT REAR BODY MASS
MYH= LEFT HATCHBACK MASS

( after 15.02.2002)

COUPLINGS LIST. MASS INDEX

ELECTRIC DIAGRAMS

89D -10

89D

MASS ATTACHMENTS ON THE VEHICLE

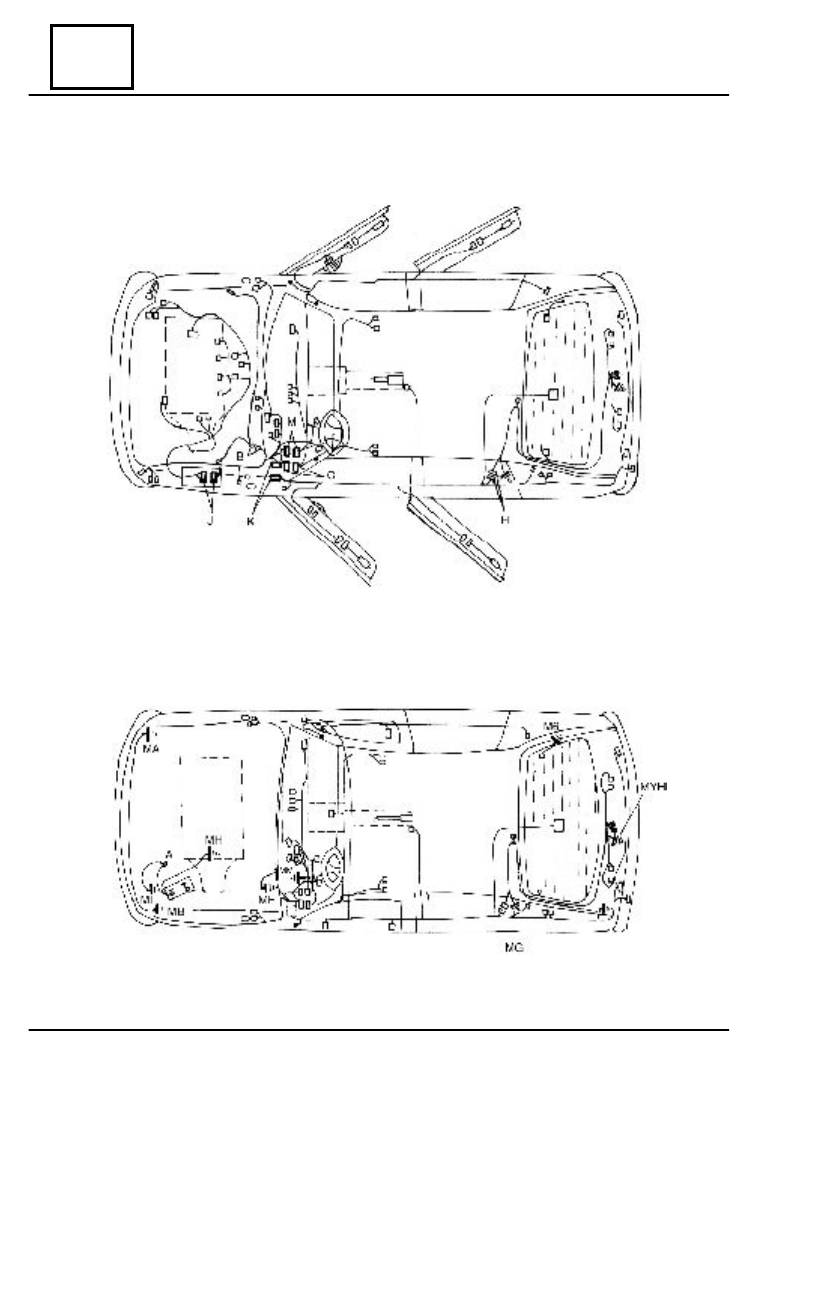

LOCATION OF ELECTRIC COUPLING ON THE VEHICLE

LOCATION OF ELECTRIC COUPLING ON THE VEHICLE

MASS ATTACHMENTS ON THE VEHICLE

ELECTRIC DIAGRAMS

89D -11

89D

Windscreen wiper timer
FLASH relay
Climate control lighting
AC starting button
AC relay ( on board)
Right front door actuator
Right rear door actuator
Right front door loud speaker
Right rear loudspeaker
Fuel level transmitt

er and electric pump

Trunk lighting lamp
Left rear loud speaker
Left rear door actuator
Left front door actuator
Left front door loud speaker
Right front door contact
Right volumetric sensor
Left volumetric sensor
Right front ceiling lamp
Handbrake contact
Anti-starting bushing
Anti-intrusion indicator LED
Left front door contact
UCE decoder
Siren
Vehicle speed transducer
Engine hood contact
Doors closing switch
UCE anti-intrusion
Downstream oxygen sensor

(after 15.02.2002)

Injector 1
Injector 2
Injector 3
Injector 4
Atmospheric pressure sensor
Detonation sensor
Starter
Injection air temperature sensor
Valve potentiometer
Step-by step engine
Alternator
Ignition coil
Canister purging valve
AC pressure sensor(pressure controller)
Diagnostic socket
AC compressor clutch
Upstream oxygen sensor
Cooling blower and AC
Blower resistance for AC
Oil pressure contact
Injection computer
RPM sensor
Reverse driving contact
AC compressor clutch control relay (E)
Water temperature sensor
Blower lower speed control relay (B)
Engine compartment fuse and relays box
Motor fan control relay ( C)
Fog headlamps control relay(A)
Fuel pump control relay (H)
Actuators relay(D)
Chock sensor

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

33
34
35
36
37
38
39
40
41
42
44
45
46
47
48
49
50
51
53
54
55
56
57
58
59
60
61
62
63
64

LOCATION OF ELECTRIC COUPLING ON THE VEHICLE
