40

GENERAL

40 - 12

1

2

For checking, straightening or repairing the DACIA vehicles bodies, the use of the

CELLETTE bench is recommended.

The checking/straightening bench type CELETTE  ( service code CAR 500 ) is composed of:

- CAR 501 (1 mobile bench with four wheels, four parts for vehicle anchoring, one

traction arm of 10 t, type

“

CAIMAN“).

- CAR 502 - set modular cross bars
- CAR 503 - set of 22 towers MZ
- CAR 504 - set accessories for traction
- CAR 505 - set of specific supports for DACIA Bl, Bk
- CAR 506 - set of specific supports  for DACIA 1304, 1307
- CAR 507 - set of specific supports for DACIA NOVA.

NOTE
The purchase of the checking / straightening bench - CELETTE type- is to be done

through Automobile Dacia S.A.

1. CAR 501

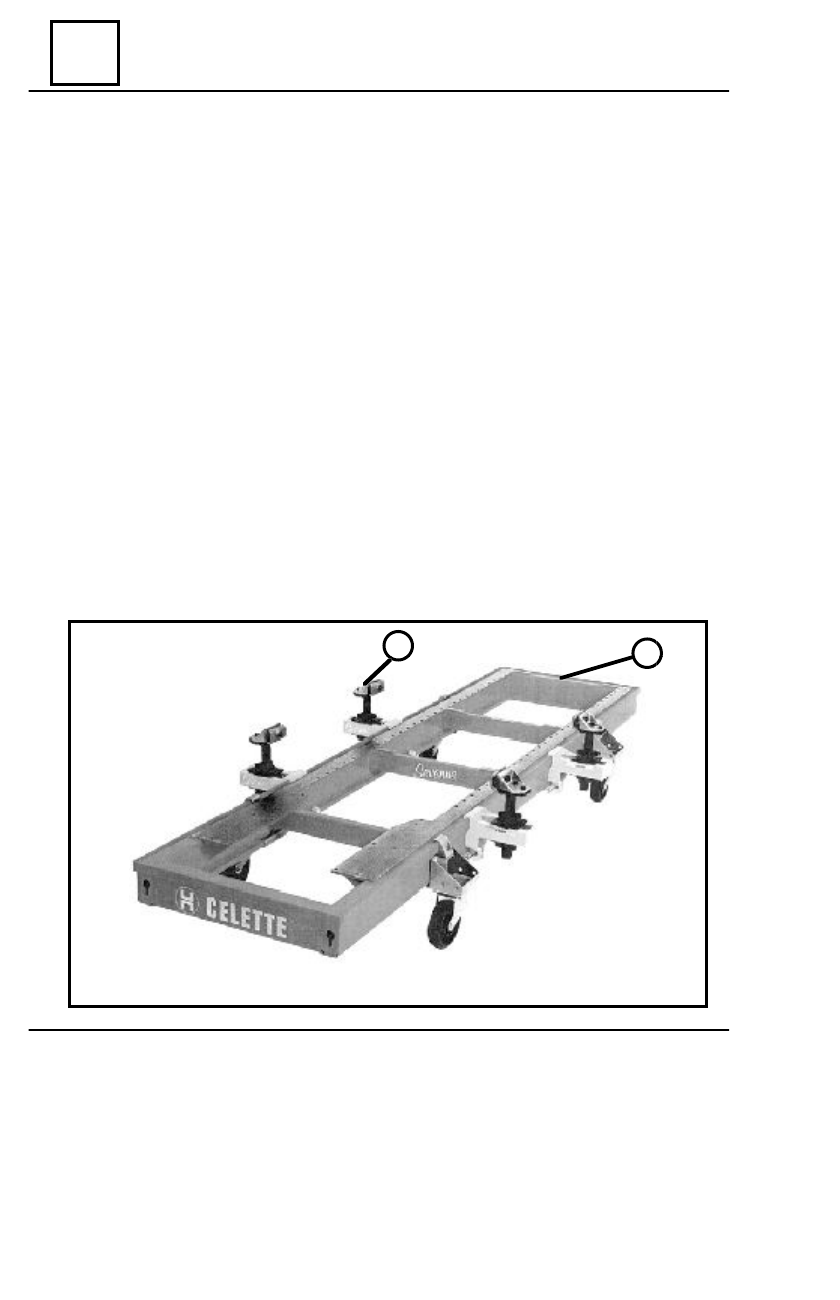

The mobile bench (1) is provided with four anchoring parts (2) - (fig 1), which can be

used when a carriage body straightening operation is performed.

(pict.1)

CARRIAGE BODY CHECKING/ STRAIGHTENING

 BENCH CELETTE TYPE

40

GENERAL

40 - 13

CARRIAGE BODY CHECKING / STRAIGHTENING BENCH

 CELETTE TYPE

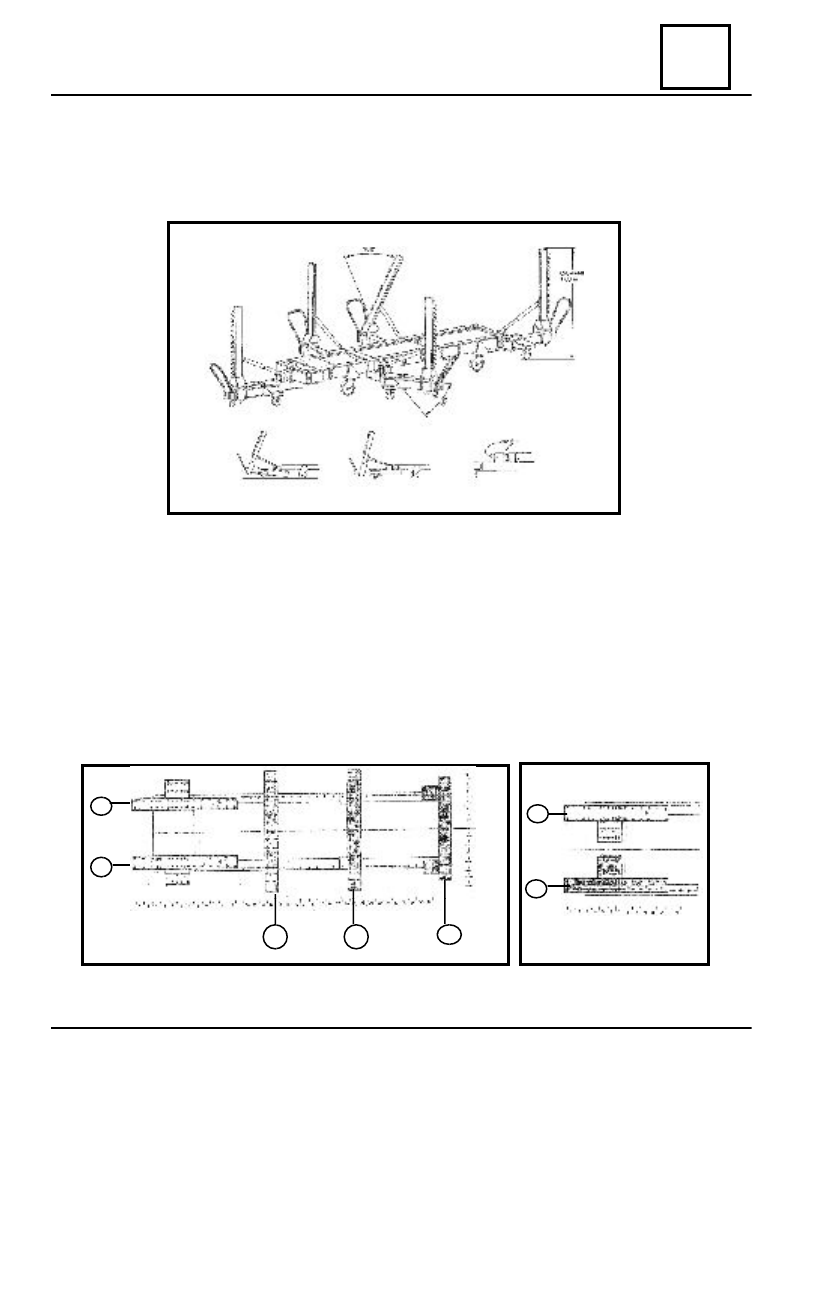

To straighten the vehicle body, CELETTE bench is provided with a traction arm of 10

tons, Caiman type, 250-mm stroke of the hydraulic cylinder, with rapid anchorage on any
side of the mobile bench ( pict. 2 ).

2. CROSS BARS MODULAR SET     ( CAR  502)

CELETTE bench has in its composition, five modular cross bars (pict.3), as follows:

- two front cross bars A and B  (T shaped) which are always in the same position

(towards  front of bench) - pict. 4 .

- two straight cross bars C1 and C2 and one D cross bar (U-shaped) which may be

placed in different positions subject to the vehicle type.

The marked figures  (14……36) are engraved on the mobile bench, every mounting

being supplied with a drawing indicating the exact position of the modular crossbars subject
to the vehicle type.

(  pict.3 )

(

pict.4

)

( pict. 2)

one....

two...

and tree!

A

B

C

2

D

A

B

C

1

40

GENERAL

40 - 14



CARRIAGE BODY CHECKING / STRAIGHTENING

BENCH CELETTE TYPE

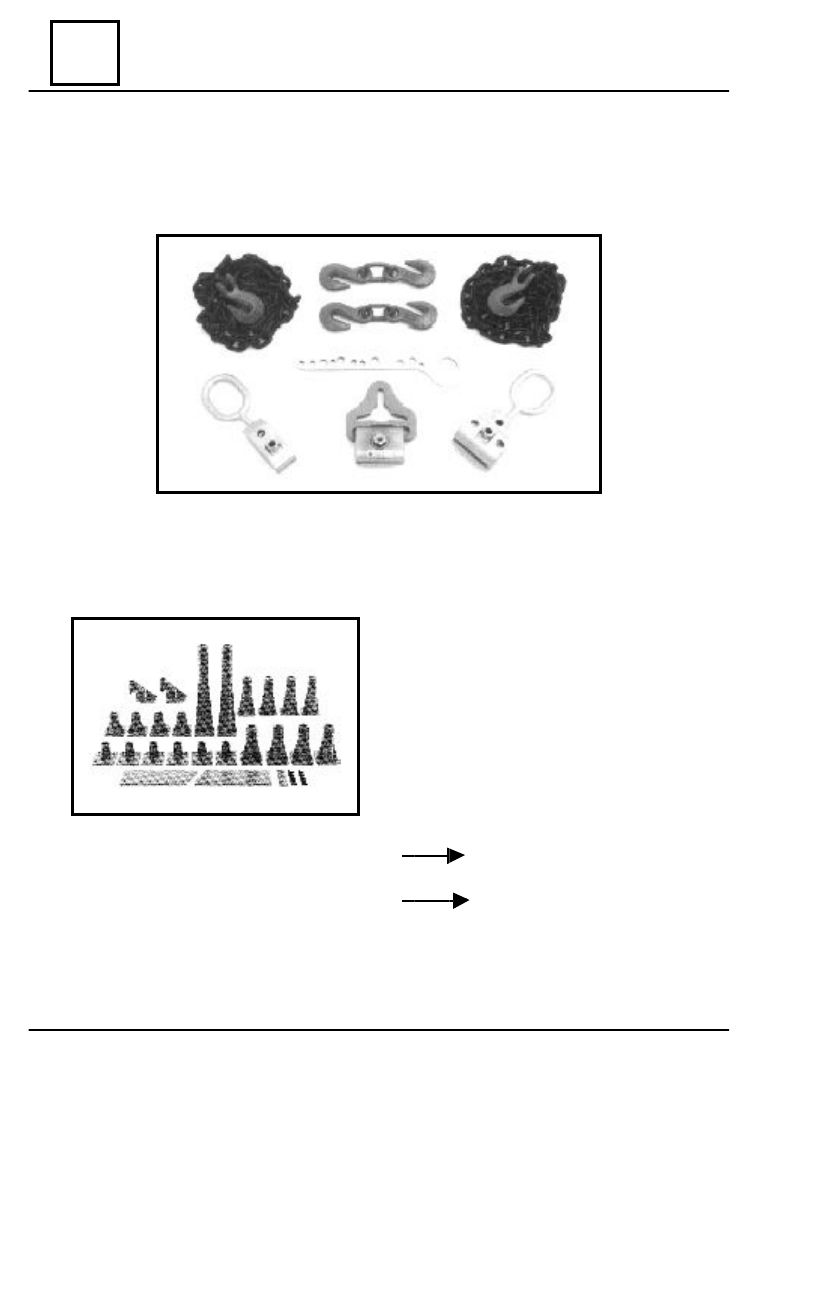

3.TRACTION ACCESSORIES SET ( CAR 504)

CELETTE bench is equipped with a traction accessories set CAR 504, which allows

the operator to achieve different anchoring when a body strengthening is performed (pict.5).

4. SET OF MZ TOWERS AND SPECIFIC SUPPORTS ( CAR 503 +CAR 507)

This kit represents a MZ system and consists of two elements:

- kit of 22 MZ towers, universal CAR 503 – ( see pict.6 )
- kit of specific supports CAR 507

( pict. 6 )

( pict. 5)

Each MZ tower has an arrow, which settles

its orientation on the cross bar and a MZ
reference (pict.7)

Example – MZ 080, where:
MZ- measurement on OZ axle of  the

vehicle.

080 – MZ tower height (in mm)
In the same way as  for COMPACT

assembly, the arrow (1) marked on the specific
support must be oriented towards the bench
front part, as follows:

           - attachment on the right part of the

mobile bench

- attachment on the left part of the

mobile bench

NOTE
The MZ towers may be used also for the checking/ straightening of the carriage

bodies of other vehicles types, being then necessary the purchasing of the specific supports
for each type of vehicle.

L

40

GENERAL

40 - 15

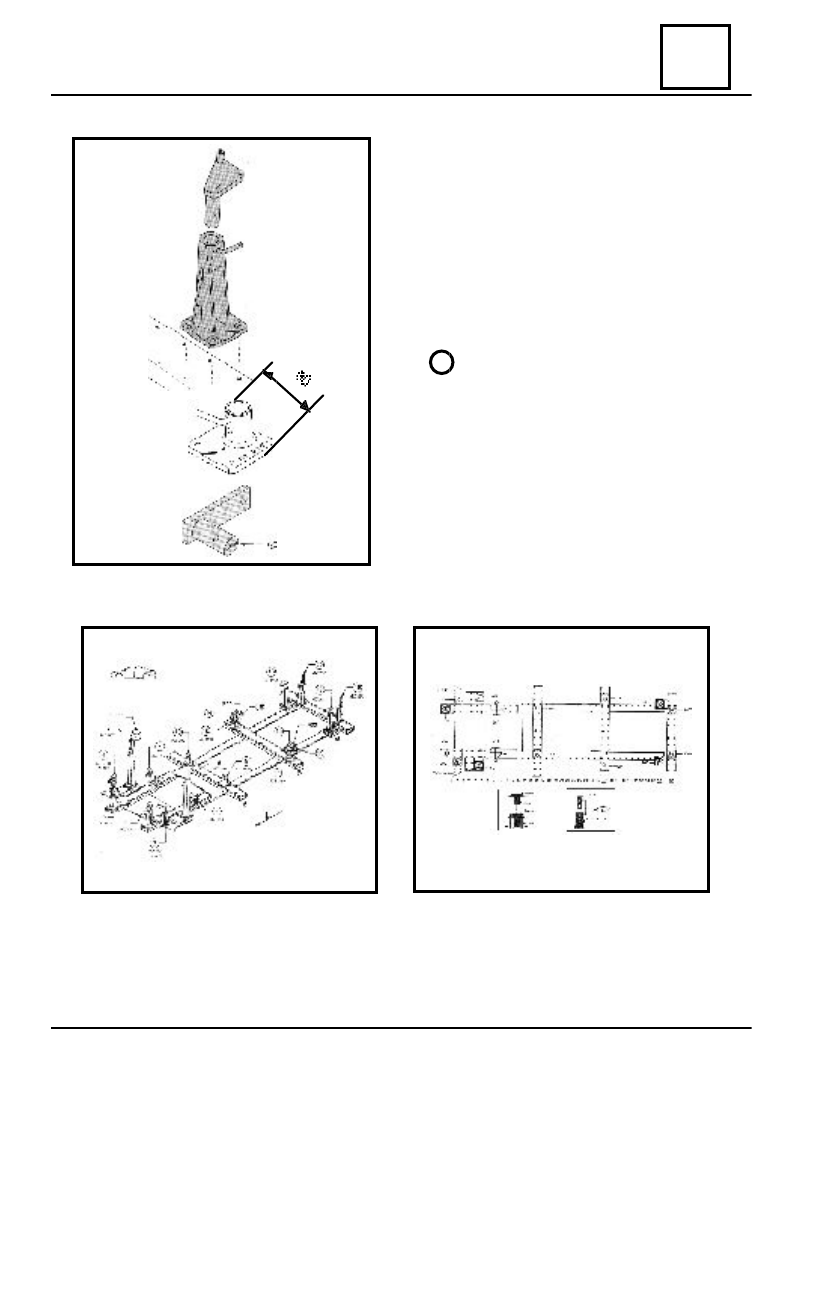

( pict.7 )

Each specific support is identified by

a number ( 2 ) marked at the lower part
and has one or two attachments holes in
the MZ tower ( in this case you should
take into consideration the specific
diagram from  the  assembly drawing
supplied together with the kit.

Symbols:
1 – wit h or without dism ounted

mechanical elements.

4 – with dismounted mechanical

elements.

NOTE :
Identification and mounting of the

towers on different modular cross bars
and of the specific supports in the MZ
towers (1…20), when repairing a Dacia
SupeRNova body, is to be performed as
per mounting drawing ( pict.8 and pict.9)
which is supplied together with this kit.

CARRIAGE BODY CHECKING / STRENGTHENING

BENCH CELETTE TYPE

( pict.8 )

( pict.9 )
