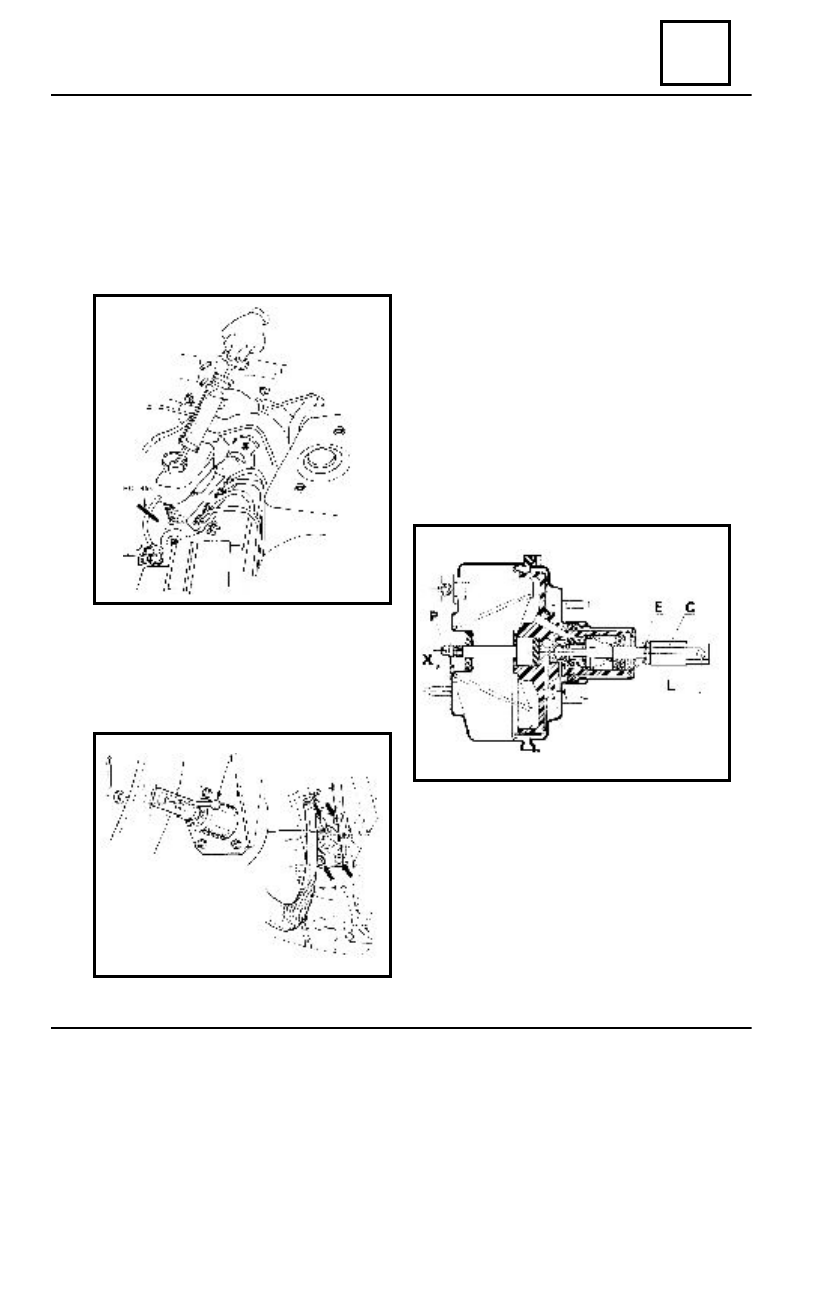

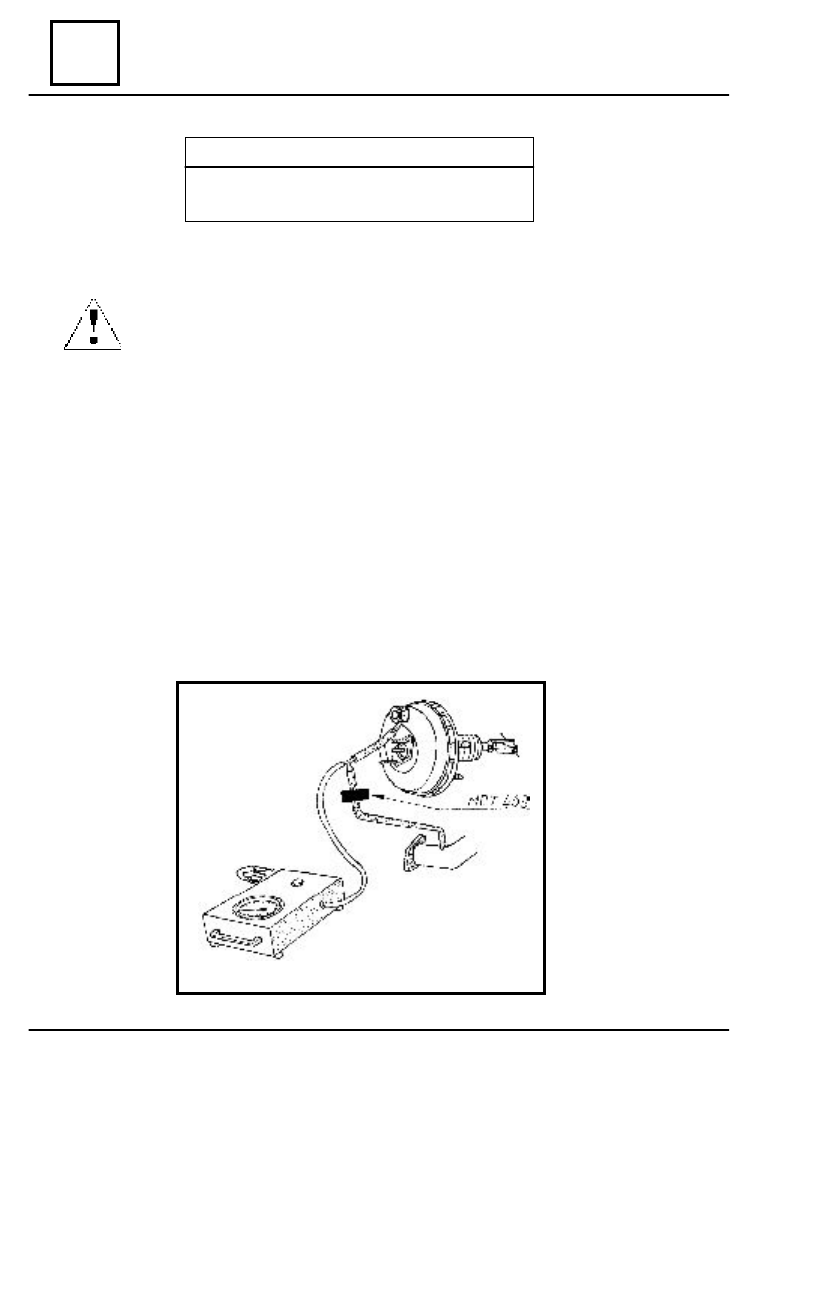

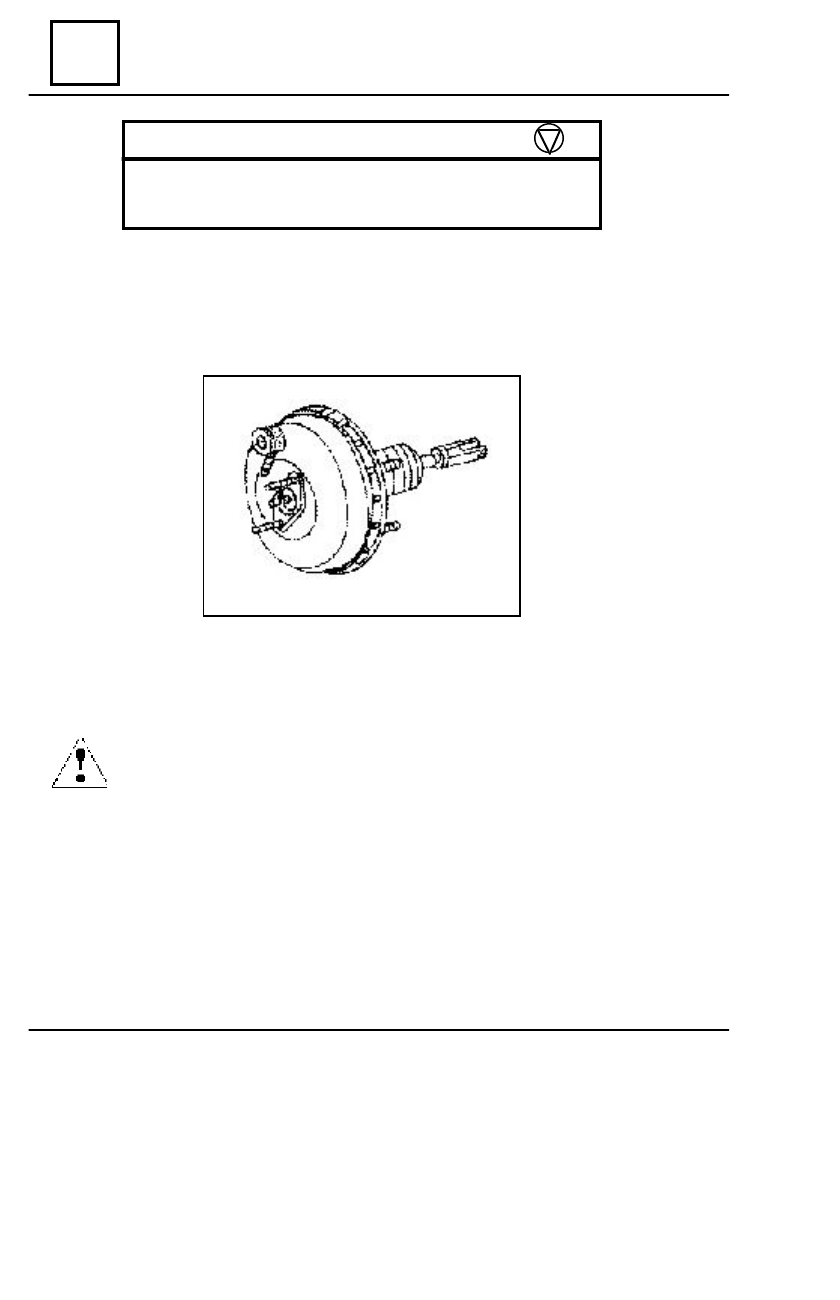

BRAKE PUMP REPAIRING
The operation is performed after dismounting the central pump off the vehicle.
DISMOUNTING
Dismount the brake fluid reservoir, recover-
ing the two sealing gaskets of the brake fluid res-
ervoir.
Dismount the transducer and the purging
screw.

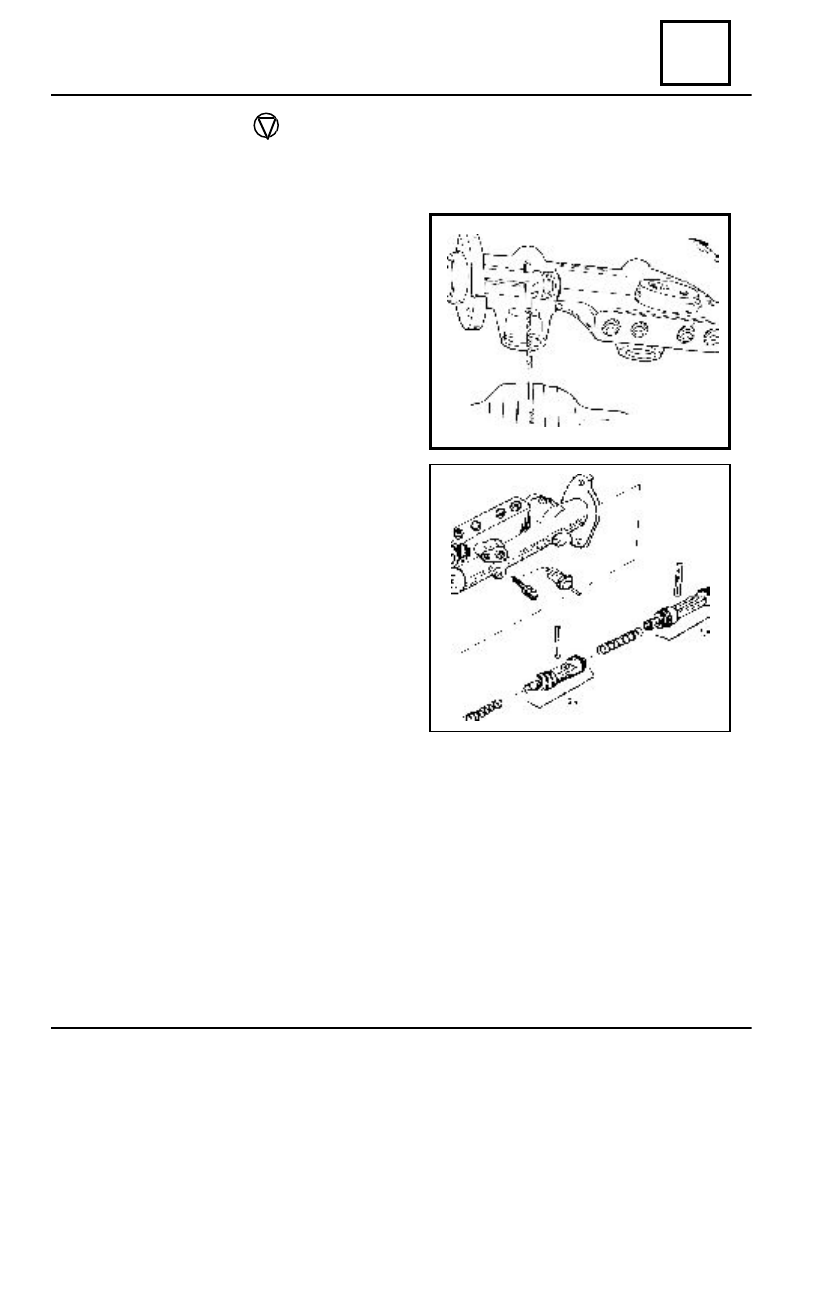

Clamp a 3,5 mm drill in the vice.
Introduce the drill in the elastic pin
Rotate and draw the pump until the pin is ex-
tracted;
Extract the secondary piston elastic pin, in the
same way.
Remove from the pump:
- the Pp primary piston assembled ;
- the primary piston return spring;
- the Ps secondary piston assembled;
- the secondary piston return spring
Wash the parts with alcohol and blow them
with compressed air.
Check:
- the pump bore
- the pistons gaskets
- the springs
The parts of the “ primary piston” Pp and those of the “ secondary piston” Ps, cannot be repaired.
In case one of these parts is damaged, replace the whole kit ” primary piston” and “secondary
piston”, primary piston return spring, secondary piston return spring.
REMOUNTING
Before remounting, the parts and the pump bore will be lubricated with brake fluid.
Mount the “ secondary piston” and “primary piston “ assembly.
Compress the pistons and introduce the elastic pins; the pins slot shall be oriented towards the
pump attachment flange.
Mount the purging screw;
Purge the brake circuit and remount the ICP transducer.
