Dacia SuperNova (engine E7J). Manual - part 42

19 - 8

19

COOLING - EXHAUST  - FUEL TANK

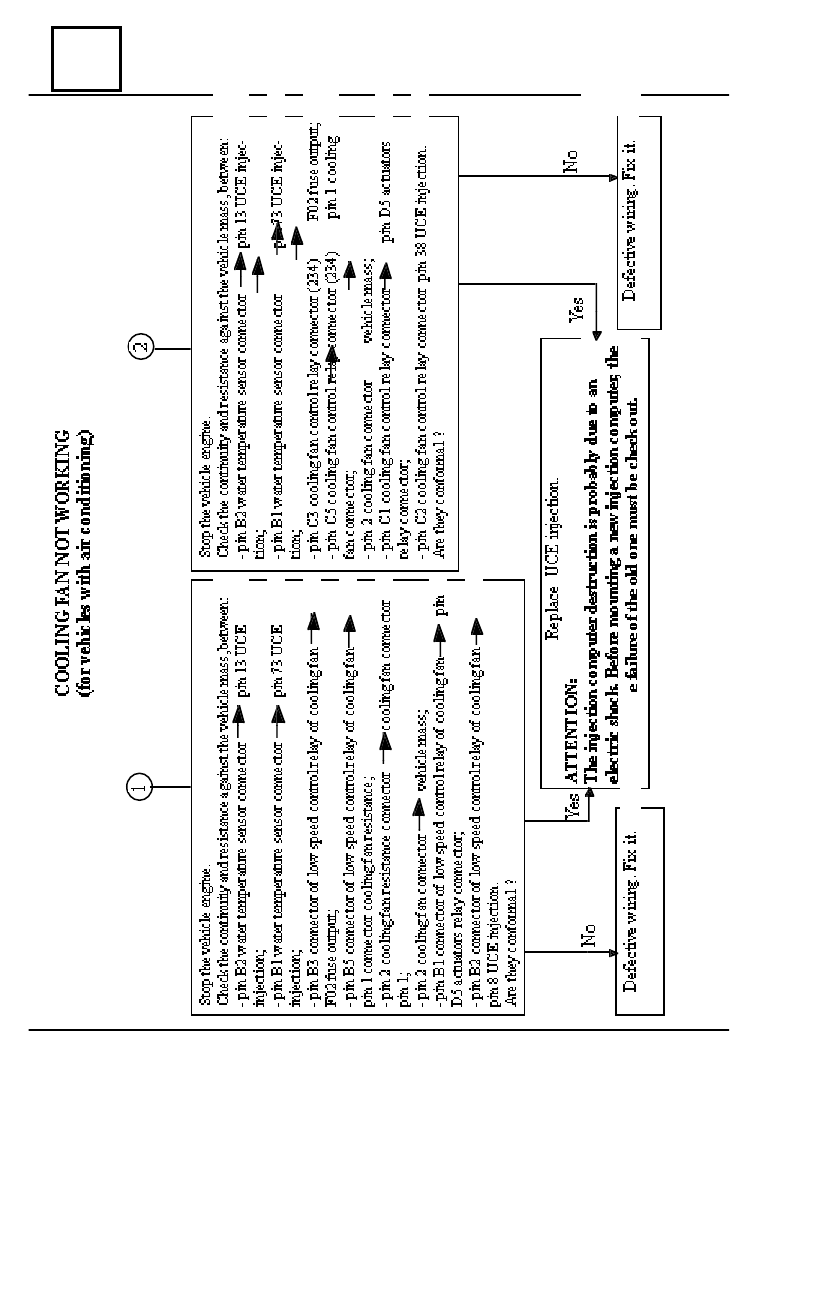

COOLING FAN DIAGNOSTIC

for vehicles with air conditioning

19 - 9

19

COOLING - EXHAUST  - FUEL TANK

RESISTANCE COOLING FAN REPLACEMENT

for vehicles with air conditioning

Description of the operation:
Disconnect the battery (-) terminal.
Disconnect the resistance connector.
Dismount the two attachment screws of the resistance.
Position the new resistance assembly.
Mount the two attachment screws of the resistance (tightening moment 4.5 Nm).
Connect the resistance connector.
Connect the battery (-) terminal. In case the vehicle is equipped with programmable

radio-cassettes player, electronic clock, etc, those are to be re-programmed before return-
ing the vehicle to the client.

Check the engine motor fan operation.

19 - 10

19

COOLING - EXHAUST  - FUEL TANK

COOLING FAN REPLACEMENT

for vehicles without air conditioning

6

5

4

3

7

1

2

DISMOUNTING

Disconnect the (-) plug of the battery.
Disconnect the cooling fan connector (7).
Dismount the three-attachement screws (6) of the cooling fan on the radiator, recovering the

attachement buffers (2), cross-pieces (3) and the washers (4) and (5).

Remove the cooling fan assembly (1).

REMOUNTING

Check the condition of the fan propeller, cooling fan electric motor, bushings and washers.
Tighten the attachement screw (6) of the assembly.
Connect the cooling fan connector (7).
Connect the battery plug (-). In case the vehicle is equipped with progammable radio-

cassettes, electronic clock, etc, these are to be reset before returning the vehicle to the
client.

Check the cooling fan operation: start the vehicle engine and disconnect the water tem-

perature sensor. The cooling fan must start. Reconnect the water temperature sensor, then
by means of the CLIP tester, erase the memorized failure related to the water temperature
sensor.

FAILURES

ERASING

19 - 11

19

COOLING - EXHAUST  - FUEL TANK

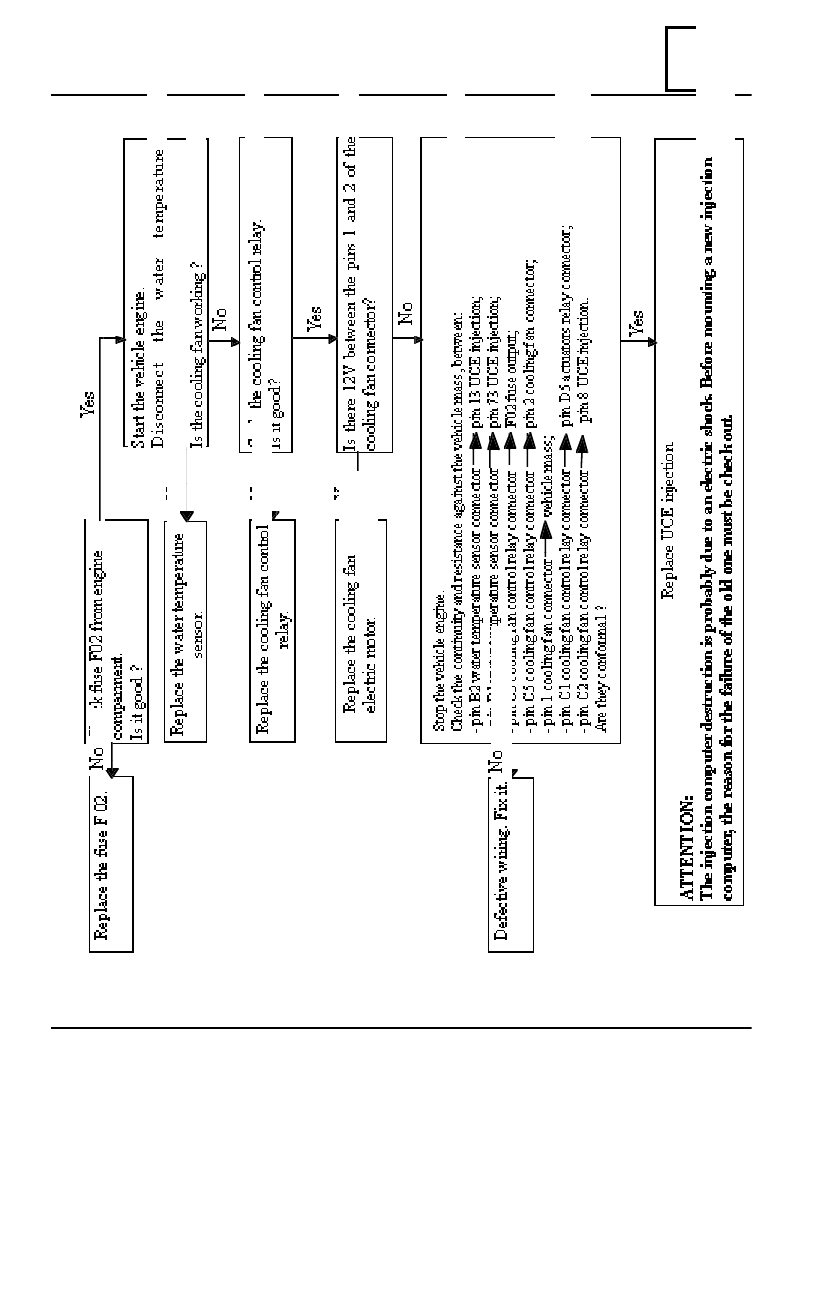

COOLING FAN DIAGNOSTIC

for vehicles without air conditioning
