Dacia SuperNova (engine E7J). Manual - part 2

LIFTING

02

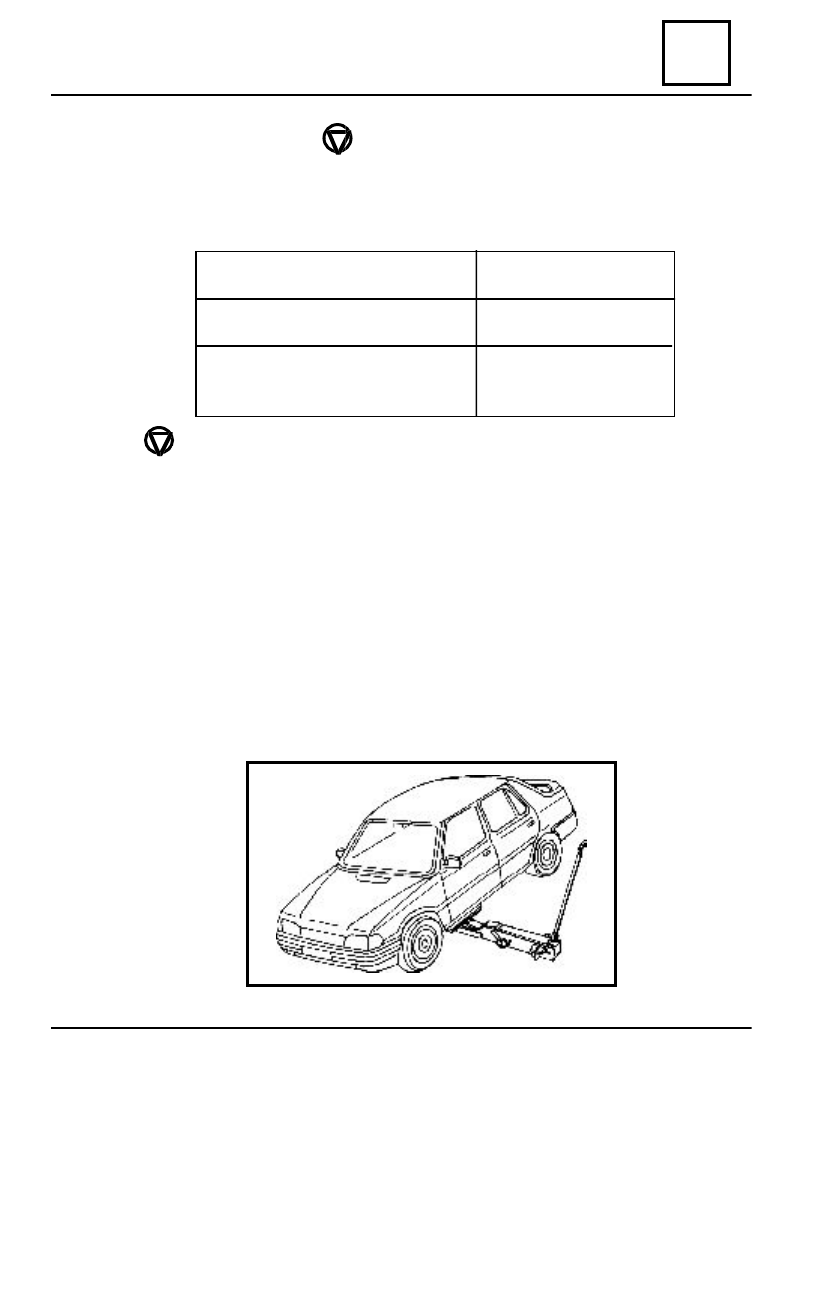

MOBILE JACK - PROTECTION ROUTES

Safety sign

(particularly cautions to be observed in case of an intervention)

SPECIAL TOOLS

DENOMINATION

CODE

Protection route

Cha  280-02

Adjusting socket on mobile jack

Cha 408-01 or
Cha 408-02

The use of a mobile jack implies the necessity of using protection routes.

It absolutely forbidden the vehicle lifting using the front suspension arms or the rear axle as

supporting points.

The following type of mobile jack is using the sockets, the support Cha 408 – 01 or Cha

408 – 02 in order to place the route Cha 280 – 02.

In order to lift the front or rear part of the vehicle, take as support the lifting points used also

for the vehicle jack.

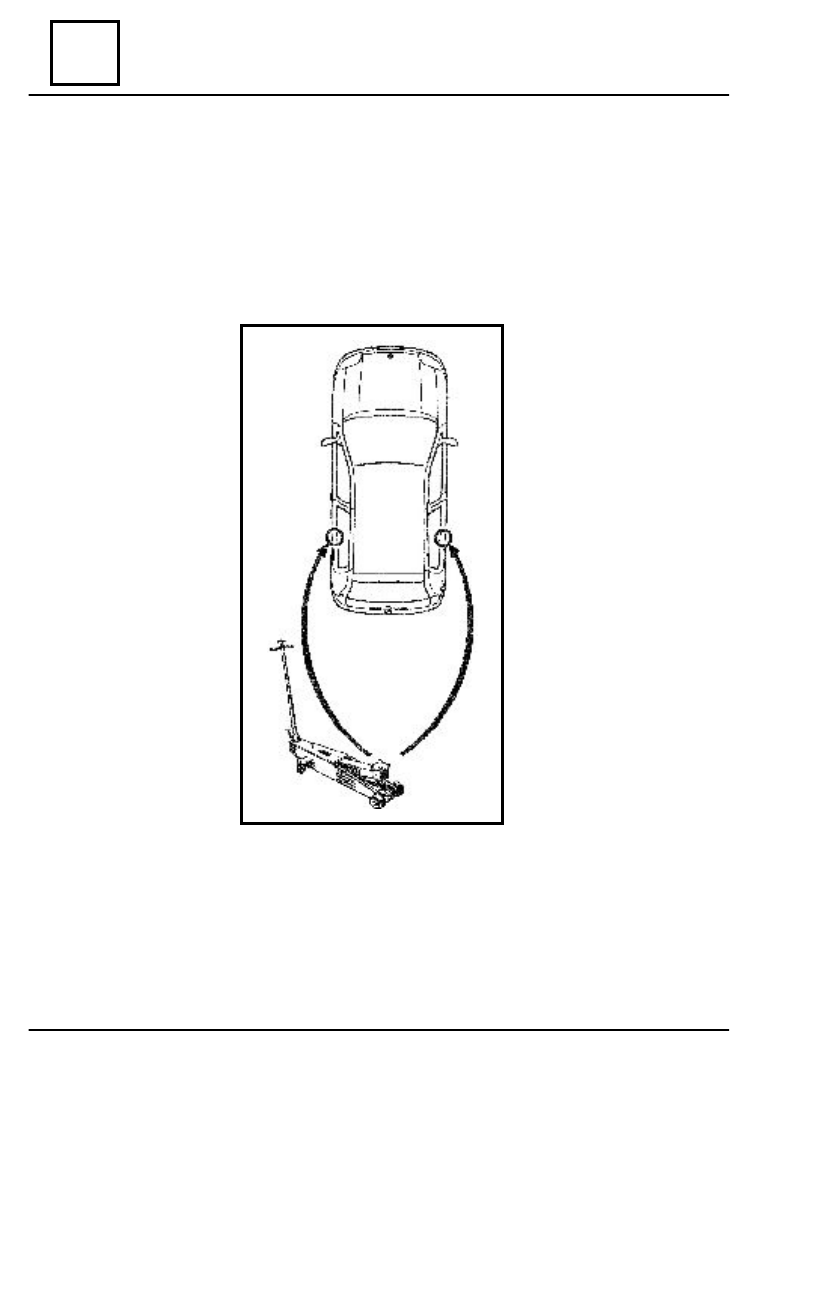

LATERAL MOBILE JACK

Use the CHA 280 hold.
Place it on under the threshold at the front door level.
The floor closing plate shall be positioned in the channel of the hold.

02 - 1

LIFTING

02

MOBILE JACK - PROTECTION ROUTES

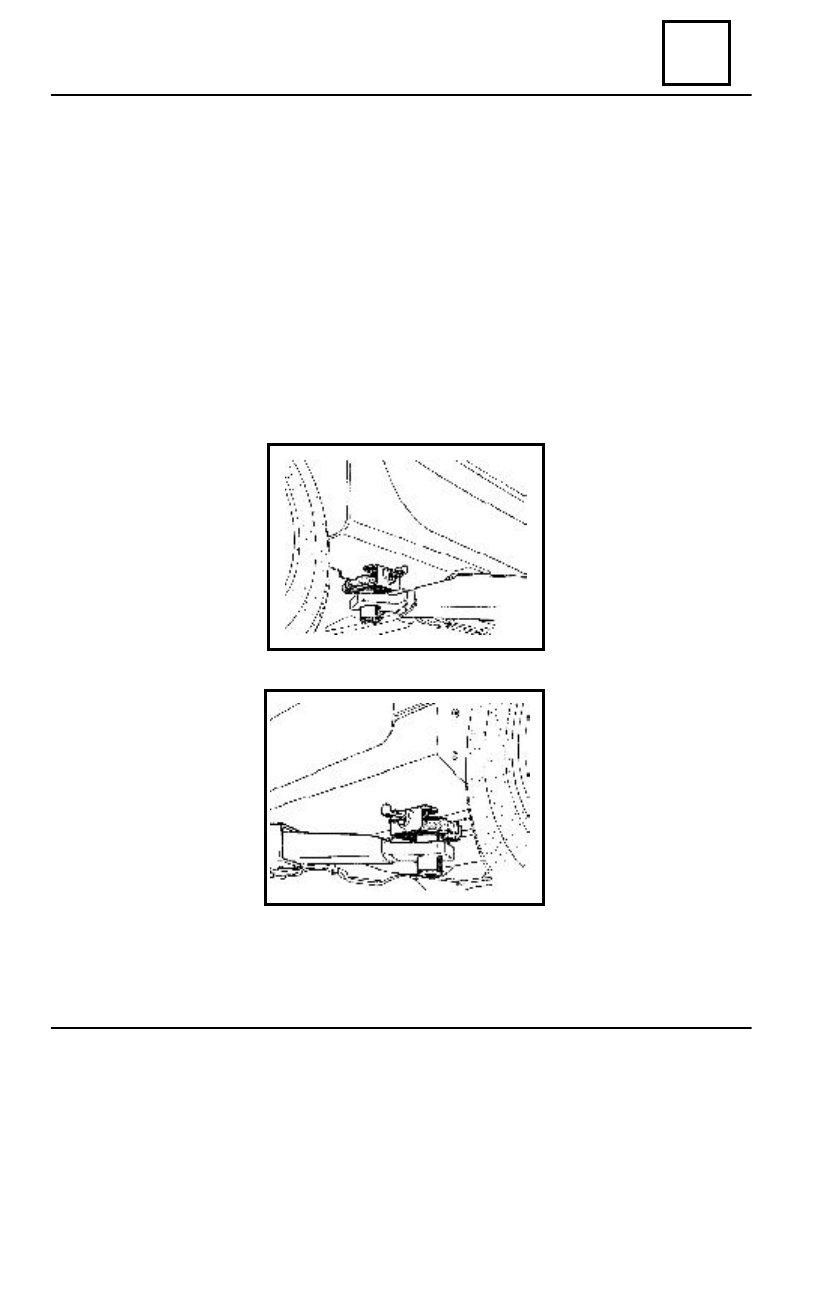

PROTECTION ROUTES

In order to place the vehicle on the protection routes, these are to be obligatory placed either

under the reinforcemen

ts provided for the lifting vehicle with the vehicle jack, or under the supports

placed in behind the reinforcement.

The positioning of the protection routes in the vehicle rear areas is performs by lateral lifting of

the vehicle .

02 - 2

LIFTING

02

ELEVATOR POSITIONED  UNDER THE  CARRIAGE  BODY

Safety sign :

         1. THE DISMOUNTING OF VEHICLE COMPONENTS CASE .

When there are not available four columns elevators, two columns elevators may be used, in

this case, lifting slides shall be placed under the floor closing plate, at the supporting points level
of the vehicle jack.

2. THE PARTICULARLY CASE OF DISMOUNTING – REMOUNTING OF THE

ENGINE-GEARBOX ASSEMBLY.

In this specific case, the vehicle carriage  body shall be consolidated with the two columns

elevator arms using special slides.

These must be obligatory placed at the right of the supporting points of the vehicle jack and

must be locked in the holes/windows made in the floor closing plate.

02 - 3

Front

Rear

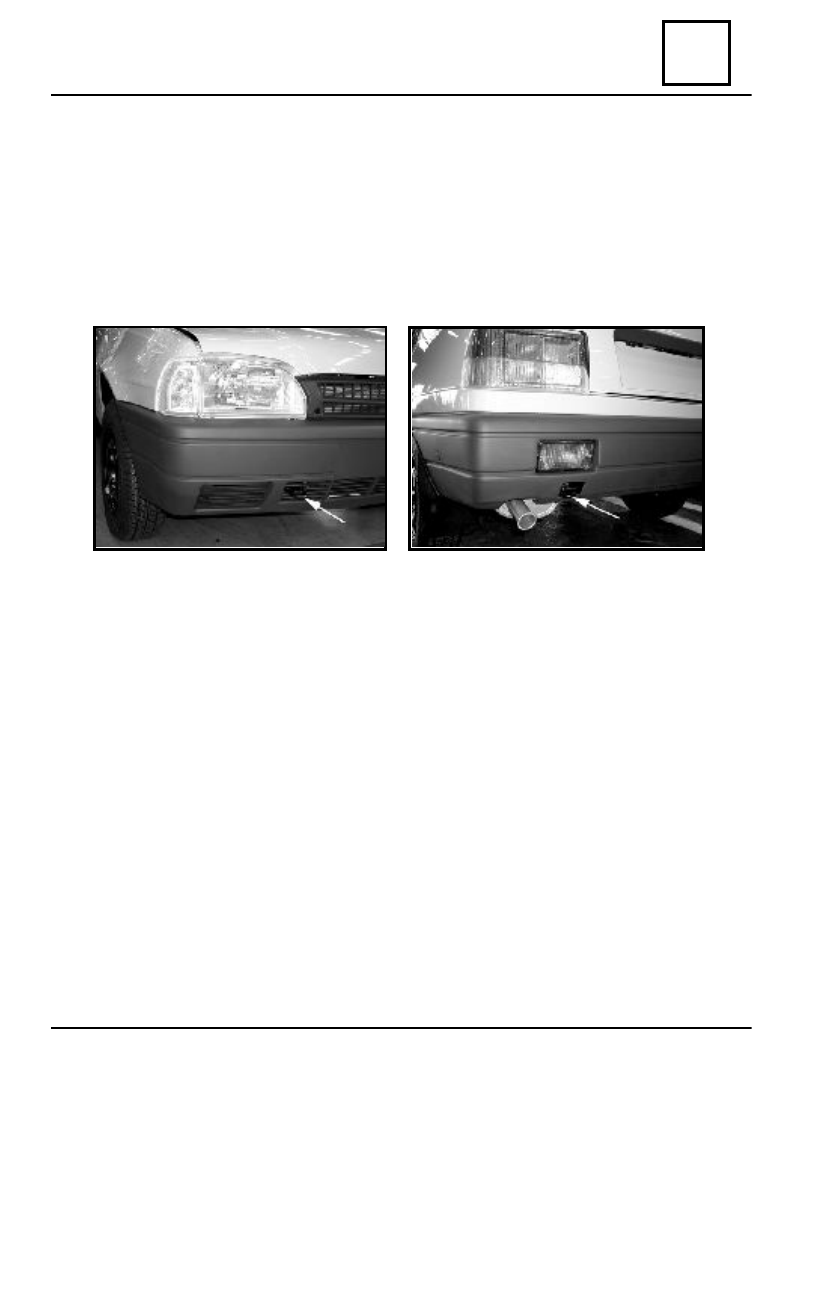

TOWING

03

Front (right)

Rear (left)

03 - 1

NEVER U SE AS TOWIN G POIN TS, THE TRANSMI SS ION  AXLES

(PLANETARY SHAFTS)

The towing points, front, or rear, are to be used only for vehicles towing on  wheels.
These points cannot be anyhow used for drawing out the damaged vehicle from a trench

(hole), or for direct or indirect vehicle lifting on a transport platform.

ALL TYPES
