Dacia Solenza (engine E7J). Manual - part 206

89

ELECTRIC DIAGRAMS

89 - 31

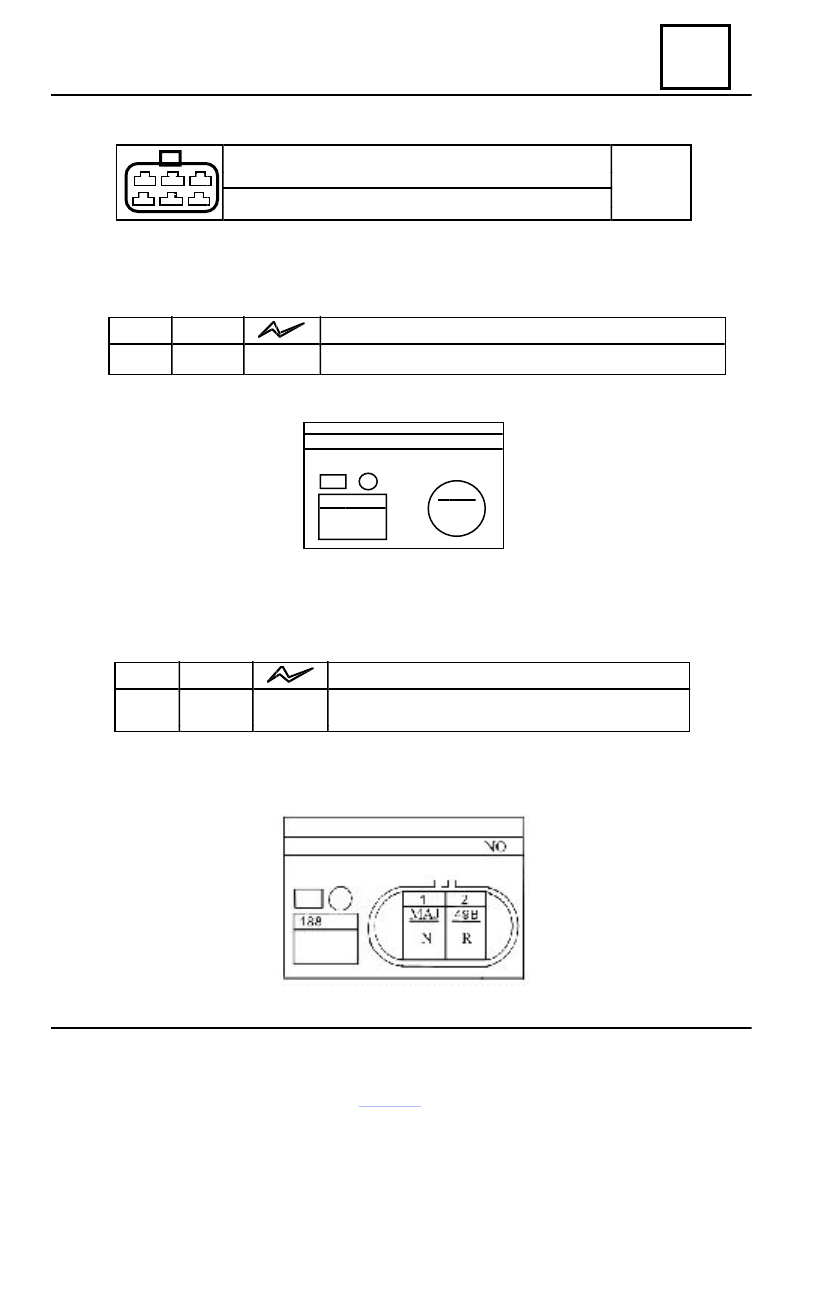

 ENGINE COOLING FAN

(for vehicles without air conditioning)

ENGINE WIRING

E7J262

X412

04

 AIR CONDITIONING COMPRESSOR CLUTCH

38R

X

NO

1 7 1

Position

Section

Destination

1

1,0

  38R          CONTROL +AIR C

ONDITIONING COMPRESSOR CLUTCH

1

2,0

MAJ

 MASS

2

2,0

49B

 CONTROL + ENGINE COOLING FAN

Position

Section

Destination

Wires functions  in connectors and couplings

89

ELECTRIC DIAGRAMS

89 - 32

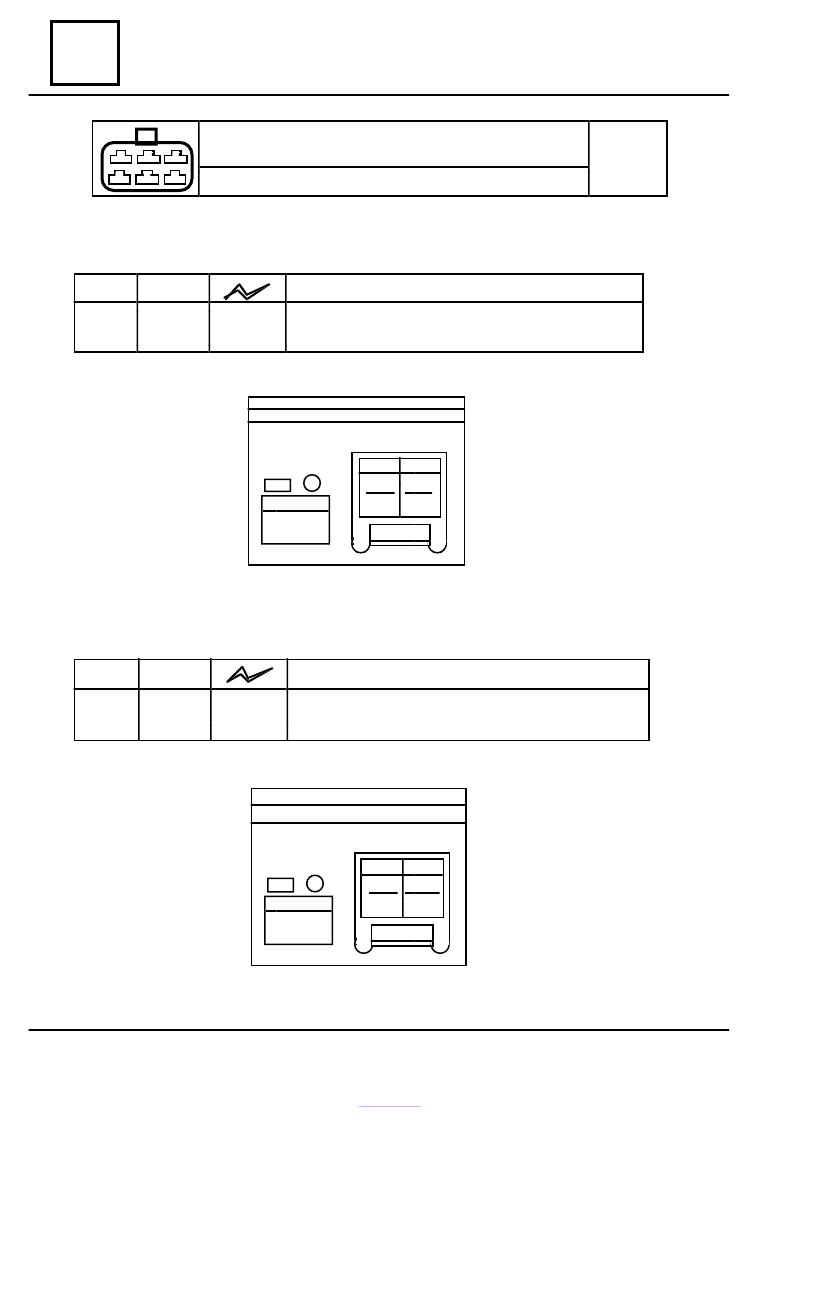

ENGINE WIRING

E7J262

X412

04

 INJECTOR 1

 INJECTOR 2

Position

Section

Destination

1

1,0

3NR

+ INJECTORS > OUTLE

T ACTUATORS  RELAY

2

1,0

3CS

CONTROL - INJECTOR 2

Position

Section

Destination

1

1,0

3NR

+ INJECTORS > OUTLE

T ACTUATORS  RELAY

2

1,0

3CR

CONTROL - INJECTOR 1

CY2AE

BA

3NR

X



1             2

3CR

X

      193

CY2AE

BA

      194

3NR

X

 1             2

3CS

X

Wires functions  in connectors and couplings

89

ELECTRIC DIAGRAMS

89 - 33

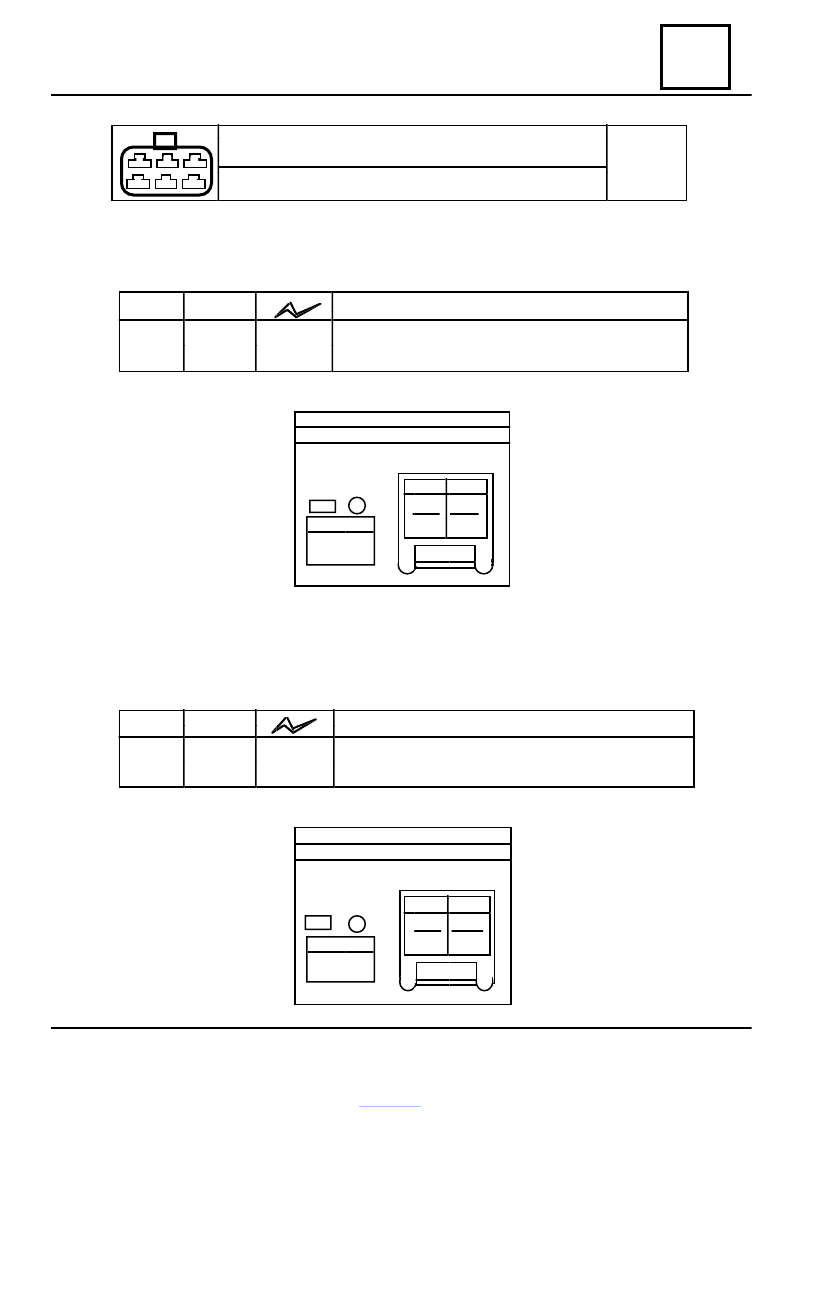

 INJECTOR 3

 INJECTOR 4

CY2AE

BA

3NR

X

1

2

3CU

X

      196

ENGINE WIRING

E7J262

X412

04

Position

Section

Destination

1

1,0

3NR

+ INJECTORS > OUTLE

T ACTUATORS  RELAY

2

1,0

3CT

CONTROL - INJECTOR 3

CY2AE

BA

3NR

X

1

2

3CT

X

1 9 5

Position

Section

Destination

1

1,0

   3NR

+ INJECTORS > OUTLE

T ACTUATORS  RELAY

2

1,0

   3CU

CONTROL - INJECTOR 4

Wires functions  in connectors and couplings

89

ELECTRIC DIAGRAMS

89 - 34

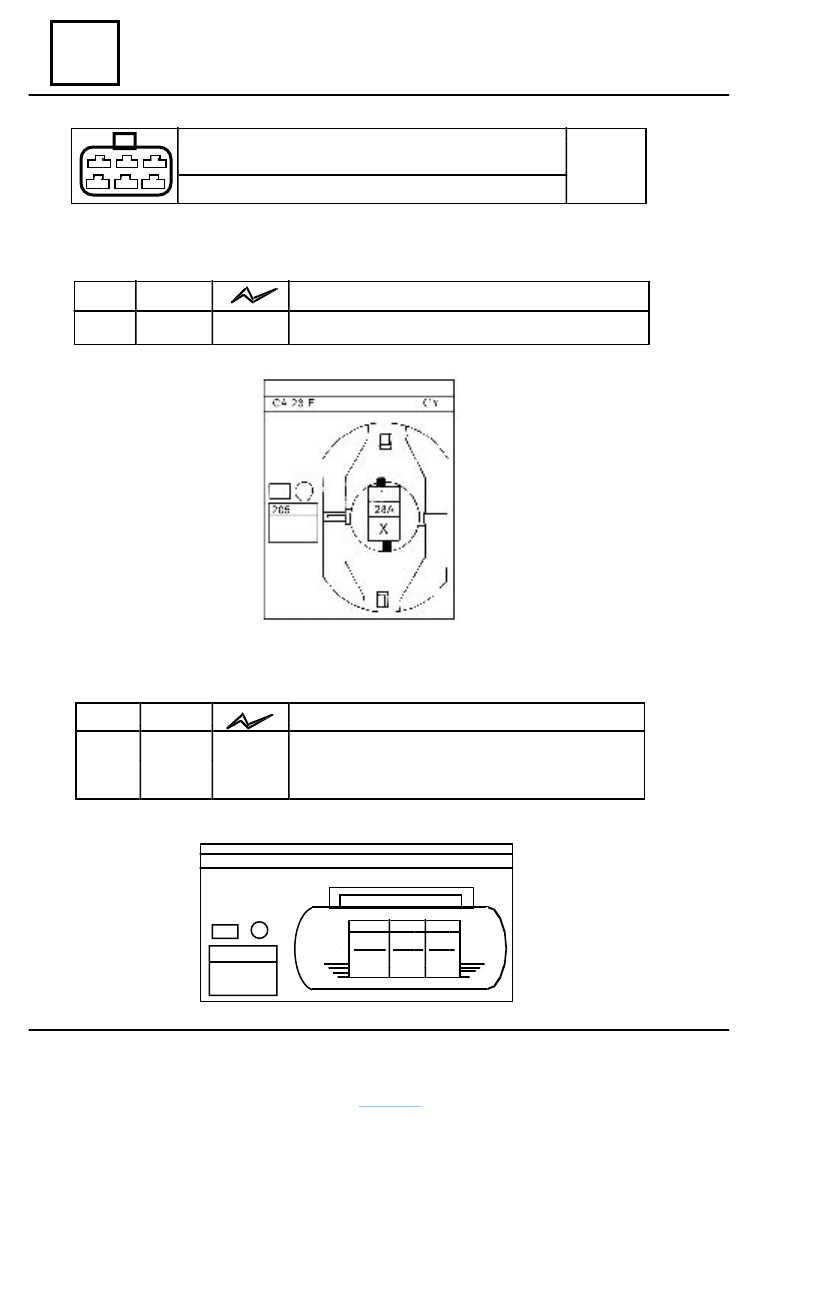

 OIL PRESSURE TRANSMITTER

Position

Section

Destination

1

0,60

28A

CONTROL -OIL PRESSURE INDICA

TOR

 POTENTIOMETER VALVE



  CM1PE

                                                       NO

      222

3JL

3AQ

A

B

C

3AJ

X

X

X

ENGINE WIRING

E7J262

X412

04

Position

Section

Destination

A

0,60

  3JL

MASS POTENTIOMETER VALVE

B

0,60

  3AQ

SIGNAL + POTENTIOMETER VALVE

C

0,60

  3AJ

SIGNAL + VALVE POSITION POTENTIOMETER

Wires functions in connectors and couplings
