ELECTRIC DIAGRAMS

89 - 60

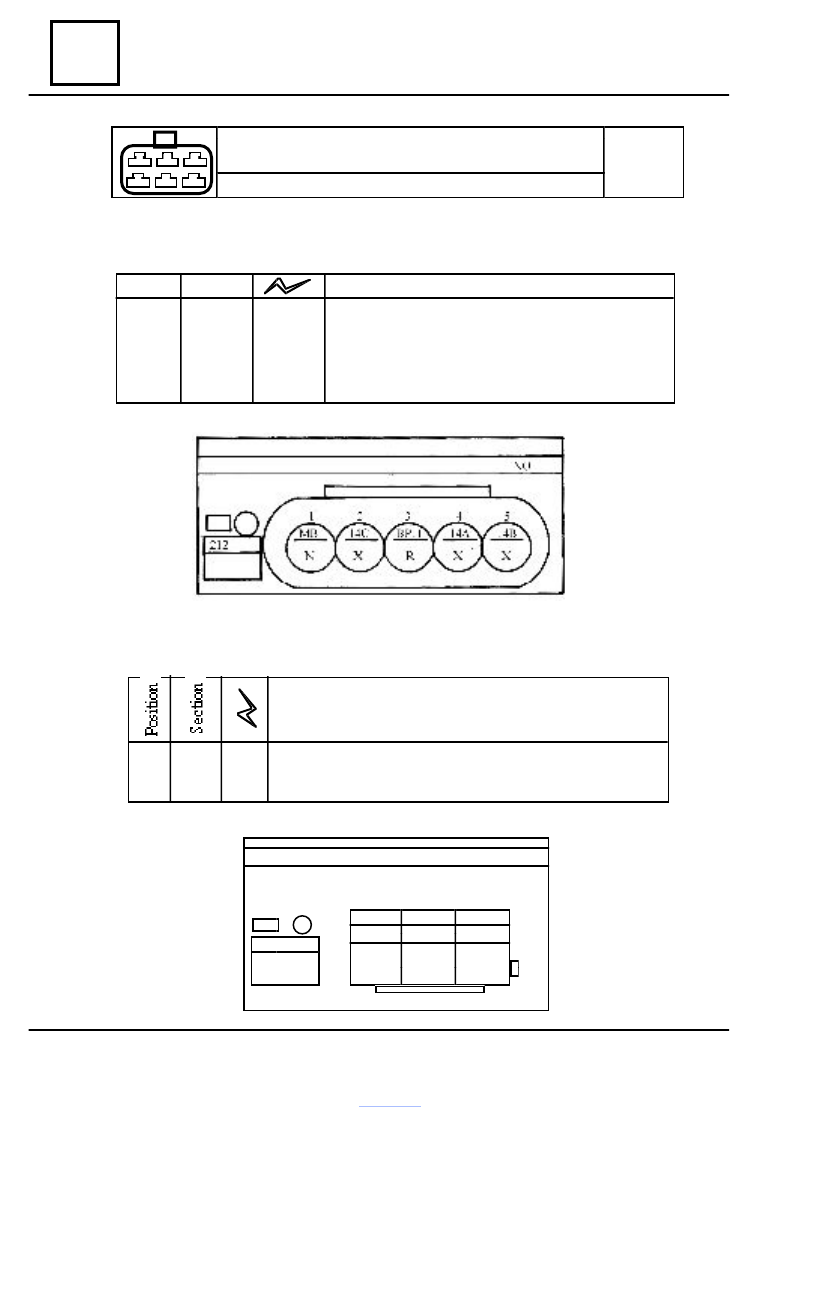

WINDSCREEN WIPER MOTOR

CEILING LIGHT

FRONT WIRING – DASHBOARD

X412

03

Position

Section

Destination

1

1.0

MB

MASS

2

0.6

14C

CONTROL + FIX

POINT STOPPING

3

1.0

BP11

+ PROTECTED BA

TTERY > OUTLET FUSE  F02

4

0.6

14A

CONTROL +

LOW SPEED WINDSCREEN

WIPER

5

1.0

14B

CONTROL + HIGH SPEED WINDSCREEN

WIPER

1

0.35

M K

MASS

2

0.35

BP11

+ PROTECTED

BATTERY CEILING LIGHT >  OUTLET FUSE  F02

3

0.6

13C

CONTROL - CEILING LIGHT

Destination

        CY

    213

3









         2                  1

13C            BP11              MK



  X         R         N



   Wires functions  in connectors and couplings

89

ELECTRIC DIAGRAMS

89 - 61

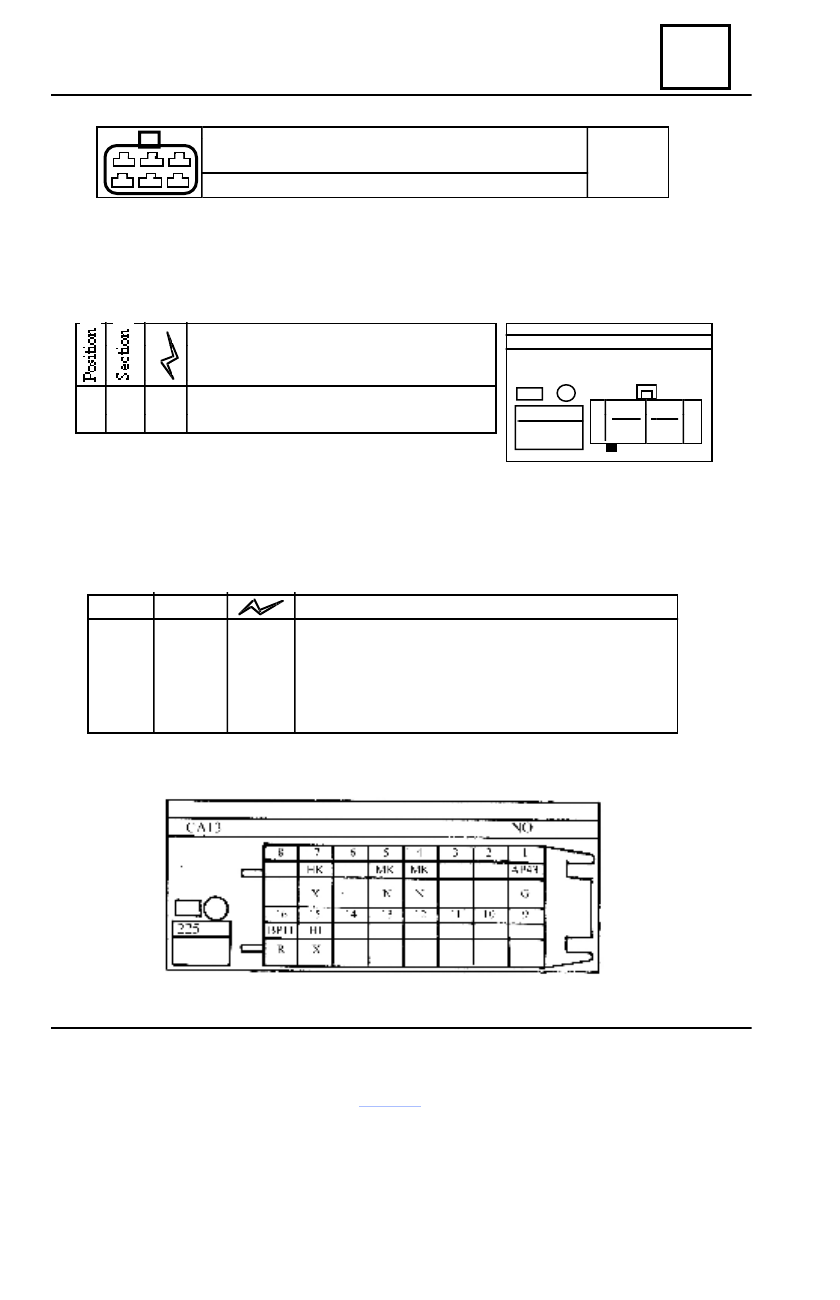

WINDSCREEN WASHING PUMP

DIAGNOSIS SOCKET

FRONT WIRING – DASHBOARD

X412

03

NO

  221

M B

N

16A

X

1

2

Destination

1

0.6

M B

MASS

2

0.6

16A

CONTROL + WINDSCREEN WASHING  PUMP

1

0.6

AP43

+ AFTER PROTECTED CONT

ACT > OUTLET FUSE F04

4

0.6

MK

MASS

5

0.6

MK

MASS

7

0.35

HK

DIAGNOSIS SIGNAL

 - LINE K

15

0.35

HL

DIAGNOSIS SIGN

AL - LINE L

16

0.35

BP11

+ PROTECTED BA

TTERY > OUTLET FUSE  F02

Position

Section

Destination

Wires functions  in connectors and couplings

89

ELECTRIC DIAGRAMS

89 - 62

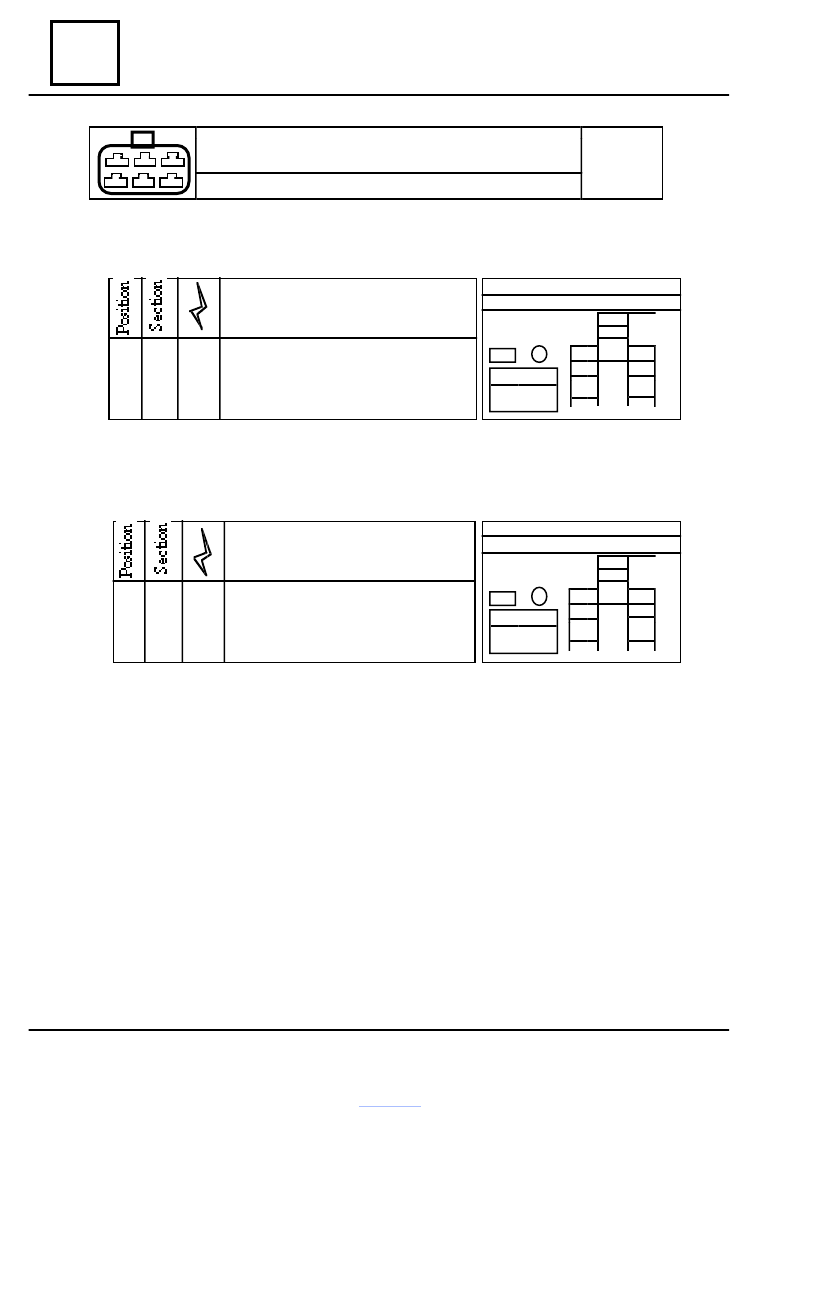

FRONT WIRING – DASHBOARD

X412

03

RIGHT HEADLAMP

LEFT HEADLAMP

1

0.6

M B

MASS

2

0.6

CPD

RIGHT MEETING HEADLIGHTS
PROTECTED > OUTLET FUSE  F09

3

0.6

RPD

RIGHT ROAD LIGHTS
PROTECTED > OUTLET FUSE  F11

Destination

  BA

N

1

MB

2

X

3

RPD

CD8F

CPD

X

       226

1

0.6

M B

MASS

2

0.6

CPG

LEFT MEETING HEADLIGHTS
PROTECTED > OUTLET FUSE  F08

3

0.6

RPG

LEFT ROAD LIGHTS
PROTECTED > OUTLET F10

Destination

  BA

N

1

MB

2

X

3

RPG

CD8F

CPG

X

       227



   Wires functions  in connectors and couplings

89

ELECTRIC DIAGRAMS

89 - 63

FRONT WIRING – DASHBOARD

X412

03

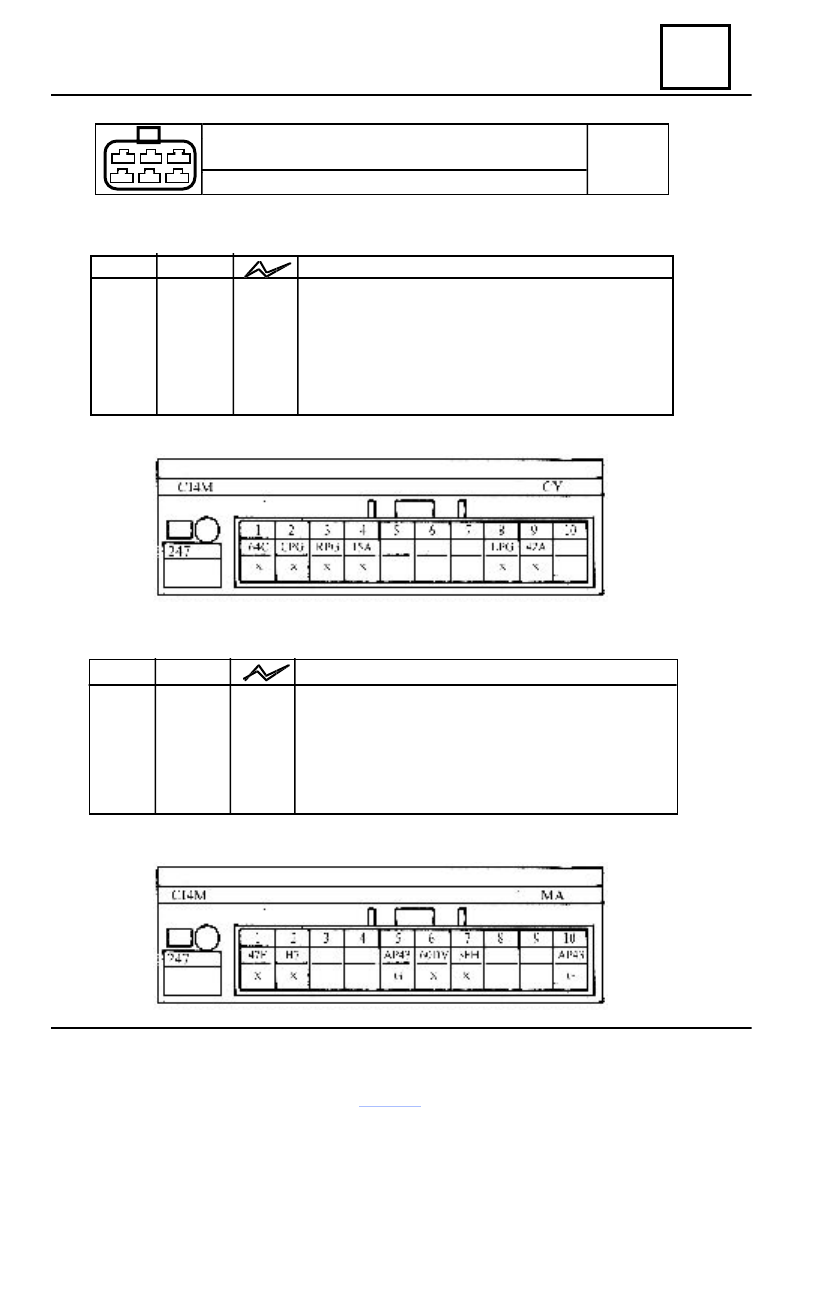

INSTRUMENT PANEL

                         *- for EURO 2000

 1

0.35

64C

CONTROL LEFT TURNING LIGHTS

 2

0.35

CPG

PROTECTED LEFT MEETING HEADLIGHTS > INDICATOR

 3

0.35

RPG

PROTECTED LEFT ROAD LIGHTS > INDICATOR

 4

0.35

15A

CONTROL – REAR WINDOW DEFROSTING INDICA

TOR

 6

0.35

129A

CONTROL- AIRBAG FAILURE INDICA

TOR

 8

0.35

LPG

+ LEFT PARKING LIGHTS > OUTLET FUSE  F14

 9

0.35

42A

SIGNAL + WATER TEMPERATURE

Position

Section

Destination

 1

0.35

47F

VEHICLE SPEED SIGNAL

 2

0.35

H7

RPM SIGNAL > INJECTION COMPUTER

 5

0.6

AP43

+ AFTER PROTECTED CONT

ACT > OUTLET FUSE F04

 6

0.35

60DV

DRIVER SAFETY BEL

T INDICATOR MASS

 7*

0.35

3FH

CONTROL - ANTI-POLLUTION

FAILURE INDICATOR

10

0.6

AP43

+ AFTER PROTECTED CONT

ACT > OUTLET FUSE F04

Position

Section

Destination

129A

X

Wires functions  in connectors and couplings
