Dacia Solenza (engine E7J). Manual - part 162

87

ELECTRICAL ASSISANCE EQUIPEMENT

87 - 8

Diagnostic  - General

CONNECTION (the most complete)



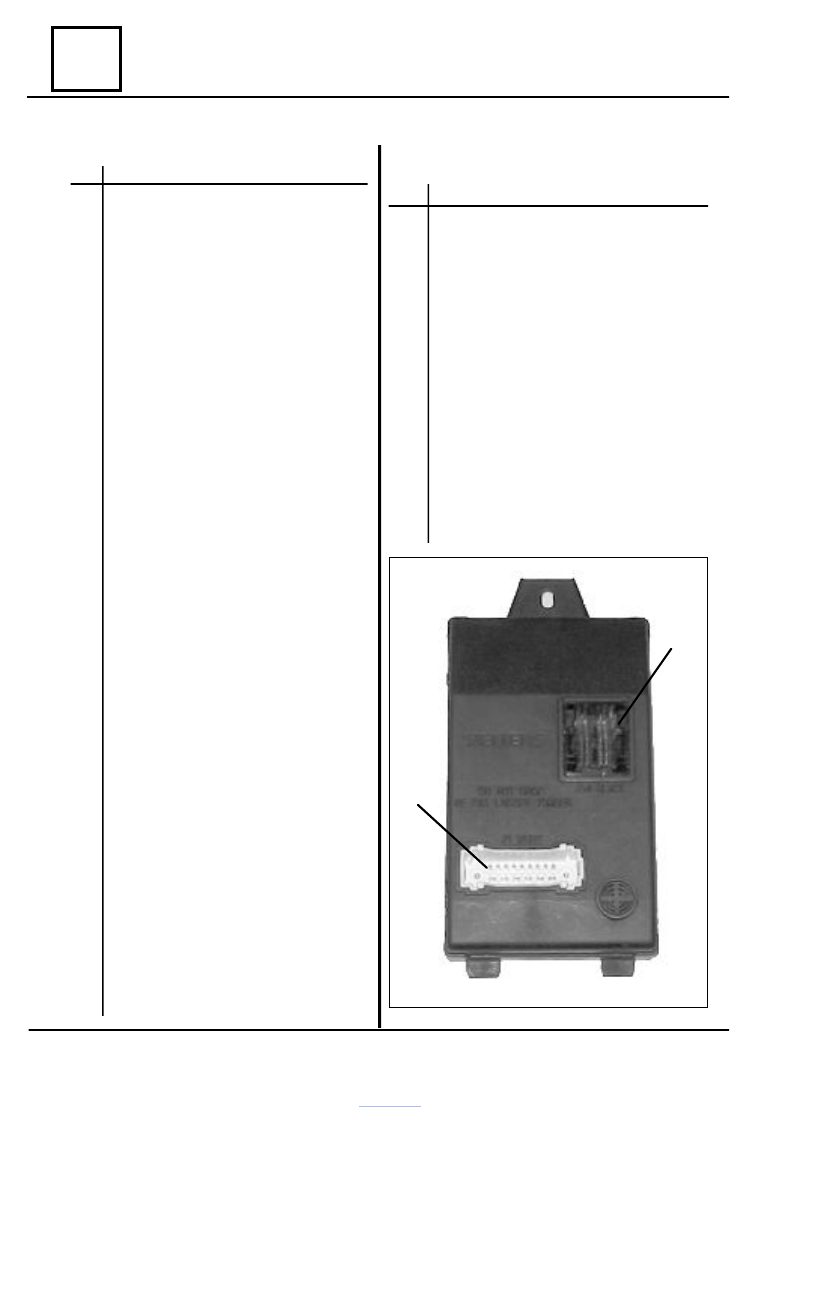

Black connector EH1 ( 40 pins)

PIN                     DENOMINATION

1

Not used

2

Not used

3

Not used

4

Not used

5

Not used

6

Not used

7

Not used

8

Doors locking switch inlet
(doors unlocking control)

9

Not used

10

Not used

11

Not used

12

Not used

13

Not used

14

Not used

15

Parking lights inlet

16

Decoding bushing inlet

17

Doors locking switch inlet
(doors locking control)

18

Not used

19

Not used

20

Not used

21

Not used

22

+ After contact

23

Not used

24

Windscreen wiper timer inlet

25

Not used

26

Left turning inlet

27

Not used

28

Right turning inlet

29

Not used

30

Not used

31

Not used

32

Anti-starting indicator inlet

33

Hazard lights inlet

34

Diagnostic line K

35

Not used

36

Engine anti-starting outlet

37

Not used

38

Not used

39

Not used

40

Driver’s door contact inlet

White connector P1 (15 pins)

PIN                   DENOMINATION
A1

Mass

A2

Ceiling lamp outlet

A3

+ Before contact

A4

Windscreen wiper control

A 5

Windscreen wiper supply (+ after
contact)

A 6

Windscreen wiper fix point stopping

A 7

Not used

A8

Right turning outlet

A9

Left turning outlet

B1

Not used

B2

Doors locking outlet

B3

Doors locking/unlocking supply

B4

Doors unlocking outlet

B5

Ceiling amp timer outlet

B6

Ceiling lamp supply

P1

EH1

87

ELECTRICAL ASSISANCE EQUIPEMENT

87 - 9

Diagnostic  - General

DISMOUNTING – REMOUNTING

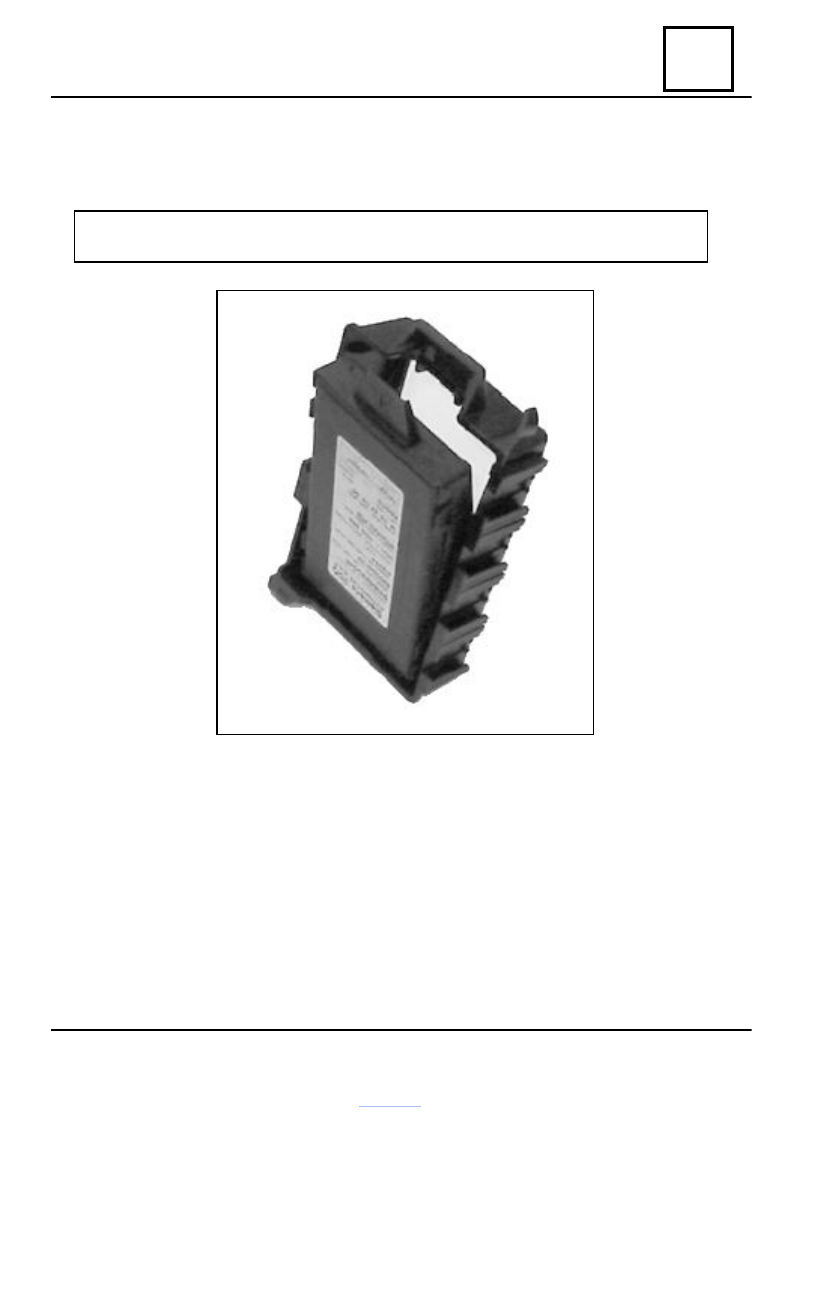

Cockpit central Unit is attached by clips in its support.

IMPORTANT: the support of Cockpit Central Unit must be not dismounted because

there is the risk of damage it. Dismounting implies therefore its replacement.

87

ELECTRICAL ASSISANCE EQUIPEMENT

87 - 10

Diagnostic – general

Configuration

automatic

automatic

Type of Cockpit

Central Unit

Only at  N4

Only at  N4

Denomination and symbol on CLIP tester

Ceiling lamp timing (LC021)

Radio-frequency function (LC089)

GENERAL CONFIGURATIONS OF THE COCKPIT CENTRAL UNIT

There are the following possible configurations of the cockpit Central Unit:

INTERFACE  BOX  CONFIGURATION

This is performed by means of the CLIP tester, as follows:

〈 With the contact set on, enter in dialogue with the vehicle.
〈 Select and validate menu “ Interface box”
〈 In menu “Control module”, validate line “Configuration”.
〈 Select control : “CF716 : type N2”  or

                                    “CF010 :  type N4”

〈 the following message shall be displayed: “Do you wish to continue?”
〈 Select “yes”, then perform the automatic configuration.

- For Cockpit central Unit “base range” or “N2”
    Configuration ceiling lamp with timer

 without

    Configuration radio frequency function

             without

- For Cockpit central Unit “high range” or “N4”
    Configuration ceiling lamp with timer

  with

    Configuration radio frequency function                       with

〈 Check then the configurations in menu “ Configuration reading”

87

ELECTRICAL ASSISANCE EQUIPEMENT

87 - 11

Diagnostic – Failures interpretation

DF119

MEMORIZED

         WINDSCREEN WIPER FIX POINT STOPPING

Diagnostic application conditions to the memorized failure:

RECOMMENDATIONS

- failure declared present further to wiper control
REMARK: wipers random operation in timing position
(timing non-respected)

Check that fix point stopping state ET 005 is  active each time when wipers blades reach the
pause position and then pass  to inactive.

Check the branching and the state of connectors of the Cockpit Central Unit.
Replace the connector, if necessary.

Check the insulation, continuity and absence of parasite resistance of lines:
    Pin A6 of UCH connector P1

 pin 2 windscreen wiper motor

                                        Mass

 pin 1 windscreen wiper motor

Fix if necessary.

Check connection and condition of the connector of the windscreen wiper motor
Check the windscreen wiper motor
Check the windscreen wiper mounting
Replace, eventually, the wiper motor.

Apply the recommendation

AFTER REPAIRING

Fix all others failures
Erase the memorized failures.
