Dacia Solenza (engine E7J). Manual - part 113

57

57  - 4

INSIDE ACCESSORIES

19

20

17

16

15

18

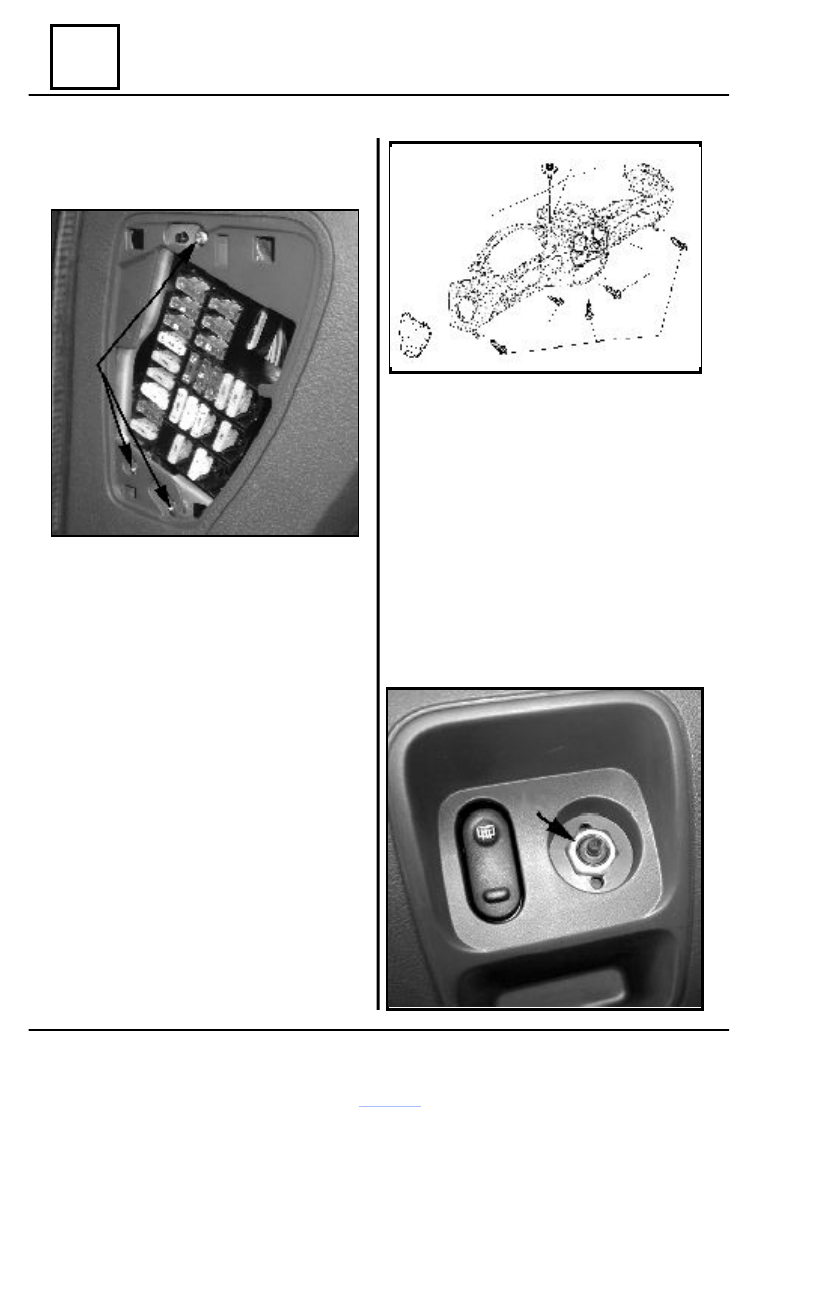

Remove the access cover of the fuse box.
Dismount the three attachment screws (14)

of the fuse box.

21

14

 Remove the access cover to the fuse box.
Swing over the little caps from the dashboard

lower part and dismount the attachment screws
(15) on the driving post cross member.

Dismount :

- attachment screws (16) of the climate

maintenance panel on the lower part dashboard;

- attachment screw (17) of the lower part

dashboard on the vent-AC distributor (RACV);

- attachment screws (18) of the lower part

dashboard on the driving post cross member;

- upper attachment screws (19) of the

lower part dashboard on the driving post cross
member.

Extract :

- headlamps adjustment knob;
- cigarette lighter.

Detach from  clips the  connectors:

- hazard;
- rear window defrosting.

Disconnect the connectors:

- cigarette lighter;
- rear window defrosting.

Dismount the attachment nut (21) of the

headlamps adjustment control.

Disconnect the connectors:

- hazard;
- climate maintenance control.

Detach from clips the left and right side

aeration ducts.

Take out the dashboard from cockpit.

Dashboard

57

57  - 5

INSIDE ACCESSORIES

REMOUNTING

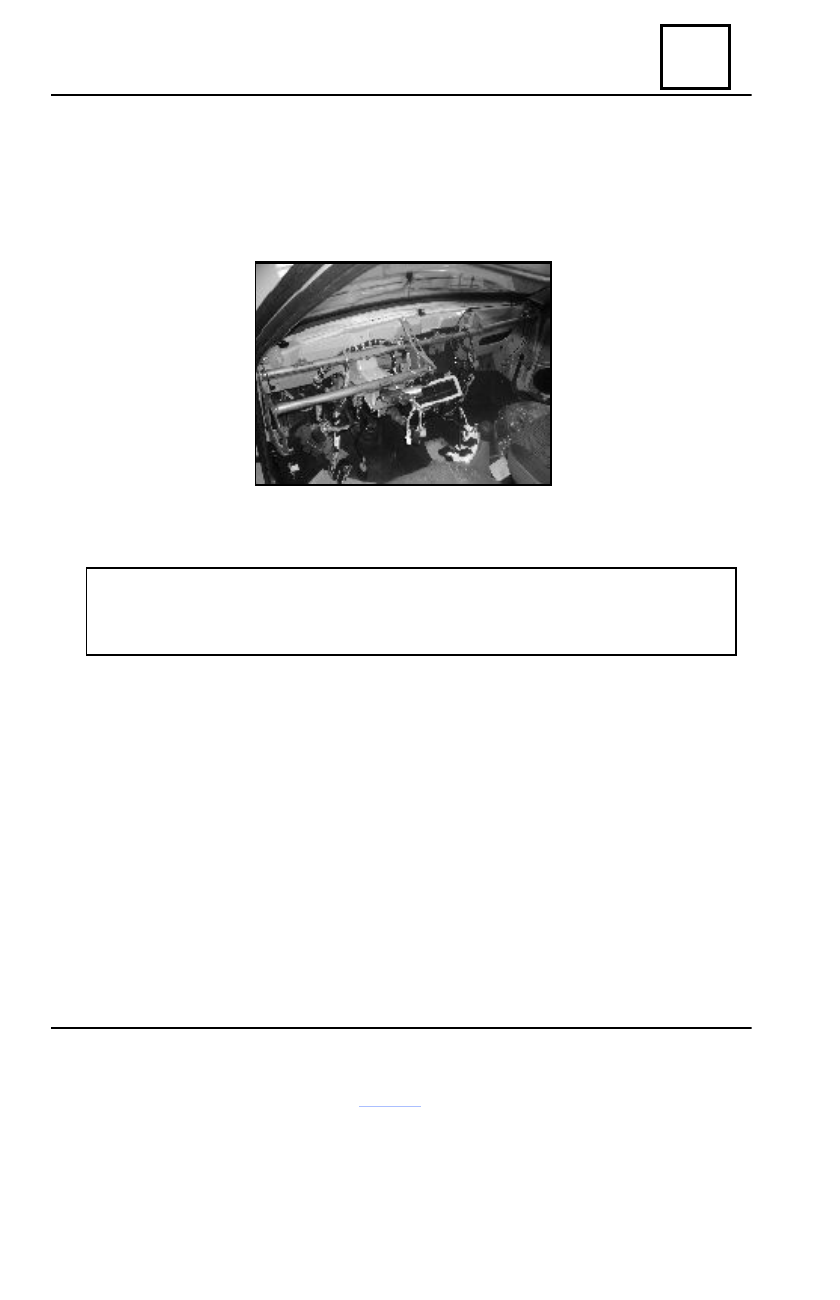

Perform the dismounting operations in the reverse order, taking into consideration the follow-

ing recommendations:

- ensure that steering is at middle point (wheels are in a direct line);
- mounting of the lower part dashboard is to be performed by guiding it on a centering part

placed on  the driving post cross  beam;

- steering wheel must freely enter in grooves;
- check the operation of the dashboard instruments and switches.

ATTENTION :
After each steering wheel dismounting, its attachment screw is to be replaced, ob-

serving the required tightening moment of 4.4 daNm.

Dashboard

57

57  - 6

INSIDE ACCESSORIES

Dashboard

Airbag

Important!
Before reconnecting the driver’s airbag connector, it  is necessary to  apply a  checking

procedure of the system:

- Check if airbag indicator from the instrument panel is on, when the contact is set

on.

- Connect the igniter to the airbag connector (to the wiring) and check if the airbag

indicator is off.

- Set the contact off, connect the airbag connector instead of the inert igniter and

attach the airbag on the steering wheel (requiret tightening moment is 0.65 daNm).

After remounting, perform the system checking by means of the CLIP tester.
If everything is correct, unblock the UCE airbag (see chapter 88 “Unblocking UCE

airbag”).

If  is not correct, see chapter “Diagnostic”.
- Check if the airbag indicator from the instrument panel is on for 3 seconds from

setting the contact on, then it is off and is remaining off.

ATTENTION!
Non-observing of prevision prescriptions may cause un abnormal operation of the

system, leading to the airbag undesirable starting.

57

57  - 7

INSIDE ACCESSORIES

DISMOUNTING

Upper attachment:

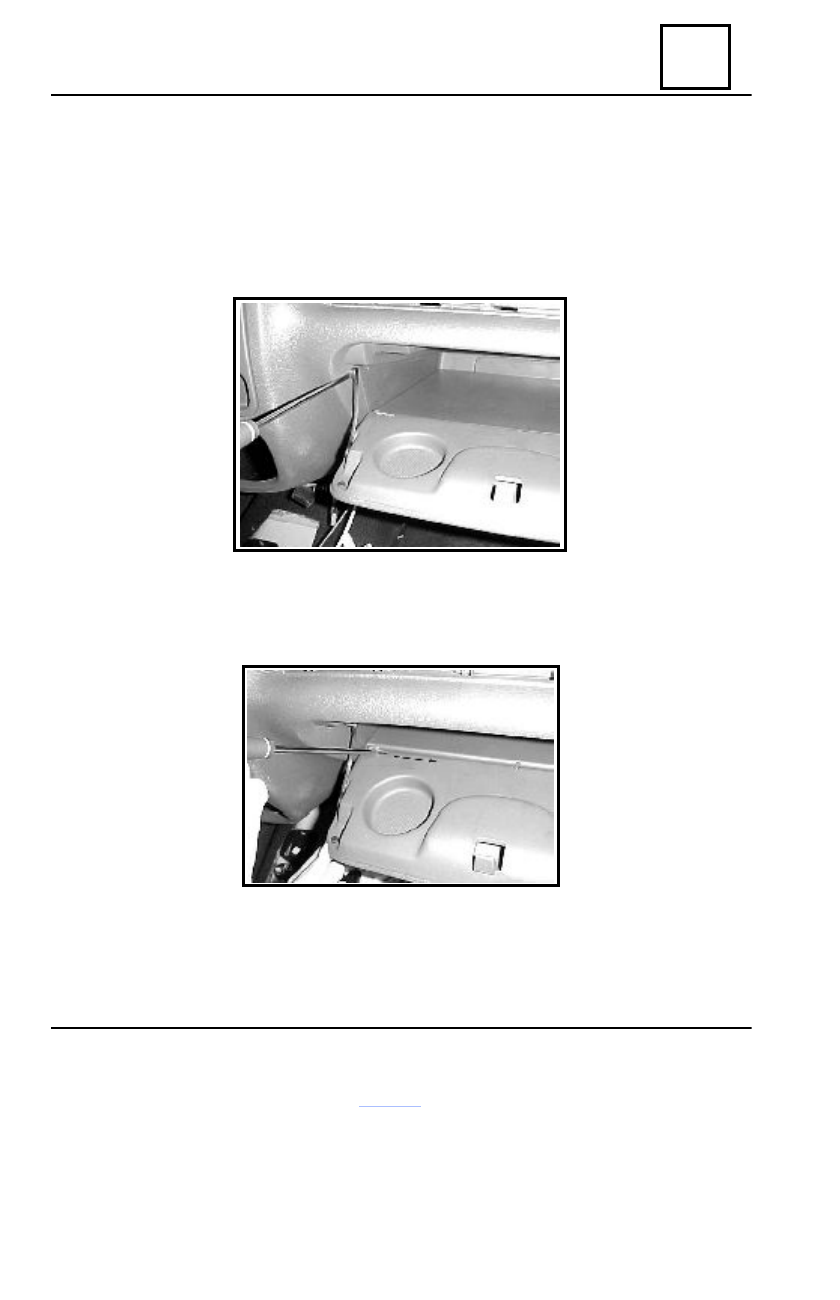

By means of a screwdriver, detach from clips the limiting wire for documents compartment

door’s opening from lower part dashboard.

Lower attachment:
Push the plastic  pin to the right  side of driving post (in the arrow direction) and release the

documents compartment door from the lower part dashboard.

REMOUNTING

Perform the dismounting operations in the reverse order.

Documents compartment door
