CLUTCH

20

20 - 8

SPECIAL TOOLS

MOT 582        Flywheel immobilizing sector

.

Engine flywheel

TIGHTENING MOMENTS (daNm)

Flywheel screws

5 ÷  5,5

REPLACEMENT

   This operation is to be performed after dismounting the clutch mechanism and the gearbox.

DISMOUNTING

Mount the immobilizing sector MOT 582.
Dismount the flywheel attachment screws.
The screws are not to be reused.
Dismount the engine flywheel.

REMOUNTING

Clean the holes thread from the crankshaft by means of a dry gauze.
Degrease the flywheel seating surfaces on the crankshaft.
Mount the flywheel with new screws (the screws thread shall be lubricated with

LOCTITE FRENETANCH).

Tighten the screws to the required moment.
Dismount the immobilizing sector MOT 582

REMARK
The flywheel attachment screws are to be replaced after each dismounting.

CV JH3 - 051

21

MECHANICAL GEARBOX

21 - 1

Sectional view

CV JH3 - 051

21

MECHANICAL GEARBOX

21 - 2

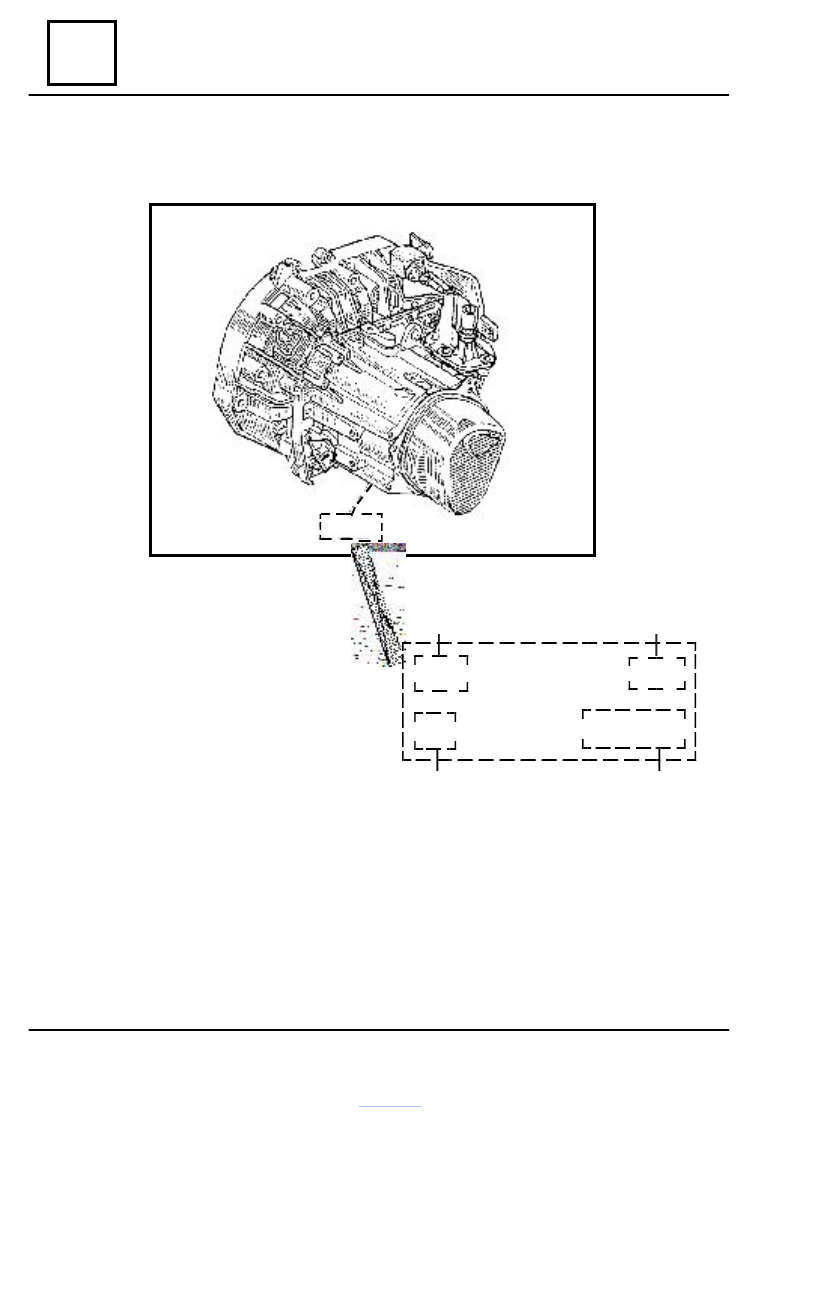

Identification

A  - type of gearbox
B – index of gearbox
C – manufacturer’s series
D – the code for the manufacturing

000

000

 0

    000000

A



   B

D



C

CV JH3 - 051

21

MECHANICAL GEARBOX

21 - 3

 Tightening moments in daNm

TIGHTENING MOMENTS (daNm)

Attachment screws of the mechanism crankcase on the
clutch – differential case

2.5

Secondary shaft screw

7

Primary shaft nut

19

Back cap fixing screws

2.5

Oil draining plug

2.5

Reverse driving contact

2.5

Screws for fixing the bellows assembly – left transmission cap assembly

2.5

Screws for fixing gearbox on engine case (M10 – 90)

4.4

Screws for fixing gearbox on engine case (M10 – 35)

2.1

Nuts for fixing gearbox on engine

4.4

LOCTOU  blocking element fixing screw

0.5

Screws for fixing RPM sensor on the clutch case

0.8

Screws for fixing the control axle assembly

2

Screws for fixing clutch cable support

4.8
