ENGINE ASSEMBLY

10 - 7

Power train group

Dismount the hydro-elastic buffer nut (on

the right side).

Remove the power train and place it on a

support.

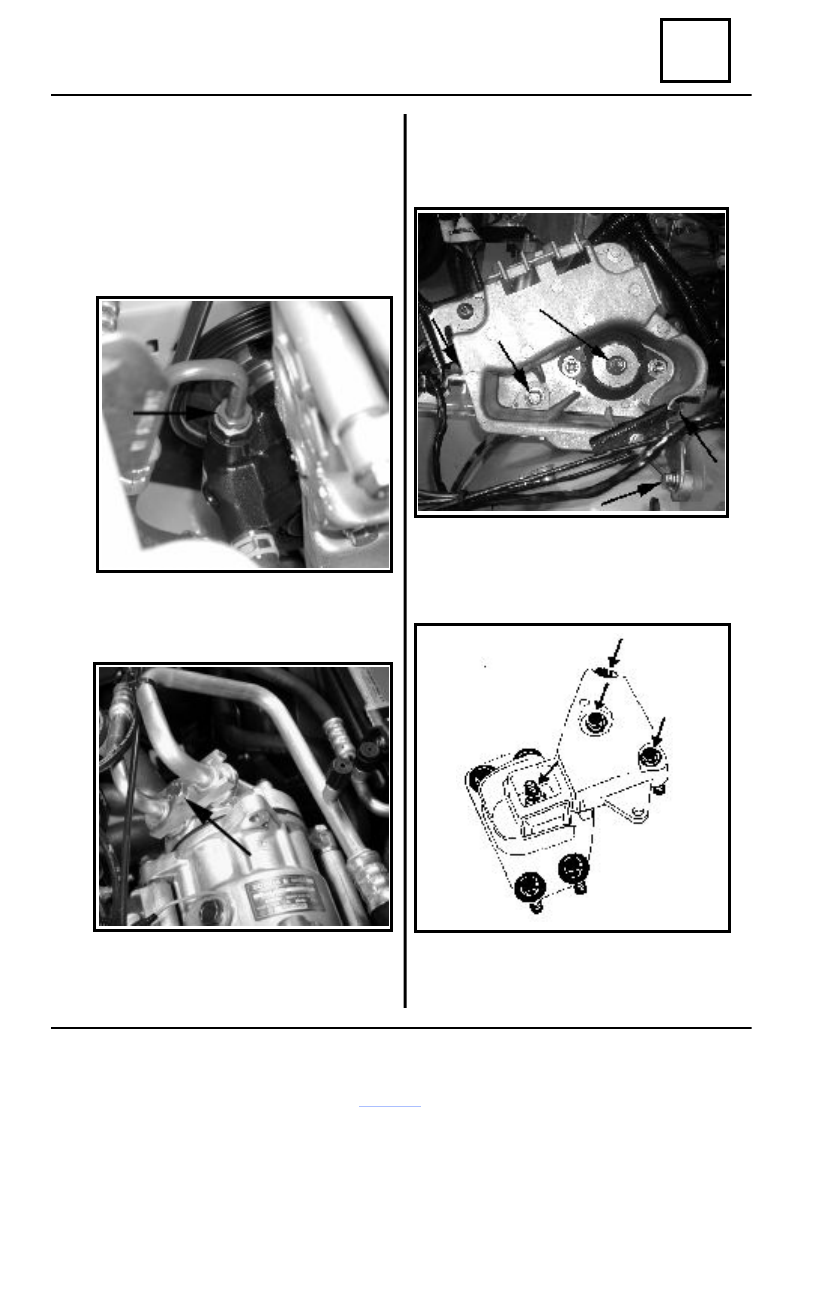

Disconnect  the pressure controller

connector for power steering.

Dismount:

- hoses from oil reservoir for power

steering by means of pliers MOT 1202-01;

- high pressure pipe from the power

steering pump.

Dismount the refrigerant fluid pipes from

compressor (vehicles with AC unit).

Sustain the power train by means of the

two lifting supports using a mobile lifting device
(mobile crane).

Dismount the four attachment screws of the

power train support-battery and the elastic buffer
nut (9).

9

ENGINE  E7J-262

10

ENGINE ASSEMBLY

10 - 8

Power train group

REMOUNTING

Perform the dismounting operations in  the reverse order.
Tighten the screws and nuts to the required moment.
Perform:

- filling and purging of the cooling circuit (see chapter 19”Filling and purging”);
- filling with oil of the engine and gearbox;
- filling of the power steering circuit (see chapter 05 “ Draining-Filling)- for vehicles

equipped with power steering;

- filling of the air conditioning circuit with refrigerant fluid HFC 134a (see chapter 62 “Air

conditioning”).

Adjust the clutch pedal  stroke (see chapter  37”Clutch control adjustment”).

   REMARK:
     At each operation implying battery dismounting, when reconnecting the battery,
introduce the radio code, which is written on the vehicle-purchasing invoice.

ENGINE

 E7J-262

10

ENGINE ASSEMBLY

10 - 9

 DISMOUNTING

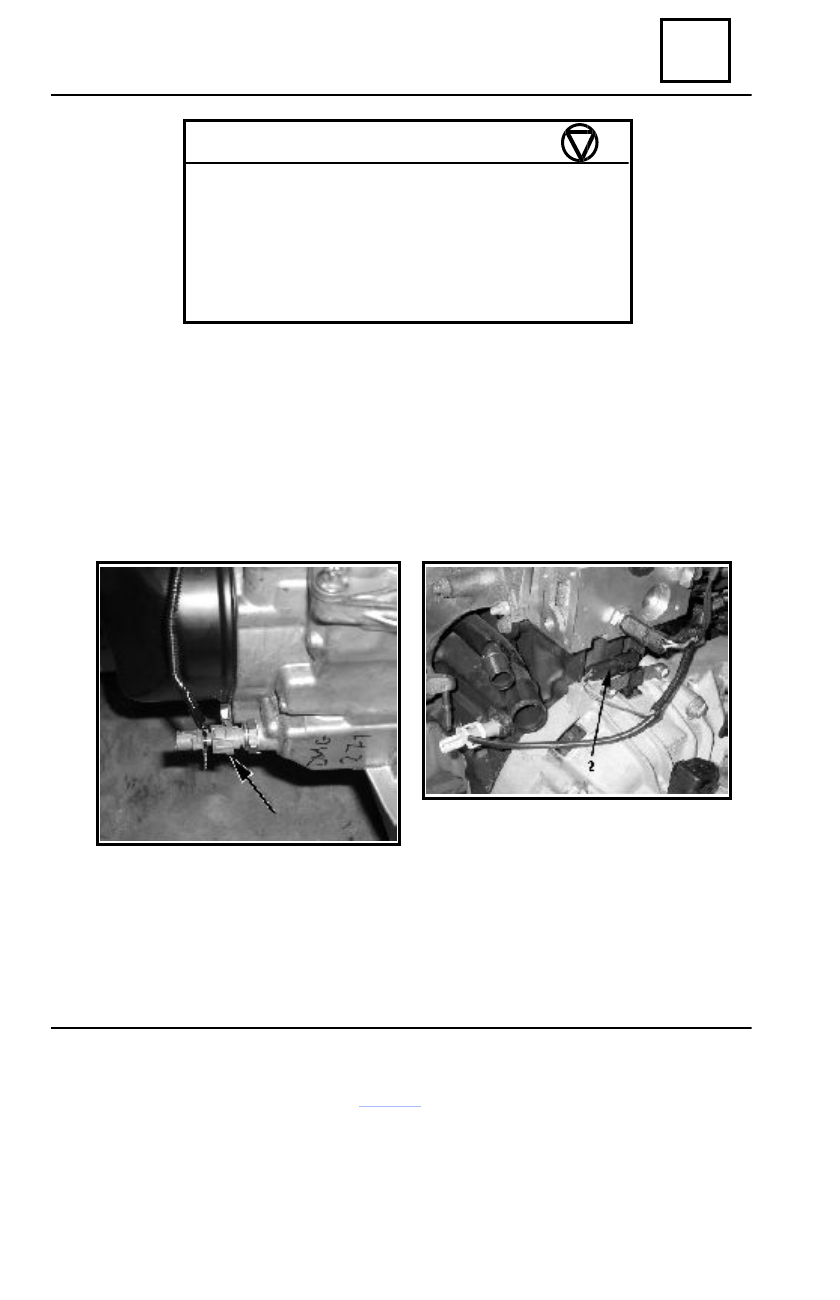

Dismount the RPM sensor 2 attachment screws on  clutch casing.
Detach the  starter  electric  connections.
Dismount the starter.
Disconnect the electric connector 1 of the reverse driving contact.
Dismount the engine wiring attachment on gearbox.
Dismount the screws and nuts for assembling engine-gearbox.

Separation - Gearbox

REMOUNTING

Perform the dismounting operations in  the reverse order.
Tighten the nuts and screws to the required moment.

TIGHTENING MOMENTS  (daNm)

RPM sensor

0.8

Starter attachment screws

4.4

Gearbox attachment on engine:

nuts M 10

4.4

screws  M10 - 90

4.4

screws  M10 - 35

2.1

1

ENGINE  E7J-262

10

ENGINE ASSEMBLY

10 - 10

ENGINE UNFITTING

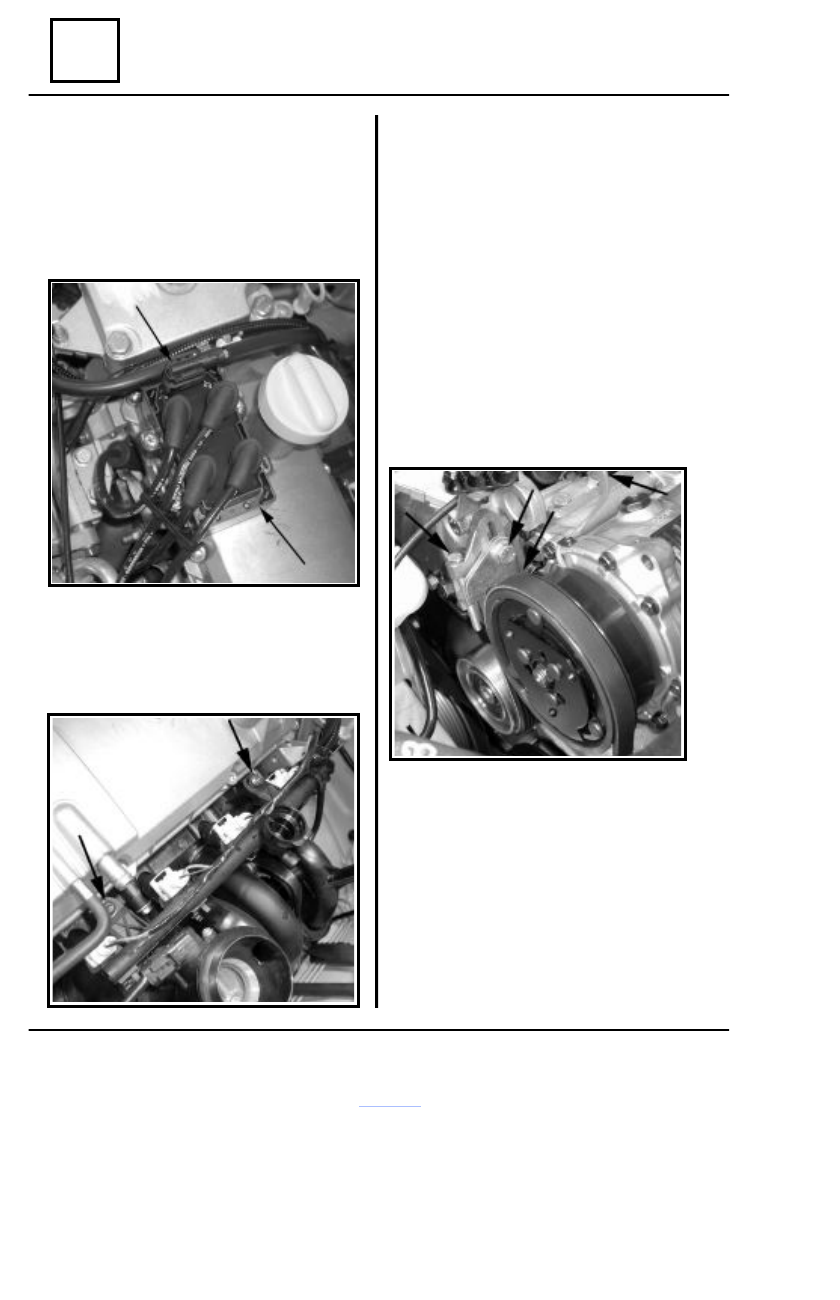

Dismount:

- alternator and its belt;
- oil dipper guide;
- induction coil, after its electric connector

and spark plugs cables have been disconnected.

ENGINE FITTING

Perform the dismounting operations in the

reverse order.

Tighten the screws and nuts to the required

moment.

Separation – Unfitting

Disconnect the electric connectors and

dismount the engine wiring.

Dismount then:

- valve body;
- injection ramp;

- clutch disc and mechanism;
- engine flywheel;
- intake manifold;
- thermal screen and exhaust manifold;
- water inlet pipe;
- thermostat support.

For the vehicles equipped with air

conditioning unit and/or power steering
dismount additionally:

- driving belt tensioner;
- compressor belt;
- compressor electric connector;
- compressor;
- compressor support and intermediary

support.
