Dacia Solenza (engine E7J). Manual - part 5

VALUES AND ADJUSTMENTS

07

07   - 4

  Accessories belts tension

Belts tensioning values are:

- alternator belt

253 – 273 Hz

- compressor belt

150 – 155 Hz

- power steering pumps belt

151 – 161 Hz

- compressor belt / DA pump

222 ± 8 Hz

Accessories belt tensioning method.
Belt tensioning is to be performed with cold engine.
Mount the new belt.
Tighten the belt till obtaining the prescribed mounting tensioning.
Block the tensioner.
Perform three engine crankshaft rotations.

Place the reading head of the MOT 1505 device in the measurement area and check if the

belt tensioning is within the mounting prescribed values; restore is necessary.

REMARK :
Once a belt is dismounted, is not to be remounted, but replaced.
A   – crankshaft               C – Compressor                          T – Tensioner pulley.
B   – alternator                 D – Power steering pump               – Tensioning checking point.

B

A

A

D

T

A

C

T

T

VALUES AND ADJUSTMENTS

07

07 - 5

Wheels, Tires

Vehicle

SOLENZA

Wheels

5.5J144 CH43
5.5B134CH46

Tires

165 / 65R14
165 / 70R13

Inflating pressure (bars) (1)

Front

Rear

Empty/Loaded Empty/Loaded

2.0/2.2

2.0/2.1

2.0/2.2

2.0/2.1

(1)  Maximum loaded, wheels on the ground.

- tightening moment of the wheels screws : 7.5 daNm;
- wheel axial run out : maximum 1 mm;
- wheel radial rubout : maximum 1 mm.

The increase of tire temperature during driving implies a growth of the tire pressure with

0.2 – 0.3 bars compared with the prescribed values.

In case of tires pressure checking immediately after vehicle driving, consider this growth of

pressure.

VALUES AND ADJUSTMENTS

07

07   - 6

Brakes

Vehicle

Normal

20

Minim

19

Normal

228

Minim

229

Front

0.04

Rear

-

Brake disk width and drums diameter (mm)

Front

Rear

Maxim disk

axial run out

Vehicle

Normal

14

Minim

7

Normal

5

Minim

0.5 mm

above the

rivets

SAE J 1703 DOT 4

Gaskets  thickness (mm)

Front

Rear

Brake fluid

SOLENZA

SOLENZA

VALUES AND ADJUSTMENTS

07

07 - 7

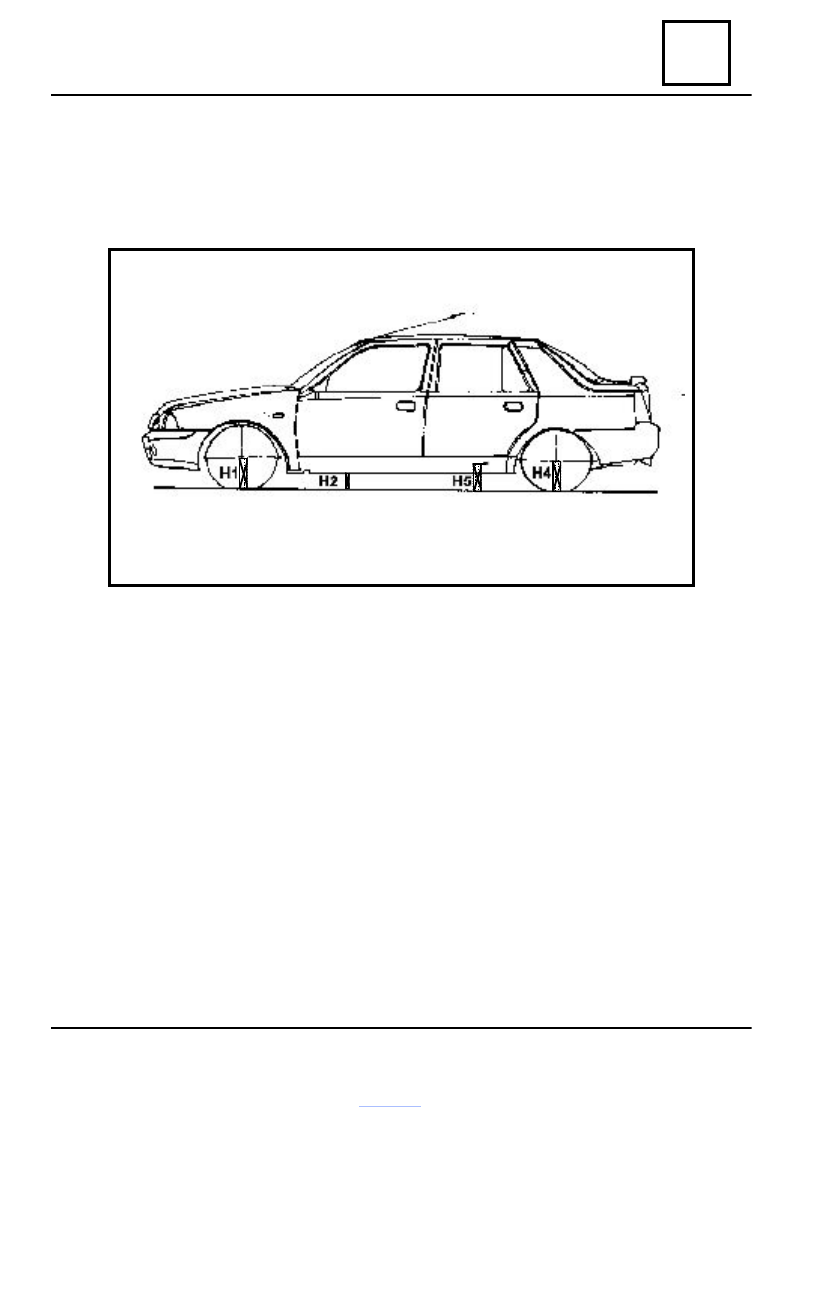

Dimensions under carriage body

DIMENSIONS UNDER CARRIAGE BODY CONDITIONING
ADJUSTMENT OPERATIONS OF THE STEERING ANGLES

H1, H4  -  to be measured in front wheel axle, consequently rear wheel axle.
H2  -  to be measured between the lower side of the power train support.
H5 –  to be measured between the elastic joint axle of the rear axle arm  and the ground.
