Renault Premium engine. Manual - part 93
1 / 3

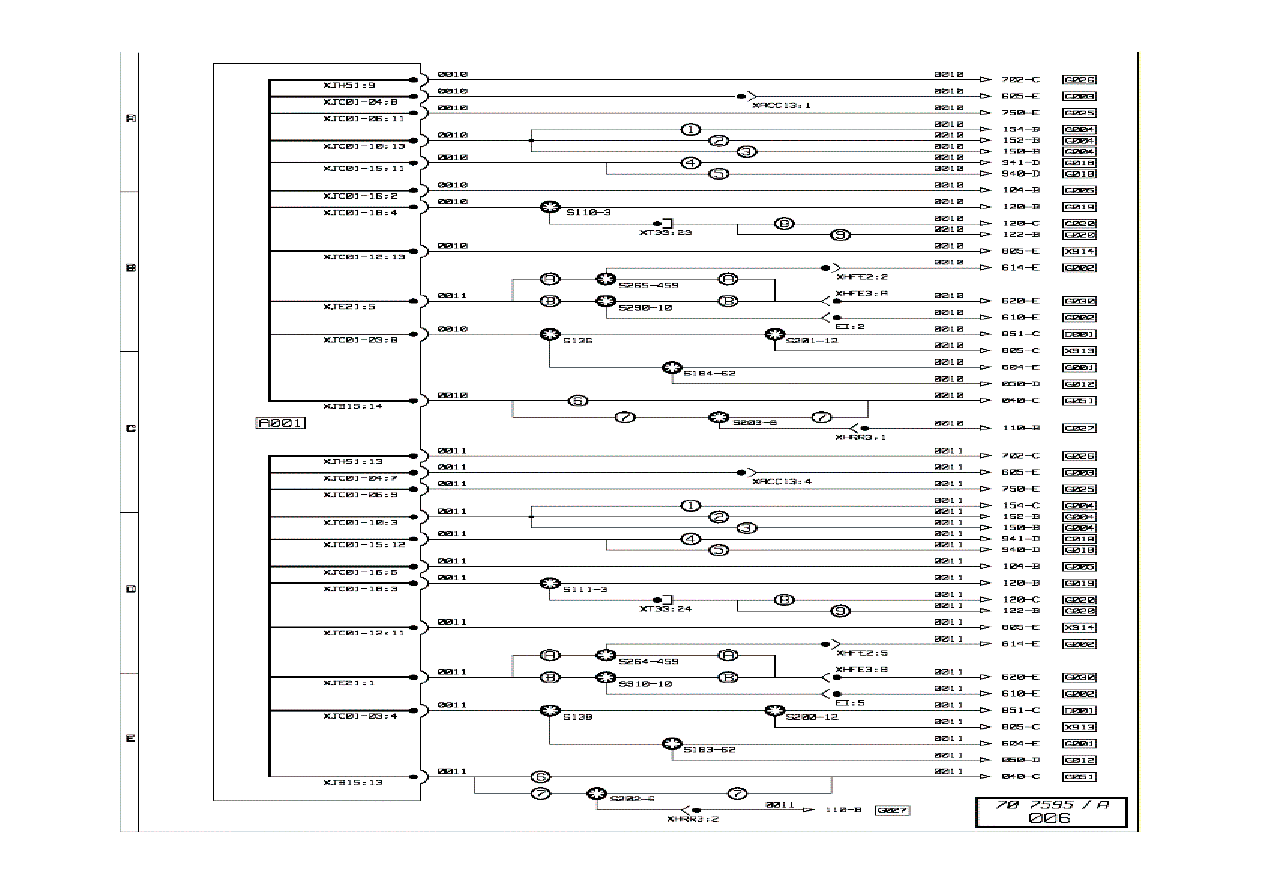

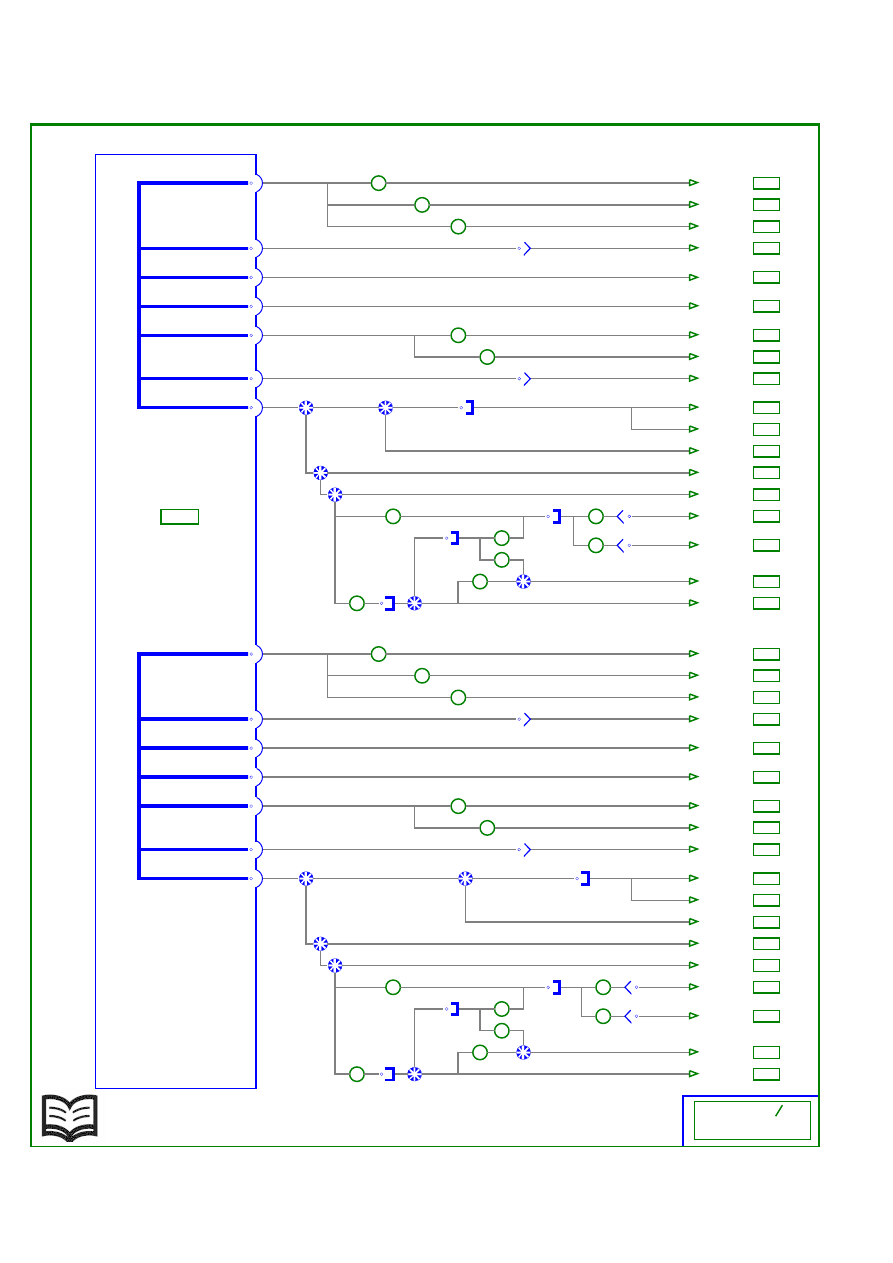

CAN BUS transfer zone "J1587-1"
Key to appliances
Code
Function
Location
A001
Cab electrical distribution box
A2b
D001
Principal information display
C2b
G001
Vehicle management ECU
A2b
G002
Engine management ECU
B3b
G003
Bodybuilder pre-arrangement management ECU
B2b
G004
Air suspension ECU
A2b
G005
EBS braking management ECU
A2b
G012
Lighting and signalling management ECU
A2b
G018
Onboard management interface ECU
A2b
G019
Gear selector ECU
A2b
G020
Automatic transmission ECU
B3c
G025
Engine immobilizer ECU
B2b
G026
Alarm ECU
A2a
G027
Piloted axle ECU
A2b
G030
AdBlue supply management pump module
C4d
G051
Air production management ECU
C4d
X913
Vehicle diagnostic socket
C1c
X914
Vehicle data extraction socket
C1c
1: with 6x2 suspension
2: with 4x2 suspension (except tractor )
3: with 4x2 suspension (tractor)
4: with onboard management "FMS"
5: with onboard management "FMS + TMC"
6: with piloted rear axle
7: without piloted rear axle
8: With automatic transmission
9: with "ALLISON" gearbox
A: with DXI7 engine
B: with DXI11 engine
