Renault Premium engine. Manual - part 36

1 / 2

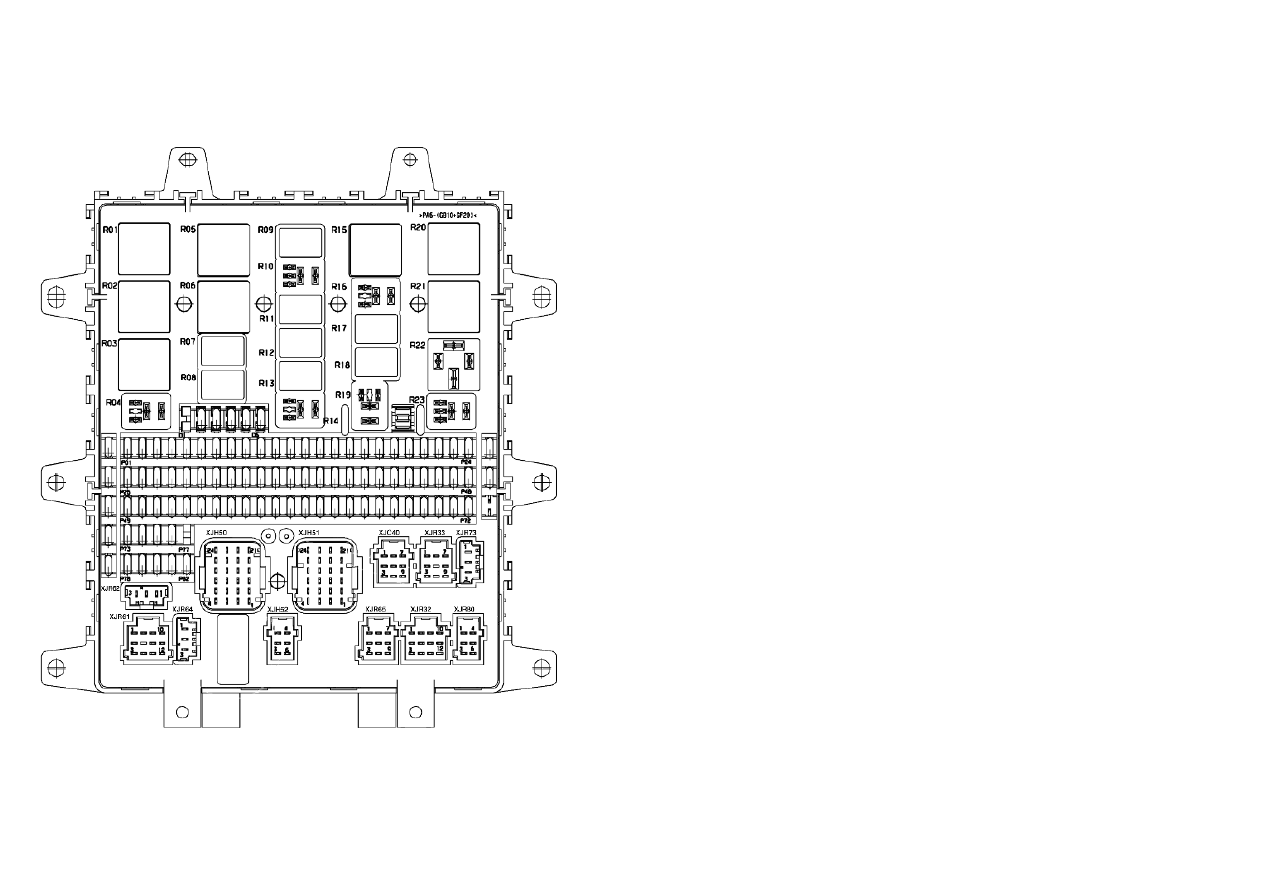

Electrical distribution box -Face A connectors

2 / 2

1 / 3

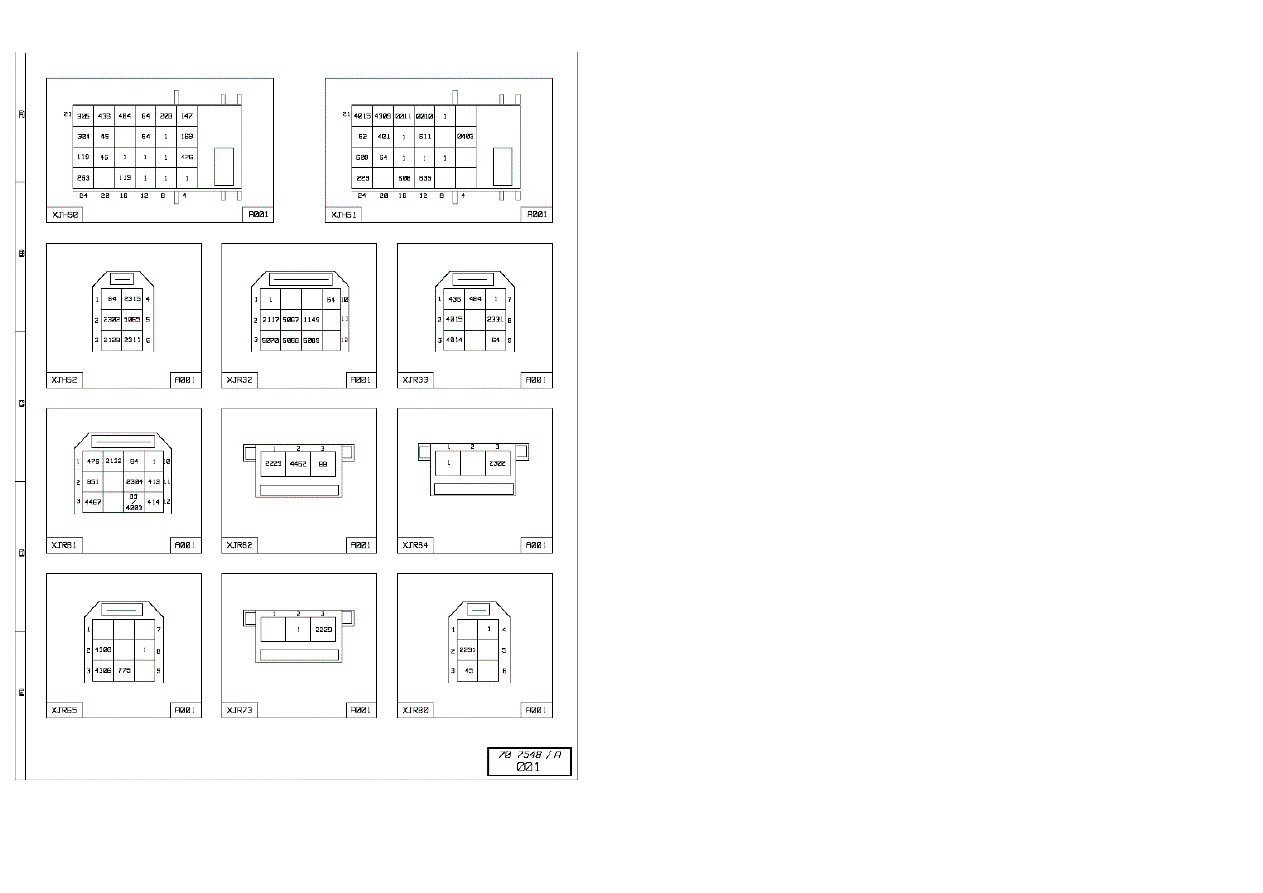

Electrical distribution box -Face A connectors

Connector

item N°

Function name

Colour

Number

of ways

XJC40

Not used

-

-

XJH50

Top ledge wiring harness

Y

24

XJH51

Top ledge wiring harness

GN

24

XJH52

Top ledge wiring harness

NL

6

XJR32

Central console wiring harness

NL

12

XJR33

Central console wiring harness

BL

9

XJR61

Independent heating equipment

LBL

12

XJR62

ADR-specific independent heating equipment

GR

03

XJR64

Refrigerator or pack equipment wiring harness

BL

03

XJR65

Heated seats equipment wiring harness

Y

09

XJR73

Bunk and tool compartment lighting wiring harness

SB

3

XJR80

Independent heating equipment

BL

06

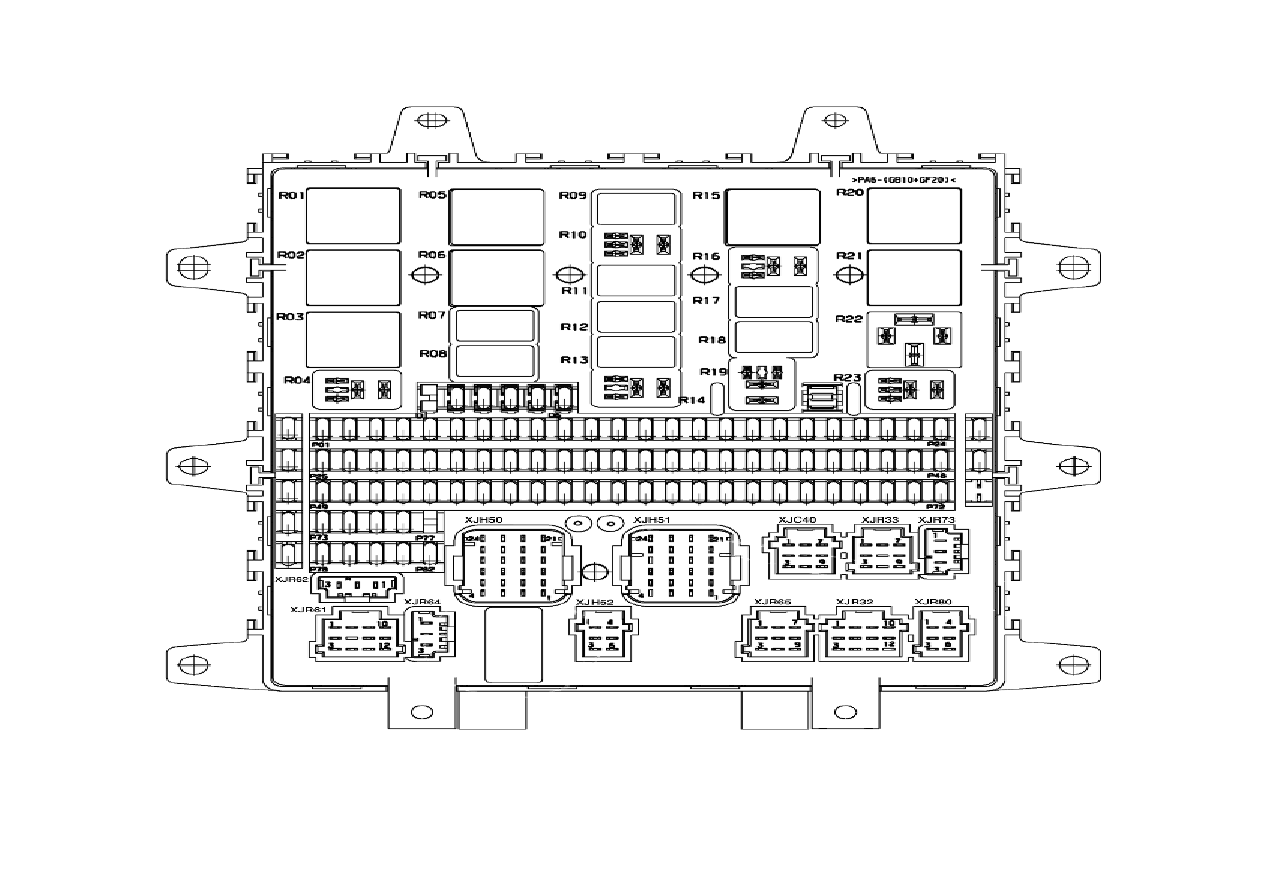

Electrical distribution box -Face A connectors

2 / 3
