Renault Premium engine. Manual - part 3

9 / 12

In the event of incorrect clearances.

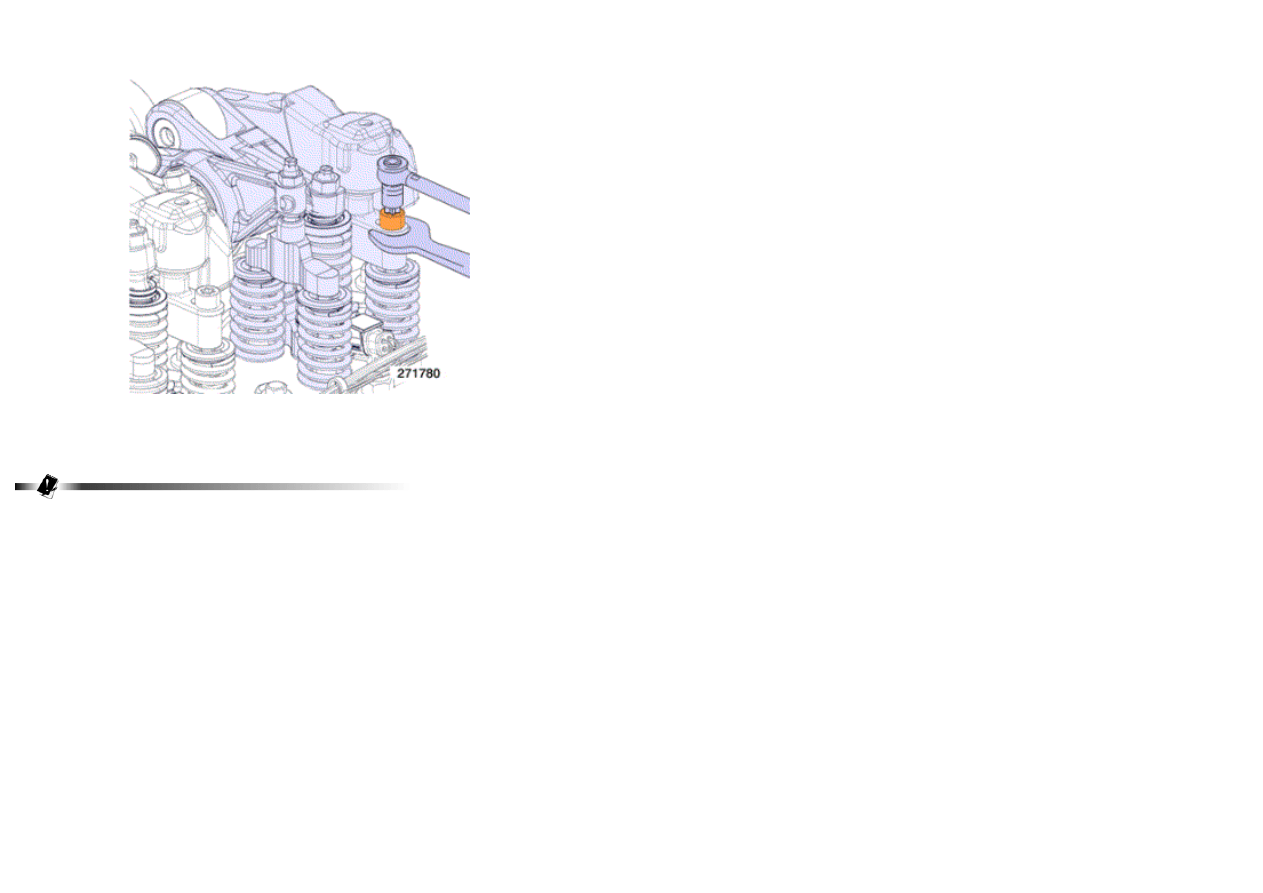

Remove bolt.

Remove adjusting shim .

Hold the caliper in place when unbolting.

10 / 12

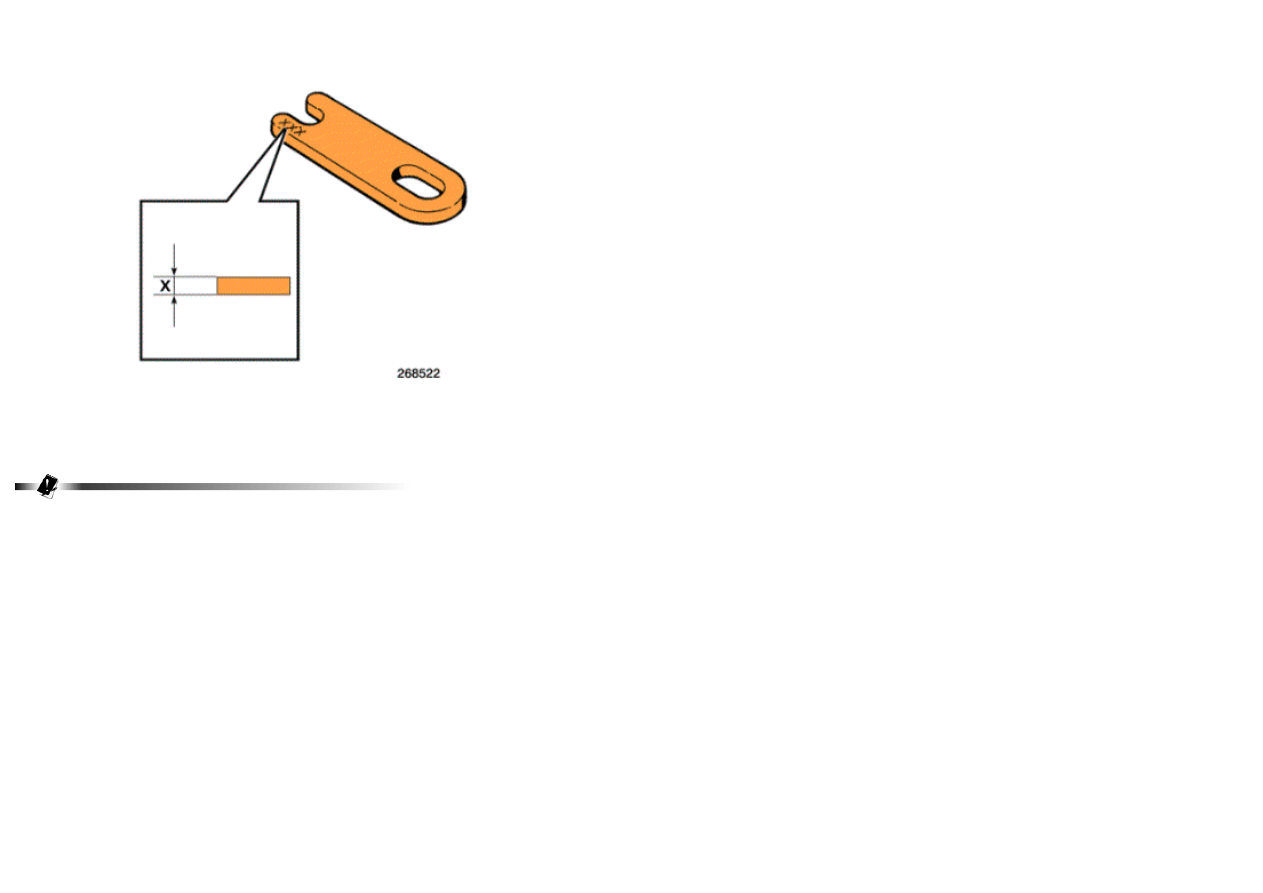

Note down the thickness

X engraved on adjusting shim.

Determine the thickness of the new adjustment shim, in order to obtain the recommended clearance.

See pages .

You can superimpose a maximum of 2 adjusting shims, provided that they have the same thickness. Adjusting shims are available with thicknesses of

0.05 by0.05 mm.

11 / 12

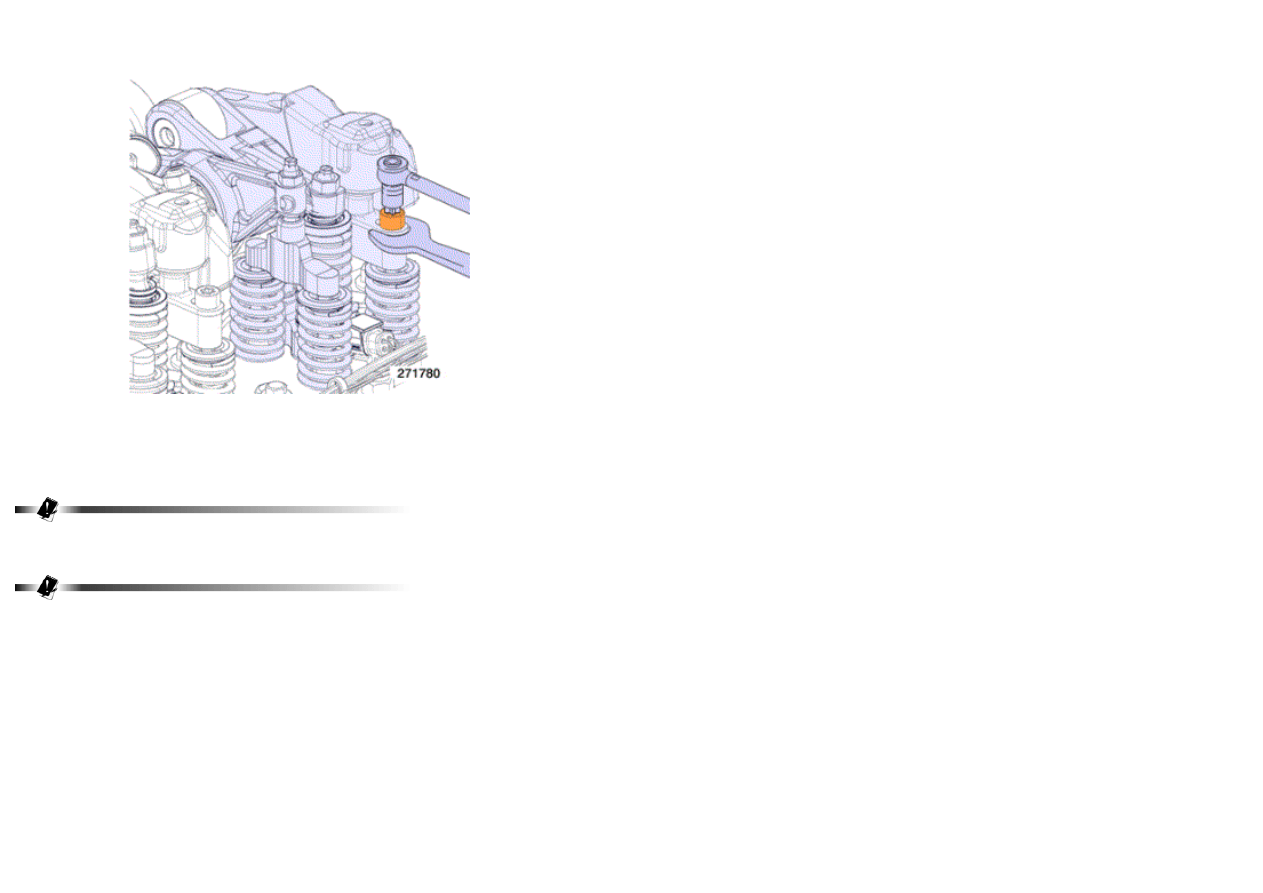

Fit shim.

Fit bolt.

Tighten to torque.

See pages .

Hold the caliper in place when tightening.

Again check the clearance between the valve yoke and the arm piston.

Make a mark on the rocker arm when adjustment is finished.

Perform the same operation on all the other cylinders.

12 / 12

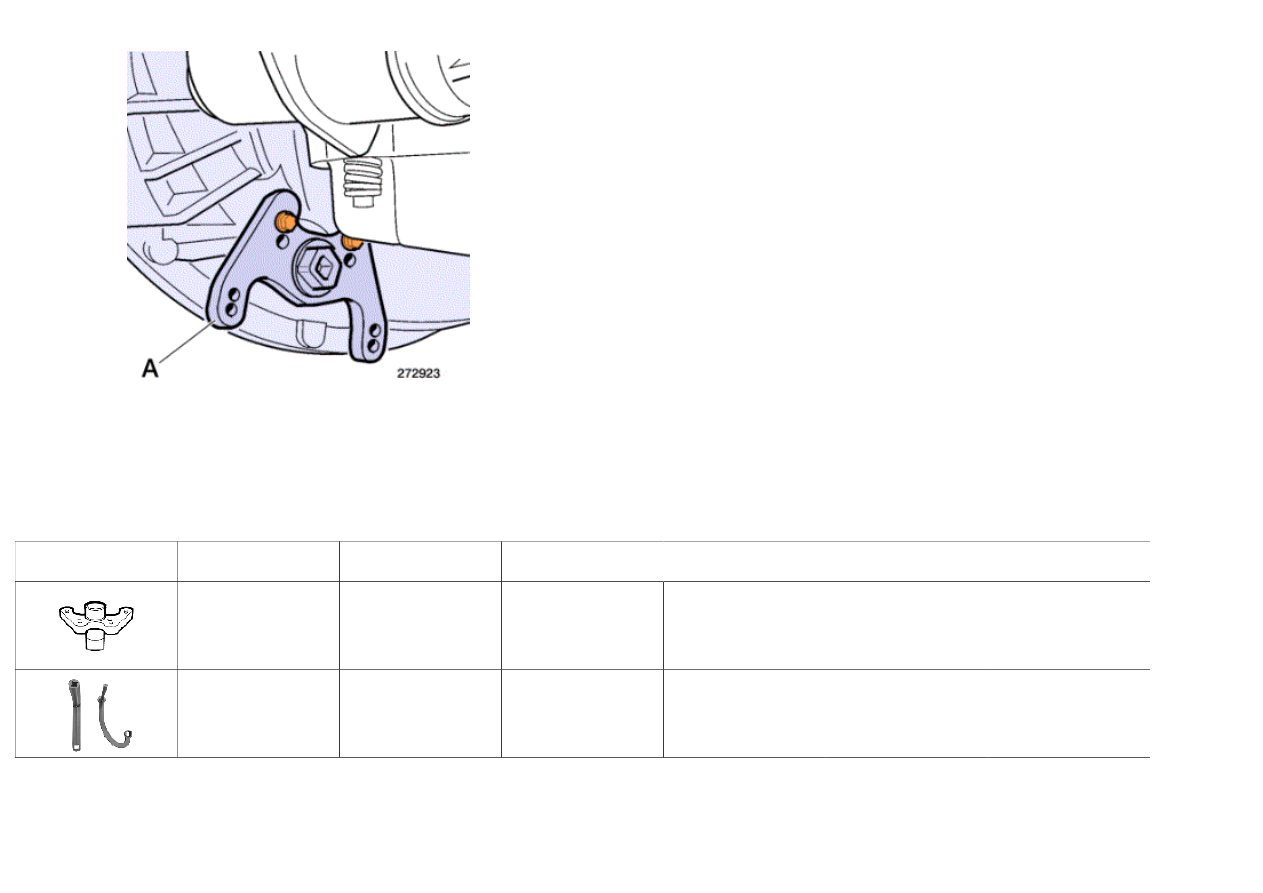

Remove tool

A = 6956

Tools
Specific tools

Illustration

RENAULT

TRUCKS part N°

Designation

Manufacturer's

reference N°

Manufacturer's code N°

Scale

Qty

7409996956

CONTROL

7488840162

WRENCH
