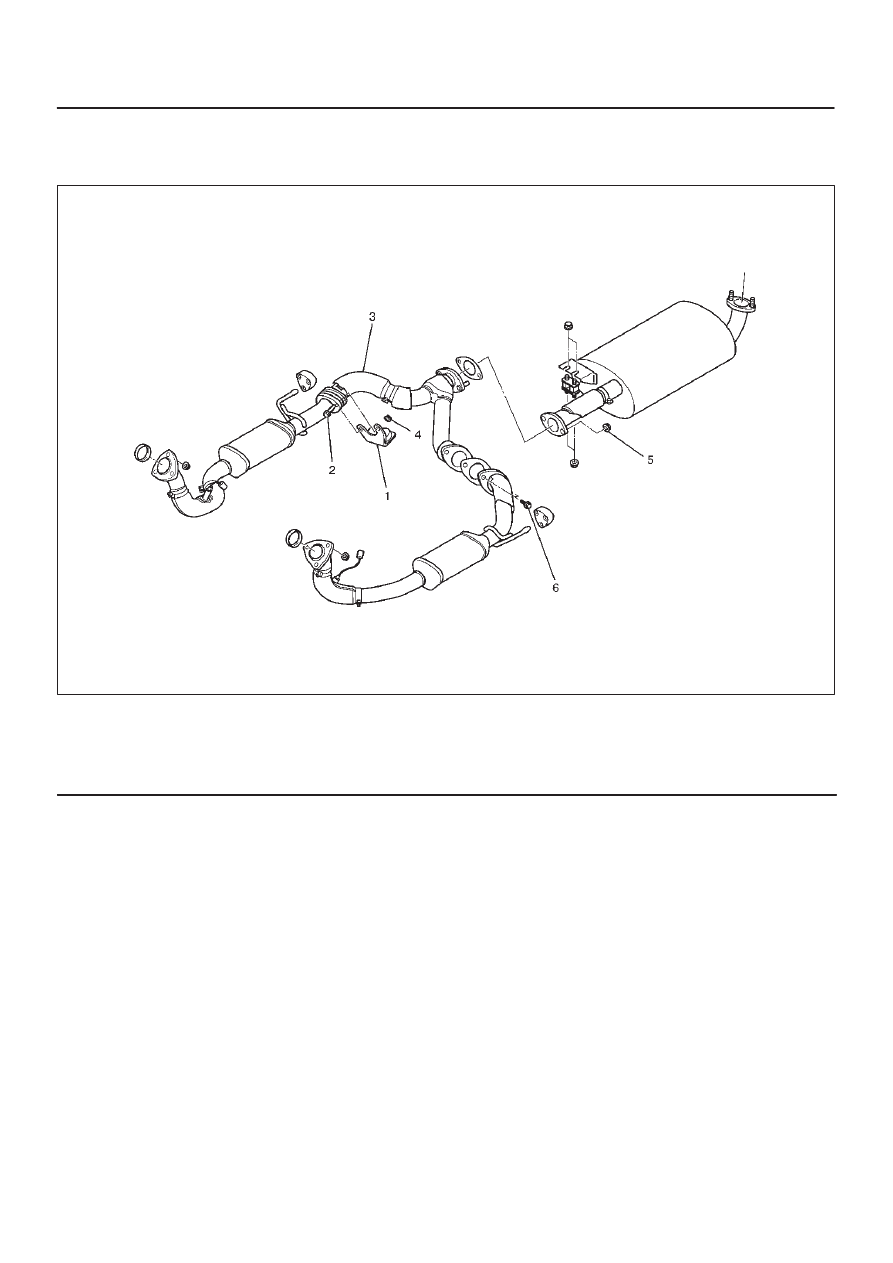

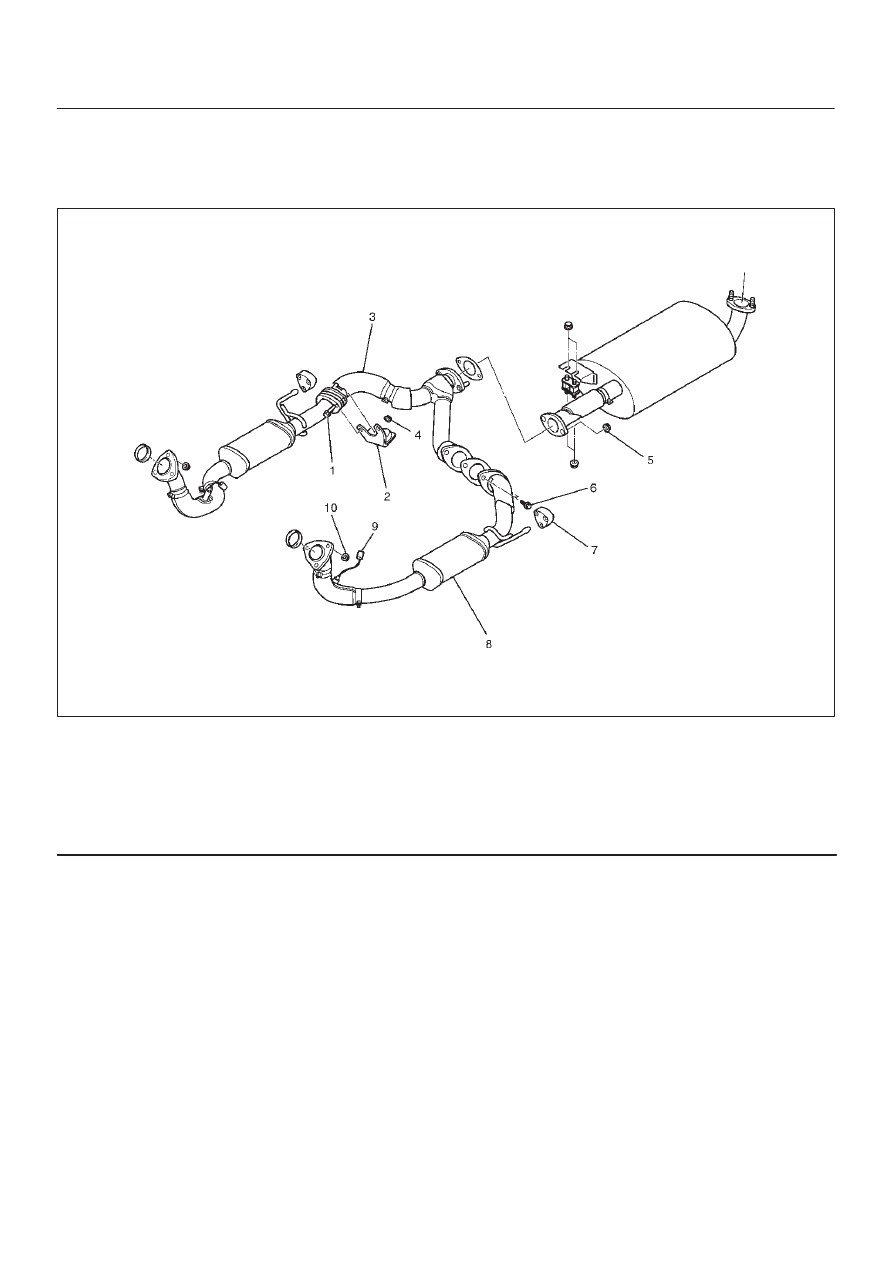

6F–4 ENGINE EXHAUST (6VD1 3.2L) Three Way Catalytic Converter LH and Forked Exhaust Pipe Three Way Catalytic Converter LH and Forked Exhaust Pipe and Associated 150RX018 Legend (1) Forked Exhaust Pipe Fixing Bolts (6) Forked Exhaust Pipe Fixing Bolts 2 Sensor Terminal Connector (10) Three Way Catalytic Converter Fixing Nuts Removal 1. Disconnect battery ground cable. stands. 3. Disconnect O 2 sensor harness connectors (9). 4. Remove the forked exhaust pipe fixing bolts and nuts (1) (4) (6) and the exhaust silencer fixing nuts (5), then 5. Remove the three way catalytic converter fixing nuts (11) and the mounting rubber (7), then remove the Installation 1. Install the three way catalytic converter (8) and the mounting rubber (7), and tighten the fixing nuts (11) to Torque 2. Install the forked exhaust pipe (3) and the mass damper (2), and tighten the fixing bolts (1) (6) and Torque 3. Connect the O 2 sensor connectors (9). |
