6D3–8
STARTING AND CHARGING SYSTEM (6VD1 3.2L)
NOTE: In disassembling the yoke assembly, hold the
armature and pull off slowly the yoke assembly. Because
of strong magnetic force, avoid placing a metallic part
near armature.
065RW007

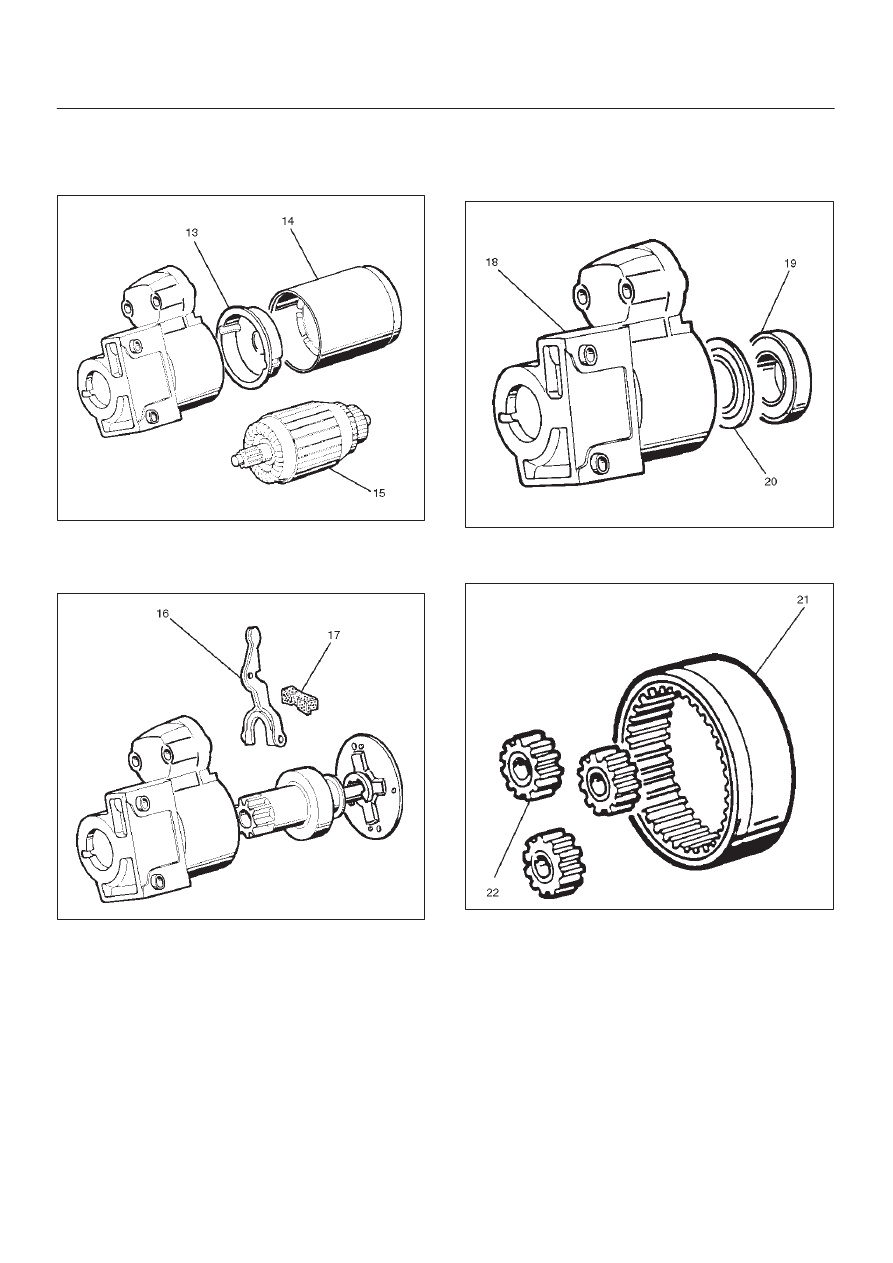

15. Remove dust cover(17).
16. Remove a dust cover and shift lever(16) from the gear
case.
065RW008
17. Remove ball bearing(19).
18. Remove bearing cover(20).
19. Remove a ball bearing and bearing cover from the
gear case(18).
065RW021
20. Internal gear(21).
21. Remove internal gear and planet gear(3) (22).
065RW009
