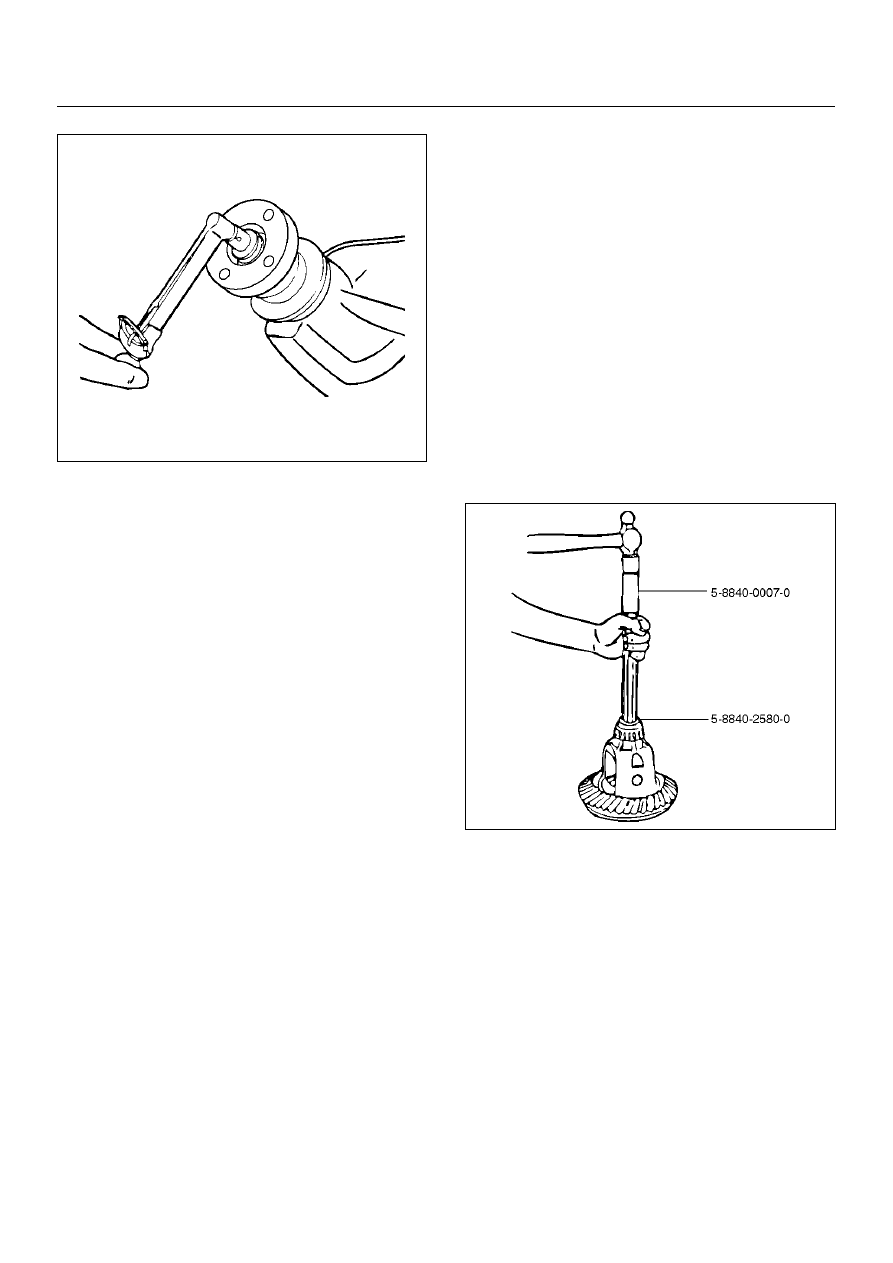

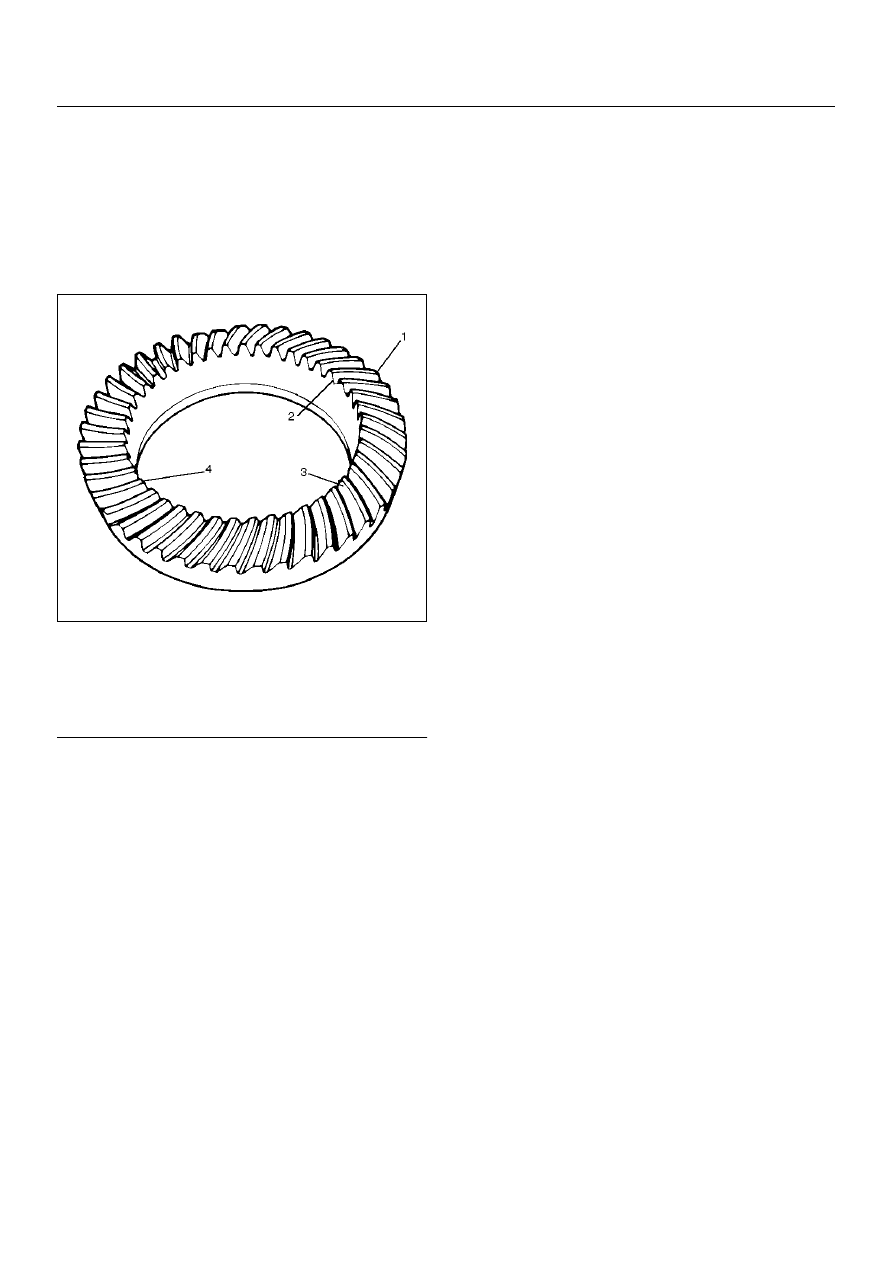

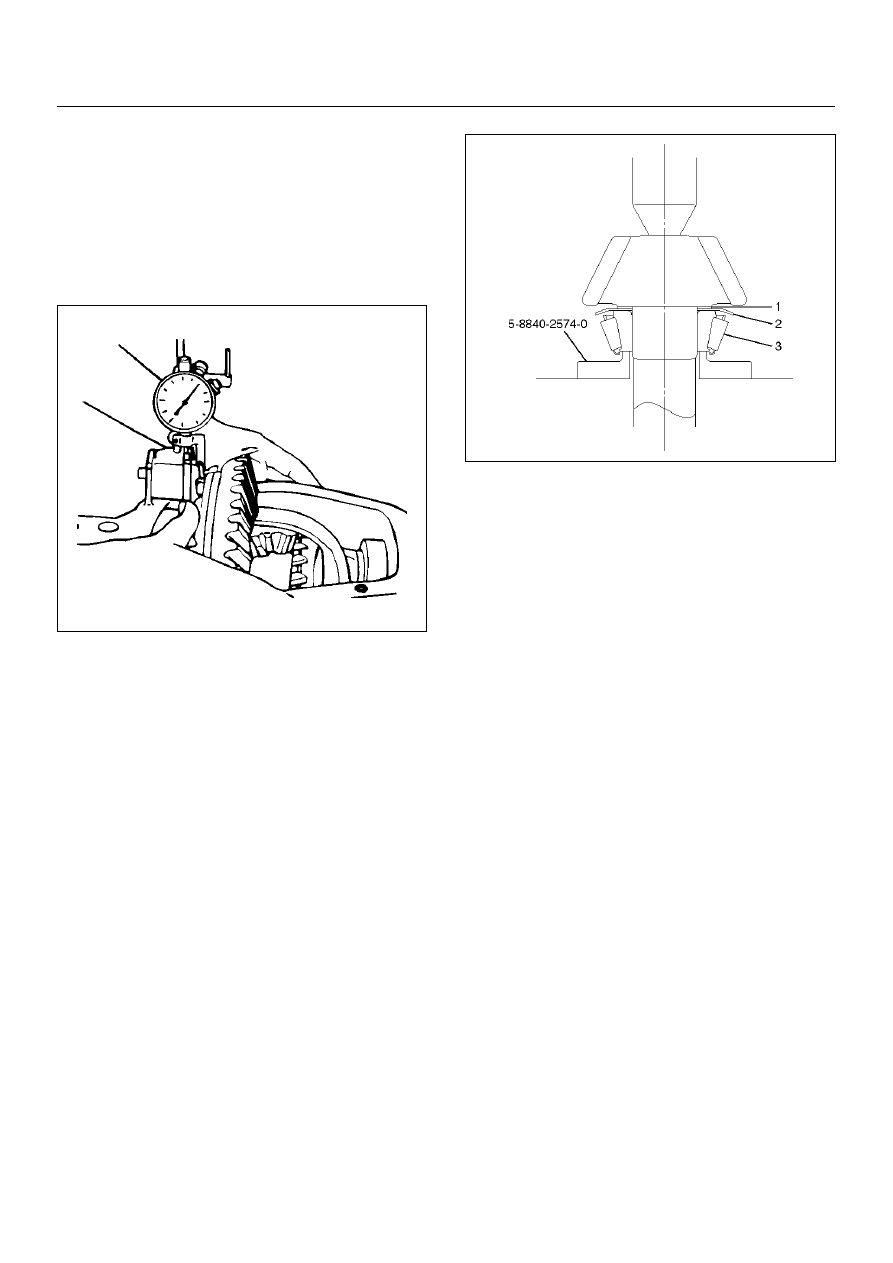

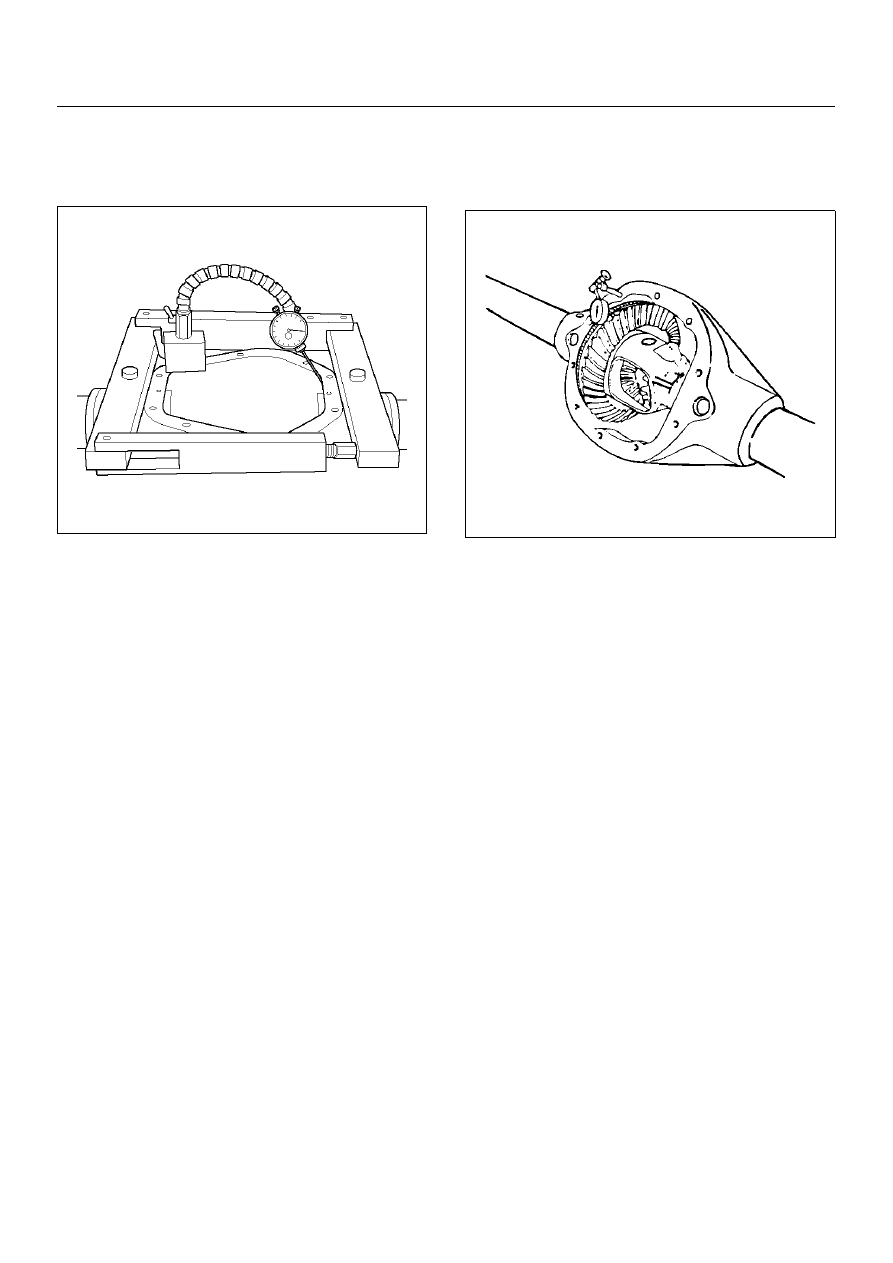

4A2–22 DIFFERENTIAL (REAR) 4. Assemble the differential case into the housing (less pinion). Install bearing caps and finger tight bolts. NOTE: Dial indicator set should be capable of a 425RS107 5. Force the differetial assembly as far as it will go in the opposite direction. Repeat these steps until the 6. RECORD THE READING OF THE INDICATOR. This amount, in shims, will be included in the final 7. After marking sure the readings are correct, remove the indicator and differetial assembly from the Pinion Installation • The bearing cups should have been installed in Pinion Depth Adjustment in this section. 1. Place the shim(1) and inner oil slinger(2) on the pinion gear, then install the pinion inner bearing(3) 425RW078 • Drive the bearing until the bearing cone seats on the pinion shims. 2. Install a new collpsible spacer. • Lubracate the pinion bearings with axle lublicant. 3. Install pinion to the axle housing. 4. Install outer pinion bearing onto the pinion. • Hold the pinion forward from inside the case while driving the bearing onto the pinion. 5. Install oil seal slinger. 6. Install pinion oil seal using installer 5–8840–2165–0. 7. Install the pinion flange to the pinion by tapping it with a rawhide hammer until a few threads show 8. Install pinion washer and a new nut while holding the pinion flange with flange holder 5–8840–0133– • Tighten the nut until the pinion end play is just taken up. Rotate the pinion while tightening the Torque:217-678 N·m (22.1-69.1kg·m/160-500lbft) Once there is no end play in the pinion, the • Remove flange holder 5–8840–0133–0. Using a torque wrench, check the pinion preload by |
