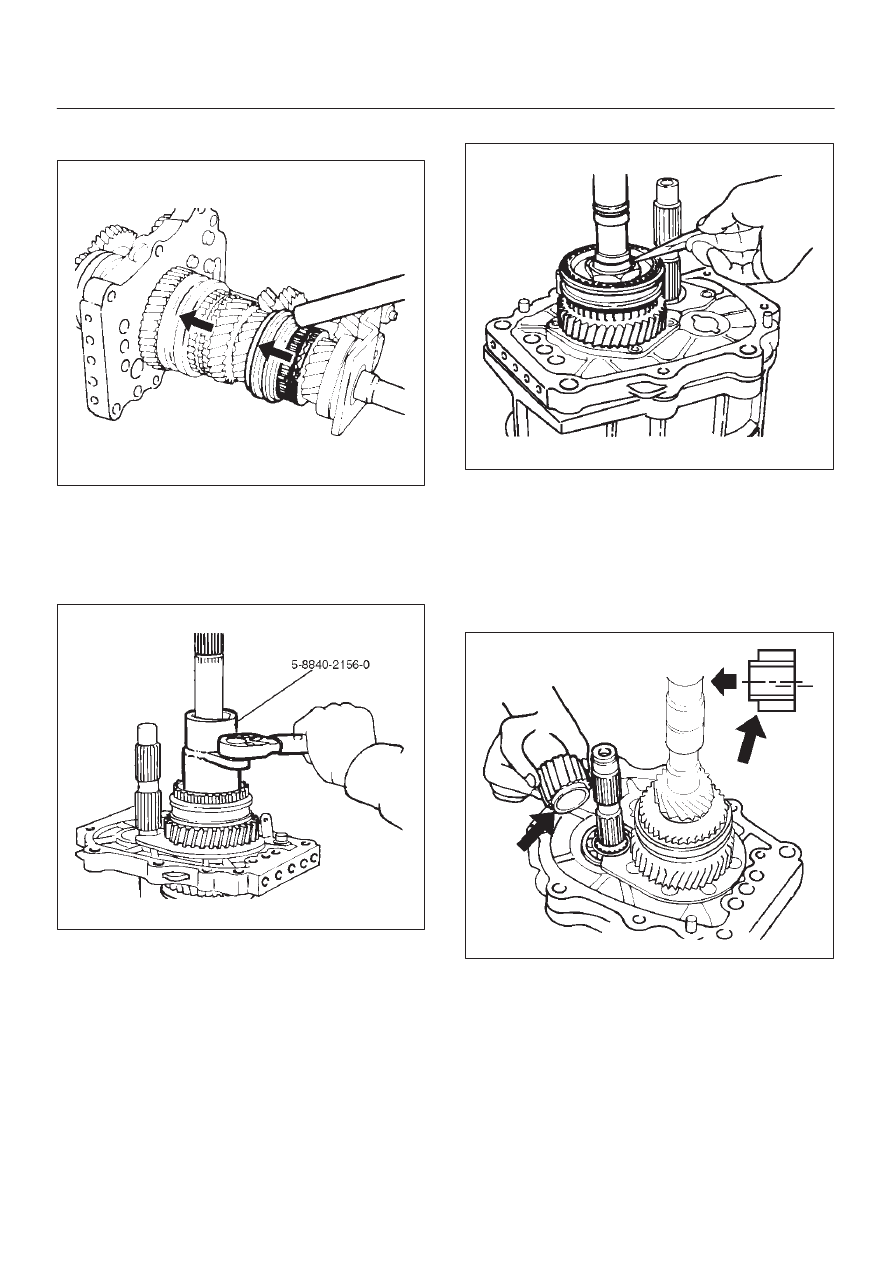

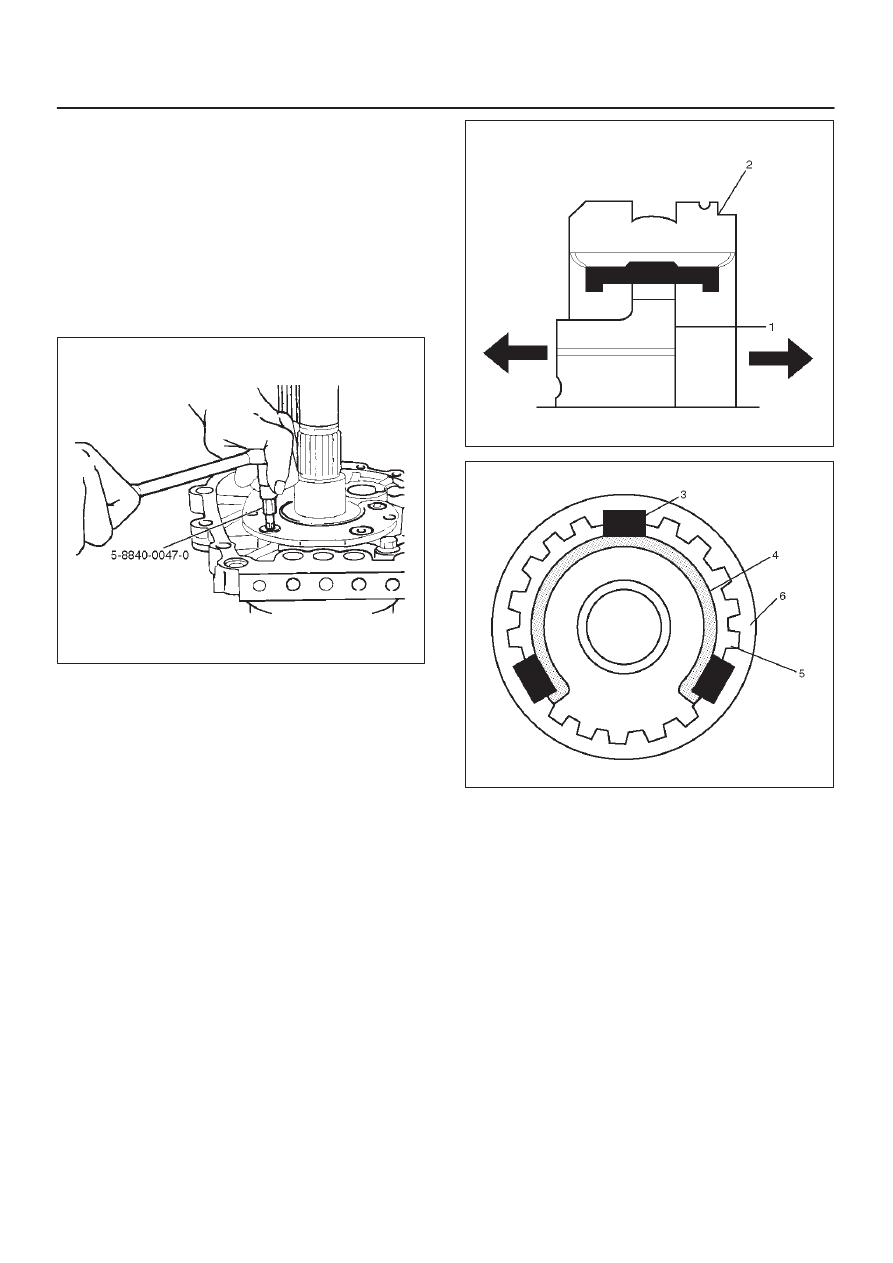

MANUAL TRANSMISSION 7B–33 2. Place the holding fixture (with the mainshaft and the counter shaft) in a vise. 3. Install bearing snap ring(25). (LOCTITE 242) or its equivalent to each of the Torque: 15 N·m (1.5 kg·m/11 lb ft) 220RW137 5. Install needle bearing(23), reverse gear(22), and reverse block ring(21). 6. Assemble rev–5th synchronizer assembly(20) by performing the following steps. groove(2) (rear side) on the outer circumference. 2. Check that the inserts(3) fit snugly into the block ring insert grooves. 3. Check that the inserts springs(4) are fitted to the inserts as shown in the illustration. 4. Check that the clutch hub(5) and the sleeve(6) slide smoothly. 5. Install the synchronizer assembly(20) to the mainshaft. The clutch hub face (with the heavy boss) must be 226RS013 226RS049 |
