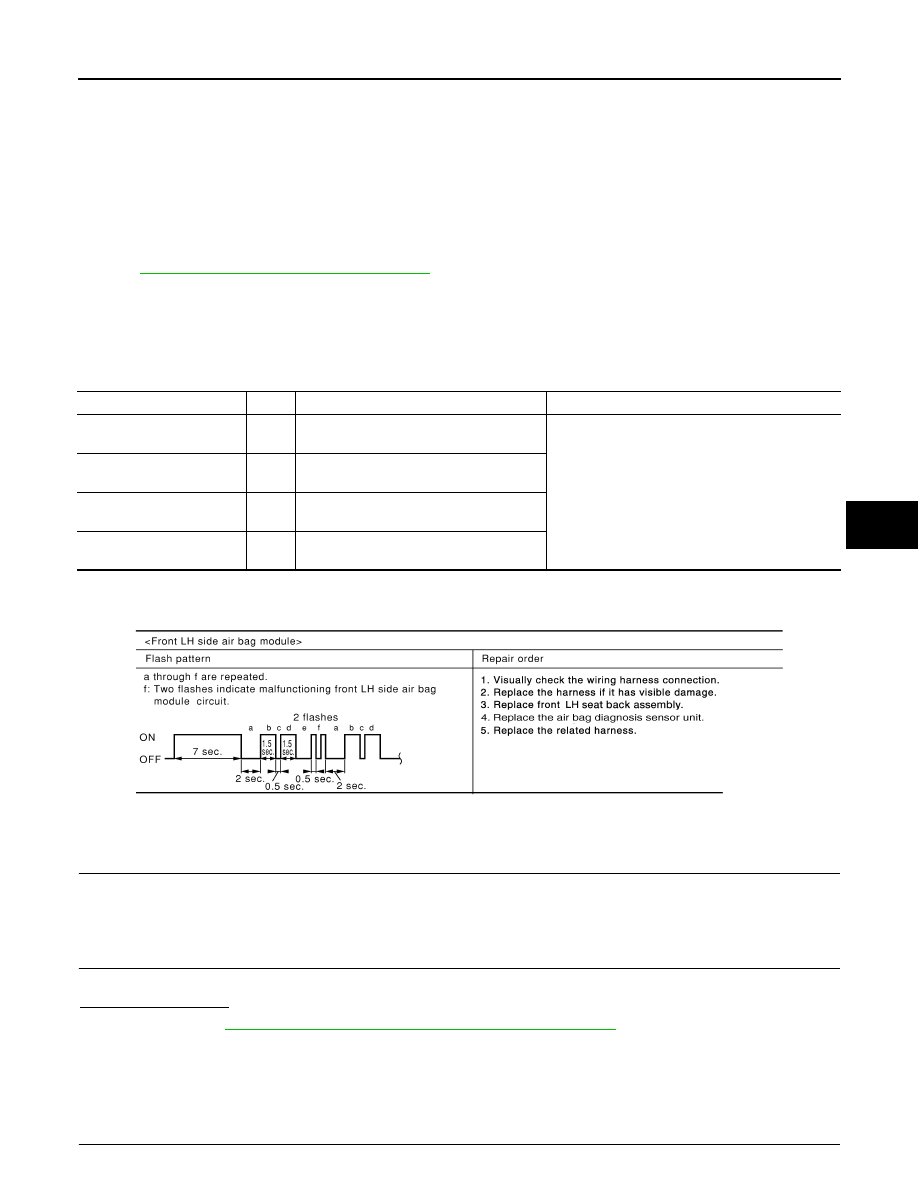

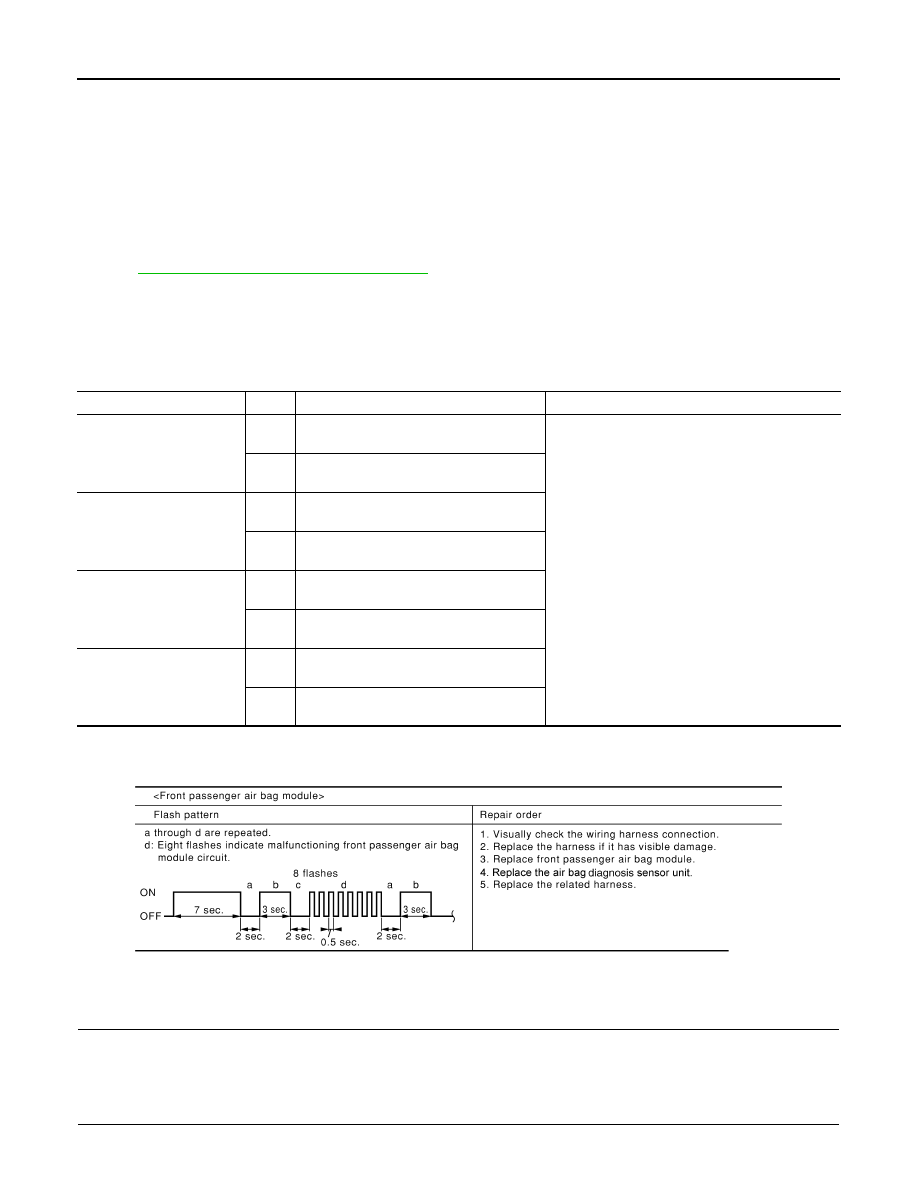

SRC-20 < COMPONENT DIAGNOSIS > B1065 – B1068, B1070 – B1073 PASSENGER AIRBAG MODULE B1065 – B1068, B1070 – B1073 PASSENGER AIRBAG MODULE Description INFOID:0000000005274388 DTC B1065 – B1068, B1070 – B1073 PASSENGER AIR BAG MODULE The passenger air bag module is dual stage and wired to the air bag diagnosis sensor unit. The air bag diag- PART LOCATION SRC-7, "SRS Component Parts Location" DTC Logic INFOID:0000000005274389 DTC DETECTION LOGIC With CONSULT-lll Without CONSULT-lll DTC CONFIRMATION PROCEDURE (With CONSULT-lll) 1. INSPECTION START Turn ignition switch ON. >> GO TO 2. 2. CHECK SELF-DIAG RESULT Check for the DTC on CONSULT-lll. CONSULT-III name DTC DTC detecting condition Repair order ASSIST A/B MODULE [OPEN] B1065 Front passenger air bag module circuit 1. Visually check the wiring harness connection. 2. Replace the harness if it has visible damage. 3. Replace the front passenger air bag module. 4. Replace the air bag diagnosis sensor unit. 5. Replace the related harness. B1070 Front passenger air bag module circuit ASSIST A/B MODULE [VB-SHORT] B1066 Front passenger air bag module circuit B1071 Front passenger air bag module circuit ASSIST A/B MODULE [GND-SHORT] B1067 Front passenger air bag module circuit B1072 Front passenger air bag module circuit ASSIST A/B MODULE [SHORT] B1068 Front passenger air bag module circuits B1073 Front passenger air bag module circuits WHIA0261E |
