SEC-32

< COMPONENT DIAGNOSIS >

VEHICLE SECURITY INDICATOR

VEHICLE SECURITY INDICATOR

Description

INFOID:0000000005272616

• Vehicle security indicator is built in combination meter.
• NATS (Nissan Anti-Theft System) and vehicle security system conditions are indicated by blink or illumina-

tion of vehicle security indicator.

Component Function Check

INFOID:0000000005272617

1.

CHECK FUNCTION

1.

Perform “THEFT IND” in the “Active Test” mode with CONSULT-III.

2.

Check vehicle security indicator operation.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Refer to

SEC-32, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000005272618

Regarding Wiring Diagram information, refer to

SEC-43, "Wiring Diagram - VEHICLE SECURITY SYSTEM

(King Cab) -"

 or

SEC-52, "Wiring Diagram - VEHICLE SECURITY SYSTEM (Crew Cab) -"

.

1.

SECURITY INDICATOR LAMP ACTIVE TEST

With CONSULT-III

Check "THEFT IND” in "ACTIVE TEST" mode with CONSULT-III.

Without CONSULT-III

1.

Disconnect BCM.

2.

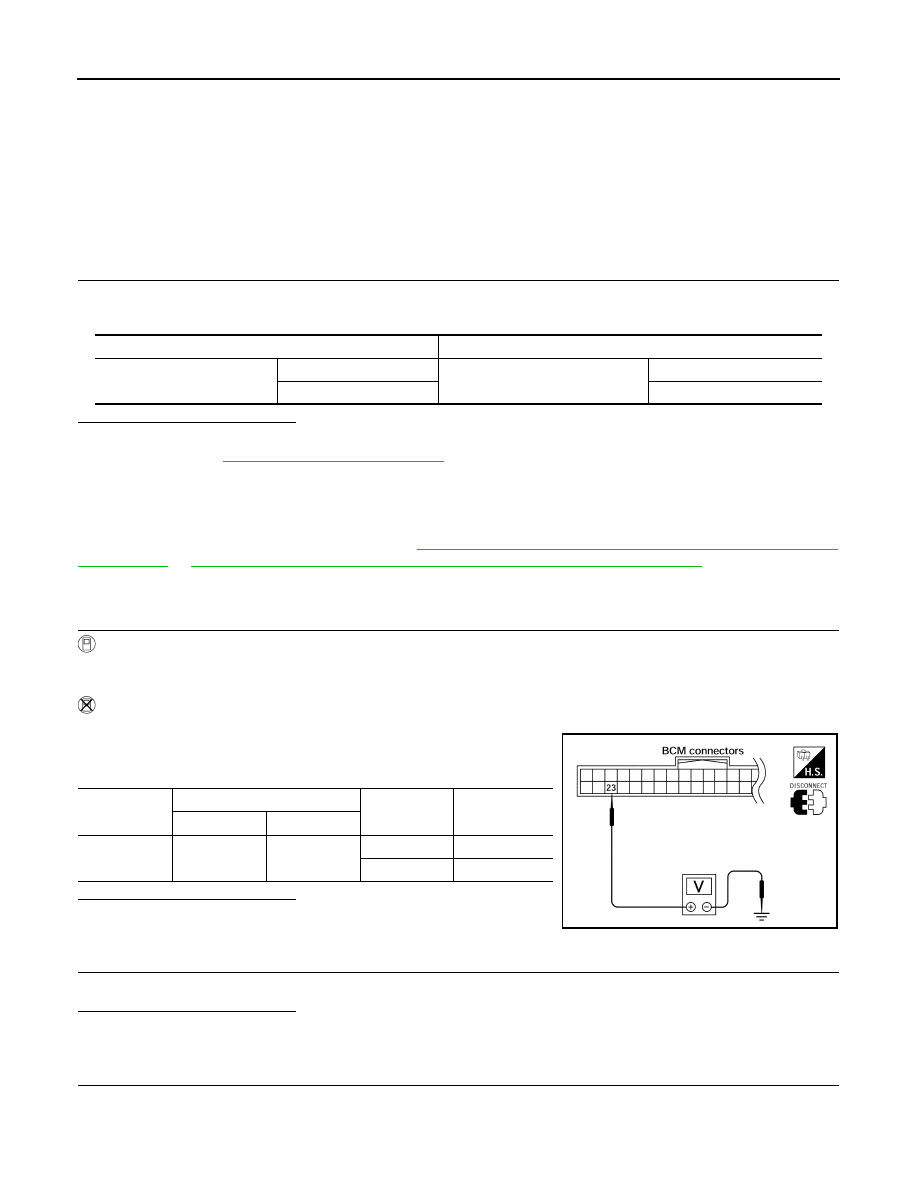

Check voltage between BCM harness connector M18 terminal
23 and ground.

Is the inspection result normal?

YES

>> Security indicator lamp is OK.

NO

>> GO TO 2

2.

SECURITY INDICATOR LAMP CHECK

Check security indicator lamp condition.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Replace security indicator lamp.

3.

CHECK HARNESS CONTINUITY

1.

Turn ignition switch OFF.

2.

Disconnect BCM and security indicator lamp connector.

Test item

Description

THEFT IND

ON

Vehicle security indicator

ON

OFF

OFF

Connector

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(-)

M18

23

Ground

ON

0

OFF

Battery voltage

LIIA0523E

VEHICLE SECURITY INDICATOR

SEC-33

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

3.

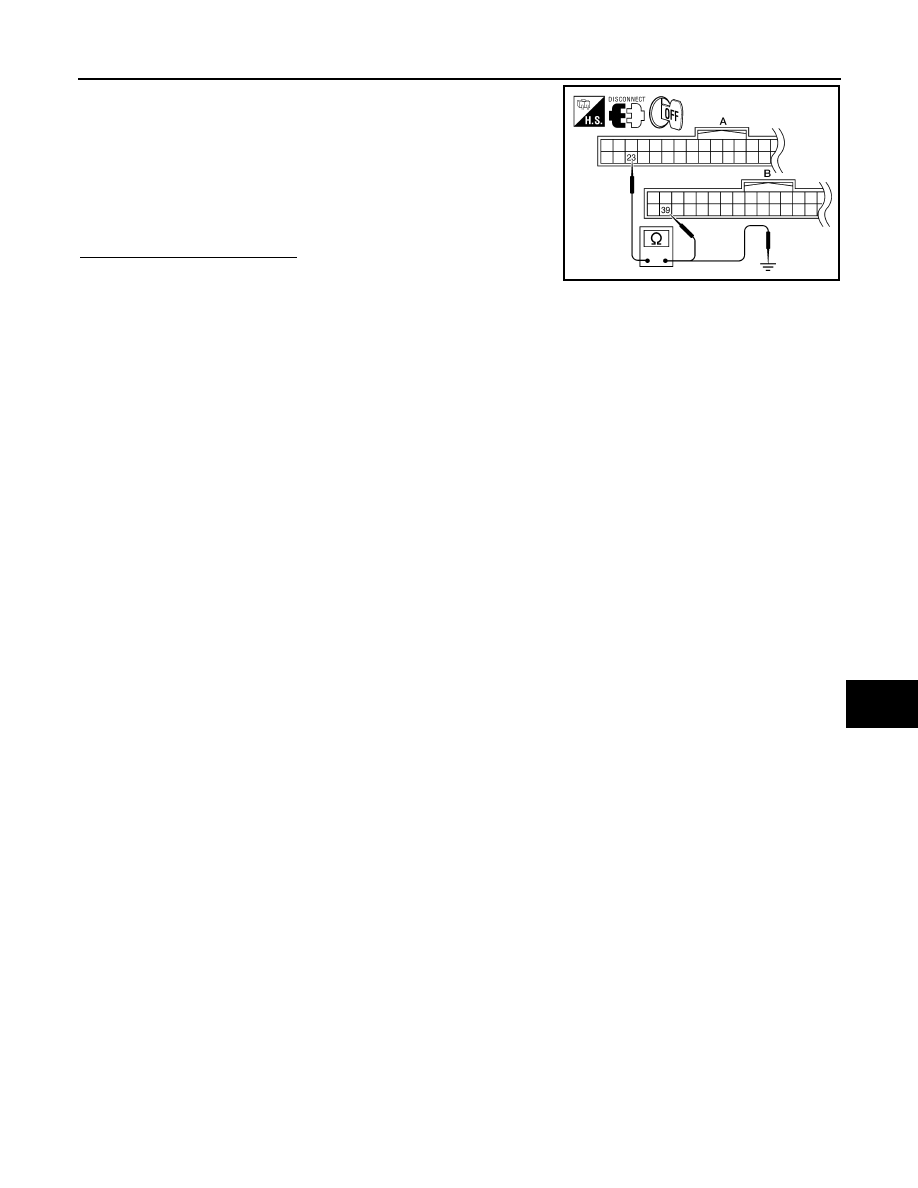

Check continuity between BCM connector M18 (A) terminal 23
and combination meter connector M24 (B) terminal 39.

4.

Check continuity between BCM connector M18 (A) terminal 23
and ground.

Is the inspection result normal?

YES

>>

Check the following:

• 10A fuse [No. 19, located in fuse block (J/B)]
• Harness for open or short between security indicator lamp and fuse

NO

>> Repair or replace harness.

23 - 39

: Continuity should exist.

23 - Ground

: Continuity should not exist.

ALKIA1273ZZ

SEC-34

< ECU DIAGNOSIS >

BCM (BODY CONTROL MODULE)

ECU DIAGNOSIS

BCM (BODY CONTROL MODULE)

Reference Value

INFOID:0000000005549838

VALUES ON THE DIAGNOSIS TOOL

Monitor Item

Condition

Value/Status

IGN ON SW

Ignition switch OFF or ACC

OFF

Ignition switch ON

ON

KEY ON SW

Mechanical key is removed from key cylinder

OFF

Mechanical key is inserted to key cylinder

ON

CDL LOCK SW

Door lock/unlock switch does not operate

OFF

Press door lock/unlock switch to the lock side

ON

CDL UNLOCK SW

Door lock/unlock switch does not operate

OFF

Press door lock/unlock switch to the unlock side

ON

DOOR SW-DR

Driver's door closed

OFF

Driver's door opened

ON

DOOR SW-AS

Passenger door closed

OFF

Passenger door opened

ON

DOOR SW-RR

Rear RH door closed

OFF

Rear RH door opened

ON

DOOR SW-RL

Rear LH door closed

OFF

Rear LH door opened

ON

KEY CYL LK-SW

Other than driver door key cylinder LOCK position

OFF

Driver door key cylinder LOCK position

ON

KEY CYL UN-SW

Other than driver door key cylinder UNLOCK position

OFF

Driver door key cylinder UNLOCK position

ON

KEYLESS LOCK

“LOCK” button of key fob is not pressed

OFF

“LOCK” button of key fob is pressed

ON

KEYLESS UNLOCK

“UNLOCK” button of key fob is not pressed

OFF

“UNLOCK” button of key fob is pressed

ON

ACC ON SW

Ignition switch OFF

OFF

Ignition switch ACC or ON

ON

REAR DEF SW

Rear window defogger switch OFF

OFF

Rear window defogger switch ON

ON

LIGHT SW 1ST

Lighting switch OFF

OFF

Lighting switch 1ST

ON

BUCKLE SW

The seat belt (driver side) is unfastened. [Seat belt switch (driver
side) OFF]

OFF

The seat belt (driver side) is fastened. [Seat belt switch (driver side)
ON]

ON

KEYLESS PANIC

PANIC button of key fob is not pressed

OFF

PANIC button of key fob is pressed

ON

BCM (BODY CONTROL MODULE)

SEC-35

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

RKE LCK-UNLCK

LOCK/UNLOCK button of key fob is not pressed and held simulta-
neously

OFF

LOCK/UNLOCK button of key fob is pressed and held simulta-
neously

ON

RKE KEEP UNLK

UNLOCK button of key fob is not pressed

OFF

UNLOCK button of key fob is pressed and held

ON

HI BEAM SW

Lighting switch OFF

OFF

Lighting switch HI

ON

HEAD LAMP SW 1

Lighting switch OFF

OFF

Lighting switch 2ND

ON

HEAD LAMP SW 2

Lighting switch OFF

OFF

Lighting switch 2ND

ON

AUTO LIGHT SW

Lighting switch OFF

OFF

Lighting switch AUTO

ON

PASSING SW

Other than lighting switch PASS

OFF

Lighting switch PASS

ON

FR FOG SW

Front fog lamp switch OFF

OFF

Front fog lamp switch ON

ON

TURN SIGNAL R

Turn signal switch OFF

OFF

Turn signal switch RH

ON

TURN SIGNAL L

Turn signal switch OFF

OFF

Turn signal switch LH

ON

CARGO LAMP SW

Cargo lamp switch OFF

OFF

Cargo lamp switch ON

ON

OPTICAL SENSOR

Bright outside vehicle

5V

Dark outside vehicle

0V

IGN SW CAN

Ignition switch OFF or ACC

OFF

Ignition switch ON

ON

FR WIPER HI

Front wiper switch OFF

OFF

Front wiper switch HI

ON

FR WIPER LOW

Front wiper switch OFF

OFF

Front wiper switch LO

ON

FR WIPER INT

Front wiper switch OFF

OFF

Front wiper switch INT

ON

FR WASHER SW

Front washer switch OFF

OFF

Front washer switch ON

ON

INT VOLUME

Wiper intermittent dial is in a dial position 1 - 7

1 - 7

FR WIPER STOP

Any position other than front wiper stop position

OFF

Front wiper stop position

ON

VEHICLE SPEED

While driving

Equivalent to speedometer reading

HAZARD SW

Hazard switch OFF

OFF

Hazard switch ON

ON

BRAKE SW

Brake pedal is not depressed

OFF

Brake pedal is depressed

ON

Monitor Item

Condition

Value/Status
