RF-56
< ON-VEHICLE REPAIR >
SUNROOF SYSTEM
1.
Remove the headlining. Refer to
INT-24, "Removal and Installation"
.
2.

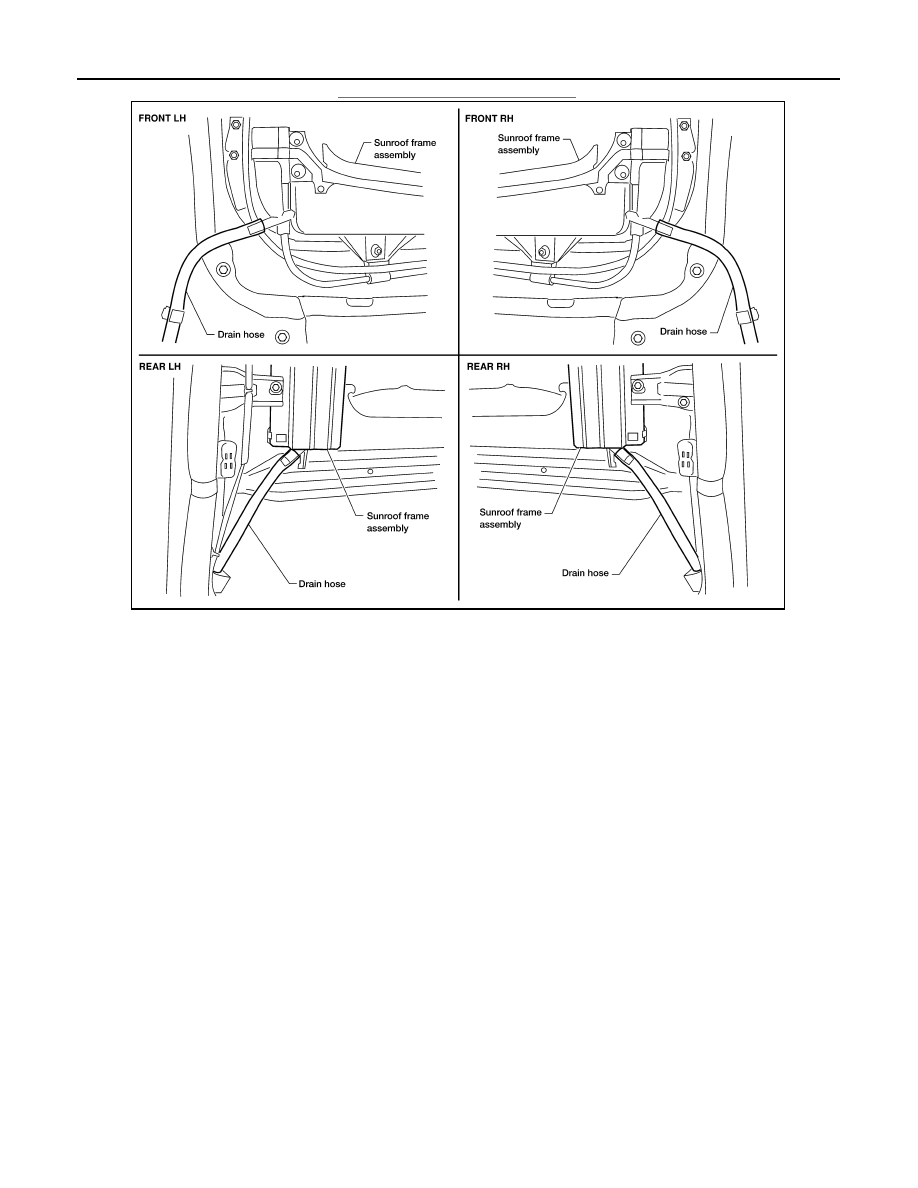

Visually check the drain hoses for proper connections, damage or deterioration.
3.
Remove each drain hose and check visually for damage, cracks or deterioration.
4.
Pour water through the drain hose to check for damage.
• If any damage is found, replace the drain hose.
Installation
Installation is in the reverse order of removal.
WEATHERSTRIP
Visually check weatherstrip for any damage, deterioration, or flattening.
• In the case of wind or water leakage around glass lid area, close glass lid and pour water around it to find the
damaged or gaped portion.
• If any damage is found, inspect and repair the body sealing surface, replace sunroof lid seal, or replace
glass lid assembly. Refer to GLASS LID in this section.
CAUTION:
Do not remove weatherstrip from glass lid.
LINK AND WIRE ASSEMBLY
NOTE:
Before replacing any suspect part, be sure it is the source of the noise.
1.
Visually check to determine if a sufficient amount of petroleum jelly has been applied to the wire or rail
groove. If not, add petroleum jelly as required.
2.
Check wire for any damage or deterioration. If any damage is found, remove rear guide, then replace
wire.
LIIA0272E
