AXLE OIL SEAL

RAX-13

< SERVICE INFORMATION >

[C200]

C

E

F

G

H

I

J

K

L

M

A

B

RAX

N

O

P

AXLE OIL SEAL

Removal and Installation

INFOID:0000000005275000

The axle oil seal must be replaced every time the axle shaft is removed and installed. Refer to

RAX-7,

"Removal and Installation"

.

CAUTION:

Do not reuse the axle oil seal. The axle oil seal must be replaced every time the axle shaft assembly is
removed from the axle shaft housing.

RAX-14

< SERVICE INFORMATION >

[C200]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Axle Specification

INFOID:0000000005275001

Unit: mm (in)

Shim Washers

INFOID:0000000005275002

Unit: mm (in)

*: Always check with the Parts Department for the latest parts information.

Axial end play

0 - 0.07 (0 - 0.003)

Snap ring to shim washer clearance

0.2 (0.008) or less

Snap ring outer diameter installed

47.5 (1.87) maximum

Total end play

0.02 - 0.15 (0.0008 - 0.0059)

Available shim washers

ID Paint Dot Color

Thickness

Part Number*

Pink

2.5 (0.098)

43086-EB08C

Black

2.4 (0.094)

43086-EB07C

Purple

2.3 (0.091)

43086-EB06C

Yellow

2.2 (0.087)

43086-EB05C

Green

2.1 (0.083)

43086-EB04C

Red

2.0 (0.079)

43086-EB03C

White

1.9 (0.075)

43086-EB02C

Blue

1.8 (0.071)

43086-EB01C

PRECAUTIONS

RAX-15

< SERVICE INFORMATION >

[M226]

C

E

F

G

H

I

J

K

L

M

A

B

RAX

N

O

P

SERVICE INFORMATION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000005549050

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SR and SB section of this Service Man-
ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a
hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution

INFOID:0000000005275003

• When installing rubber parts, final tightening must be carried out under unladen condition* with tires

on ground.
* Fuel, radiator coolant and engine oil full. Spare tire, jack, hand tools and mats in designated posi-
tions.

• After installing removed suspension parts, check wheel alignment and adjust if necessary.

RAX-16

< SERVICE INFORMATION >

[M226]

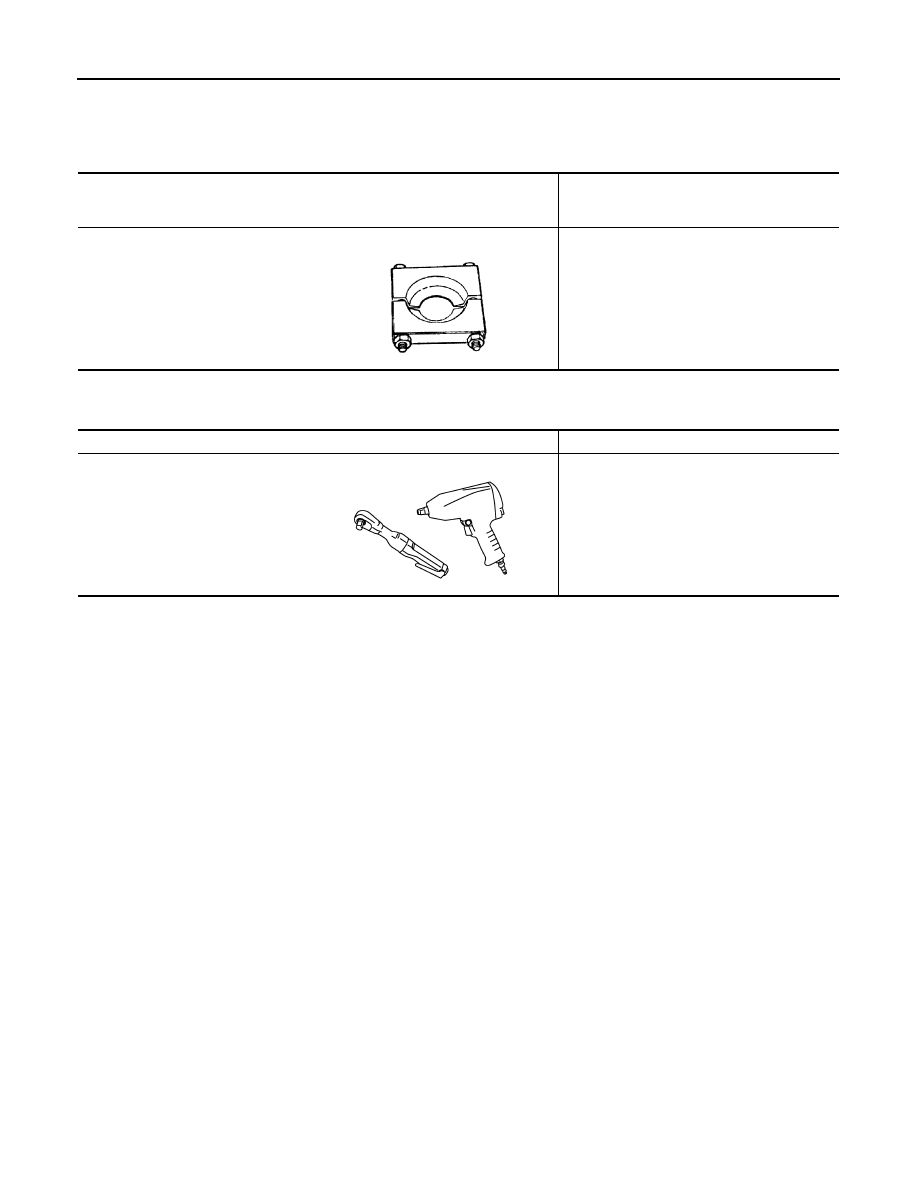

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000005275004

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tool

INFOID:0000000005275005

Tool number
(Kent-Moore No.)
Tool name

Description

205-D002
(

—

)

Bearing splitter

Removing axle shaft bearing

ZZA0700D

Tool name

Description

Power tools

Removing and installing nuts and bolts

PBIC0190E
