Nissan Frontier D40. Manual - part 895

PG

HARNESS

PG-47

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

G3

E36

W/2

: To B102

G3

E160

W/8

: Fuse block (J/B)

C3

E37

BR/2

: ASCD brake switch (with M/T)

C3

E163

L/2

: Clutch interlock switch (with clutch
  interlock cancel system)

C3

E38

B/2

: Stop lamp switch (with M/T)

C4

E167

B/2

: Diode-3

D3

E39

W/4

: Stop lamp switch (with A/T)

C4

E169

L/2

: Clutch interlock switch (without clutch
  interlock cancel system)

C3

E42

BR/2

: ASCD brake switch (with A/T)

PG-48

< COMPONENT DIAGNOSIS >

HARNESS

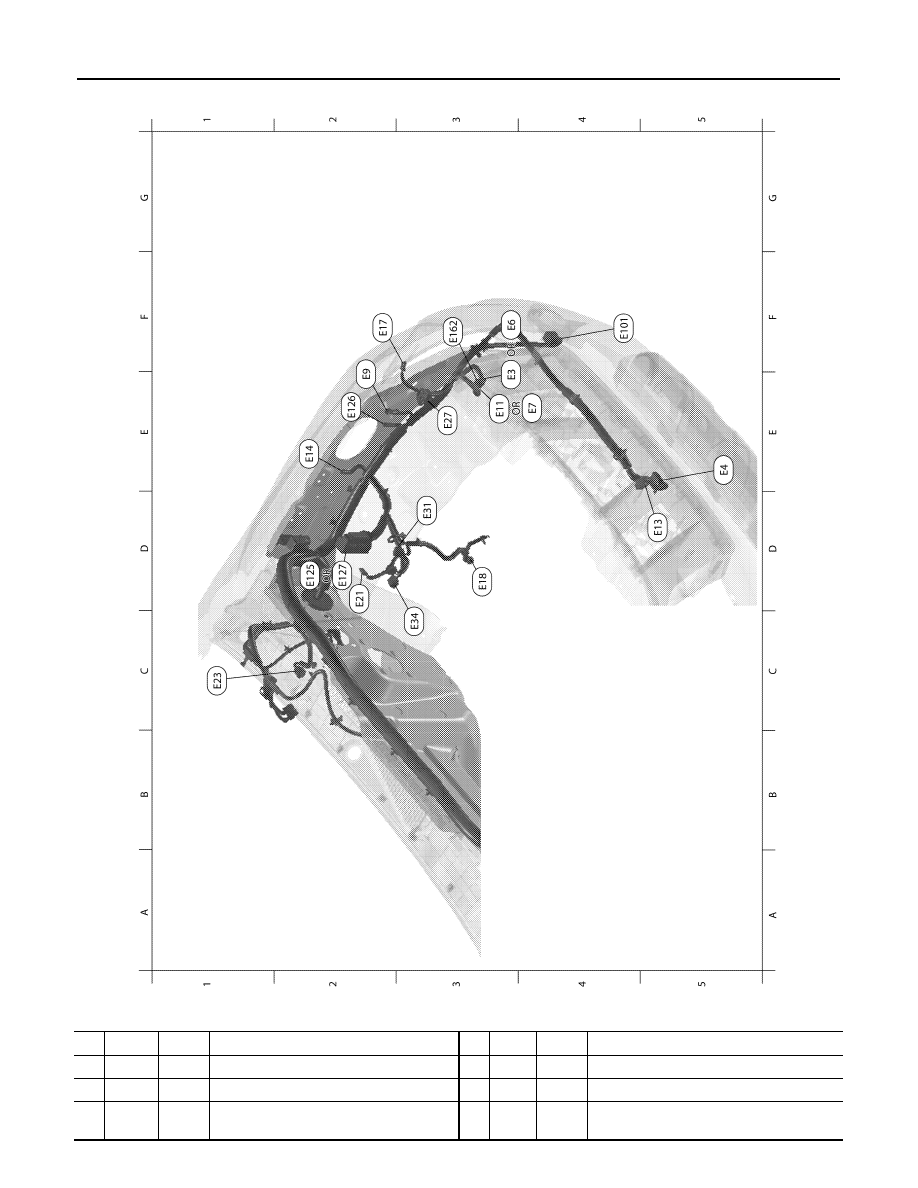

ENGINE ROOM HARNESS (LH VIEW)

Refer to "ENGINE ROOM HARNESS (RH VIEW)" for continuation of engine room harness.

ABMIA0399GB

E3

E3

B/1

: Horn (with single note horn)

D2

E21

GR/2

: Brake fluid level switch

E5

E4

Y/2

: Crash zone sensor

C1

E23

GR/5

: Front wiper motor

F3

E6

B/2

: Horn (with dual note horn)

E3

E27

GR/3

: Front combination lamp LH

E4

E7

B/3

: Front combination lamp LH (headlamp)
  (with daytime light system)

D3

E31

B/3

: Front pressure sensor

PG

HARNESS

PG-49

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

F2

E9

—

: Body ground

C3

E34

W/8

: To B40

E3

E11

B/3

: Front combination lamp LH (headlamp)
  (without daytime light system)

F4

E101

B/2

: Front fog lamp LH

D5

E13

B/2

: Ambient sensor 2

D2

E125

B/47

: ABS actuator and electric unit (control
  unit)(without VDC)

E2

E14

—

: Body ground

E2

E126

—

: Body ground

F2

E17

GR/2

: Front combination lamp LH (side marker)

D2

E127

B/47

: ABS actuator and electric unit (control
  unit)(with VDC)

D3

E18

GR/2

: Front wheel sensor LH

F3

E162

B/1

: Horn (with singal note horn)

PG-50

< COMPONENT DIAGNOSIS >

HARNESS

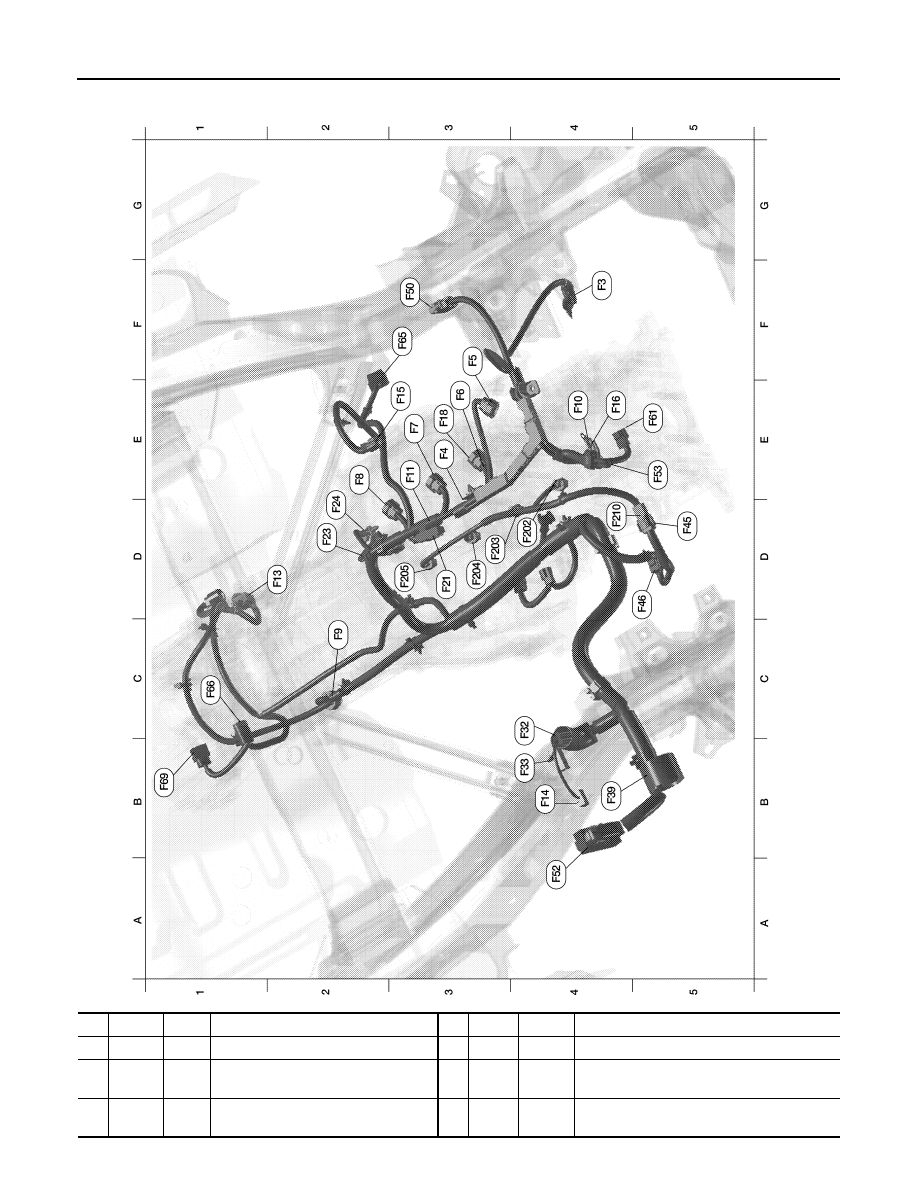

ENGINE CONTROL HARNESS (QR25DE MODELS)

ABMIA1487GB

F4

F3

B/1

: A/C Compressor

B4

F33

W/6

: To E19

E3

F4

GR/1

: Oil pressure switch

B4

F39

—

: Fusible link box (battery)

E3

F5

GR/3

: Ignition coil No. 1 (with power
  transistor

D5

F44

B/6

: To F101

E3

F6

GR/3

: Ignition coil No. 2 (with power
  transistor)

D5

F45

B/6

: To F210
