Nissan Frontier D40. Manual - part 892

PG

GROUND

PG-35

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

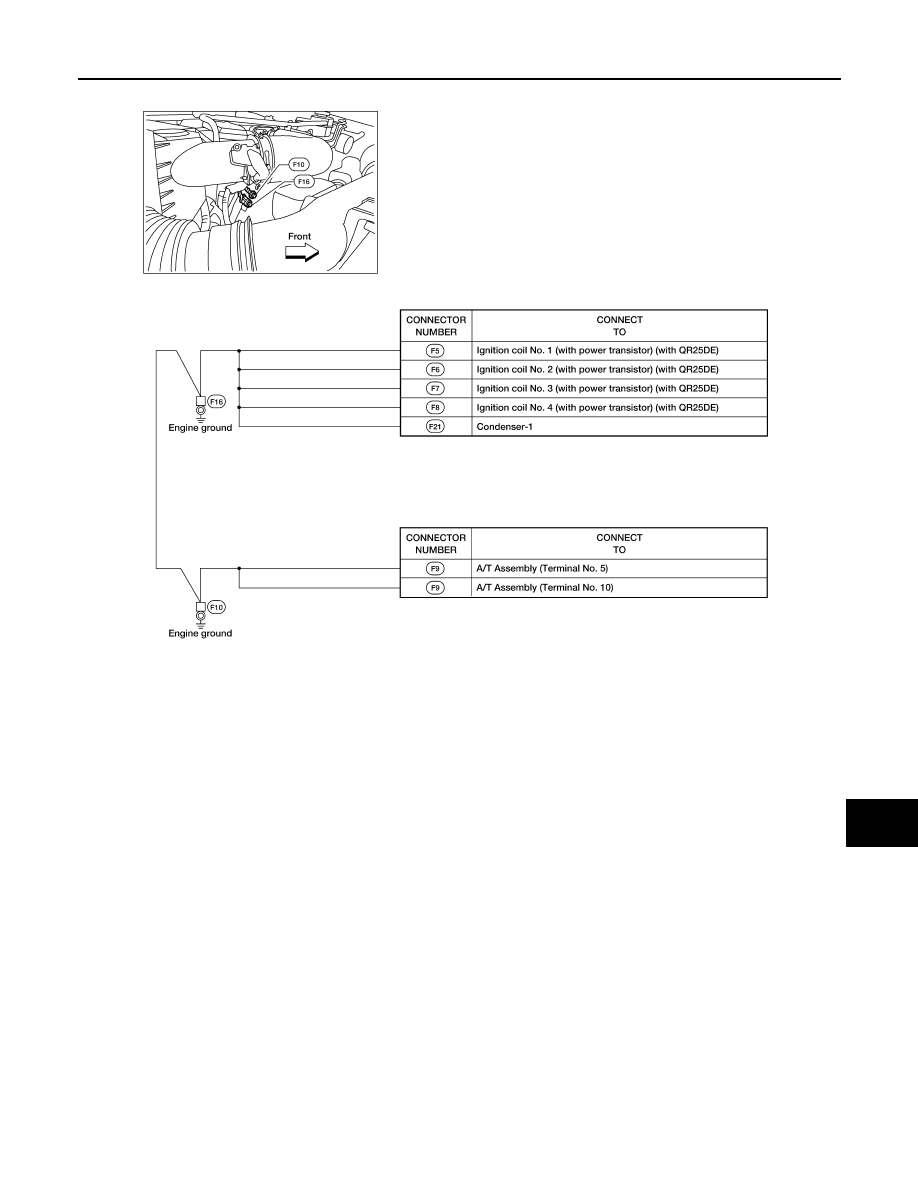

ENGINE CONTROL HARNESS (QR25DE MODELS)

ABMIA0373GB

PG-36

< COMPONENT DIAGNOSIS >

GROUND

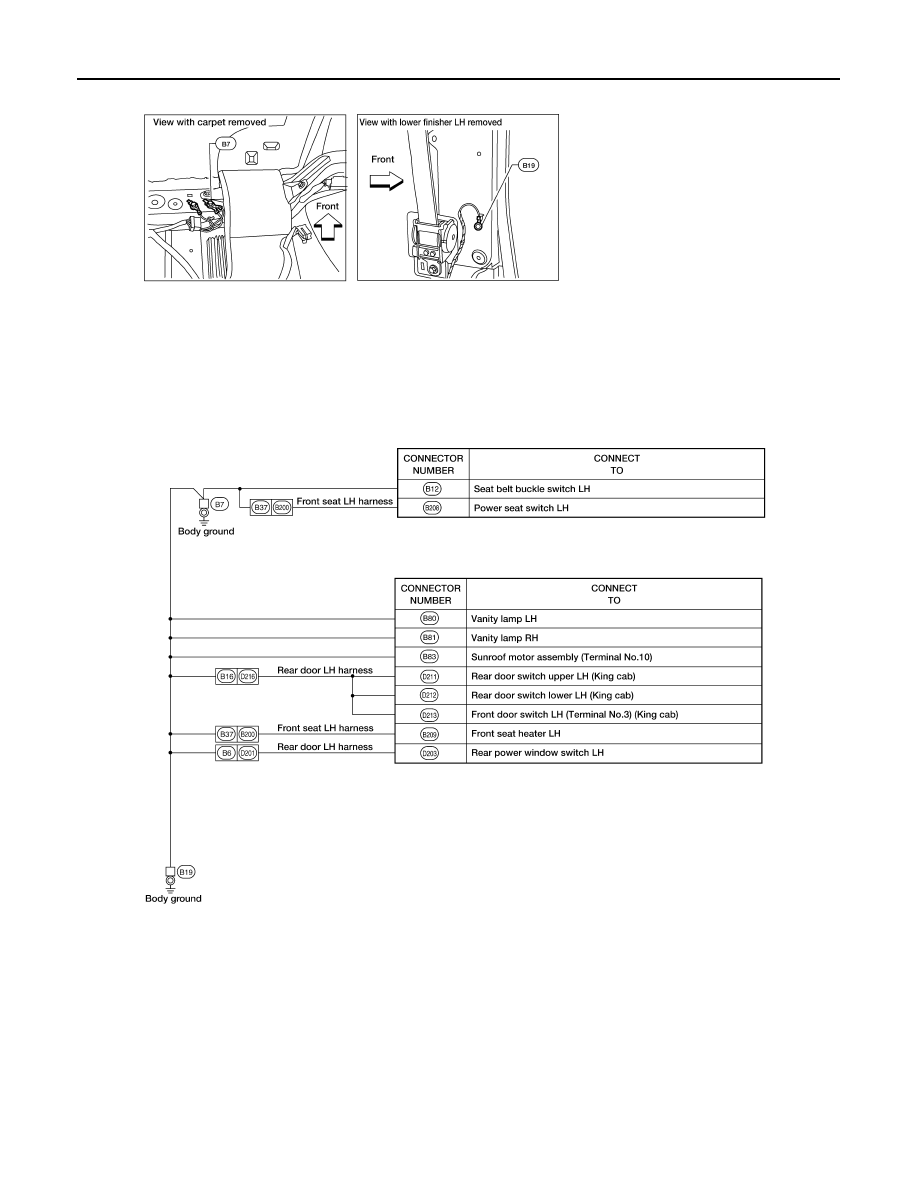

BODY HARNESS

ABMIA1475GB

PG

GROUND

PG-37

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

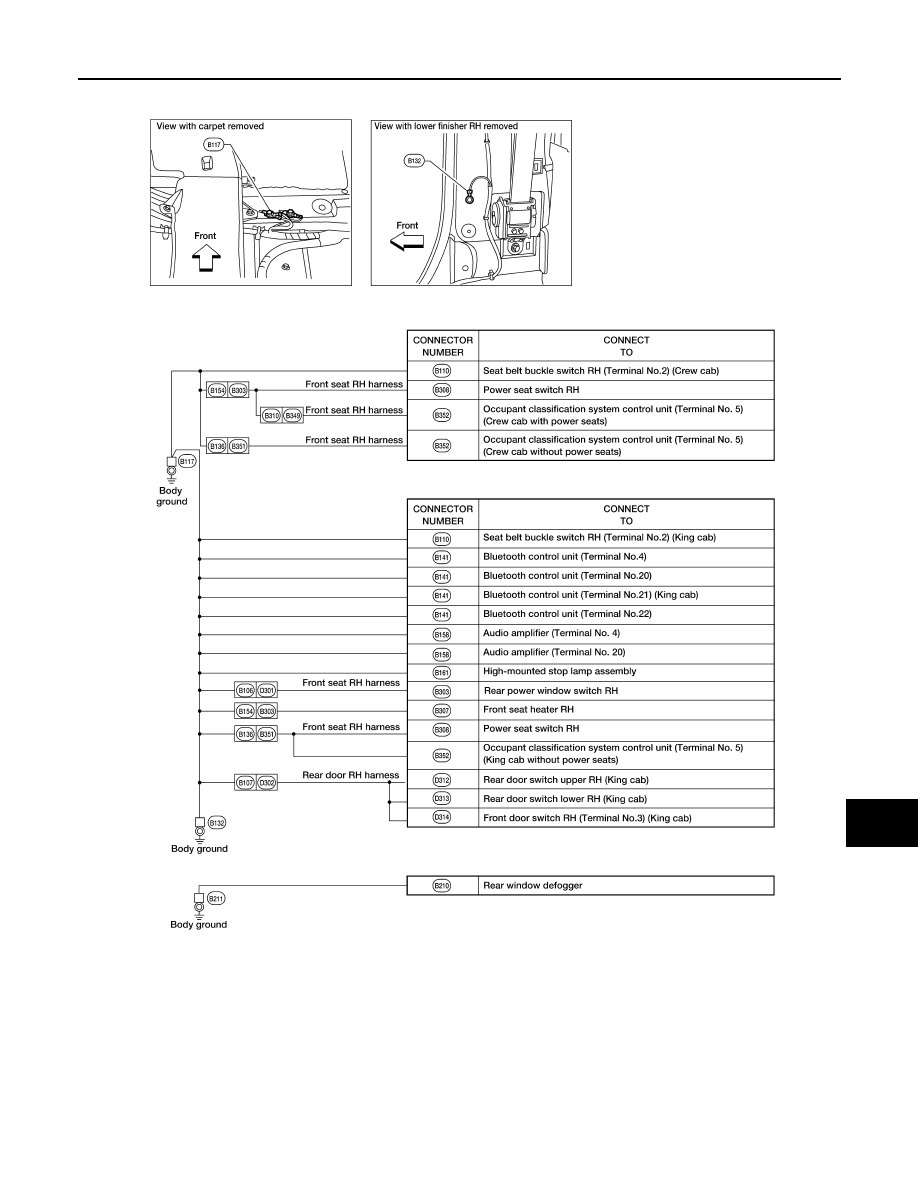

BODY NO. 2 HARNESS

ABMIA1476GB

PG-38

< COMPONENT DIAGNOSIS >

HARNESS

HARNESS

Harness Layout

INFOID:0000000005272421

HOW TO READ HARNESS LAYOUT

The following Harness Layouts use a map style grid to help locate
connectors on the drawings:
• Main Harness and Console Sub-harness
• Engine Room Harness (RH View), Generator Sub-harness and

Trailer Tow Harness

• Engine Room Harness (Passenger Compartment)
• Engine Room Harness (LH View)
• Engine Control Harness (QR25DE Models) and Injector Sub-har-

ness

• Engine Control Harness (VQ40DE Models), Injector Sub-harness,

Ignition Coil Sub-harness and Knock Sensor Sub-harness

• Chassis Harness, Differential Lock Sub-harness, Trailer Sub-har-

ness and Tail Lamp Sub-harness

• Body Harness (King Cab Models) and Front Seat LH Harness
• Body Harness (Crew Cab Models) and Front Seat LH Harness
• Body No. 2 Harness (King Cab Models) and Front Seat RH Harness
• Body No. 2 Harness (Crew Cab Models) and Front Seat RH Harness
• Room Lamp Harness

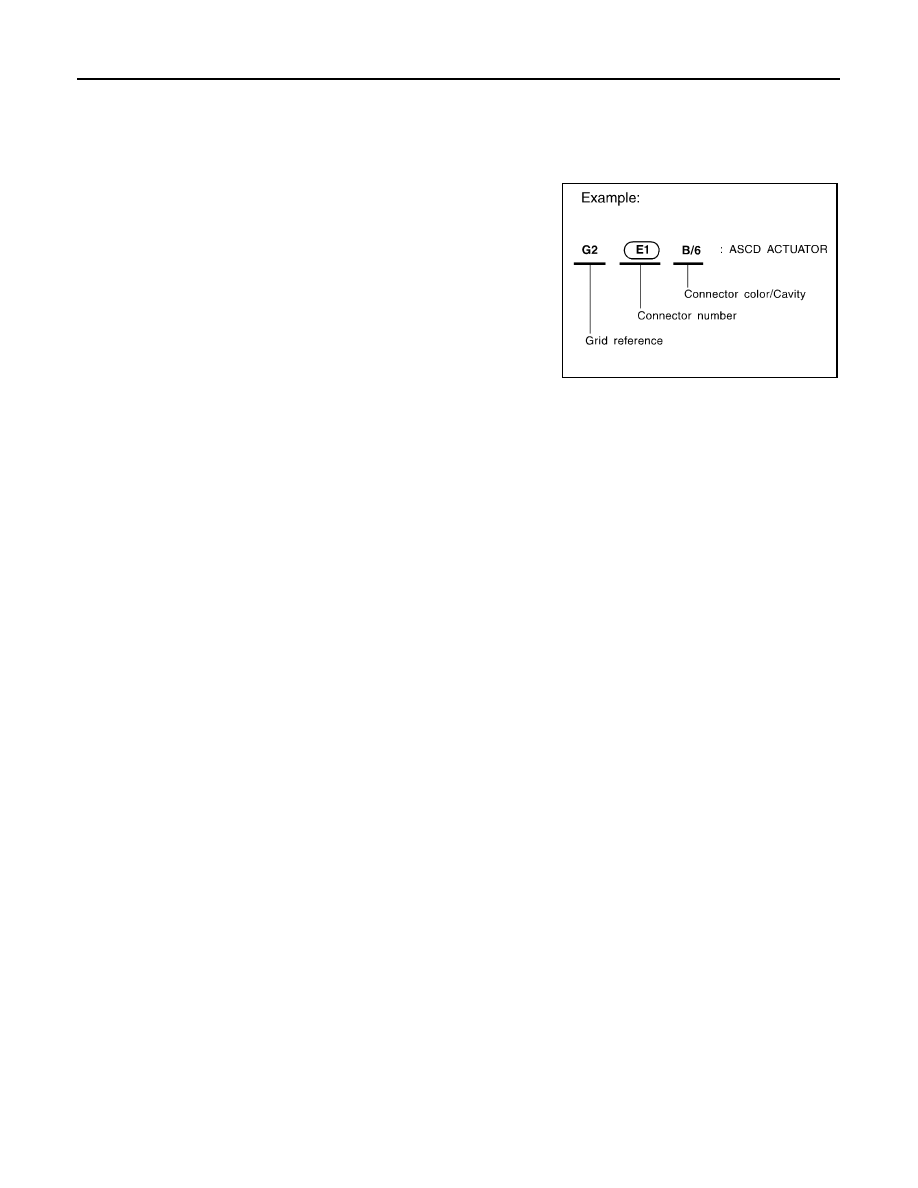

To use the grid reference
1.

Find the desired connector number on the connector list.

2.

Find the grid reference.

3.

On the drawing, find the crossing of the grid reference letter column and number row.

4.

Find the connector number in the crossing zone.

5.

Follow the line to the connector.

SEL252V
