FRONT BUMPER

EXT-15

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

6.

Remove front bumper assembly.

Installation

Installation is in the reverse order of removal.

EXT-16

< ON-VEHICLE REPAIR >

REAR BUMPER

REAR BUMPER

Removal and Installation

INFOID:0000000005274676

REMOVAL

NOTE:
It is not necessary to remove the tow hitch (if equipped) to service the rear bumper.

1.

Remove upper and lower step pads.

2.

Disconnect license lamp harness RH/LH.

3.

Release clips from license lamp RH/LH, then remove lamps from rear bumper.

4.

Remove rear bumper.

5.

Remove rear bumper reinforcement from frame.

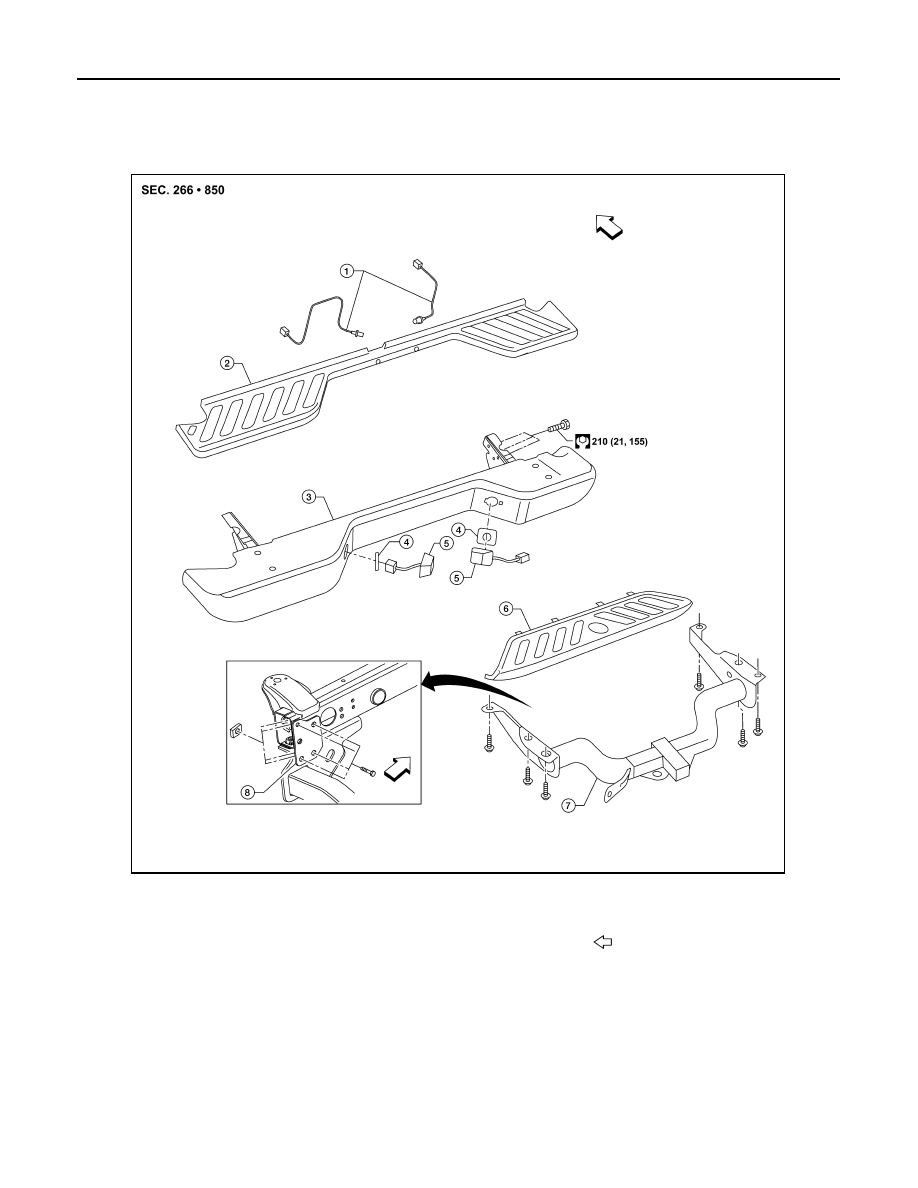

1. License lamp harness RH/LH

2.

Upper step pad

3.

Rear bumper

4. License lamp gasket

5.

License lamp RH/LH

6.

Lower step pad

7. Tow hitch (if equipped)

8.

Tow hitch reinforcement (if equipped)

Vehicle front

AWKIA1569GB

REAR BUMPER

EXT-17

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

6.

Remove tow hitch (if equipped).

INSTALLATION

Installation is in the reverse order of removal.

EXT-18

< ON-VEHICLE REPAIR >

FRONT GRILLE

FRONT GRILLE

Removal and Installation

INFOID:0000000005274677

REMOVAL

1.

Release the upper clips from the front grille.

2.

Detach the front grille and remove the front grille from member.

INSTALLATION

Installation is in the reverse order of removal.

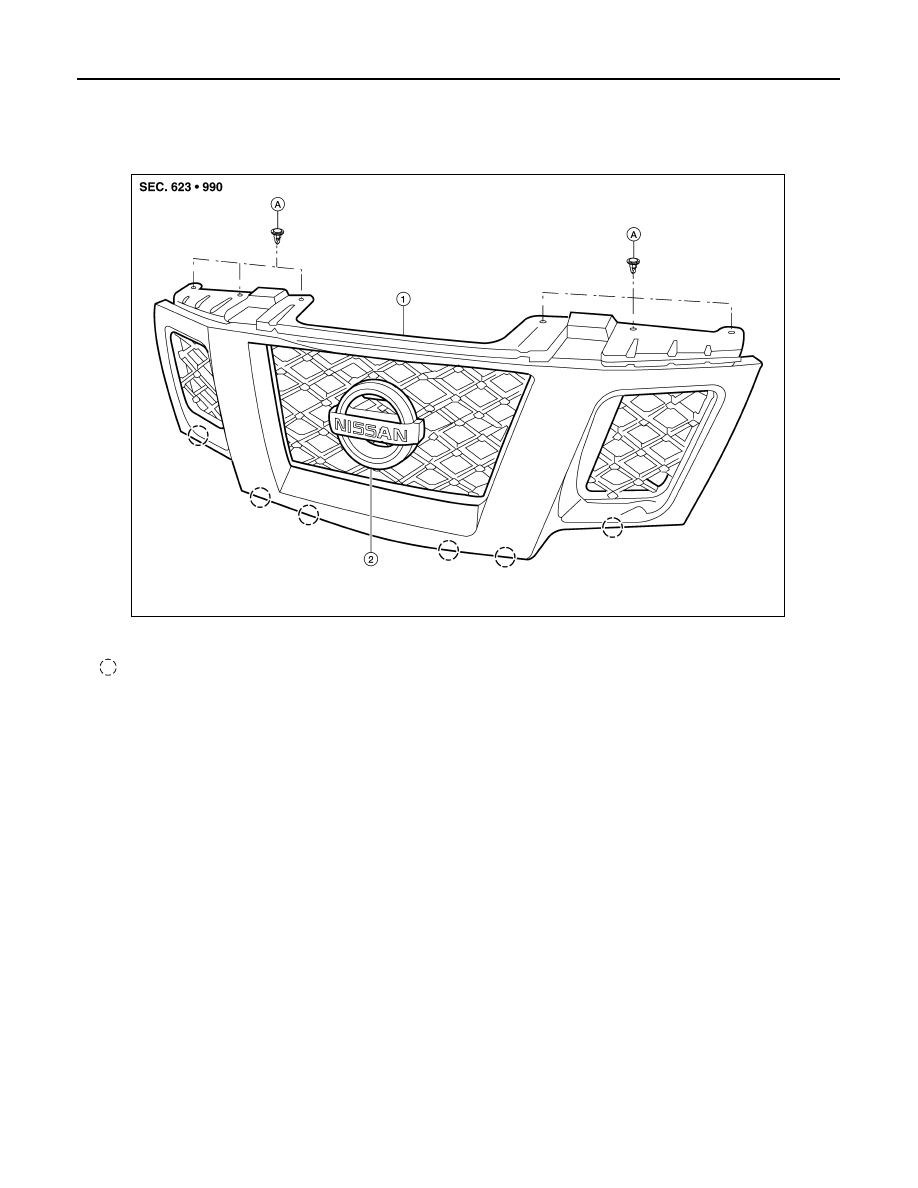

1.

Front grille

2.

Front emblem

A.

Clips C205

Pawl

AWKIA1568ZZ
