P2101 ELECTRIC THROTTLE CONTROL FUNCTION

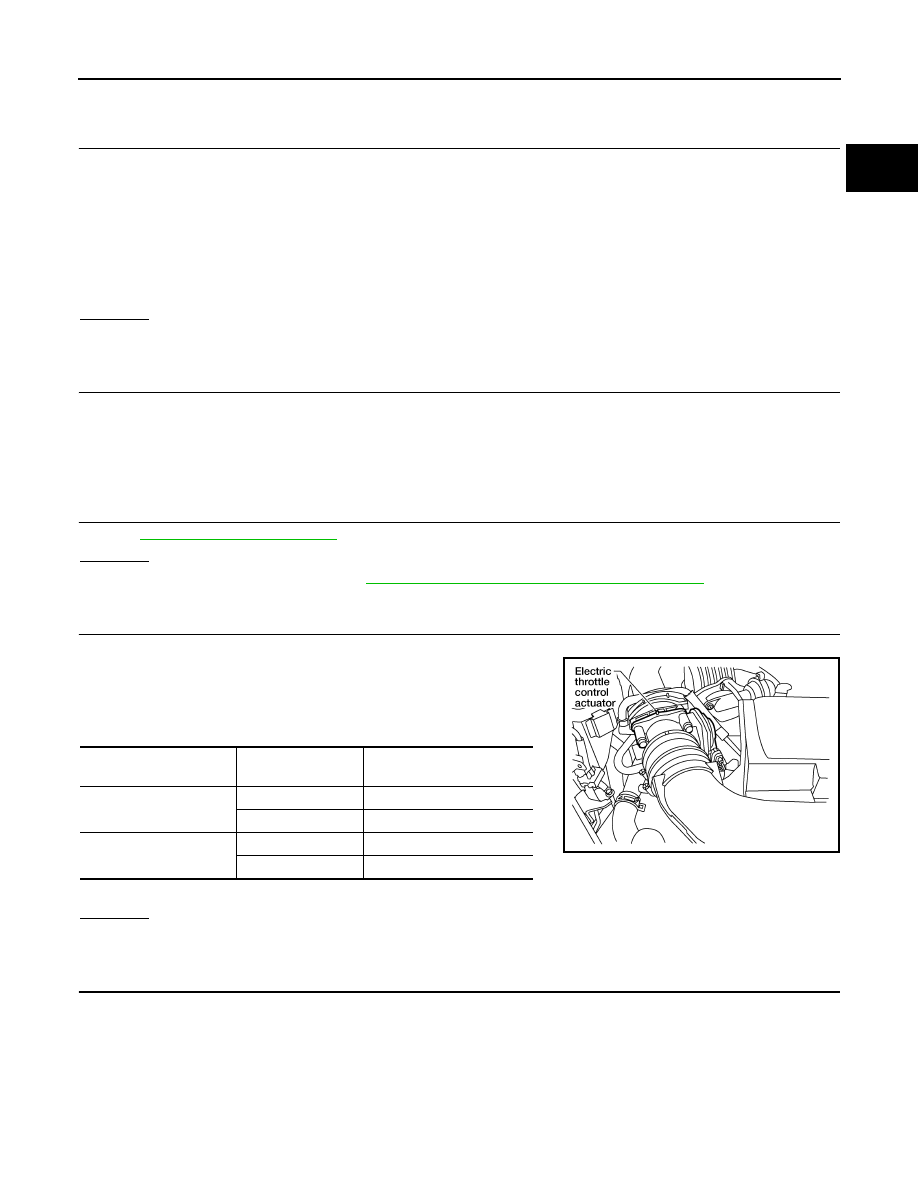

EC-819

< COMPONENT DIAGNOSIS >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

OK

>> GO TO 8.

NG

>> Replace 20A fuse.

6.

CHECK THROTTLE CONTROL MOTOR RELAY INPUT SIGNAL CIRCUIT-II

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Disconnect IPDM E/R harness connector E119.

4.

Check continuity between ECM terminal 3 and IPDM E/R terminal 6.
Refer to Wiring Diagram.

5.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 8.

NG

>> GO TO 7.

7.

DETECT MALFUNCTIONING PART

Check the following.
• Harness connectors E2, F32
• Harness for open or short between ECM and IPDM E/R

>> Repair open circuit or short to ground or short to power in harness or connectors.

8.

CHECK INTERMITTENT INCIDENT

Refer to

GI-46, "Intermittent Incident"

.

OK or NG

OK

>> Replace IPDM E/R. Refer to

PCS-33, "Removal and Installation of IPDM E/R"

.

NG

>> Repair or replace harness or connectors.

9.

CHECK THROTTLE CONTROL MOTOR OUTPUT SIGNAL CIRCUIT FOR OPEN OR SHORT

1.

Turn ignition switch OFF.

2.

Disconnect electric throttle control actuator harness connector.

3.

Disconnect ECM harness connector.

4.

Check harness continuity between the following terminals.
Refer to Wiring Diagram.

5.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 10.

NG

>> Repair or replace.

10.

CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY

1.

Remove the intake air duct.

Continuity should exist.

Electric throttle control

actuator terminal

ECM terminal

Continuity

5

5

Should not exist

4

Should exist

6

5

Should exist

4

Should not exist

BBIA0543E

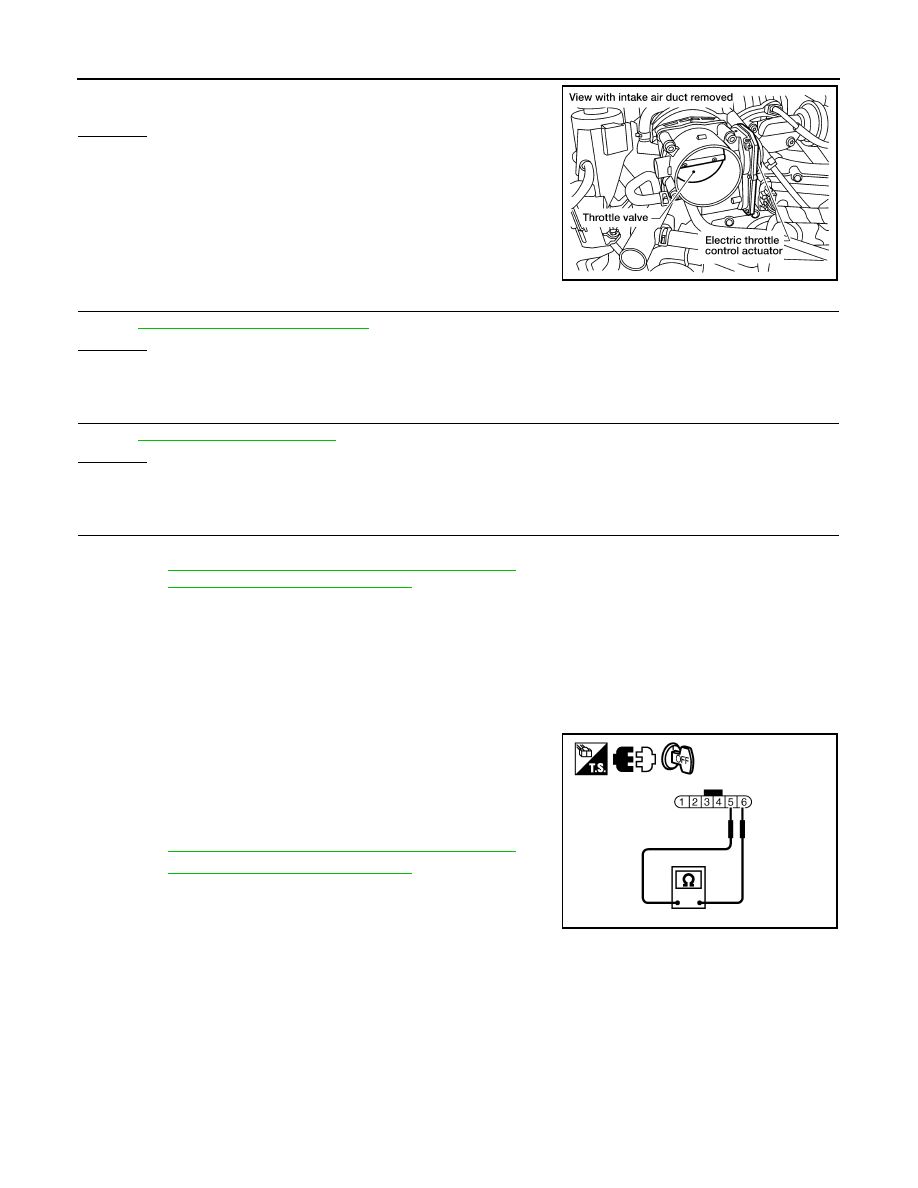

EC-820

< COMPONENT DIAGNOSIS >

[VQ40DE]

P2101 ELECTRIC THROTTLE CONTROL FUNCTION

2.

Check if foreign matter is caught between the throttle valve and
the housing.

OK or NG

OK

>> GO TO 11.

NG

>> Remove the foreign matter and clean the electric throttle

control actuator inside.

11.

CHECK THROTTLE CONTROL MOTOR

Refer to

EC-820, "Component Inspection"

.

OK or NG

OK

>> GO TO 12.

NG

>> GO TO 13.

12.

CHECK INTERMITTENT INCIDENT

Refer to

GI-46, "Intermittent Incident"

.

OK or NG

OK

>> GO TO 13.

NG

>> Repair or replace harness or connectors.

13.

REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR

1.

Replace the electric throttle control actuator.

2.

Perform

EC-473, "Throttle Valve Closed Position Learning"

.

3.

Perform

EC-473, "Idle Air Volume Learning"

.

>> INSPECTION END

Component Inspection

INFOID:0000000005273832

THROTTLE CONTROL MOTOR

1.

Disconnect electric throttle control actuator harness connector.

2.

Check resistance between terminals 5 and 6.

3.

If NG, replace electric throttle control actuator and go to next
step.

4.

Perform

EC-473, "Throttle Valve Closed Position Learning"

.

5.

Perform

EC-473, "Idle Air Volume Learning"

.

BBIA0554E

Resistance: Approximately 1 - 15

Ω

 [at 25

°

C (77

°

F)]

PBIB2606E

P2118 THROTTLE CONTROL MOTOR

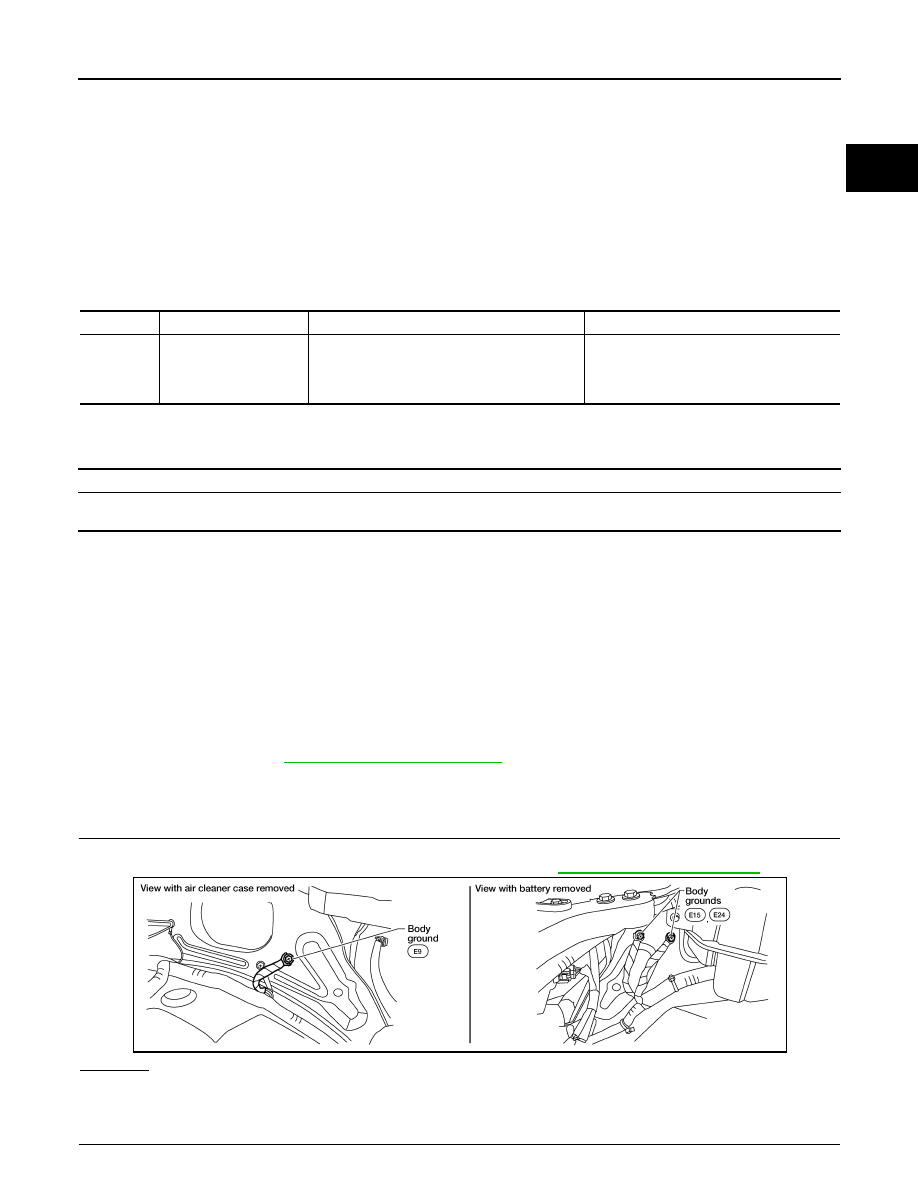

EC-821

< COMPONENT DIAGNOSIS >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P2118 THROTTLE CONTROL MOTOR

Component Description

INFOID:0000000005273833

The throttle control motor is operated by the ECM and it opens and closes the throttle valve.
The current opening angle of the throttle valve is detected by the throttle position sensor.The throttle position
sensor provides feedback to the ECM, when opens/closes the throttle valve in response to driving conditions
via the throttle control motor.

On Board Diagnosis Logic

INFOID:0000000005273834

This self-diagnosis has the one trip detection logic.

FAIL-SAFE MODE

When the malfunction is detected, the ECM enters fail-safe mode and the MIL illuminates.

DTC Confirmation Procedure

INFOID:0000000005273835

1.

If DTC Confirmation Procedure has been previously conducted, always perform the following before con-
ducting the next step.

a.

Turn ignition switch OFF and wait at least 10 seconds.

b.

Turn ignition switch ON.

c.

Turn ignition switch OFF and wait at least 10 seconds.

2.

Turn ignition switch ON and wait at least 2 seconds.

3.

Start engine and let it idle for 5 seconds.

4.

Check DTC.

5.

If DTC is detected, go to

EC-821, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000005273836

1.

CHECK GROUND CONNECTIONS

1.

Turn ignition switch OFF.

2.

Loosen and retighten three ground screws on the body. Refer to

EC-549, "Ground Inspection"

.

OK or NG

OK

>> GO TO 2.

NG

>> Repair or replace ground connections.

2.

CHECK THROTTLE CONTROL MOTOR OUTPUT SIGNAL CIRCUIT FOR OPEN OR SHORT

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P2118
2118

Throttle control motor
circuit short

ECM detects short in both circuits between
ECM and throttle control motor.

• Harness or connectors

(Throttle control motor circuit is shorted.)

• Electric throttle control actuator

(Throttle control motor)

Engine operating condition in fail-safe mode

ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5 degrees) by the return
spring.

BBIA0539E

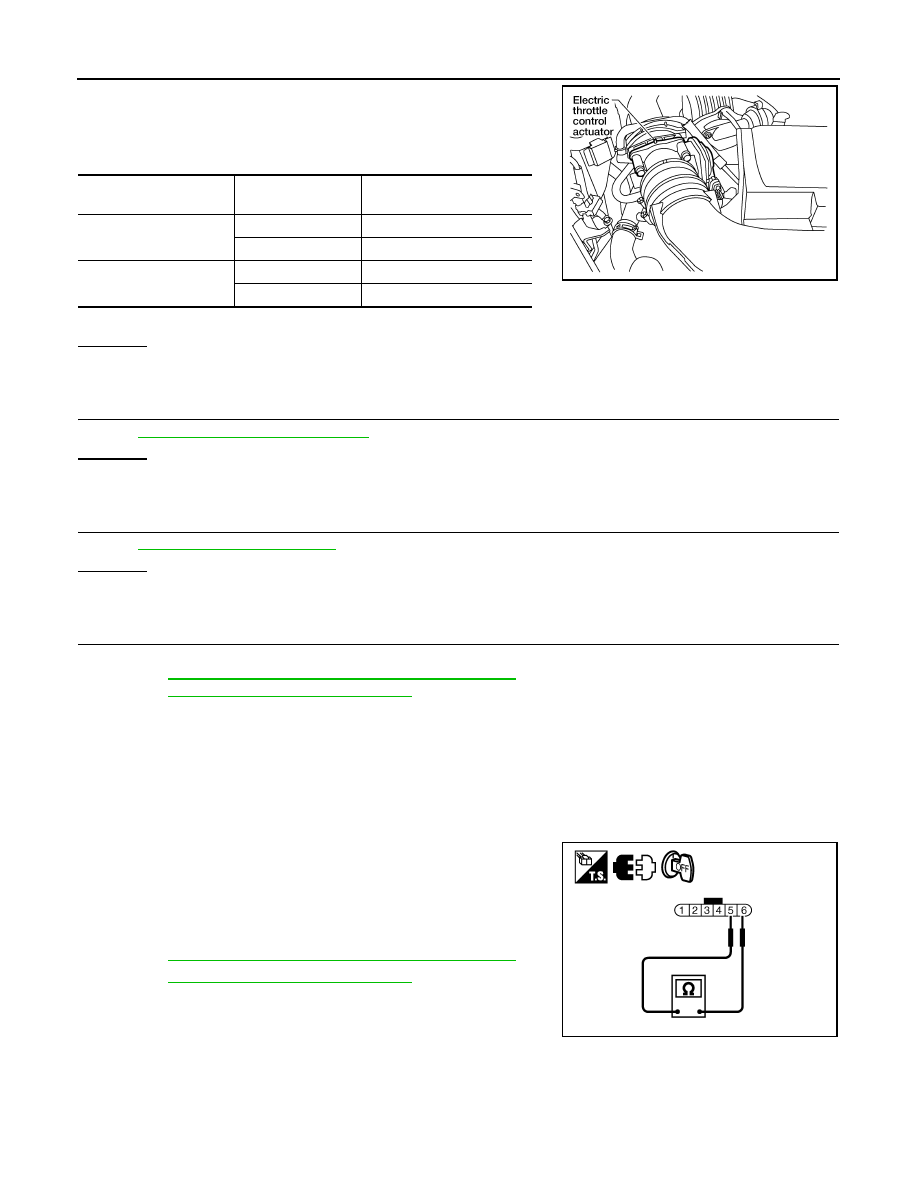

EC-822

< COMPONENT DIAGNOSIS >

[VQ40DE]

P2118 THROTTLE CONTROL MOTOR

1.

Disconnect electric throttle control actuator harness connector.

2.

Disconnect ECM harness connector.

3.

Check harness continuity between the following terminals.
Refer to Wiring Diagram.

4.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace.

3.

CHECK THROTTLE CONTROL MOTOR

Refer to

EC-822, "Component Inspection"

.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 5.

4.

CHECK INTERMITTENT INCIDENT

Refer to

GI-46, "Intermittent Incident"

.

OK or NG

OK

>> GO TO 5.

NG

>> Repair or replace harness or connectors.

5.

REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR

1.

Replace the electric throttle control actuator.

2.

Perform

EC-473, "Throttle Valve Closed Position Learning"

.

3.

Perform

EC-473, "Idle Air Volume Learning"

.

>> INSPECTION END

Component Inspection

INFOID:0000000005273837

THROTTLE CONTROL MOTOR

1.

Disconnect electric throttle control actuator harness connector.

2.

Check resistance between terminals 5 and 6.

3.

If NG, replace electric throttle control actuator and go to next
step.

4.

Perform

EC-473, "Throttle Valve Closed Position Learning"

.

5.

Perform

EC-473, "Idle Air Volume Learning"

.

Electric throttle control

actuator terminal

ECM terminal

Continuity

5

5

Should not exist

4

Should exist

6

5

Should exist

4

Should not exist

BBIA0543E

Resistance: Approximately 1 - 15

Ω

 [at 25

°

C (77

°

F)]
