P1801, P1811 POWER SUPPLY CIRCUIT FOR TRANSFER CONTROL UNIT

DLN-21

< COMPONENT DIAGNOSIS >

[TRANSFER: TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

COMPONENT DIAGNOSIS

P1801, P1811 POWER SUPPLY CIRCUIT FOR TRANSFER CONTROL
UNIT

Description

INFOID:0000000005275413

The transfer control unit controls the transfer control device which controls shifts between 4H and 4LO and
between 2WD and 4WD.  When the vehicle battery is removed, the power supply to the transfer control unit is
interupted, and self-diagnosis memory function is suspended.  These DTC's may also set when the power
supply voltage for the transfer control unit is abnormally low while driving.

DTC Logic

INFOID:0000000005275414

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

DTC CONFIRMATION PROCEDURE

1.

Turn ignition switch ON.

2.

Perform self-diagnosis.

Are DTC's “P1801 or P1811 detected?

YES

>> Perform diagnosis procedure. Refer to

DLN-21, "Diagnosis Procedure"

.

NO

>> Inspection End.

Diagnosis Procedure

INFOID:0000000005275415

Regarding Wiring Diagram information, refer to

DLN-60, "Wiring Diagram"

.

1.

CHECK POWER SUPPLY

1.

Turn ignition switch “OFF”.  (Stay for at least 5 seconds.)

2.

Disconnect transfer control unit harness connector.

3.

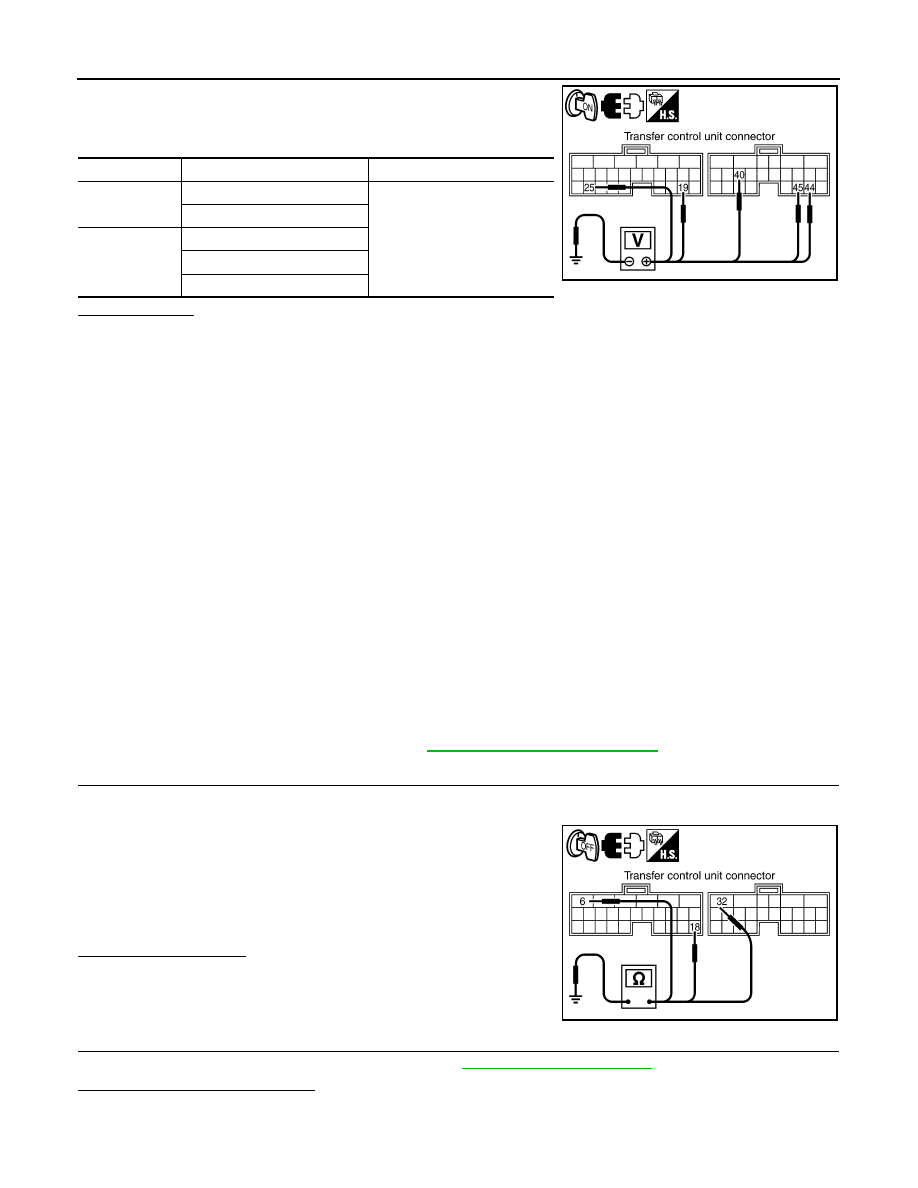

Check voltage between transfer control unit harness connector
terminals and ground.

DTC

CONSULT-III

Diagnostic item is detected when...

Reference

[P1801]

*INITIAL START*

Due to removal of battery which cuts off
power supply to transfer control unit,
self-diagnosis memory function is sus-
pended.

DLN-21

[P1811]

BATTERY VOLTAGE

Power supply voltage for transfer control
unit is abnormally low while driving.

Connector

Terminal

Voltage (Approx.)

M152

19 - Ground

Battery voltage

25 - Ground

0V

M153

40 - Ground

Battery voltage

44 - Ground

0V

45 - Ground

SDIA3360E

DLN-22

< COMPONENT DIAGNOSIS >

[TRANSFER: TX15B]

P1801, P1811 POWER SUPPLY CIRCUIT FOR TRANSFER CONTROL UNIT

4.

Turn ignition switch “ON”. (Do not start engine.)

5.

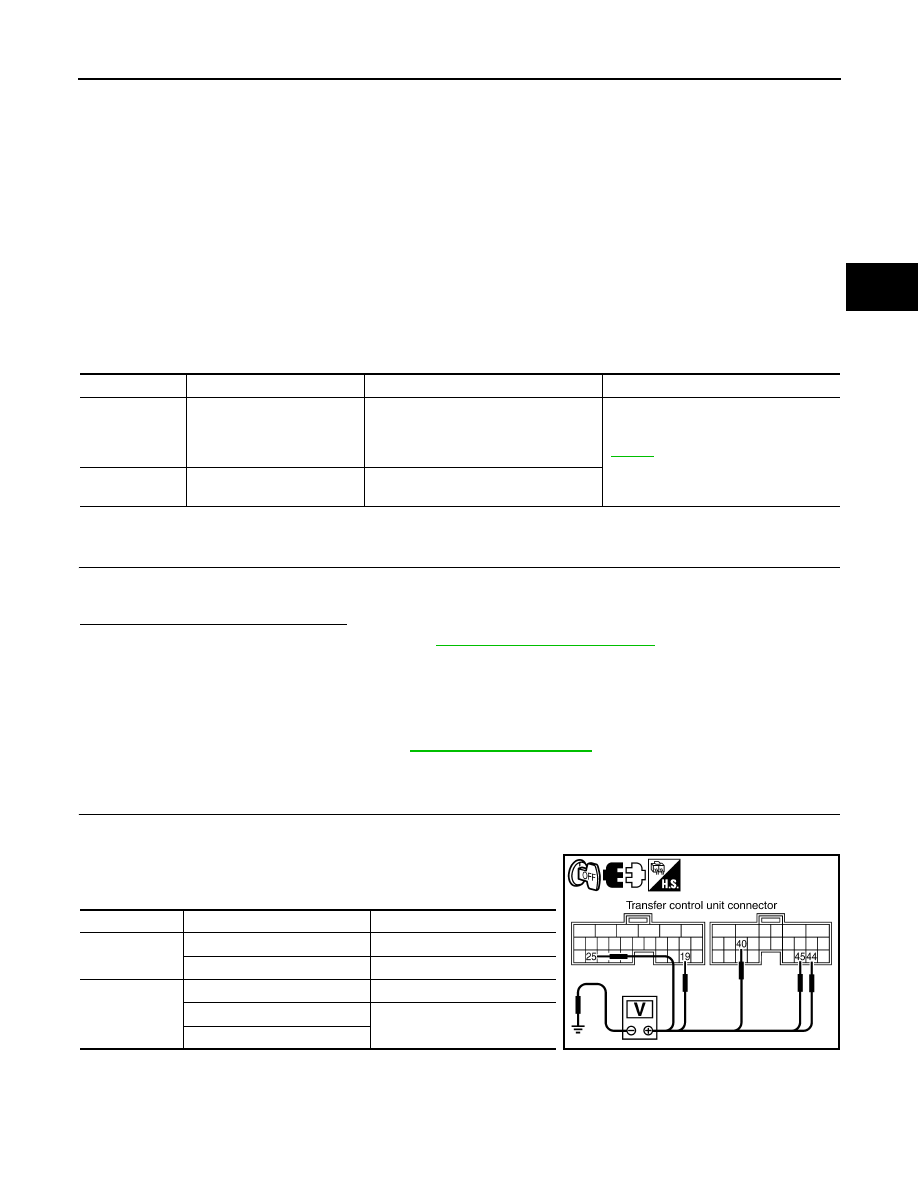

Check voltage between transfer control unit harness connector
terminals and ground.

Is there voltage?

YES

>> GO TO 2.

NO

>>

Check the following. If any items are damaged, repair or replace damaged parts.

• 40A fuse (No. J, located in the fuse and fusible link box).
• 10A fuses (No. 21, located in the fuse block (J/B) and Nos. 57 and 58 located in the fuse and

relay box).

• Harness for short or open between battery and transfer control unit harness connector M152

terminal 19.

• Harness for short or open between battery and transfer shut off relay 2 harness connector E157

terminal 1 and 3.

• Harness for short or open between battery and transfer shut off relay 1 harness connector E156

terminal 3.

• Harness for short or open between ignition switch and transfer control unit harness connector

M152 terminal 25.

• Harness for short or open between ignition switch and transfer shut off relay 1 harness connec-

tor E156 terminal 1.

• Harness for short or open between transfer shut off relay 2 harness connector E157 terminal 5

and transfer control unit harness connector M153 terminals 44, 45.

• Harness for short or open between transfer shut off relay 1 harness connector E156 terminal 5

and transfer control unit harness connector M153 terminals 44, 45.

• Harness for short or open between transfer shut off relay 2 harness connector E157 terminal 2

and transfer control unit harness connector M153 terminal 40.

• Harness for open between transfer shut off relay 1 harness connector E156 terminal 2 and

ground.

• Battery and ignition switch.
• Transfer shut off relay 1, 2. Refer to

DLN-23, "Component Inspection"

.

2.

CHECK GROUND CIRCUIT

1.

Turn ignition switch “OFF”.

2.

Disconnect transfer control unit harness connector.

3.

Check continuity between transfer control unit harness connec-
tor M152 terminals 6 (M/T models) and 18, and M153 terminal
32 and ground.

Also check harness for short to power.

Do you have continuity?

YES

>> GO TO 3.

NO

>> Repair open circuit or short to power in harness or con-

nectors.

3.

CHECK TRANSFER CONTROL UNIT

Check transfer control unit input/output signal. Refer to

DLN-55, "Reference Value"

.

Are the inspection results normal?

YES

>> GO TO 4.

Connector

Terminal

Voltage (Approx.)

M152

19 - Ground

Battery voltage

25 - Ground

M153

40 - Ground

44 - Ground

45 - Ground

SDIA3361E

Continuity should exist.

SDIA3362E

P1801, P1811 POWER SUPPLY CIRCUIT FOR TRANSFER CONTROL UNIT

DLN-23

< COMPONENT DIAGNOSIS >

[TRANSFER: TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

NO

>> Check transfer control unit pin terminals for damage or loose connection with harness connector.

If any items are damaged, repair or replace damaged parts.

4.

CHECK DTC

Drive vehicle and then perform Self-diagnosis.

Do DTC's P1801 or P1811 display?

YES

>> Replace transfer control unit.  Refer to

DLN-94, "Removal and Installation"

.

NO

>> Inspection End.

Component Inspection

INFOID:0000000005275416

1.

Turn ignition switch “OFF”.  (Stay for at least 5 seconds.)

2.

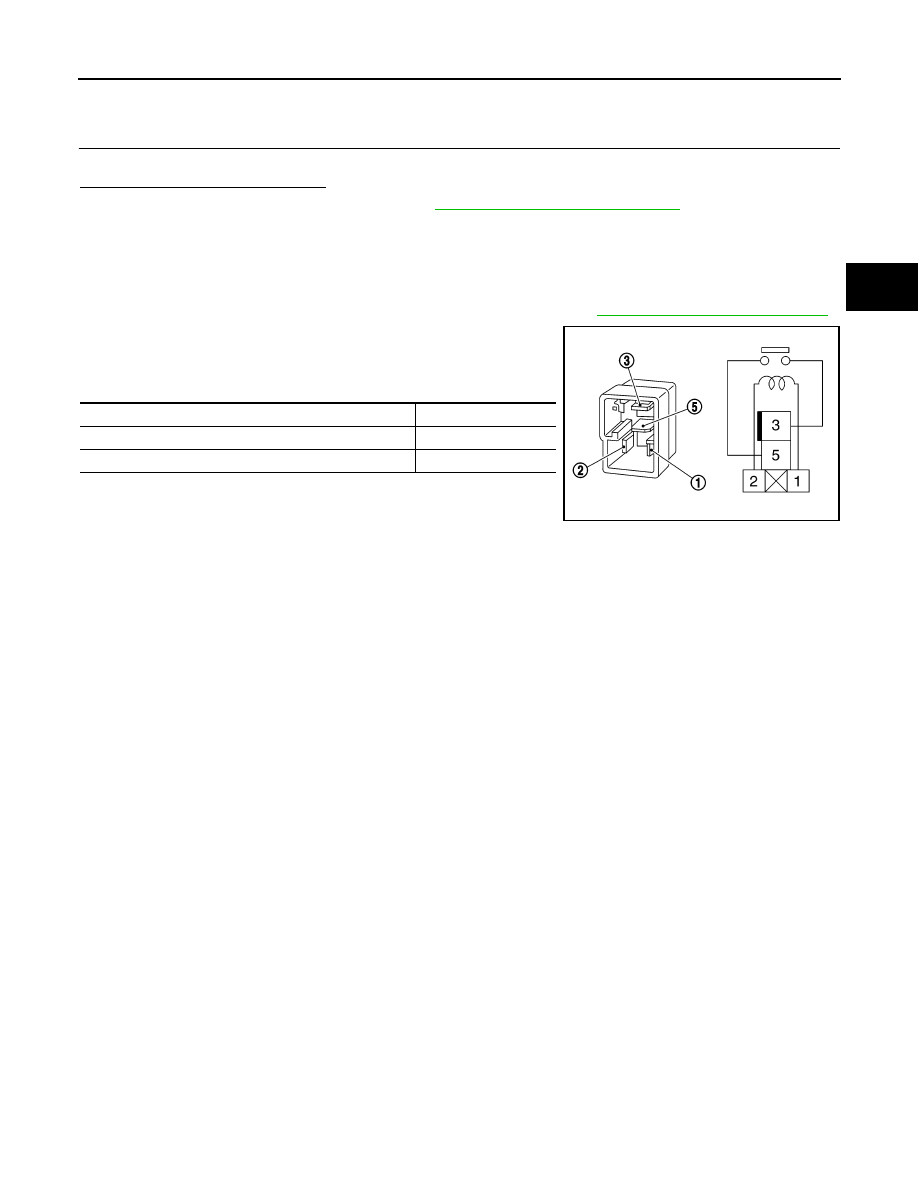

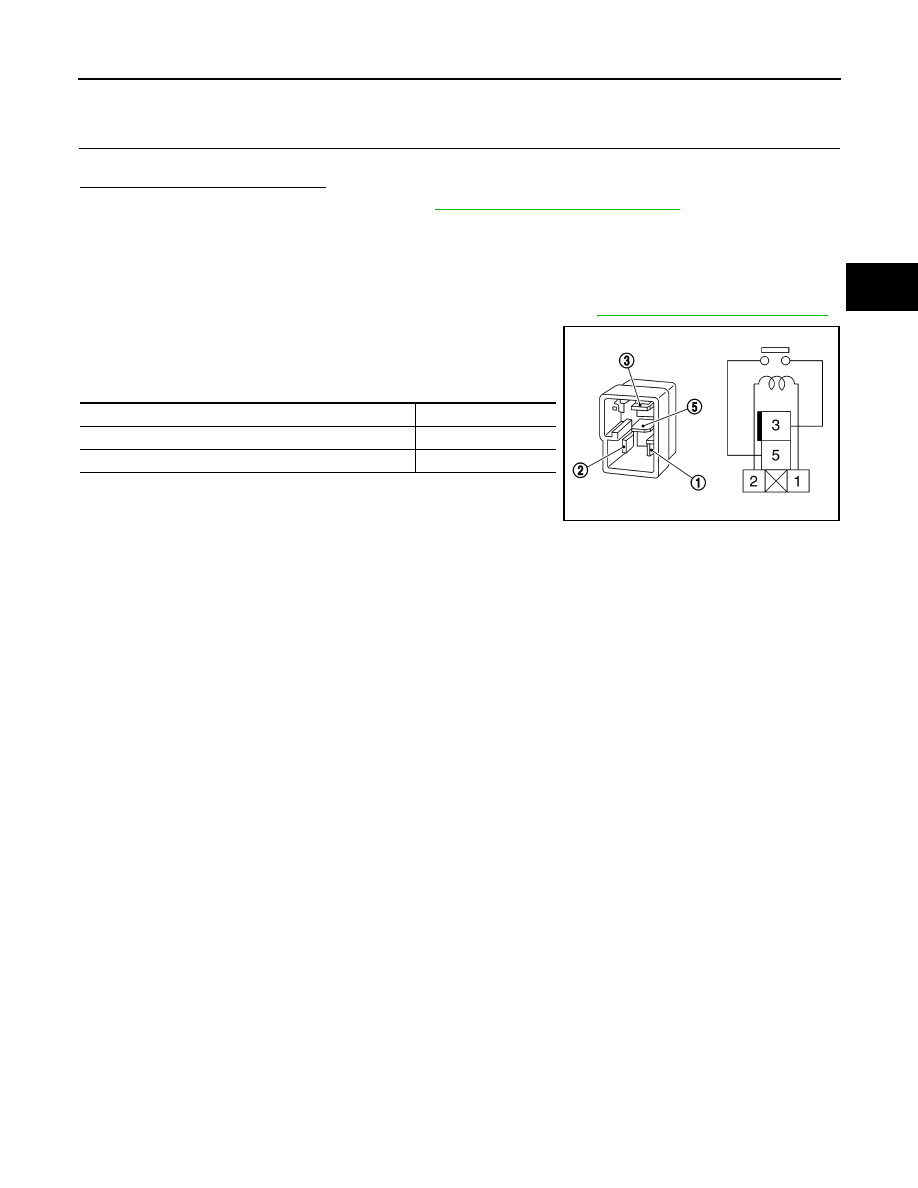

Remove transfer shut off relay 1 and transfer shut off relay 2. Refer to

DLN-23, "Component Inspection"

.

3.

Apply 12V direct current between transfer shut off relay termi-
nals 1 and 2.

4.

Check continuity between relay terminals 3 and 5.

5.

If inspection results are not normal, replace the transfer shut off
relay 1 or 2.

Condition

Continuity

12V direct current supply between terminals 1 and 2

Yes

OFF

No

SCIA1245E

DLN-24

< COMPONENT DIAGNOSIS >

[TRANSFER: TX15B]

P1802 – P1804, P1809 TRANSFER CONTROL UNIT

P1802 – P1804, P1809 TRANSFER CONTROL UNIT

Description

INFOID:0000000005275417

The transfer control unit controls the transfer control device which controls shifts between 4H and 4LO and
between 2WD and 4WD.  A DTC may set when any of the following occur:
• Malfunction is detected in the memory (RAM) system of transfer control unit.
• Malfunction is detected in the memory (ROM) system of transfer control unit.
• Malfunction is detected in the memory (EEPROM) system of transfer control unit.
• AD converter system of transfer control unit is malfunctioning.

DTC Logic

INFOID:0000000005275418

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

DTC CONFIRMATION PROCEDURE

1.

Turn ignition switch ON.

2.

Perform self-diagnosis.

Are DTC's “P1802 - P1804 or P1809 detected?

YES

>> Perform diagnosis procedure. Refer to

DLN-24, "Diagnosis Procedure"

.

NO

>> Inspection End.

Diagnosis Procedure

INFOID:0000000005275419

1.

INSPECTION START

Do you have CONSULT-III?

YES or NO

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

PERFORM SELF-DIAGNOSIS (WITH CONSULT-III)

1.

Turn ignition switch “ON”.

2.

Select “SELF-DIAG RESULTS” mode for “ALL MODE AWD/4WD” with CONSULT-III.

3.

Touch “ERASE”.

4.

Turn ignition switch “OFF” and wait at least 10 seconds.

5.

Perform the self-diagnosis again.

Is the “CONTROL UNIT 1 [P1802]”, “CONTROL UNIT 2 [P1803]”, “CONTROL UNIT 3 [P1804]” or CONTROL
UNIT 4 [P1809]” displayed?

YES

>> Replace transfer control unit. Refer to

DLN-94, "Removal and Installation"

.

NO

>> Inspection End.

3.

PERFORM SELF-DIAGNOSIS (WITHOUT CONSULT-III)

1.

Perform the self-diagnosis and then erase self-diagnostic results. Refer to

DLN-17, "CONSULT-III Func-

tion (ALL MODE AWD/4WD)"

.

2.

Perform the self-diagnosis again.

DTC

CONSULT-III

Diagnostic item is detected when...

Reference

[P1802]

CONTROL UNIT 1

Malfunction is detected in the memory
(RAM) system of transfer control unit.

DLN-24

[P1803]

CONTROL UNIT 2

Malfunction is detected in the memory
(ROM) system of transfer control unit.

[P1804]

CONTROL UNIT 3

Malfunction is detected in the memory
(EEPROM) system of transfer control
unit.

[P1809]

CONTROL UNIT 4

AD converter system of transfer control
unit is malfunctioning.
