Content .. 170 171 172 173 ..

Nissan Frontier D40. Manual - part 172

REPLACEMENT OPERATIONS

BRM-83

< ON-VEHICLE REPAIR >

BRM

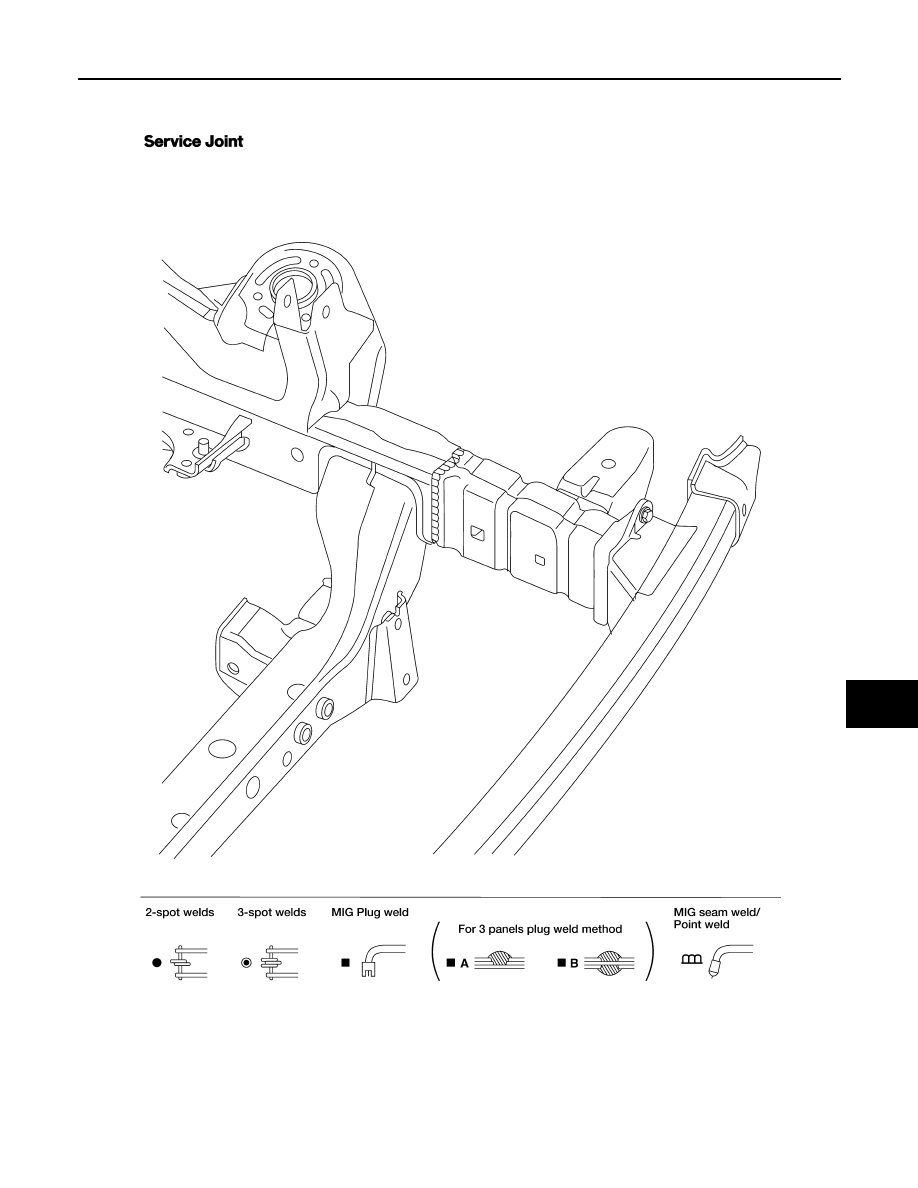

Be sure to replace the entire crush horn when the crush horn has damage at the back of the body
mounting bracket.

Foam Repair

INFOID:0000000005274698

During factory body assembly, foam insulators are installed in certain body panels and locations around the
vehicle. Use the following procedure(s) to replace any factory-installed foam insulators.

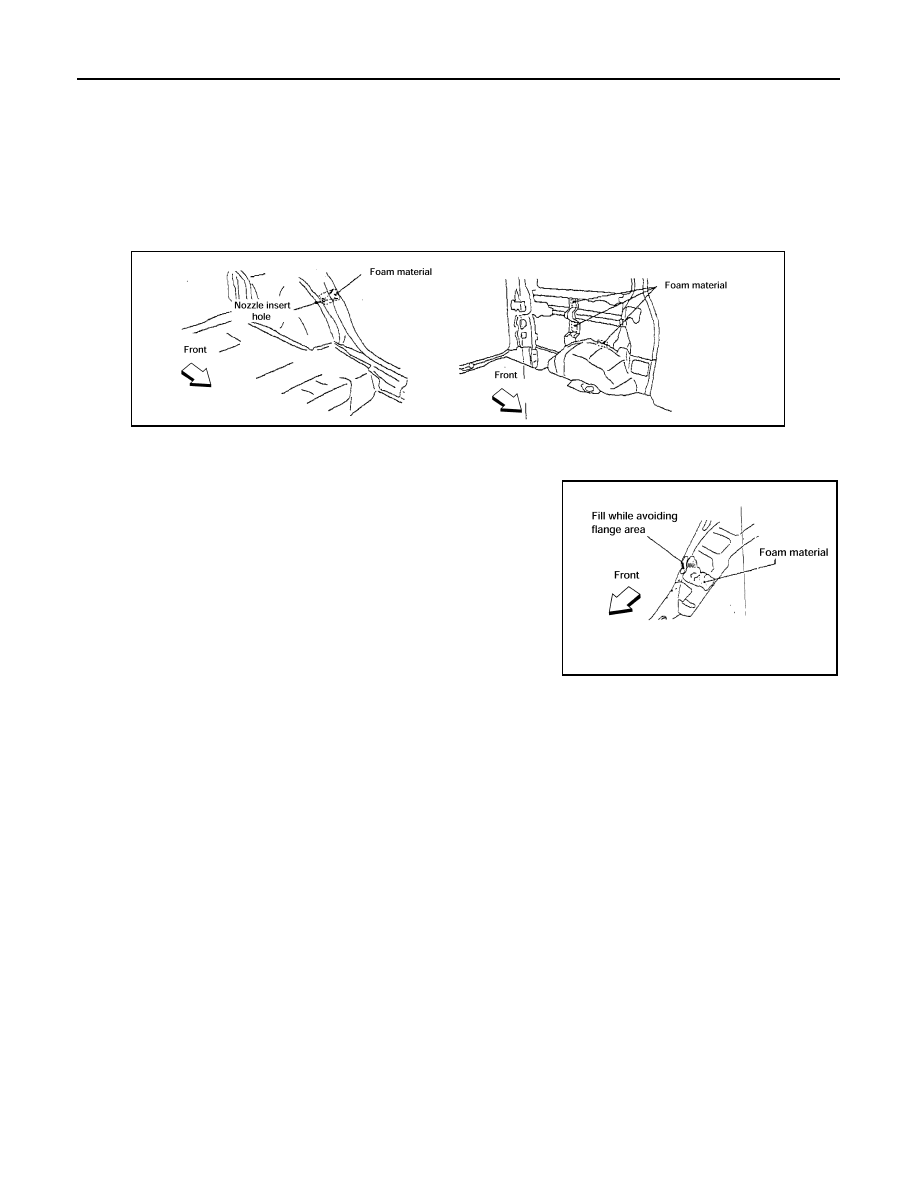

URETHANE FOAM APPLICATIONS

LIIA2148E

BRM-84

< ON-VEHICLE REPAIR >

REPLACEMENT OPERATIONS

Use commercially available spray foam for sealant (foam material) repair of material used on vehicle. Read
instructions on product for fill procedures.

FILL PROCEDURES

Fill procedures after installation of service part.

Remove foam material remaining on vehicle side.

Clean area in which foam was removed.

Install service part.

Insert nozzle into hole near fill area and fill foam material or fill in enough to close gap with the service
part.

Fill procedures before installation of service part.

Remove foam material remaining on vehicle side.

Clean area in which foam was removed.

Fill foam material on wheelhouse outer side.

NOTE:
Fill in enough to close gap with service part while avoiding flange

area.
