Measurement Points

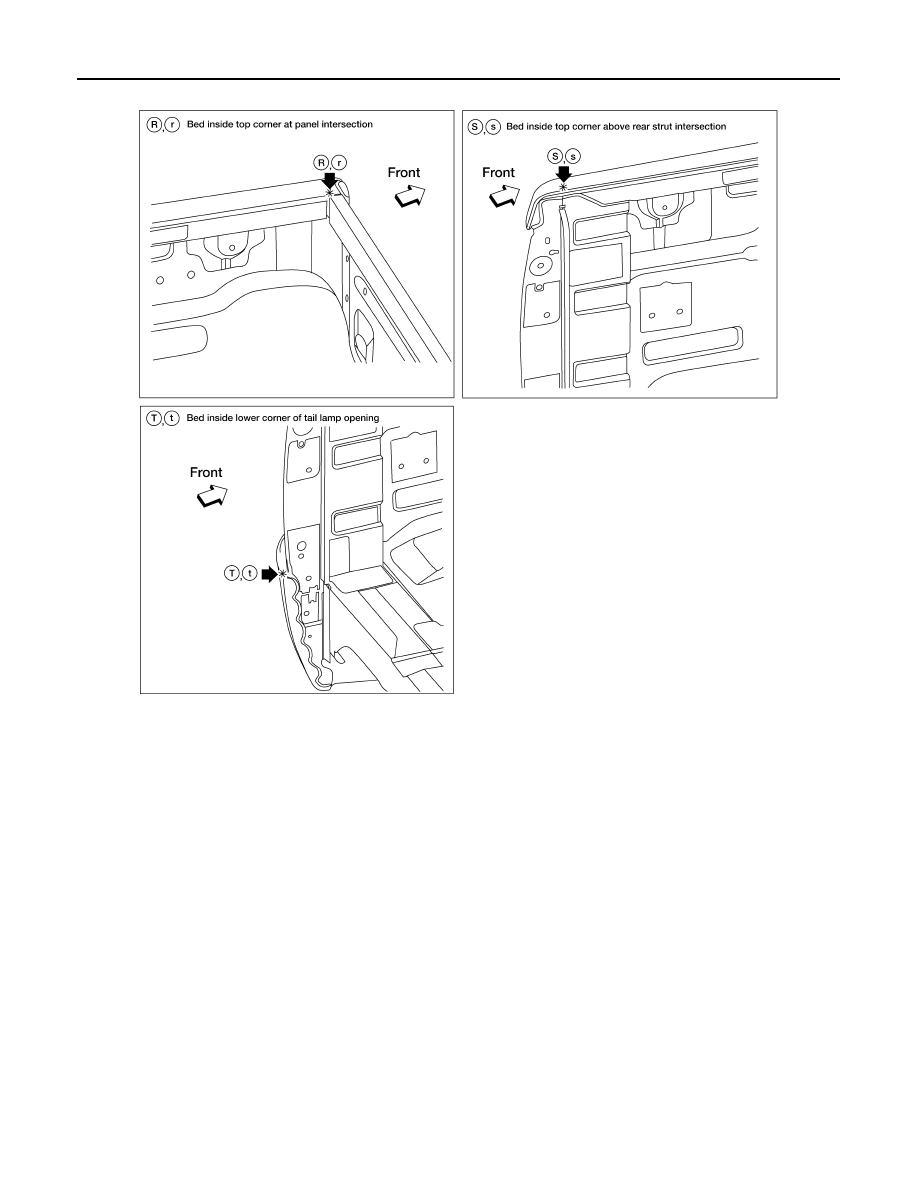

PICKUP BED

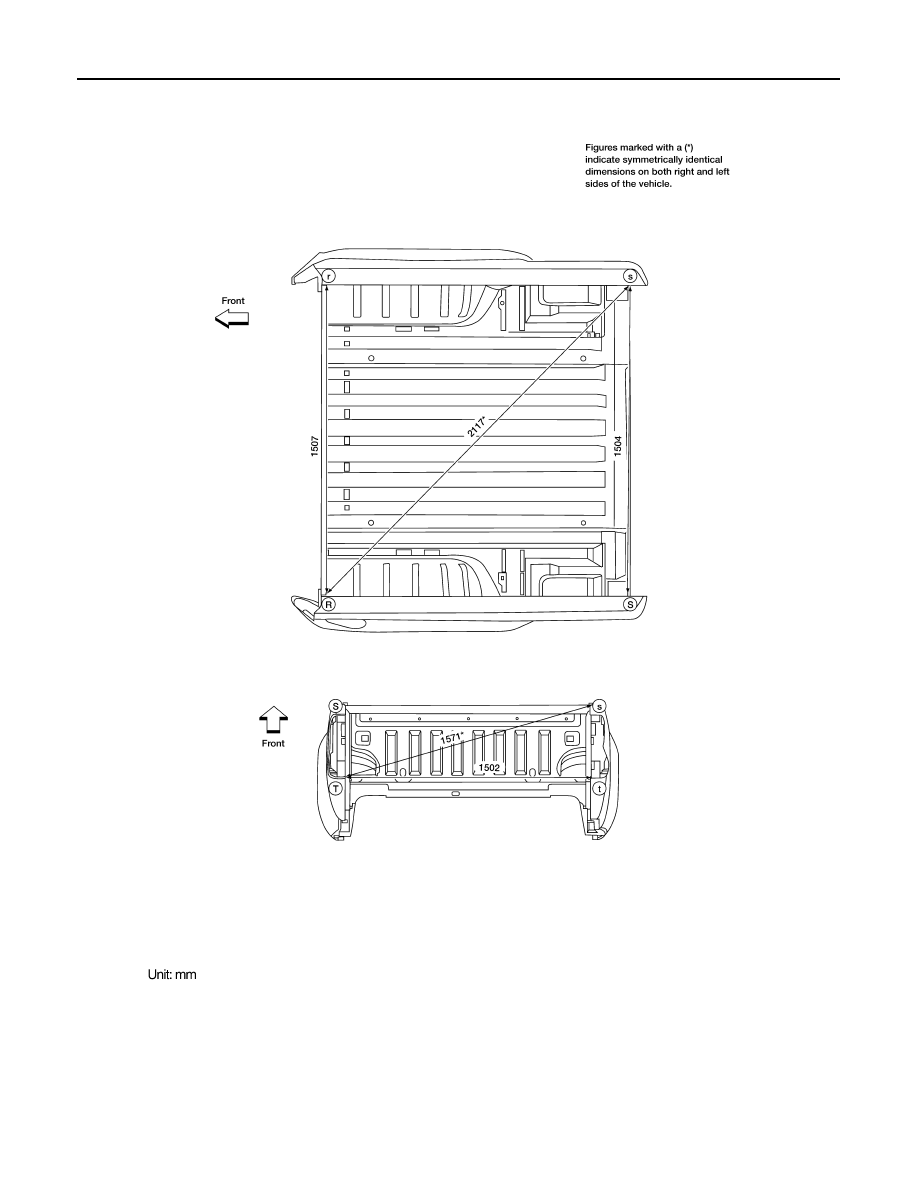

Measurements

AWKIA1454GB

BRM-48

< ON-VEHICLE REPAIR >

BODY ALIGNMENT

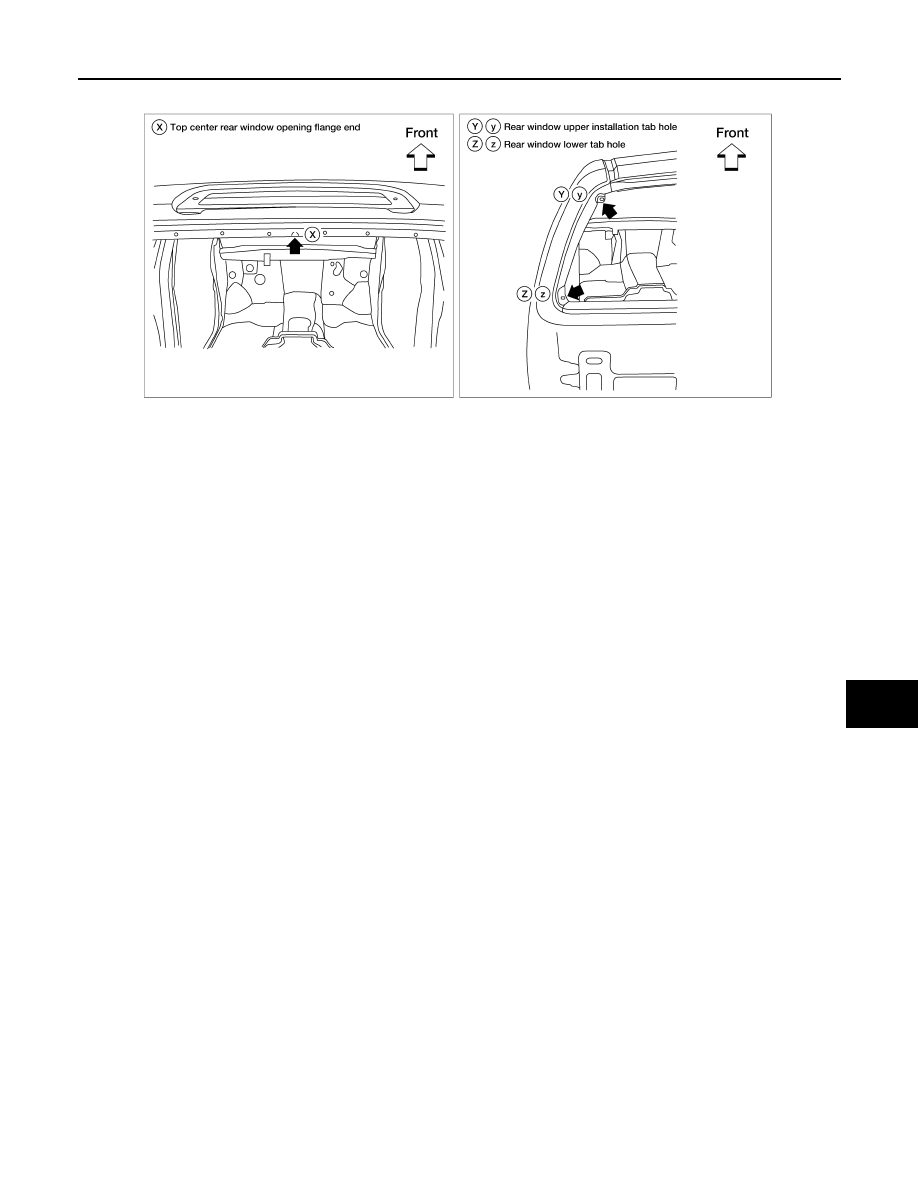

 Crew Cab

LIIA2095E

BODY ALIGNMENT

BRM-49

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

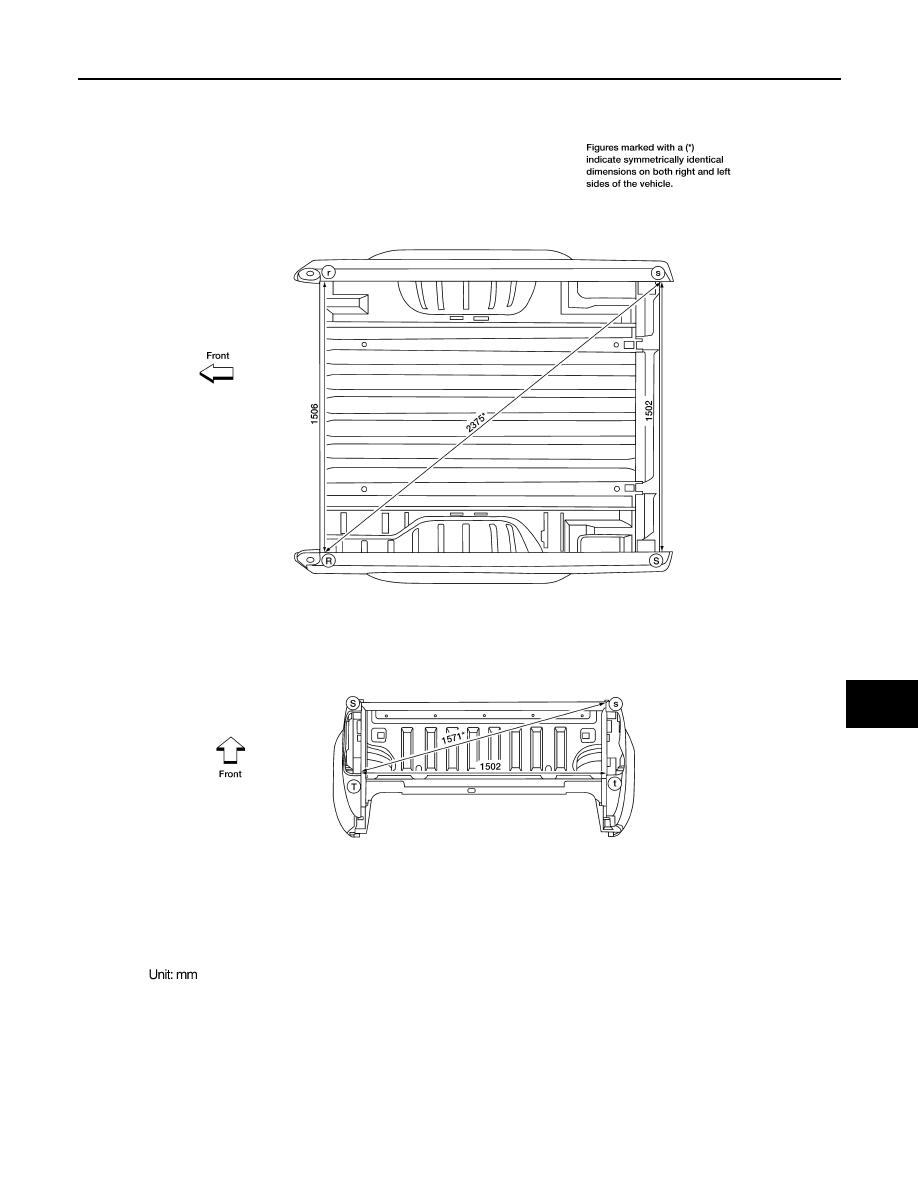

 King Cab

LIIA2096E

BRM-50

< ON-VEHICLE REPAIR >

BODY ALIGNMENT

Measurement points

Body Mounting

INFOID:0000000005274695

• When removing, be sure to replace bolts and nuts (sealant applied bolts or self-lock nuts are used for all

positions).

• Unless otherwise noted, the bushings and insulators have paint marks that are to be installed facing out-

ward.

AWKIA1455GB
