Nissan Frontier D40. Manual - part 155

BODY COMPONENT PARTS

BRM-15

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

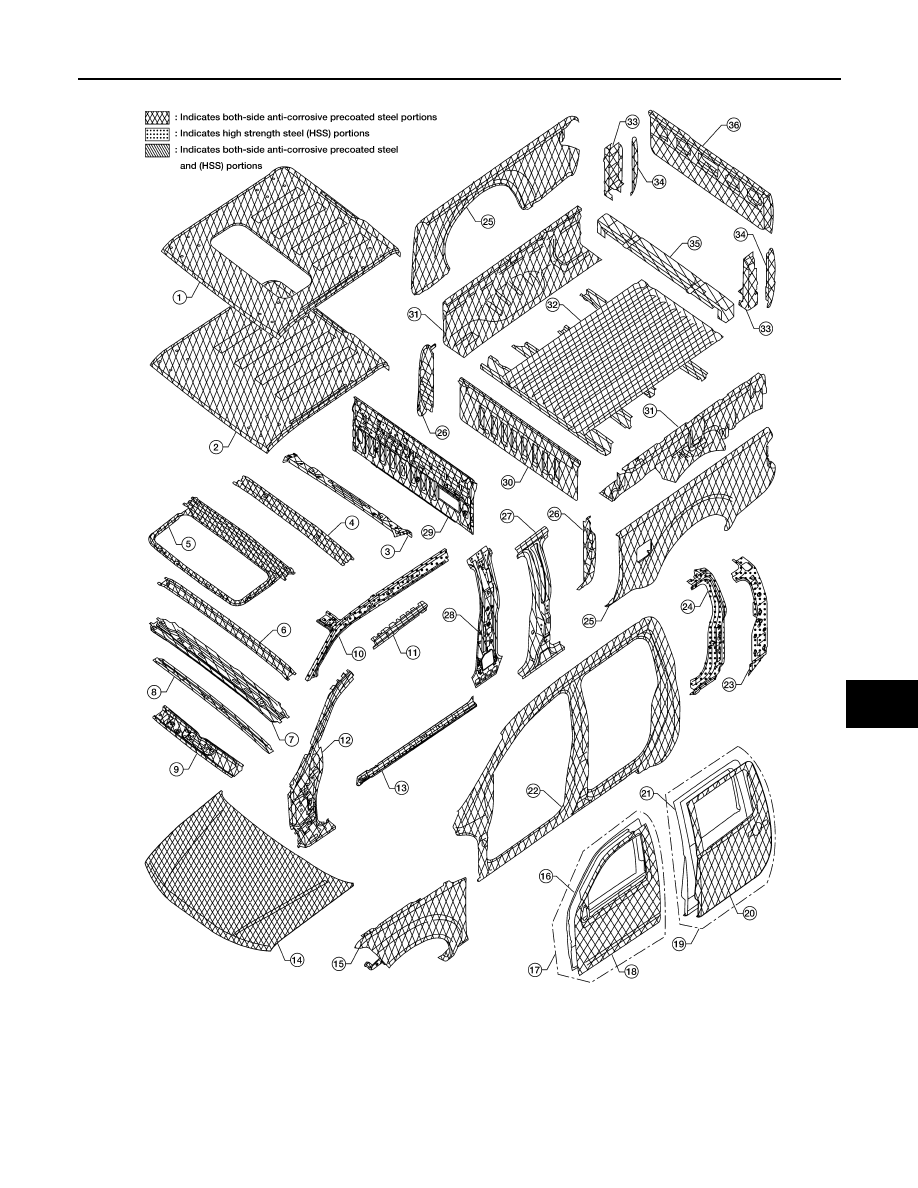

Crew Cab

1.

Roof (with sunroof)

2.

Roof

3.

Rear roof rail

4.

Roof bow No. 4

LIIA2028E

BRM-16

< ON-VEHICLE REPAIR >

BODY COMPONENT PARTS

5.

Sunroof reinforcement

6.

Roof bow No. 3

7.

Roof bow No. 2

8.

Roof bow No. 1

9.

Front roof rail

10. Front pillar inner, upper (RH&LH)

11. Roof side rail reinforcement (RH&LH)

12. Front pillar reinforcement (RH&LH)

13. Outer sill reinforcement (RH&LH)
14. Hood

15. Front fender (RH&LH)

16. Front door inner (RH&LH)
17. Front door assembly (RH&LH)

18. Front door outer panel

19. Rear door assembly (RH&LH)
20. Rear door outer (RH&LH)

21. Rear door inner (RH&LH)

22. Body side outer (RH&LH)
23. Rear lock pillar inner (RH&LH)

24. Rear side inner reinforcement (RH&LH)

25. Bed side outer panel (RH&LH)
26. Front outer strut (RH&LH)

27. Center pillar brace (RH&LH)

28. Center pillar inner (RH&LH)
29. Rear panel

30. Bed front panel

31. Bed side inner (RH&LH)
32. Floor board assembly

33. Rear inner strut (RH&LH)

34. Rear outer strut (RH&LH)
35. Rear floor bolster assembly

36. Rear gate

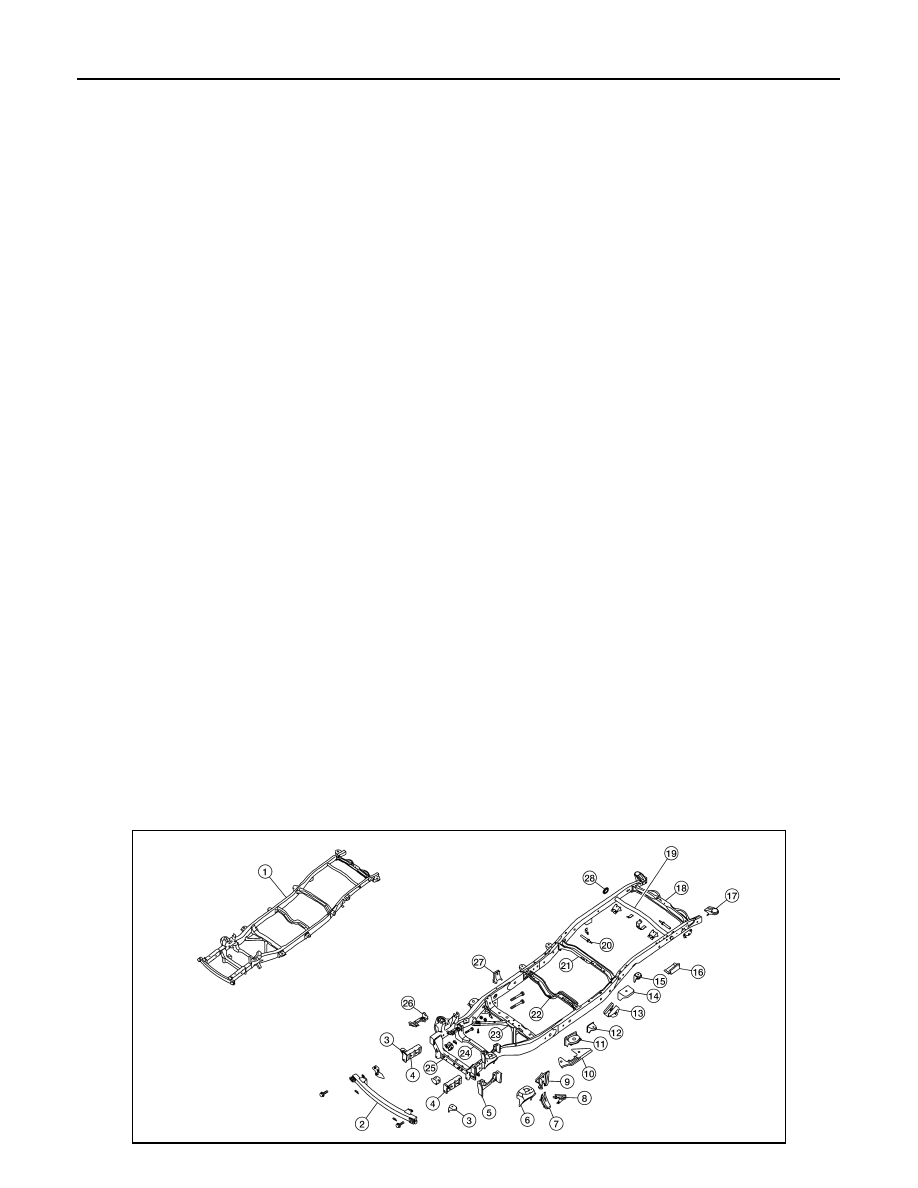

FRAME COMPONENT PARTS

Crew Cab

LIIA2102E

BODY COMPONENT PARTS

BRM-17

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

1.

Frame assembly

2.

1st crossmember assembly

3.

1st cab mounting bracket (RH&LH)

4.

Front side member extension assembly (RH&LH)

5.

Front upper link mounting bracket (RH&LH)

6.

Front shock absorber bracket (RH&LH)

7.

Bound bumper bracket (RH&LH)

8.

Front brake hose bracket (RH&LH)

9.

Panhard rod reinforcement bracket (RH&LH)

10. 4th crossmember gusset (RH&LH)

11. 2nd cab mounting bracket (RH&LH)

12. 3rd cab mounting bracket (RH&LH)
13. Cab mounting bracket (RH&LH)

14. Rear spring front bracket assembly (RH&LH)

15. 2nd rear body mounting bracket (RH&LH)
16. Rear bound bumper bracket (RH&LH)

17. 5th rear body mounting bracket (RH&LH)

18. 9th crossmember assembly
19. Front upper crossmember

20. Rear shock absorber pin (RH&LH)

21. 6th crossmember assembly
22. (2wd) Center bearing bracket assembly, (4wd) 5th crossmember assembly

23. 4th crossmember assembly

24. 3rd crossmember assembly
25. 2nd crossmember assembly

26. Engine mounting bracket assembly (RH&LH)

27. 4th crossmember gusset (RH&LH)
28. Crossmember collar (RH&LH)

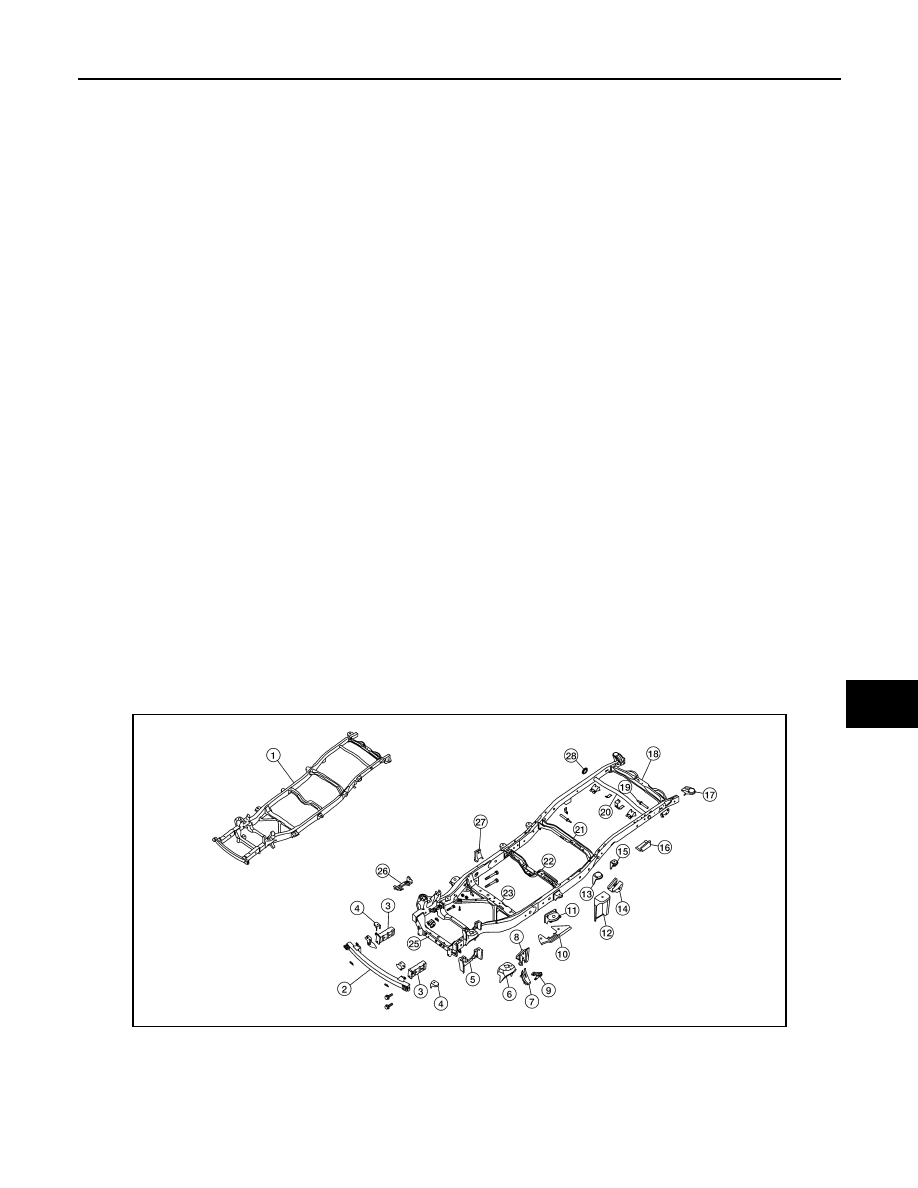

King Cab

1.

Frame assembly

2.

1st crossmember assembly

3.

Front side member extension assembly (RH&LH)

4.

1st cab mounting bracket (RH&LH)

5.

Front upper link mounting bracket ((RH&LH)

LIIA2103E

BRM-18

< ON-VEHICLE REPAIR >

BODY COMPONENT PARTS

6.

Front shock absorber bracket (RH&LH)

7.

Bound bumper bracket (RH&LH)

8.

Panhard rod reinforcement bracket (RH&LH)

9.

Front brake hose bracket (RH&LH)

10. 4th crossmember gusset (RH&LH)
11. 2nd cab mounting bracket (RH&LH)

12. 3rd cab mounting bracket (RH&LH)

13. 1st rear body mounting bracket (RH&LH)

14. Rear spring front bracket assembly (RH&LH)
15. 2nd rear body mounting bracket (RH&LH)

16. Rear bound bumper bracket (RH&LH)

17. 5th rear body mounting bracket (RH&LH)
18. 9th crossmember assembly

19. Rear shock absorber pin (RH&LH)

20. Front upper crossmember
21. 6th crossmember assembly

22. (2wd) Center bearing bracket assembly, (4wd) 5th crossmember assembly

23. 4th crossmember assembly
24. 3rd crossmember assembly

25. 2nd crossmember assembly

26. Engine mounting bracket assembly (RH&LH)
27. 4th crossmember gusset (RH&LH)

28. Crossmember collar (RH&LH)
