This procedure must be done after replacement of a low tire pressure warning transmitter or BCM.
New replacement transmitters are provided asleep and must first be woken up using Transmitter Acti-
vation Tool J-45295 before ID registration can be performed.

1.

Connect CONSULT-III.

2.

Select ID REGIST under BCM.

3.

Adjust the tire pressures to the values shown in the table and drive the vehicle at 40 km/h (25 MPH) or
more for a few minutes.

4.

After completing all ID registrations, press END to complete the procedure.

5.

Inflate all tires to proper pressure. Refer to

WT-50, "Tire"

.

Tire position

Tire pressure kPa (kg/cm

2

, psi)

Front LH

250 (2.5, 36)

Front RH

230 (2.3, 33)

Rear RH

210 (2.1, 30)

Rear LH

190 (1.9, 27)

Activation tire position

CONSULT-III

Front LH

YET

↓

DONE

Front RH

Rear RH

Rear LH

WT-8

< FUNCTION DIAGNOSIS >

TPMS

FUNCTION DIAGNOSIS

TPMS

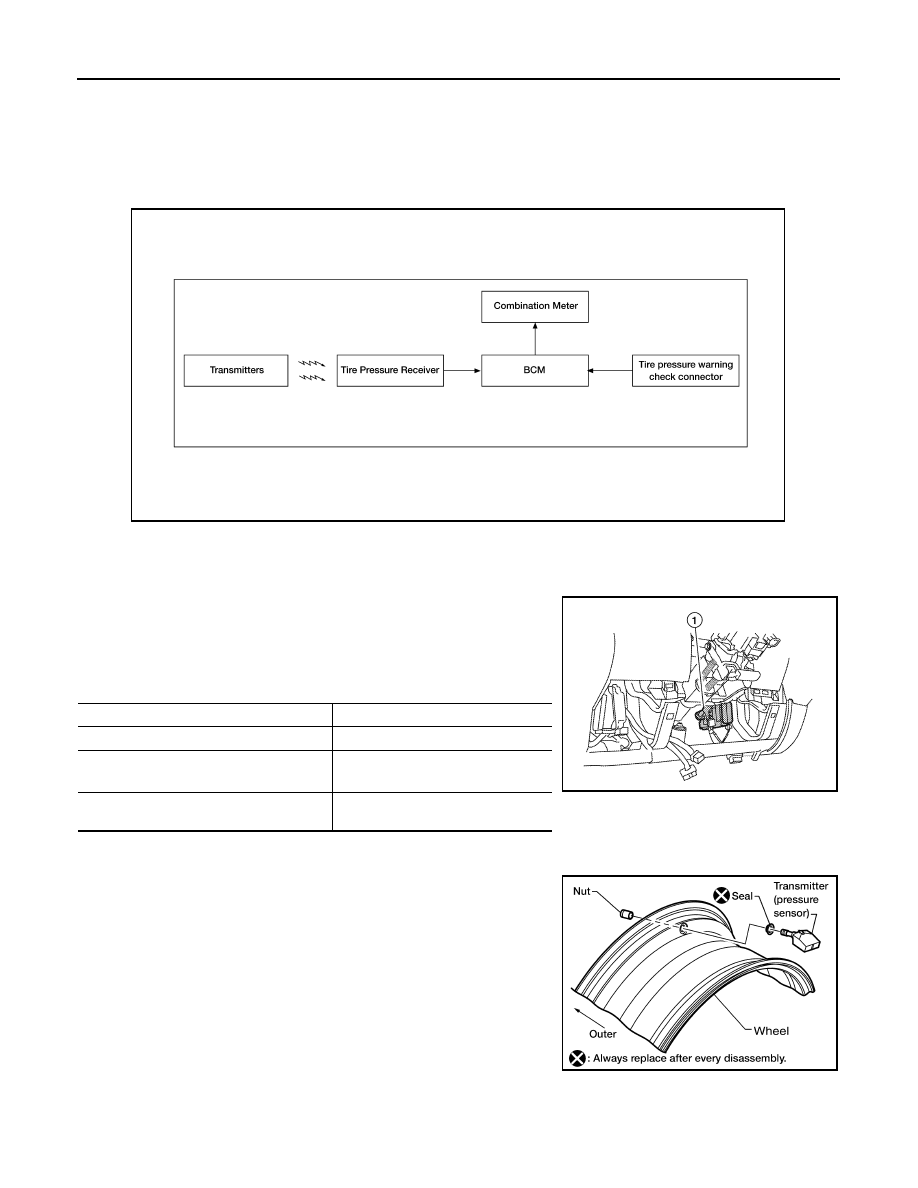

System Diagram

INFOID:0000000005275718

System Description

INFOID:0000000005275719

BODY CONTROL MODULE (BCM)

The BCM (1) is shown with the lower instrument panel LH removed.
The BCM reads the air pressure signal received by the remote key-
less entry receiver, and controls the low tire pressure warning lamp
as shown below. It also has a self-diagnosis function to detect a sys-
tem malfunction.

TRANSMITTER

A sensor-transmitter integrated with a valve is installed in each
wheel, and transmits a detected air pressure signal in the form of a
radio wave. The radio signal is received by the remote keyless entry
receiver.

REMOTE KEYLESS ENTRY RECEIVER

ALEIA0004GB

Condition

Low tire pressure warning lamp

System normal

On for 1 second after ignition ON

Tire less than 193 kPa (2.0 kg/cm

2

 , 28 psi)

[Flat tire]

ON

Low tire pressure warning system malfunc-
tion

After key ON, flashes once per sec-

ond for 1 minute, then stays ON

AWEIA0010ZZ

WEIA0137E

TPMS

WT-9

< FUNCTION DIAGNOSIS >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

The remote keyless entry receiver is shown with the instrument
panel RH removed. The remote keyless entry receiver receives the
air pressure signal transmitted by the transmitter in each wheel.

COMBINATION METER

The combination meter receives tire pressure status from the BCM
using CAN communication. When a low tire pressure condition is
sensed by the BCM, the combination meter low tire pressure warn-
ing lamp is activated.

TIRE PRESSURE WARNING CHECK CONNECTOR

The tire pressure warning check connector can be grounded in order
to initiate self-diagnosis without a CONSULT-III. Refer to

WT-33,

"Self-Diagnosis (Without CONSULT-III)"

. The tire pressure warning

check connector (1) is located behind the lower portion of the instru-
ment panel LH.

LEIA0069E

LEIA0055E

AWEIA0120ZZ

WT-10

< FUNCTION DIAGNOSIS >

TPMS

System Component

INFOID:0000000005275720

1.

BCM M18, M20

2.

Combination meter M24

3.

Remote keyless entry receiver M120

4.

Tire pressure warning check connec-
tor M123

5.

Transmitters

WEIA0125E
