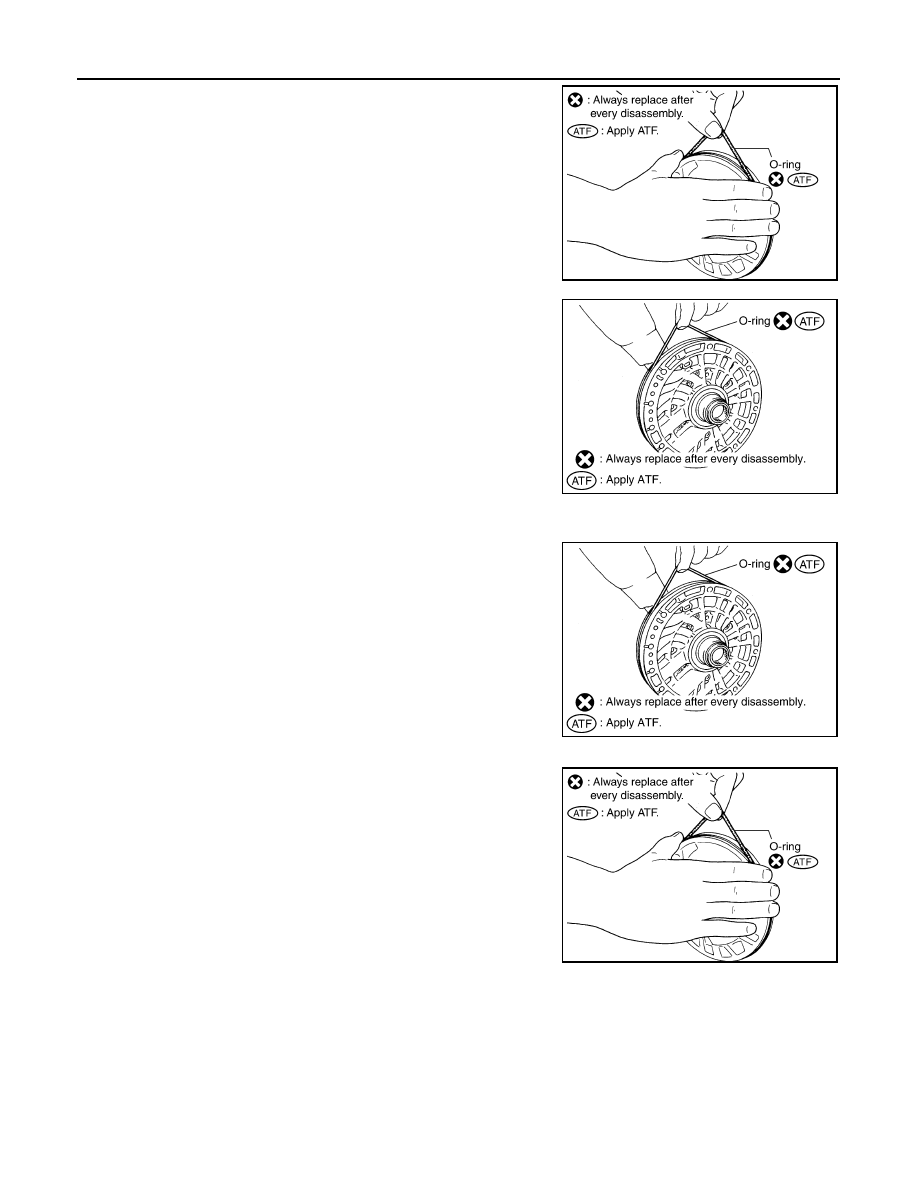

TM-338

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

OIL PUMP

3.

Remove O-ring from oil pump housing.

4.

Remove O-ring from oil pump cover.

ASSEMBLY

1.

Install O-ring to oil pump cover.

CAUTION:

• Do not reuse O-ring.
• Apply ATF to O-ring.

2.

Install O-ring to oil pump housing.

CAUTION:

• Do not reuse O-ring.
• Apply ATF to O-ring.

SCIA2841E

SCIA5230E

SCIA5230E

SCIA2841E

OIL PUMP

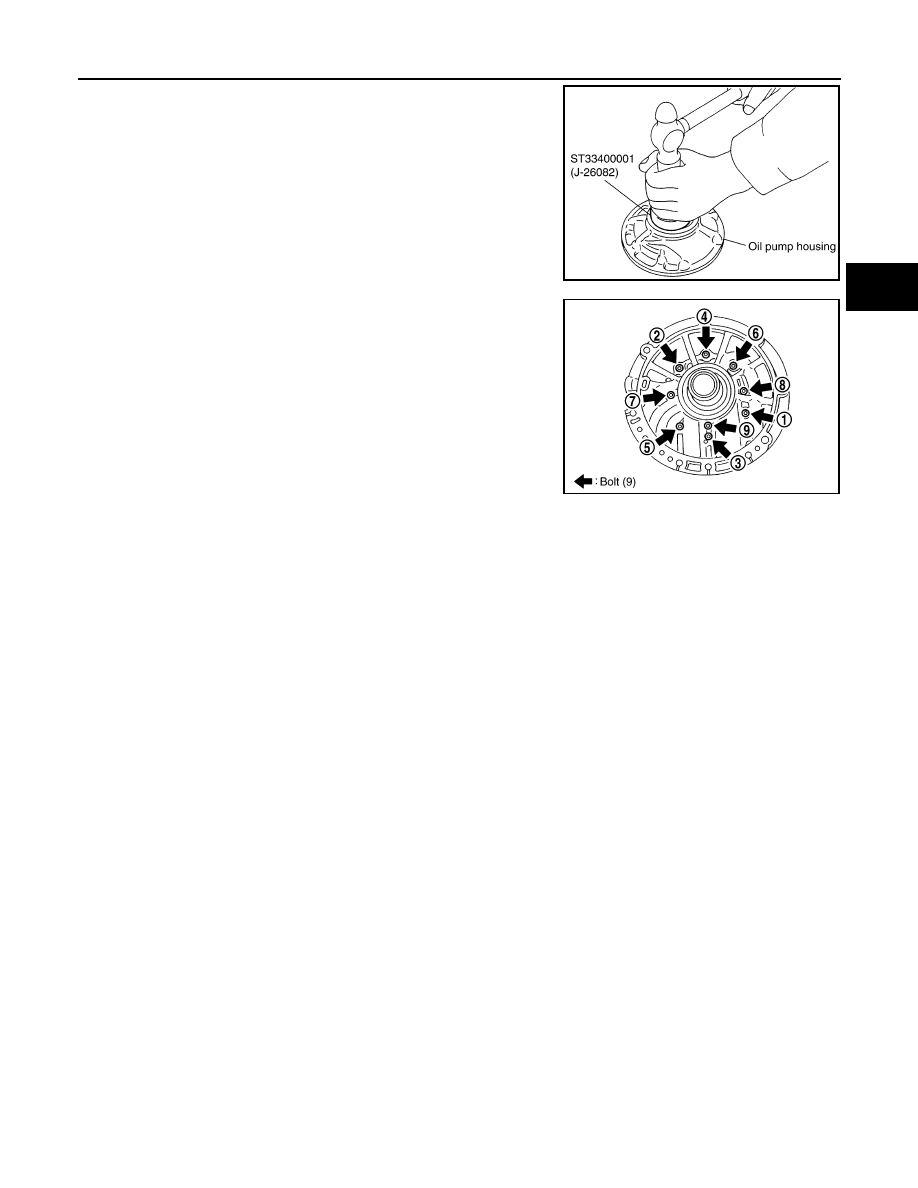

TM-339

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

3.

Install oil pump housing oil seal to the oil pump housing until it is
flush using Tool.

CAUTION:

• Do not reuse oil seal.
• Apply ATF to oil seal.

4.

After temporarily tightening the bolts for the oil pump housing to
the oil pump cover, tighten them to the specified torque in the
sequence shown.

Tool number

: ST33400001 (J-26082)

SCIA5313E

Oil pump housing bolts

: 9.0 N·m (0.92 kg-m, 80 in-lb.)

SCIA6329E

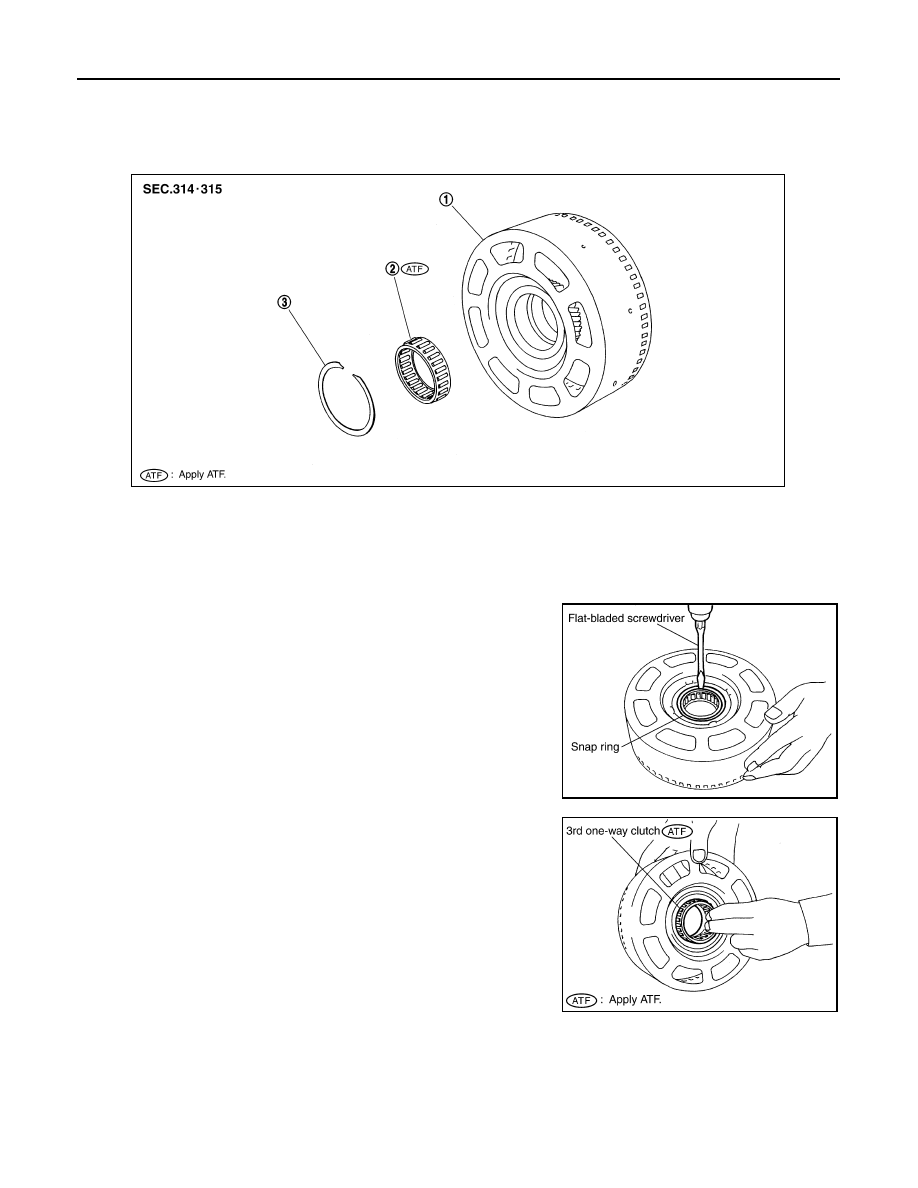

TM-340

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

FRONT SUN GEAR, 3RD ONE-WAY CLUTCH

FRONT SUN GEAR, 3RD ONE-WAY CLUTCH

Exploded View

INFOID:0000000005274223

Disassembly and Assembly

INFOID:0000000005274224

DISASSEMBLY

1.

Remove snap ring from front sun gear using suitable tool.

2.

Remove 3rd one-way clutch from front sun gear.

INSPECTION

3rd One-way Clutch

• Check frictional surface for wear or damage.

CAUTION:

If necessary, replace the 3rd one-way clutch.

1.

Front sun gear

2.

3rd one-way clutch

3.

Snap ring

SCIA3114E

SCIA3110E

SCIA3111E

FRONT SUN GEAR, 3RD ONE-WAY CLUTCH

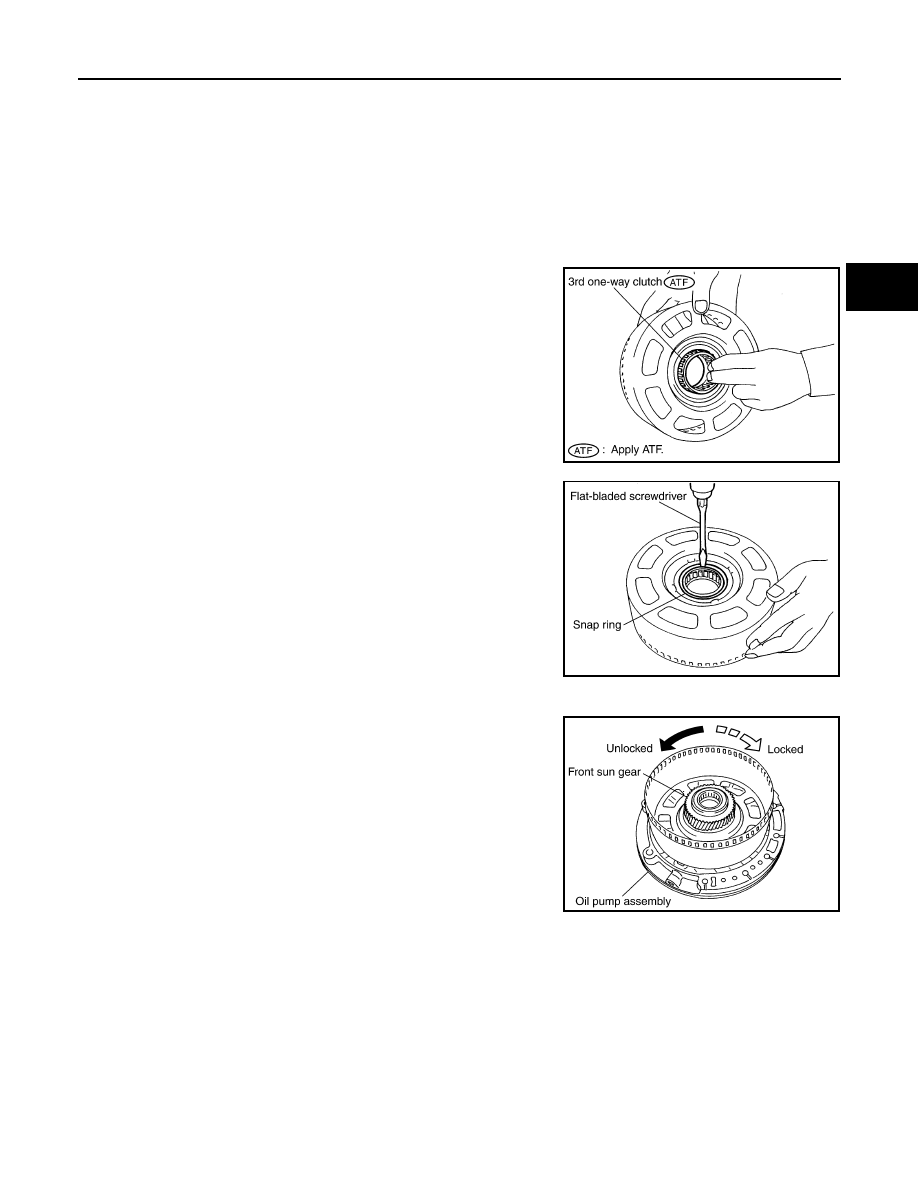

TM-341

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Front Sun Gear Snap Ring

• Check for deformation, fatigue or damage.

CAUTION:

If necessary, replace the snap ring.

Front Sun Gear

• Check for deformation, fatigue or damage.

CAUTION:

If necessary, replace the front sun gear.

ASSEMBLY

1.

Install 3rd one-way clutch in front sun gear.

CAUTION:

Apply ATF to 3rd one-way clutch.

2.

Install snap ring in front sun gear using suitable tool.

3.

Check operation of 3rd one-way clutch.

a.

Hold oil pump assembly and turn front sun gear.

b.

Check 3rd one-way clutch for correct locking and unlocking
directions.

CAUTION:

If not as shown, check installation direction of 3rd one-way
clutch.

SCIA3111E

SCIA3110E

SCIA3131E
