< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

DISASSEMBLY

i.

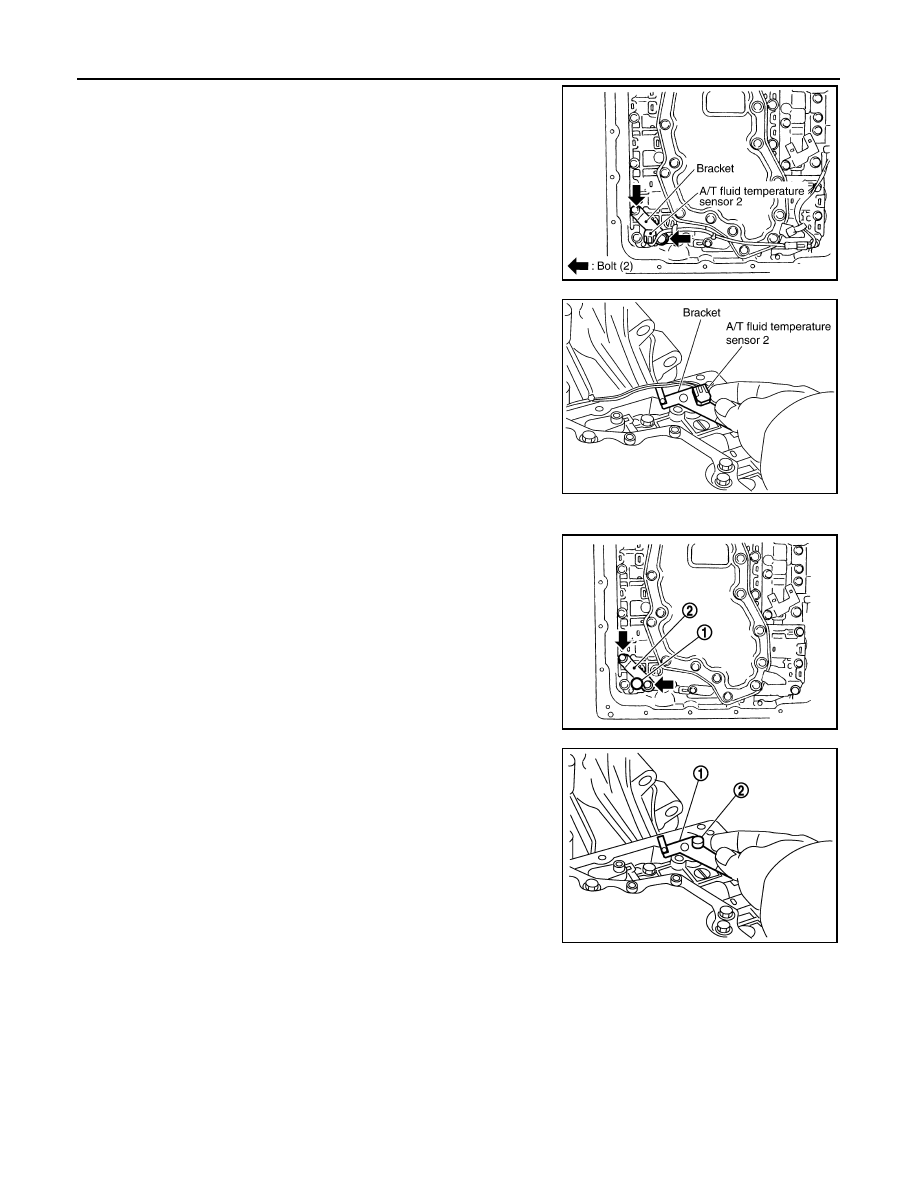

Remove A/T fluid temperature sensor 2 with bracket from con-
trol valve with TCM.

ii.

Remove bracket from A/T fluid temperature sensor 2.

b.

Plug

i.

Remove plug (1) with bracket (2) from control valve with TCM.

ii.

Remove bracket (1) from plug (2).

SCIA5253E

SCIA5264E

JSDIA1311ZZ

JSDIA1312ZZ

DISASSEMBLY

TM-327

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

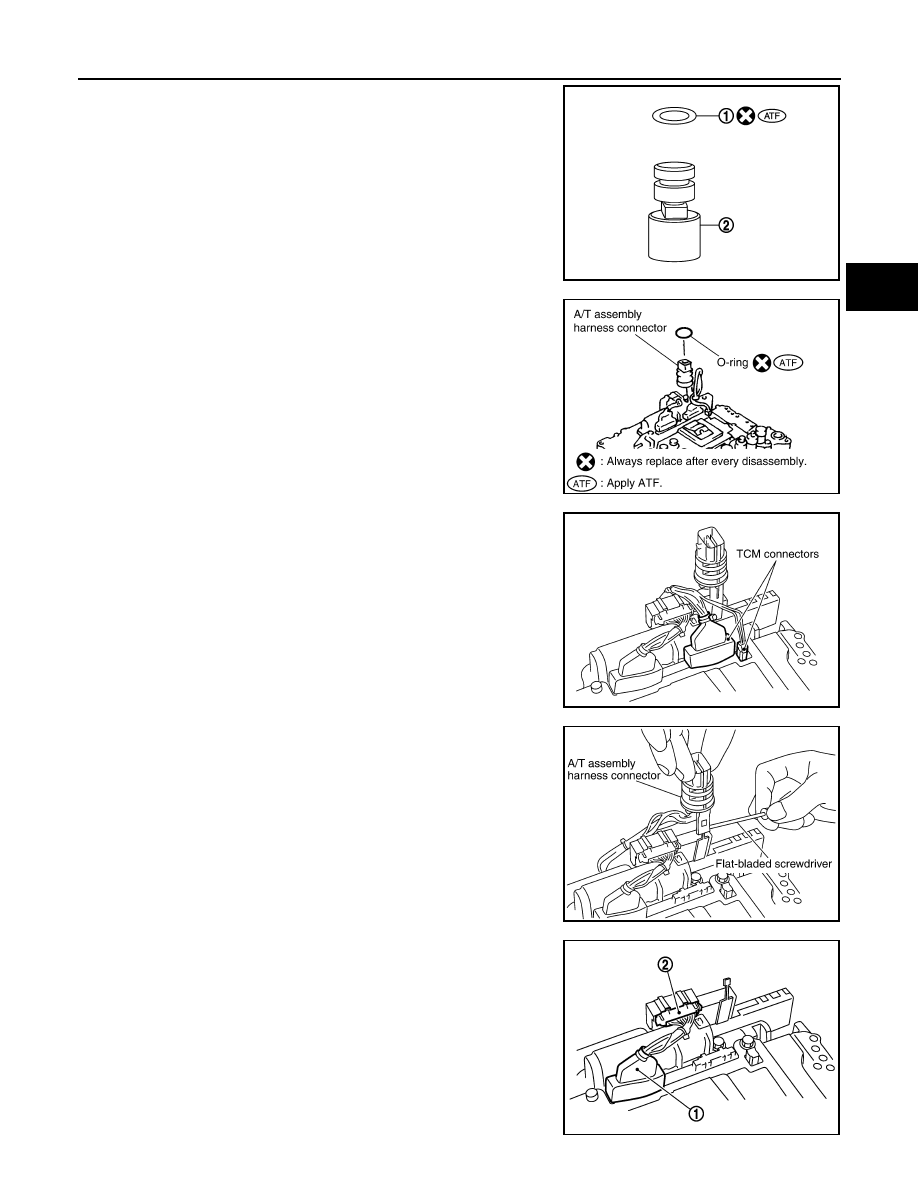

iii.

RemoveO-ring (1) from plug (2).

37. Remove O-ring from A/T assembly harness connector.

38. Disconnect TCM connectors.

CAUTION:

Do not damage connectors.

39. Remove A/T assembly harness connector from control valve

with TCM using suitable tool.

40. Disconnect TCM connector (1) and transmission range switch

connector (2).

CAUTION:

Do not damage connectors.

JSDIA1313ZZ

SCIA5155E

SCIA5447E

SCIA5448E

JSDIA1317ZZ

TM-328

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

DISASSEMBLY

41. Remove rear extension assembly (2WD models) or adapter case assembly (4WD models) according to

the following procedures.

a.

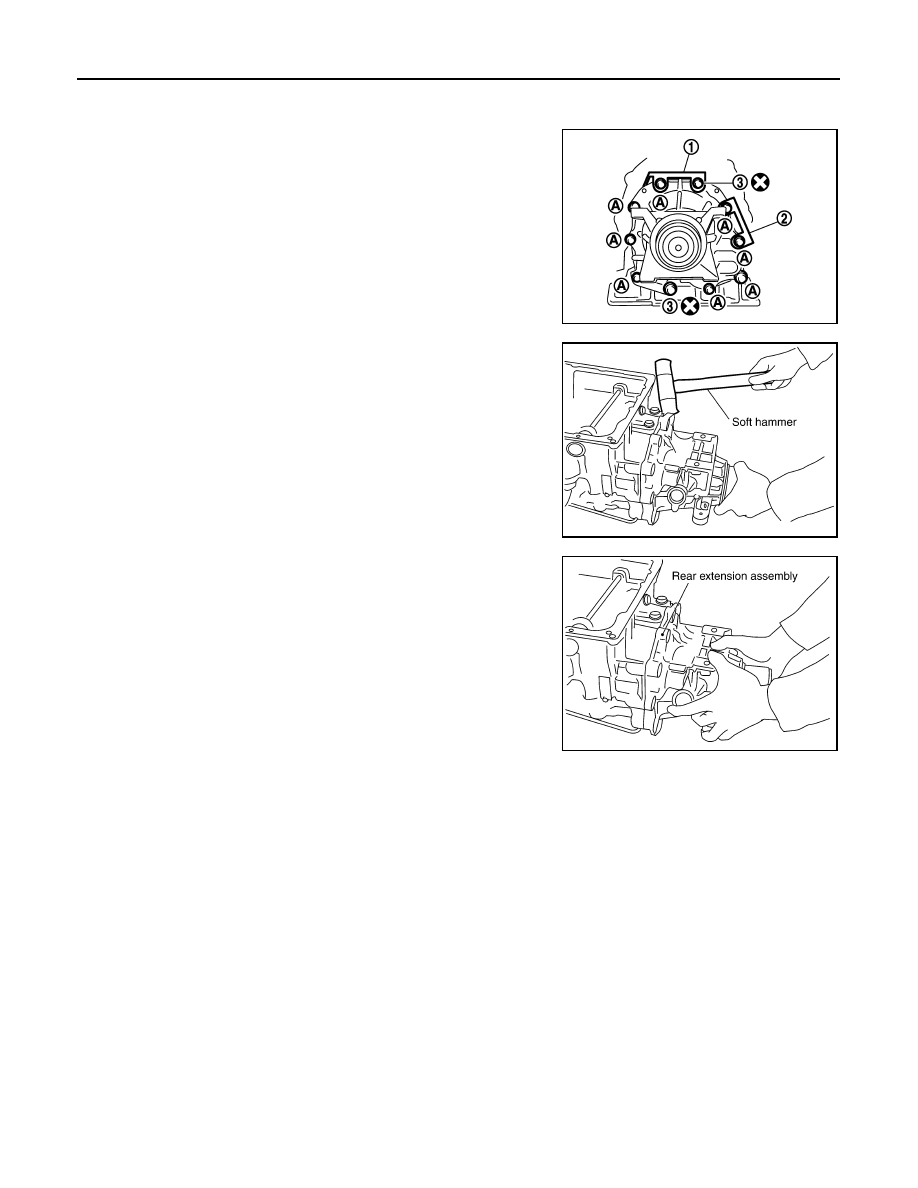

2WD models

i.

Remove tightening bolts for rear extension assembly and trans-
mission case.
• Bracket (1)
• Bracket (2)
• Self-sealing bolts (3)
• Bolt  (A)

ii.

Tap rear extension assembly with soft hammer.

iii.

Remove rear extension assembly (with needle bearing) from
transmission case.

JSDIA0293ZZ

SCIA5028E

SCIA5029E

DISASSEMBLY

TM-329

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

b.

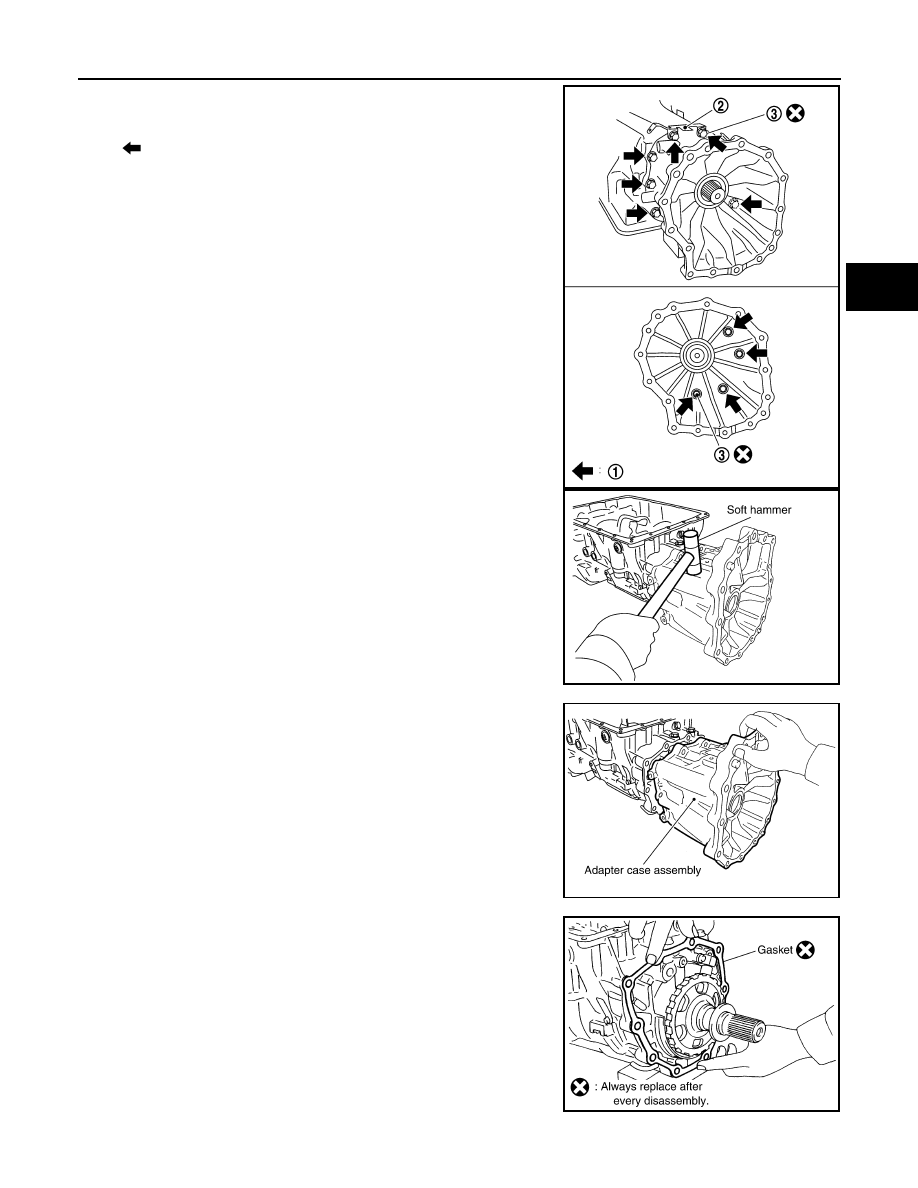

4WD models
