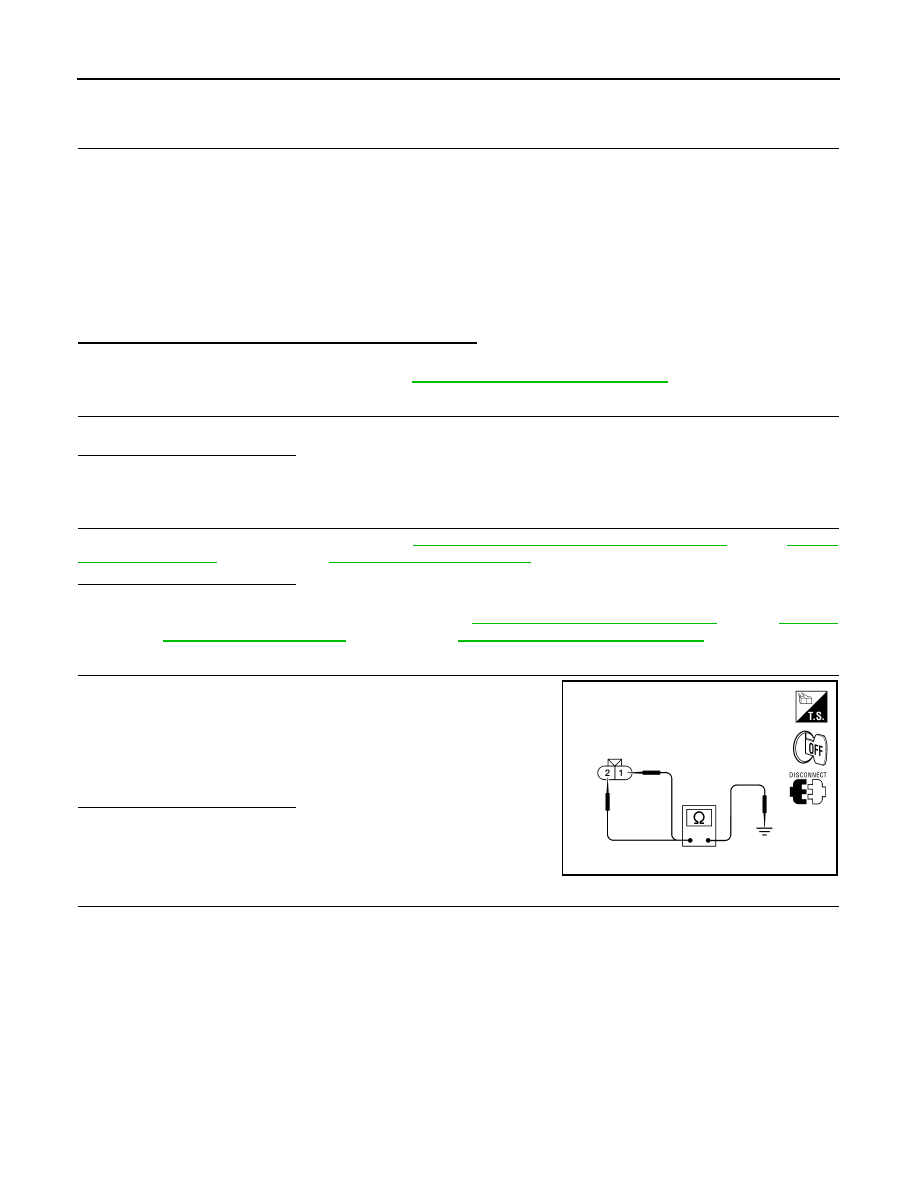

BRC-102 < COMPONENT DIAGNOSIS > [TYPE 2] C1101, C1102, C1103, C1104 WHEEL SENSOR-1 YES >> Replace the ABS actuator and electric unit (control unit). Refer to . NO >> Repair the circuit. Component Inspection INFOID:0000000005548245 1. CHECK DATA MONITOR On “DATA MONITOR”, select “FR LH SENSOR”, “FR RH SENSOR”, “RR LH SENSOR”, and “RR RH SEN- Is the inspection result normal? YES >> Inspection End NO >> Go to diagnosis procedure. Refer to BRC-100, "Diagnosis Procedure" Special Repair Requirement INFOID:0000000005548246 1. ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION Always perform neutral position adjustment for the steering angle sensor when replacing the ABS actuator BRC-78, "ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL . >> GO TO 2 2. CALIBRATION OF DECEL G SENSOR Always perform calibration of decel G sensor when replacing the ABS actuator and electric unit (control unit). BRC-79, "CALIBRATION OF DECEL G SENSOR : Description" . >> END Wheel sensor Vehicle speed (DATA MONITOR) FR LH SENSOR Nearly matches the speedometer dis- ± 10% or less) FR RH SENSOR RR LH SENSOR RR RH SENSOR |
