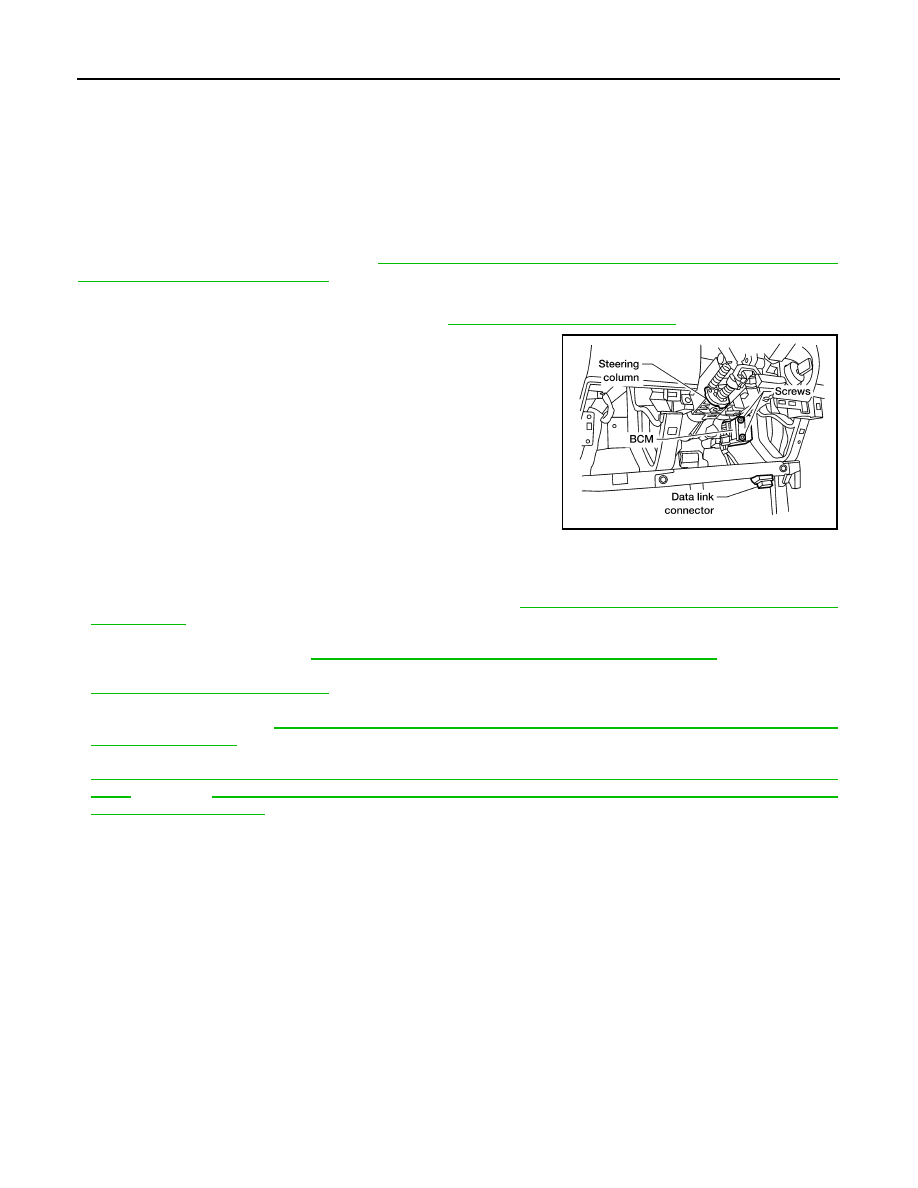

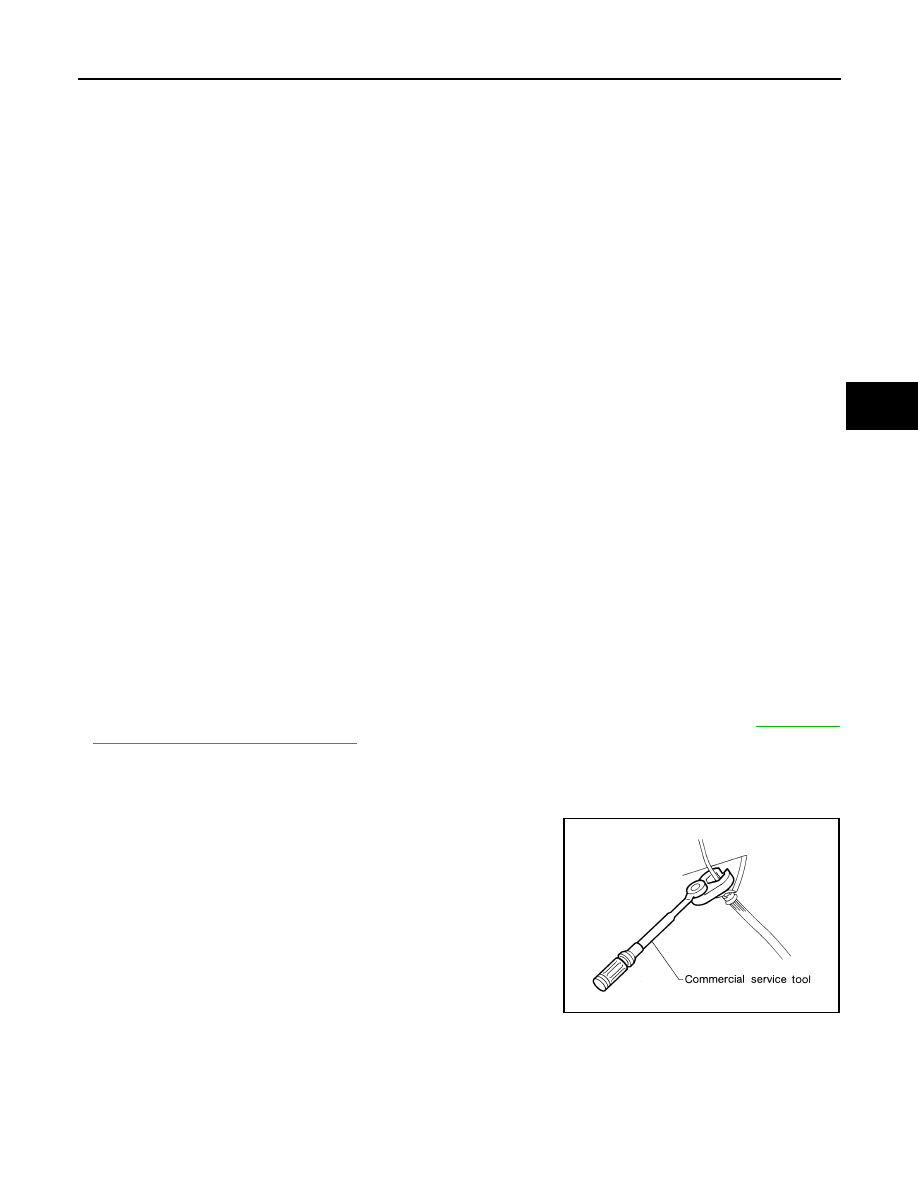

BCS-54 < ON-VEHICLE REPAIR > BCM (BODY CONTROL MODULE) ON-VEHICLE REPAIR BCM (BODY CONTROL MODULE) Removal and Installation INFOID:0000000005568000 REMOVAL NOTE: BCS-3, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Requirement" 1. Disconnect the battery negative terminal. 2. Remove the lower instrument panel LH. Refer to IP-11, "Removal and Installation" . 3. Remove the BCM screws and release the BCM. 4. Disconnect the BCM connectors and then remove the BCM. INSTALLATION Installation is in the reverse order of removal. BCS-4, "CONFIGURATION : Special Repair . • When replacing the BCM, if equipped with NATS perform initialization of NATS system and registration of all NATS ignition key IDs. Refer to BCS-4, "CONFIGURATION : Special Repair Requirement" • When replacing the BCM, perform ID registration procedure of low tire pressure warning system. Refer to WT-6, "ID Registration Procedure" . • When replacing the BCM, if equipped with remote keyless entry, register the remote keyless entry system BCS-3, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special • When replacing the BCM, perform adjustment procedure for the steering angle sensor if equipped. Refer to BRC-78, "ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION : Special Repair Require- (type 2) or BRC-189, "ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION : Spe- (type 3). LKIA0564E |
