BCS-26

< FUNCTION DIAGNOSIS >

DIAGNOSIS SYSTEM (BCM)

ID Read

The registered ID number is displayed.

ID Regist

Refer to

WT-6, "ID Registration Procedure"

.

SELF-DIAG RESULTS

Operation Procedure

Refer to

WT-32, "Self-Diagnosis (With CONSULT-III)"

.

DATA MONITOR

Screen of data monitor mode is displayed.
NOTE:
When malfunction is detected, CONSULT-III performs REAL-TIME DIAGNOSIS.
Also, any malfunction detected while in this mode will be displayed at real time.

Display item list

ACTIVE TEST

NOTE:
Before performing the self-diagnosis, be sure to register the ID, or else the actual malfunction may be different
from that displayed on CONSULT-III.

TEST ITEM LIST

THEFT ALM

THEFT ALM : CONSULT-III Function (BCM - THEFT ALM)

INFOID:0000000005275689

WORK SUPPORT

Monitor

Condition

Specification

VEHICLE SPEED

Drive vehicle

Vehicle speed (km/h or MPH)

AIR PRESS FL
AIR PRESS FR
AIR PRESS RR
AIR PRESS RL

• Drive vehicle for a few minutes.

                           or

• Ignition switch ON and activation tool is trans-

mitting activation signals.

Tire pressure (kPa, kg/cm

2

 or Psi)

ID REGST FL1
ID REGST FR1
ID REGST RR1
ID REGST RL1

Ignition switch ON

Registration ID: Green
No registration: Red

WARNING LAMP

Low tire pressure warning lamp on: ON
Low tire pressure warning lamp off: OFF

BUZZER

Buzzer in combination meter on: ON
Buzzer in combination meter off: OFF

Test item

Content

WARNING LAMP

This test is able to check to make sure that the warning lamp turns on.

ID REGIST WARNING

This test is able to check to make sure that the buzzer sounds or the warning lamp turns on.

FLAT TIRE WARNING

This test is able to check to make sure that the flat tire warning turns on.

HORN

This test is able to check to make sure that the horn sounds.

FLASHER

This test is able to check to make sure that each turn signal lamp turns on.

RUN FLAT TIRE W/L

This item is displayed but not monitored.

Test Item

Description

SECURITY ALARM SET

This mode is able to confirm and change security alarm ON-OFF setting.

THEFT ALM TRG

The switch which triggered vehicle security alarm is recorded. This mode is able to confirm and
erase the record of vehicle security alarm. The trigger data can be erased by touching “CLEAR” on
CONSULT-III screen.

BCS

DIAGNOSIS SYSTEM (BCM)

BCS-27

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

DATA MONITOR

ACTIVE TEST

PANIC ALARM

PANIC ALARM : CONSULT-III Function (BCM - PANIC ALARM)

INFOID:0000000005275690

ACTIVE TEST

Monitor Item

[Unit]

Description

IGN ON SW [ON/OFF]

Indicates ignition switch (ON) status judged from IGN signal (ignition power supply)

ACC ON SW [ON/OFF]

Indicates ignition switch (ACC) status judged from ACC signal (accessory power supply)

KEYLESS LOCK [ON/OFF]

Indicates lock signal status received from remote keyless entry receiver (integrated in the BCM)

KEYLESS UNLOCK [ON/OFF]

Indicates unlock signal status received from remote keyless entry receiver (integrated in the BCM)

DOOR SW-DR [ON/OFF]

Indicates switch status input from front door switch LH

DOOR SW-AS [ON/OFF]

Indicates switch status input from front door switch RH

DOOR SW-RR [ON/OFF]

Indicates switch status input from rear door switch RH

DOOR SW-RL [ON/OFF]

Indicates switch status input from rear door switch LH

KEY CYL LK-SW [ON/OFF]

Indicates lock switch status from door key cylinder switch

KEY CYL UN-SW [ON/OFF]

Indicates unlock switch status from door key cylinder switch

CDL LOCK SW [ON/OFF]

Indicates lock switch status from door lock and unlock switch

CDL UNLOCK SW [ON/OFF]

Indicates unlock switch status from door lock and unlock switch

Test Item

Description

THEFT IND

This test is able to check security indicator lamp operation. The lamp will be turned on when “ON”
on CONSULT-III screen is touched.

VEHICLE SECURITY HORN

This test is able to check vehicle security horn operation. The horns will be activated for 0.5 sec-
onds after “ON” on CONSULT-III screen is touched.

HEADLAMP(HI)

This test is able to check vehicle security lamp operation. The headlamps will be activated for 0.5
seconds after “ON” on CONSULT-III screen is touched.

Test item

Description

HEAD LAMP (HI)

This test is able to check head lamp (HI) operation [ON/OFF]

PANIC ALARM

This test is able to check panic alarm operation [ON/OFF]

BCS-28

< COMPONENT DIAGNOSIS >

U1000 CAN COMM CIRCUIT

COMPONENT DIAGNOSIS

U1000 CAN COMM CIRCUIT

Description

INFOID:0000000005275691

Refer to

LAN-48, "CAN Communication Signal Chart"

.

DTC Logic

INFOID:0000000005275692

DTC DETECTION LOGIC

Diagnosis Procedure

INFOID:0000000005275693

1.

 PERFORM SELF DIAGNOSTIC

1.

Turn ignition switch ON and wait for 2 seconds or more.

2.

Check “Self Diagnostic Result” of BCM.

Is “CAN COMM CIRCUIT” displayed?

YES

>> Refer to

LAN-14, "Trouble Diagnosis Flow Chart"

.

NO

>> Refer to

GI-46, "Intermittent Incident"

.

DTC

CONSULT-III display

description

DTC Detection Condition

Possible cause

U1000

CAN COMM CIRCUIT

When BCM cannot communicate CAN com-
munication signal continuously for 2 sec-
onds or more.

Any item (or items) of the following listed below is
malfunctioning in CAN communication system.
• Transmission
• Receiving (ECM)
• Receiving (METER/M&A)
• Receiving (TCM)
• Receiving (IPDM E/R)

BCS

POWER SUPPLY AND GROUND CIRCUIT

BCS-29

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

POWER SUPPLY AND GROUND CIRCUIT

Diagnosis Procedure

INFOID:0000000005275697

Regarding Wiring Diagram information, refer to

BCS-46, "Wiring Diagram"

.

1.

 CHECK FUSES AND FUSIBLE LINK

Check that the following fuses and fusible link are not blown.

Is the fuse blown?

YES

>> Replace the blown fuse or fusible link after repairing the affected circuit.

NO

>> GO TO 2

2.

 CHECK POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect BCM.

3.

Check voltage between BCM harness connector and ground.

Is the measurement value normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

3.

 CHECK GROUND CIRCUIT

Terminal No.

Signal name

Fuses and fusible link No.

57

Battery power supply

18 (10A)

70

G (50A)

11

Ignition ACC or ON

4 (10A)

38

Ignition ON or START

1 (10A)

Connector

Terminals

Power

source

Condition

Voltage (V) (Ap-

prox.)

(+)

(-)

M18

11

Ground

ACC

power

supply

Ignition

switch

ACC or

ON

Battery voltage

38

Ground

Ignition

power

supply

Ignition

switch ON

or START

Battery voltage

M20

57

Ground

Battery

power

supply

Ignition

switch

OFF

Battery voltage

70

Ground

Battery

power

supply

Ignition

switch

OFF

Battery voltage

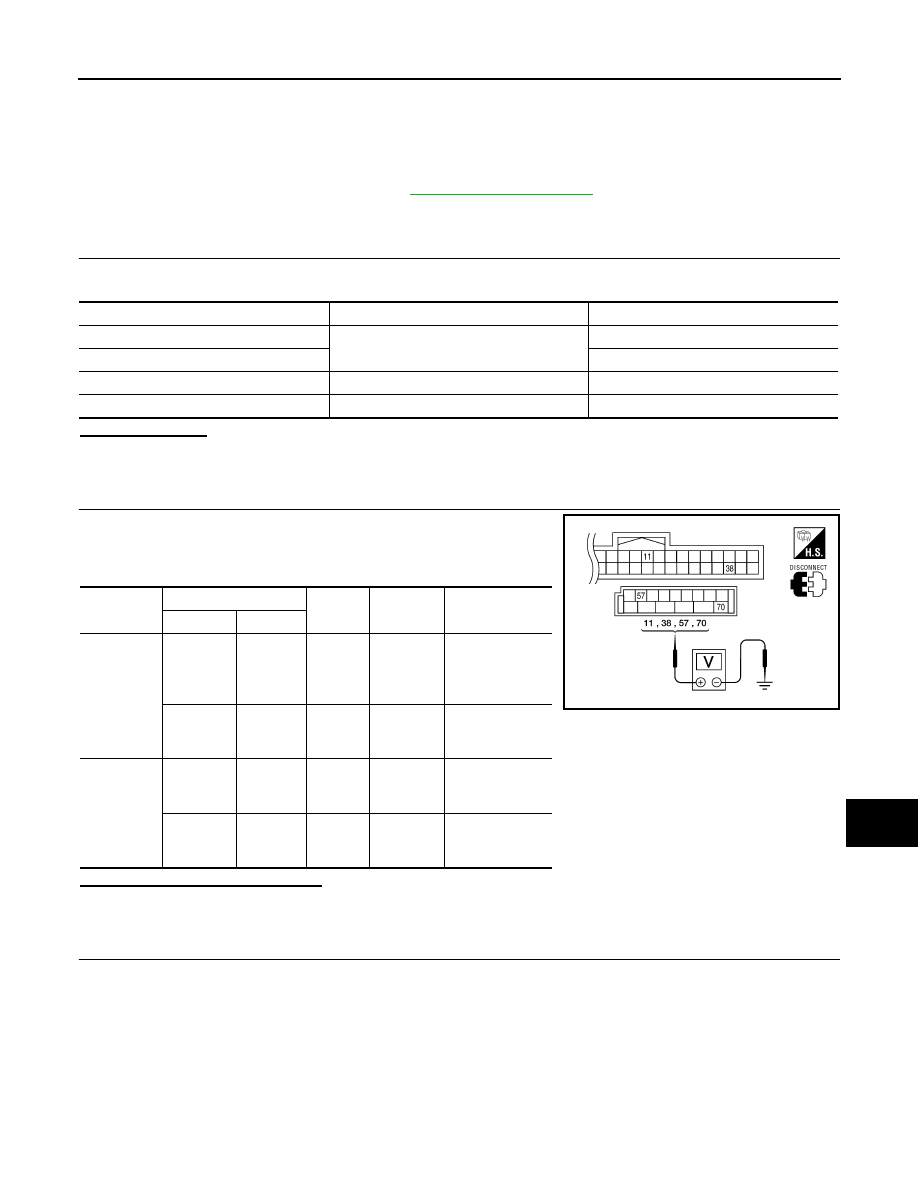

LIIA2415E
