STEERING SWITCH

STEERING SWITCH

Removal and Installation

INFOID:0000000005568736

Removal and Installation

REMOVAL

1.

Remove the driver air bag module. Refer to

SR-4, "Removal and Installation"

.

2.

Remove the steering wheel audio control switch assembly screws.

3.

Disconnect the steering wheel audio control switches connector.

4.

Remove the steering wheel audio control switches by pulling on
steering wheel audio control switches to release the pawls.

CAUTION:

Do not tilt steering wheel audio control switches during
removal or damage may occur to the pawls.
•

:Pawl

INSTALLATION

Installation is in the reverse order of removal.

1. Steering wheel

2.

Steering wheel audio control switches

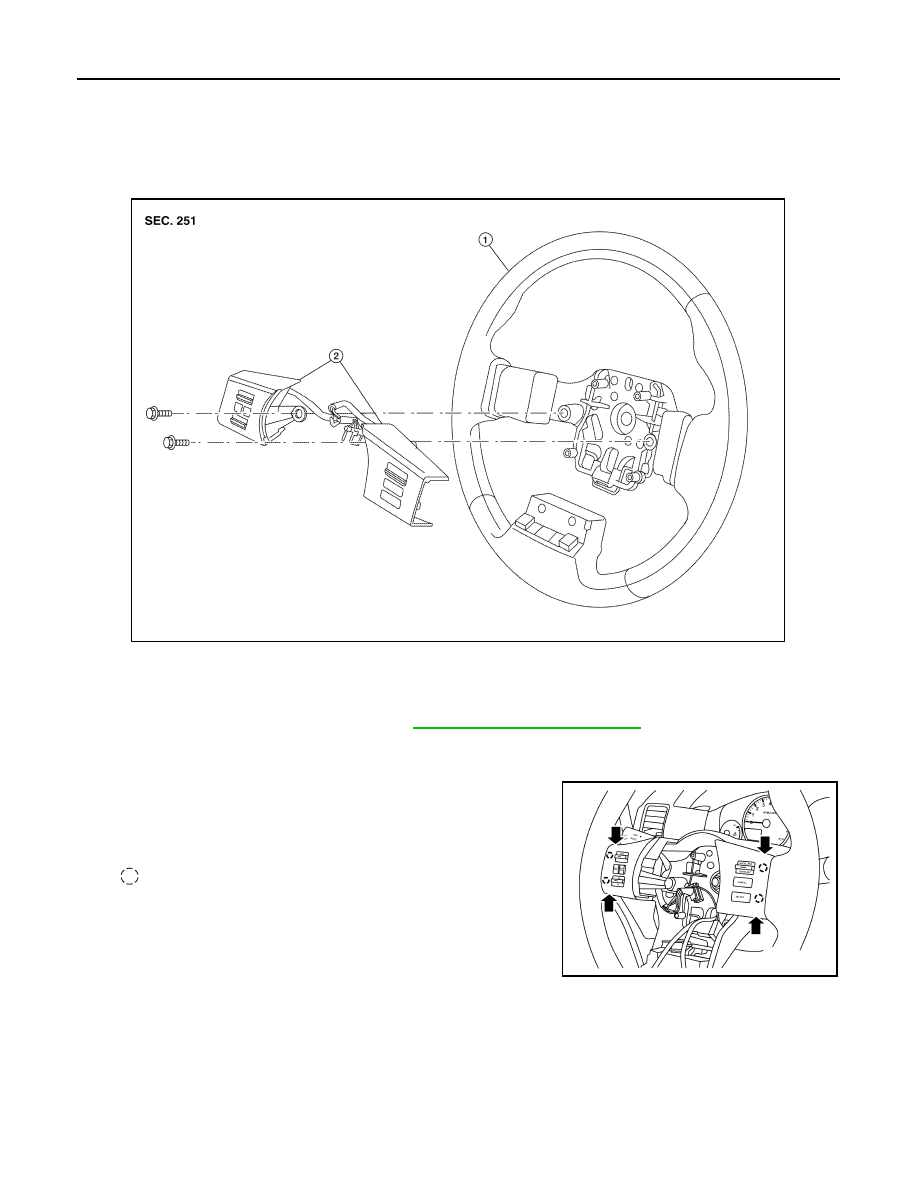

ALNIA0357ZZ

ALNIA1214ZZ

AV

TEL ANTENNA

AV-89

< ON-VEHICLE REPAIR >

[PREMIUM AUDIO (KING CAB)]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

TEL ANTENNA

Removal and Installation

INFOID:0000000005274923

REMOVAL

1.

Remove the RH front seat. Refer to

SE-28, "Removal and Installation"

.

2.

Disconnect the Bluetooth antenna harness connector.

3.

Remove the Bluetooth antenna screws, then remove the Bluetooth antenna.

INSTALLATION

Installation is in the reverse order of removal.

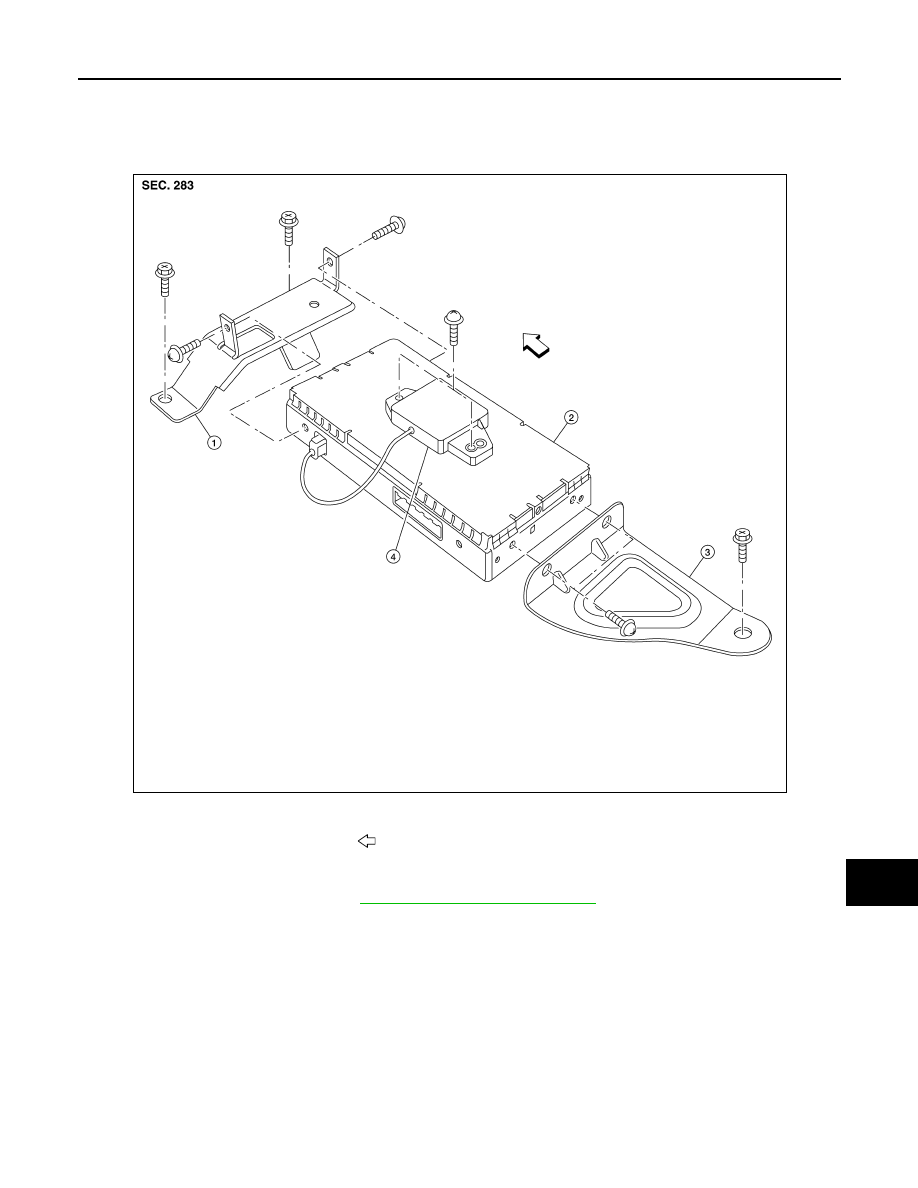

1.

Bluetooth control unit front bracket

2.

Bluetooth control unit

3.

Bluetooth control unit rear bracket

4.

Bluetooth antenna

Vehicle front

AWNIA1785ZZ

AV-90

< ON-VEHICLE REPAIR >

[PREMIUM AUDIO (KING CAB)]

BLUETOOTH CONTROL UNIT

BLUETOOTH CONTROL UNIT

Removal and Installation

INFOID:0000000005274924

REMOVAL

1.

Remove the RH front seat. Refer to

SE-28, "Removal and Installation"

.

2.

Disconnect the Bluetooth control unit harness connector (B).

3.

Remove the Bluetooth control unit screws (A), then remove the
Bluetooth control unit assembly.

4.

Remove the Bluetooth control unit bracket screws and remove
the Bluetooth control unit (1) front and rear brackets.

INSTALLATION

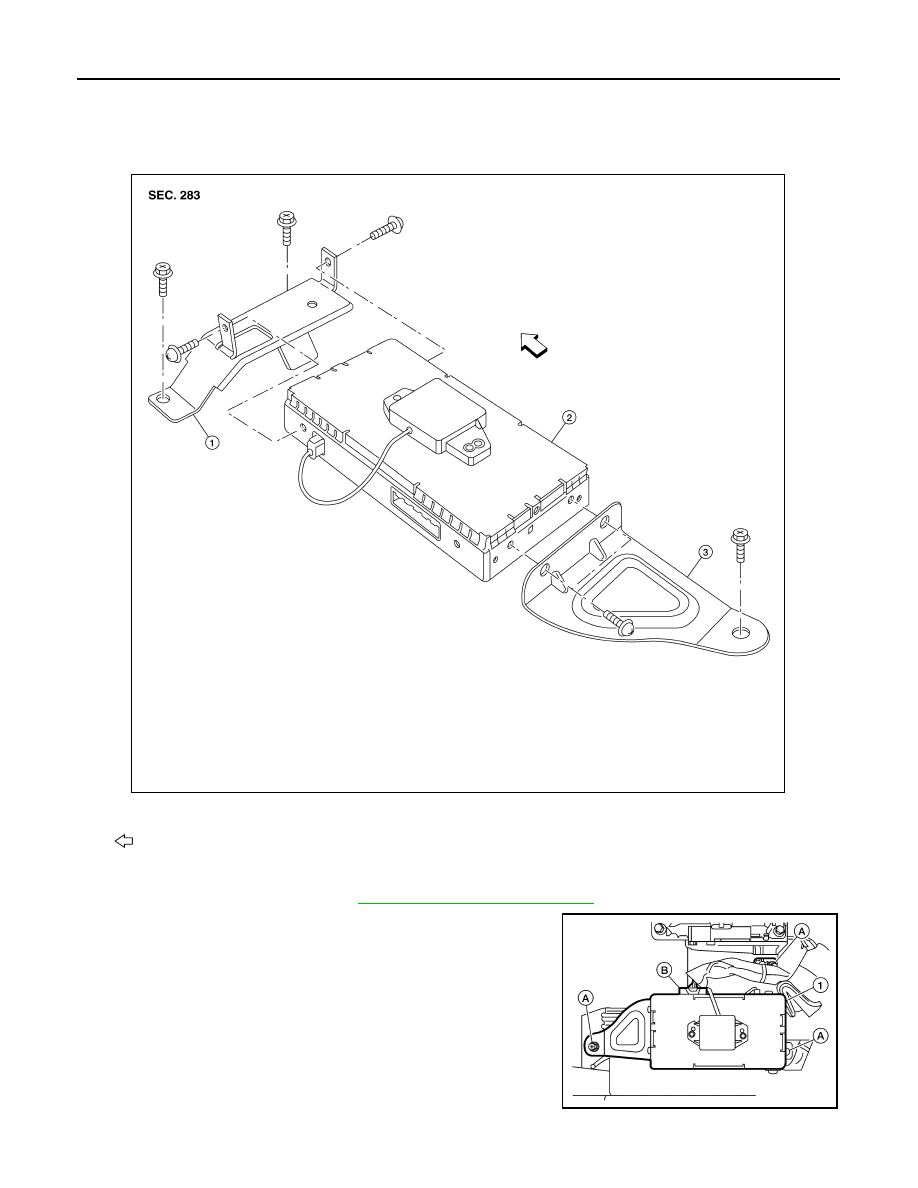

1.

Bluetooth control unit front bracket

2.

Bluetooth control unit/antenna

3.

Bluetooth control unit rear bracket

Vehicle front

ALNIA1069ZZ

AWNIA1812ZZ

AV

BLUETOOTH CONTROL UNIT

AV-91

< ON-VEHICLE REPAIR >

[PREMIUM AUDIO (KING CAB)]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Installation is in the reverse order of removal.
