MWI-20

< FUNCTION DIAGNOSIS >

METER SYSTEM

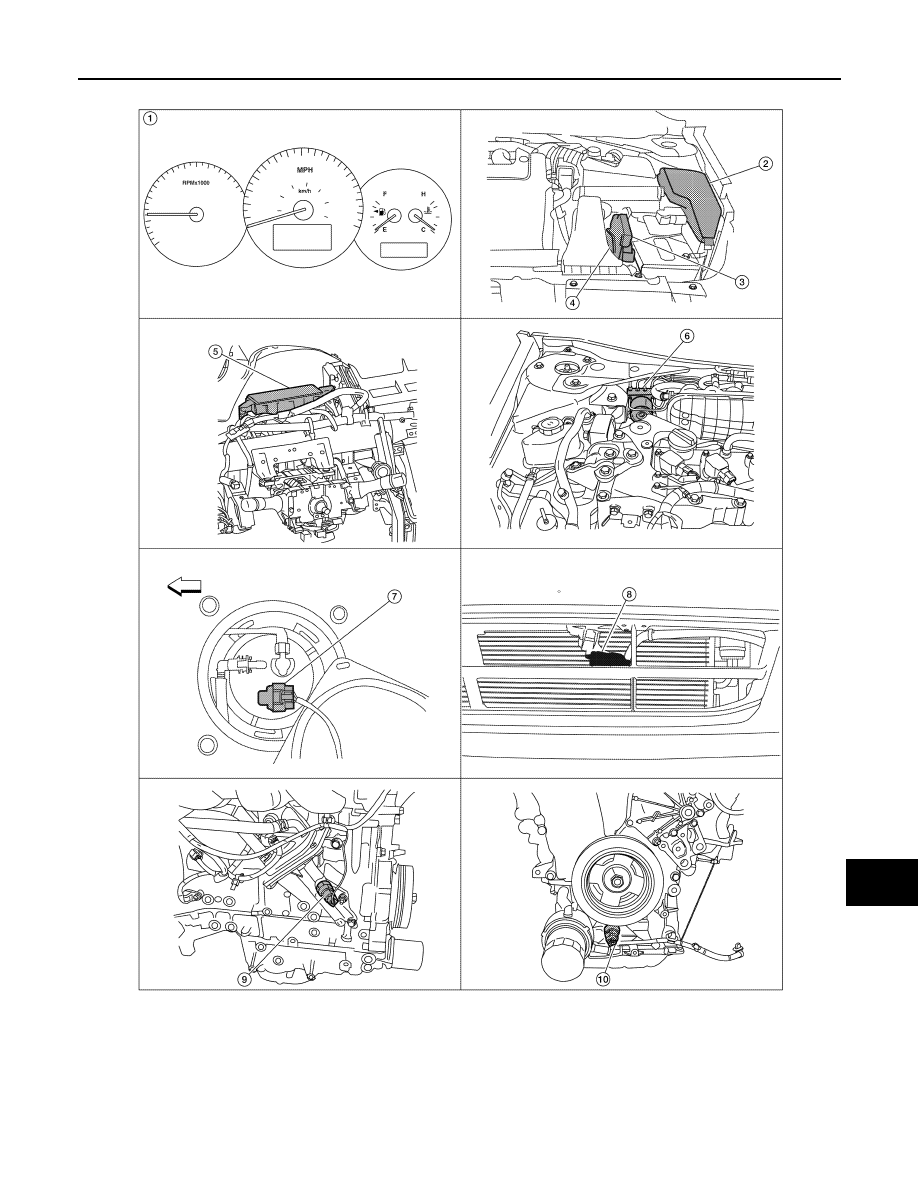

FUEL GAUGE : Component Parts Location

INFOID:0000000004495944

MWI

METER SYSTEM

MWI-21

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

AWNIA0308ZZ

MWI-22

< FUNCTION DIAGNOSIS >

METER SYSTEM

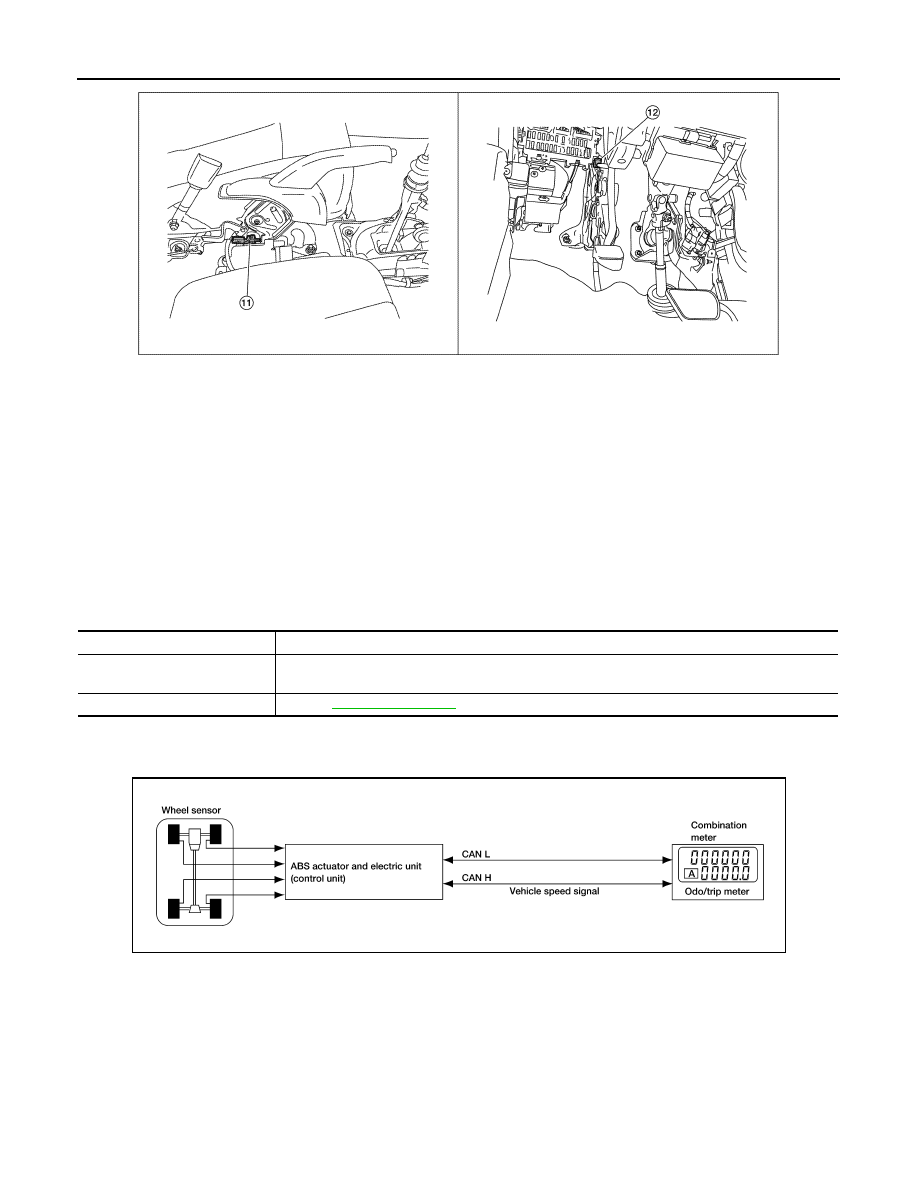

FUEL GAUGE : Component Description

INFOID:0000000004204065

ODO/TRIP METER
ODO/TRIP METER : System Diagram

INFOID:0000000004204066

ODO/TRIP METER : System Description

INFOID:0000000004204067

The vehicle speed signal and the memory signals from the meter memory circuit are processed by the combi-

nation meter and the mileage is displayed.

HOW TO CHANGE THE DISPLAY FOR ODO/TRIP METER

Refer to Owner's Manual for odo/trip meter operating instructions.

1.

Combination meter M24

2.

IPDM E/R E17, E18, E201, F10

3.

ECM E10

4.

TCM F16

5.

BCM M17, M18, M19, M21 (view with
instrument panel removed)

6.

ABS actuator and electric unit (control
unit) E26

7.

Fuel level sensor unit and fuel pump
(fuel level sensor) B42 (view with rear
seat and inspection hole cover re-
moved)

8.

Ambient sensor E211 (view of front
bumper fascia)

9.

Oil pressure switch F41 (QR25DE)
(view with engine removed)

10. Oil pressure switch F41 (VQ35DE)

(view with engine removed)

11. Parking brake switch M73

(Sedan with M/T and Coupe)
(view with center console removed)

12. Parking brake switch E35

(Sedan with CVT)
(view with instrument lower cover LH
removed)

AWNIA0747ZZ

Unit

Description

Combination meter

Indicates the fuel level according to the fuel level sensor signal received from the fuel level sensor
unit.

Fuel level sensor unit

Refer to

MWI-46, "Description"

.

AWNIA0005GB

MWI

METER SYSTEM

MWI-23

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ODO/TRIP METER : Component Parts Location

INFOID:0000000004495945
