Nissan Altima L32. Manual - part 749

EXT-16

< ON-VEHICLE REPAIR >

[COUPE]

REAR BUMPER

Installation is in the reverse order of removal.

FRONT GRILLE

EXT-17

< ON-VEHICLE REPAIR >

[COUPE]

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

FRONT GRILLE

Removal and Installation

INFOID:0000000004205920

Removal

1. Remove the front fender protectors RH and LH. Refer to

EXT-19, "Removal and Installation"

.

2. Remove the engine under cover.
3. Remove the RH and LH side under covers.
4. Remove the front bumper fascia clips and screws, then remove the front bumper fascia.
5. Remove the fog lamp if equipped. Refer to

EXL-256, "Removal and Installation"

.

6. Release the grille tabs from the front bumper fascia and remove the front grille.

Installation

Installation is in the reverse order of removal.

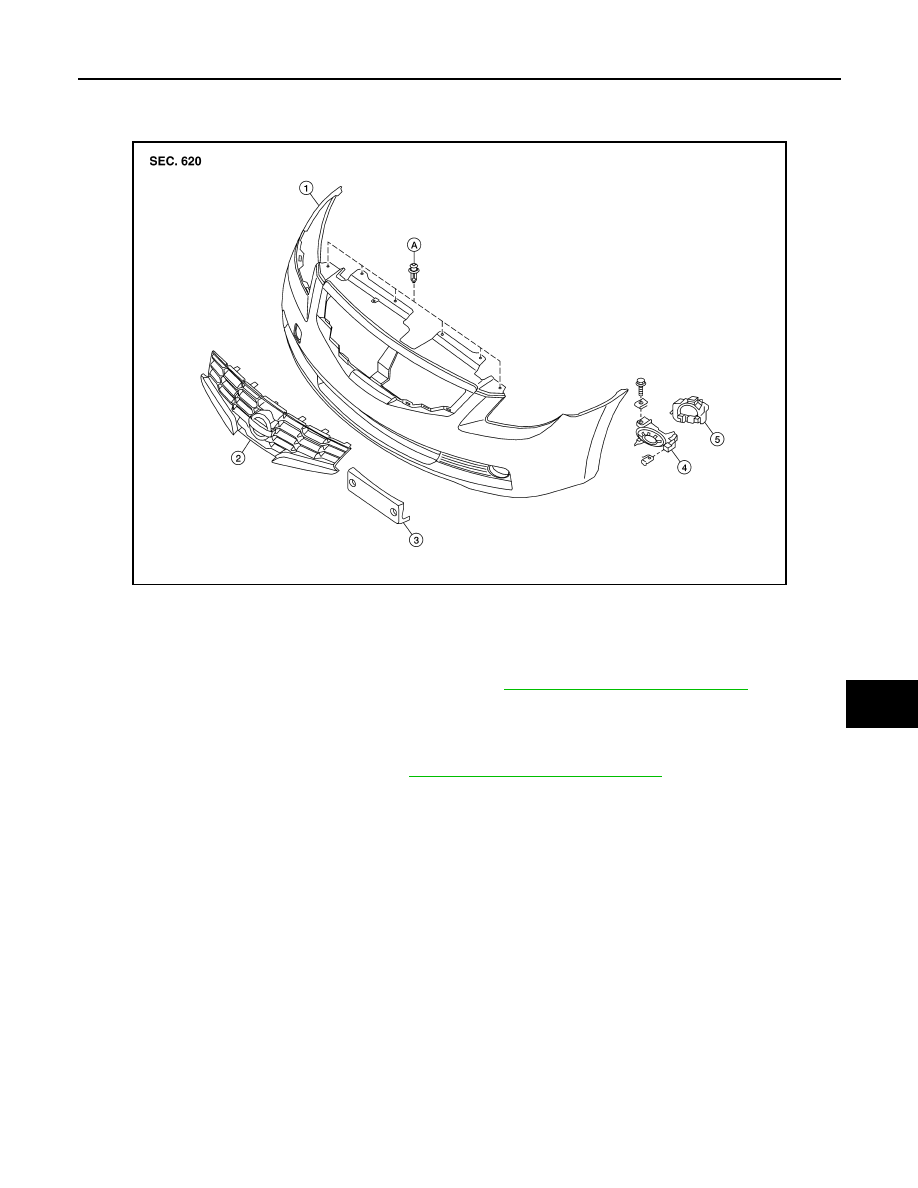

ALKIA1325ZZ

1.

Front bumper fascia

2.

Front grille

3.

License plate bracket

4.

Fog lamp finisher (if equipped)

5.

Fog lamp (if equipped)

A.

Clip C101

EXT-18

< ON-VEHICLE REPAIR >

[COUPE]

COWL TOP

COWL TOP

Removal and Installation

INFOID:0000000004205921

REMOVAL

1. Remove both the RH and LH wiper arms. Refer to

WW-116, "FRONT WIPER ARMS : Removal and

Installation"

.

2. Remove the cowl top side trim covers.
3. Remove the cowl top foam blocks.
4. Remove the cowl top clips and remove the cowl top.

INSTALLATION

Installation is in the reverse order of removal.

1.

Cowl top seal

2.

Cowl top side trim covers

3.

Cowl top foam blocks

4.

Cowl top

A.

Clips

ALKIA0004ZZ

FENDER PROTECTOR

EXT-19

< ON-VEHICLE REPAIR >

[COUPE]

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

FENDER PROTECTOR

Removal and Installation

INFOID:0000000004205922

REMOVAL

1. Remove the engine under cover. Refer to

EXT-13, "Removal and Installation"

.

2. Remove the screw from center mudguard.
3. Remove the fender protector screws and clips.
4. Remove the fender protector.

INSTALLATION

Installation is in the reverse order of removal.

1.

Fender protector

2.

Fender protector side cover

A.

J-clips

B.

Clips

C.

Center mudguard screw

Vehicle front

a.

Sheet metal nut

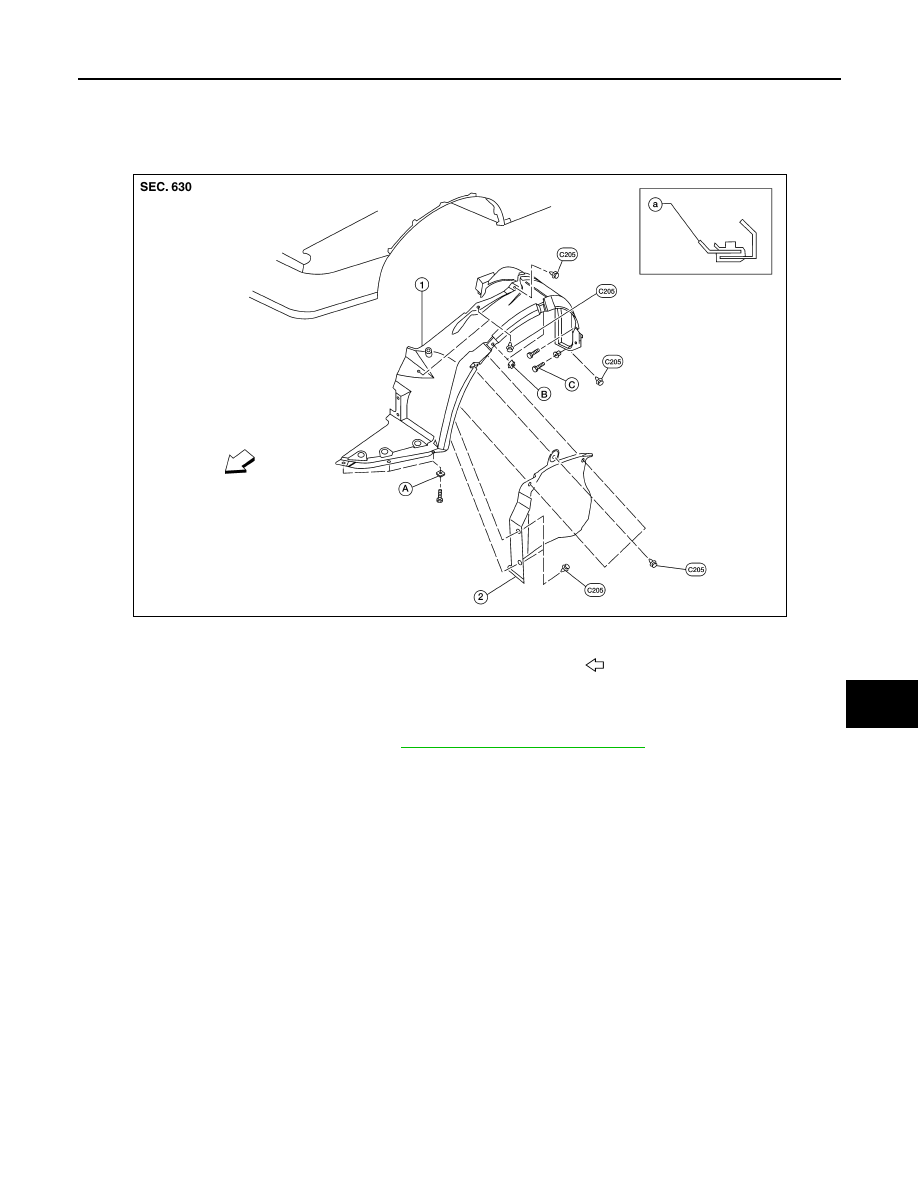

ALKIA0005ZZ
