EXL-244

< SYMPTOM DIAGNOSIS >

BOTH SIDE HEADLAMPS (LO) ARE NOT TURNED ON

BOTH SIDE HEADLAMPS (LO) ARE NOT TURNED ON

Description

INFOID:0000000004201546

The headlamps (both sides) do not turn ON in any lighting switch setting.

Diagnosis Procedure

INFOID:0000000004201547

1.

CHECK COMBINATION SWITCH

Check the combination switch. Refer to

BCS-10, "System Description"

.

Is the combination switch normal?

YES

>> GO TO 2

NO

>> Repair or replace the malfunctioning part.

2.

CHECK HEADLAMP (LO) REQUEST SIGNAL INPUT

CONSULT-III DATA MONITOR

1. Select "HL LO REQ" of IPDM E/R DATA MONITOR item.

2. With operating the lighting switch, check the monitor status.

Is the item status normal?

YES

>> GO TO 3

NO

>> Replace BCM. Refer to

BCS-96, "Removal and Installation"

 .

3.

HEADLAMP (LO) CIRCUIT INSPECTION

Check the headlamp (LO) circuit. For Halogen headlamps, refer to

EXL-42, "HEADLAMP (HALOGEN) : Diag-

nosis Procedure"

. For Xenon headlamps, refer to

EXL-44, "HEADLAMP (XENON) : Diagnosis Procedure"

.

Is the headlamp (LO) circuit normal?

YES

>> Replace IPDM E/R. Refer to

PCS-48, "Removal and Installation"

 .

NO

>> Repair or replace the malfunctioning part.

Monitor item

Condition

Monitor status

HL LO REQ

Lighting switch

2ND

ON

OFF

OFF

PARKING, LICENSE PLATE AND TAIL LAMPS ARE NOT TURNED ON

EXL-245

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

PARKING, LICENSE PLATE AND TAIL LAMPS ARE NOT TURNED ON

Description

INFOID:0000000004201548

The parking, license plate and tail lamps do not turn ON in with any lighting switch setting.

Diagnosis Procedure

INFOID:0000000004201549

1.

COMBINATION SWITCH INSPECTION

Check the combination switch. Refer to

BCS-10, "System Description"

.

Is the combination switch normal?

YES

>> GO TO 2

NO

>> Repair or replace the malfunctioning part.

2.

CHECK TAIL LAMP RELAY REQUEST SIGNAL INPUT

CONSULT-III DATA MONITOR

1. Select "TAIL & CLR REQ" of IPDM E/R DATA MONITOR item.

2. With operating the lighting switch, check the monitor status.

Is the item status normal?

YES

>> GO TO 3

NO

>> Replace BCM. Refer to

BCS-96, "Removal and Installation"

.

3.

PARK LAMP CIRCUIT INSPECTION

Check the parking lamp circuit. Refer to

EXL-48, "Description"

.

Is the tail lamp circuit normal?

YES

>> Replace IPDM E/R. Refer to

PCS-48, "Removal and Installation"

.

NO

>> Repair or replace the malfunctioning part.

Monitor item

Condition

Monitor status

TAIL & CLR
REQ

Lighting switch

1ST

ON

OFF

OFF

EXL-246

< SYMPTOM DIAGNOSIS >

BOTH SIDE FRONT FOG LAMPS ARE NOT TURNED ON

BOTH SIDE FRONT FOG LAMPS ARE NOT TURNED ON

Description

INFOID:0000000004201550

The front fog lamps do not turn ON in any setting.

Diagnosis Procedure

INFOID:0000000004201551

1.

COMBINATION SWITCH INSPECTION

Check the combination switch. Refer to

BCS-10, "System Description"

.

Is the combination switch normal?

YES

>> GO TO 2

NO

>> Repair or replace the malfunctioning part.

2.

CHECK FRONT FOG LAMP REQUEST SIGNAL INPUT

CONSULT-III DATA MONITOR

1. Select "FR FOG REQ" of IPDM E/R DATA MONITOR item.

2. With operating the front fog lamp switch, check the monitor status.

Is the item status normal?

YES

>> GO TO 3

NO

>> Replace BCM. Refer to

BCS-96, "Removal and Installation"

.

3.

FRONT FOG LAMP CIRCUIT INSPECTION

Check the front fog lamp circuit. Refer to

EXL-46, "Description"

.

Is the front fog lamp circuit normal?

YES

>> Replace IPDM E/R. Refer to

PCS-48, "Removal and Installation"

.

NO

>> Repair or replace the malfunctioning part.

Monitor item

Condition

Monitor status

FR FOG REQ

Front fog lamp switch
(Lighting switch 2ND)

ON

ON

OFF

OFF

PRECAUTIONS

EXL-247

< PRECAUTION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000004201552

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

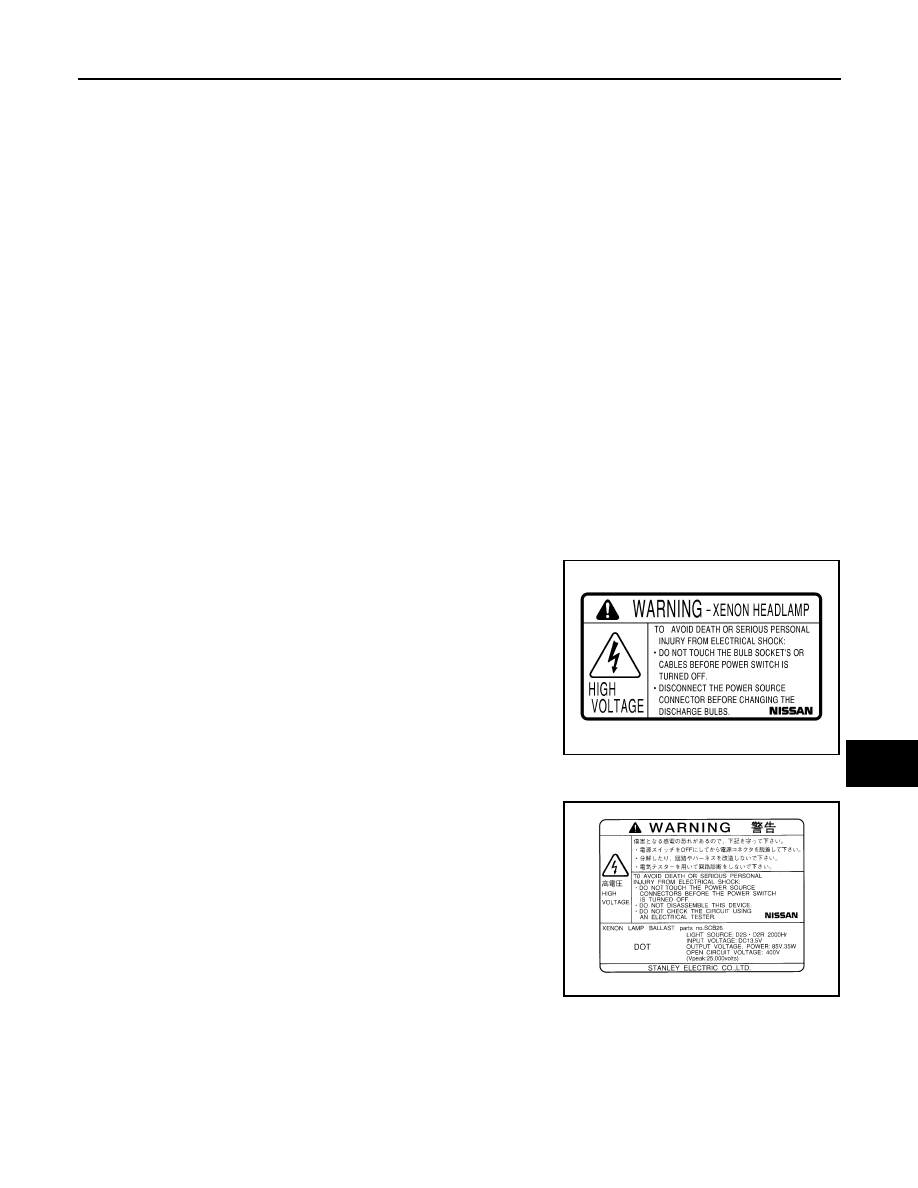

General precautions for service operations

INFOID:0000000004201553

• Never work with wet hands.

• The xenon headlamp system includes a high voltage generating

part. Be sure to disconnect battery negative cable (negative termi-

nal) or power fuse before removing, installing, or touching the

xenon headlamp (including lamp bulb).

• Turn the lighting switch OFF before disconnecting and connecting

the connector.

• When turning the xenon headlamp on and while it is illuminated,

never touch the harness, bulb, and socket of the headlamp.

• When checking the headlamp on/off operation, check it on vehicle

and with the power connected to the vehicle-side connector.

• Do not touch the headlamp bulb glass surface with bare hands or

allow oil or grease to get on it. Do not touch the headlamp bulb just after the headlamp is turned off, because

it is very hot.

• Install the xenon headlamp bulb socket correctly. If it is installed

improperly, high-voltage leak or corona discharge may occur that

can melt the bulb, connector, and housing. Do not illuminate the

xenon headlamp bulb out of the headlamp housing. Doing so can

cause fire and harm your eyes.

• When the bulb has burned out, wrap it in a thick vinyl bag and dis-

card. Do not break the bulb.

• Leaving the bulb removed from the headlamp housing for a long

period of time can deteriorate the performance of the lens and

reflector (dirt, clouding). Always prepare a new bulb and have it on

hand when replacing the bulb.

• When adjusting the headlamp aiming, turn the aiming adjustment

screw only in the tightening direction. (If it is necessary to loosen the screw, first fully loosen the screw, and

then turn it in the tightening direction.)

• Do not use organic solvent (paint thinner or gasoline) to clean lamps and to remove old sealant.

PKIA0183E

EL-3422D
