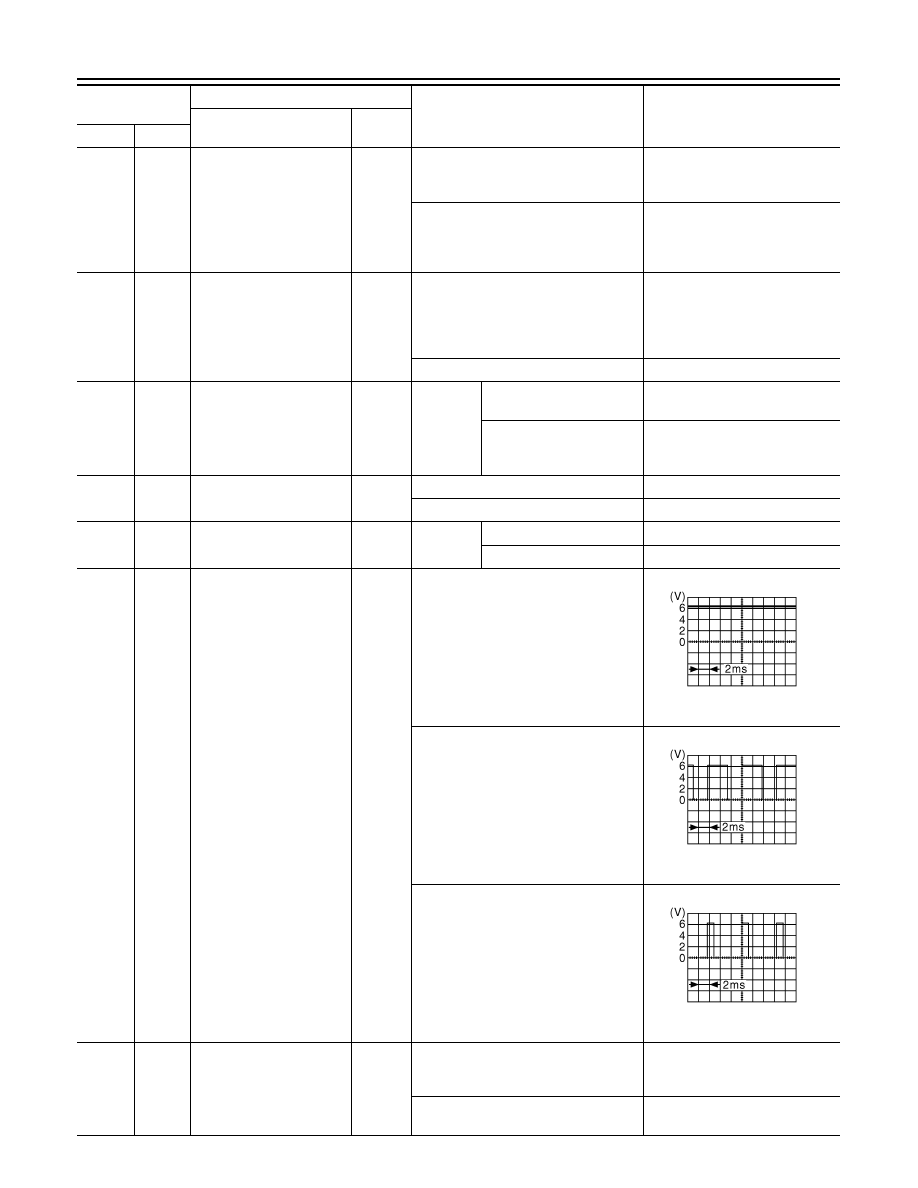

EXL-224

< ECU DIAGNOSIS >

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

69

(W/B)

Ground ECM relay control

Output

Ignition switch OFF
(For a few seconds after turning ignition
switch OFF)

Battery voltage

• Ignition switch ON
• Ignition switch OFF

(More than a few seconds after turn-
ing ignition switch OFF)

0 - 1.5V

70

(O)

Ground

Throttle control motor re-
lay control

Output

Ignition switch ON

→ OFF

0 -1.0V

Battery voltage

0V

Ignition switch ON

0 - 1.0V

72

(R/B)

Ground PNP switch signal

Input

Ignition
switch ON

CVT selector lever in P or
N position

Battery voltage

CVT selector lever in any
position other than P or N
position

0V

74

(Y)

Ground Ignition relay power supply

Output

Ignition switch OFF

0V

Ignition switch ON

Battery voltage

75

(P/L)

Ground Oil pressure switch

Input

Ignition
switch ON

Engine stopped

0V

Engine running

Battery voltage

76

(GR)

Ground

Power generation com-
mand signal

Output

Ignition switch ON

6.3V

40% is set on “Active test”, “ALTERNA-
TOR DUTY” of “ENGINE”

3.8V

80% is set on “Active test”, “ALTERNA-
TOR DUTY” of “ENGINE”

1.4V

77

(B/R)

Ground Fuel pump relay control

Output

• Approximately 1 second after turning

the ignition switch ON

• Engine running

0 - 1.0V

Approximately 1 second or more after
turning the ignition switch ON

Battery voltage

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

JPMIA0001GB

JPMIA0002GB

JPMIA0003GB

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

EXL-225

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

80

(B/W)

Ground Starter motor

Output

At engine cranking

Battery voltage

83

(R/Y)

Ground Headlamp LO (RH)

Output

Ignition
switch ON

Lighting switch OFF

0V

Lighting switch 2ND

Battery voltage

84

(L)

Ground Headlamp LO (LH)

Output

Ignition
switch ON

Lighting switch OFF

0V

Lighting switch 2ND

Battery voltage

86

(W/R)

Ground Front fog lamp (RH)

Output

Lighting
switch
2ND

• Front fog lamp switch

ON

• Daytime running light

activated (Only for Can-
ada models)

Battery voltage

Front fog lamp switch OFF

0V

87

(L/Y)

Ground Front fog lamp (LH)

Output

Lighting
switch
2ND

• Front fog lamp switch

ON

• Daytime running light

activated (Only for Can-
ada models)

Battery voltage

Front fog lamp switch OFF

0V

88

(R/W)

Ground

Washer pump power sup-
ply

Output

Ignition switch ON

Battery voltage

89

(L/W)

Ground Headlamp HI (RH)

Output

Ignition
switch ON

• Lighting switch HI
• lighting switch PASS

Battery voltage

Lighting switch OFF

0V

90

(G)

Ground Headlamp HI (LH)

Output

Ignition
switch ON

• Lighting switch HI
• Lighting switch PASS

Battery voltage

Lighting switch OFF

0V

91

(LG/R)

Ground Parking lamp (RH)

Output

Ignition
switch ON

Lighting switch 1ST

Battery voltage

Lighting switch OFF

0V

92

(LG/B)

Ground Parking lamp (LH)

Output

Ignition
switch ON

Lighting switch 1ST

Battery voltage

Lighting switch OFF

0V

99

(BR/W)

Ground Ambient sensor ground

Ignition switch ON

0V

100

(SB)

Ground Ambient sensor

Ignition switch ON

5V

101

(O/L)

Ground

Refrigerant pressure sen-
sor ground

Ignition switch ON

0V

102

(R/B)

Ground

Refrigerant pressure sen-
sor

• Ignition switch ON (READY)
• Both A/C switch and blower motor

switch ON (electric compressor oper-
ates)

1.0 - 4.0V

103

(P)

Ground

Refrigerant pressure sen-
sor power supply

Ignition switch ON

5V

105

(V)

Ground Daytime light relay control

Output

Ignition
switch ON

Daytime light system ac-
tive

Battery voltage

Ignition
switch ON

Daytime light system inac-
tive

0V

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

EXL-226

< ECU DIAGNOSIS >

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

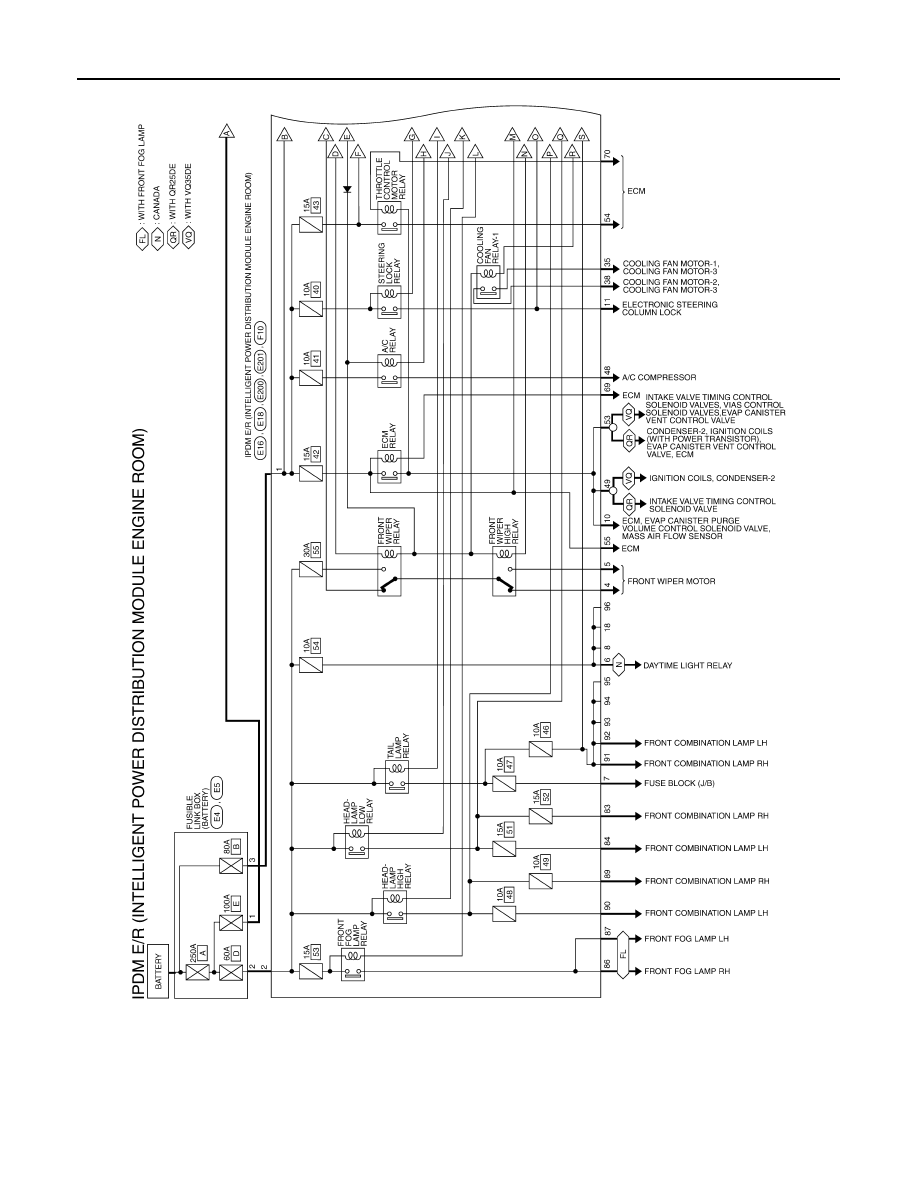

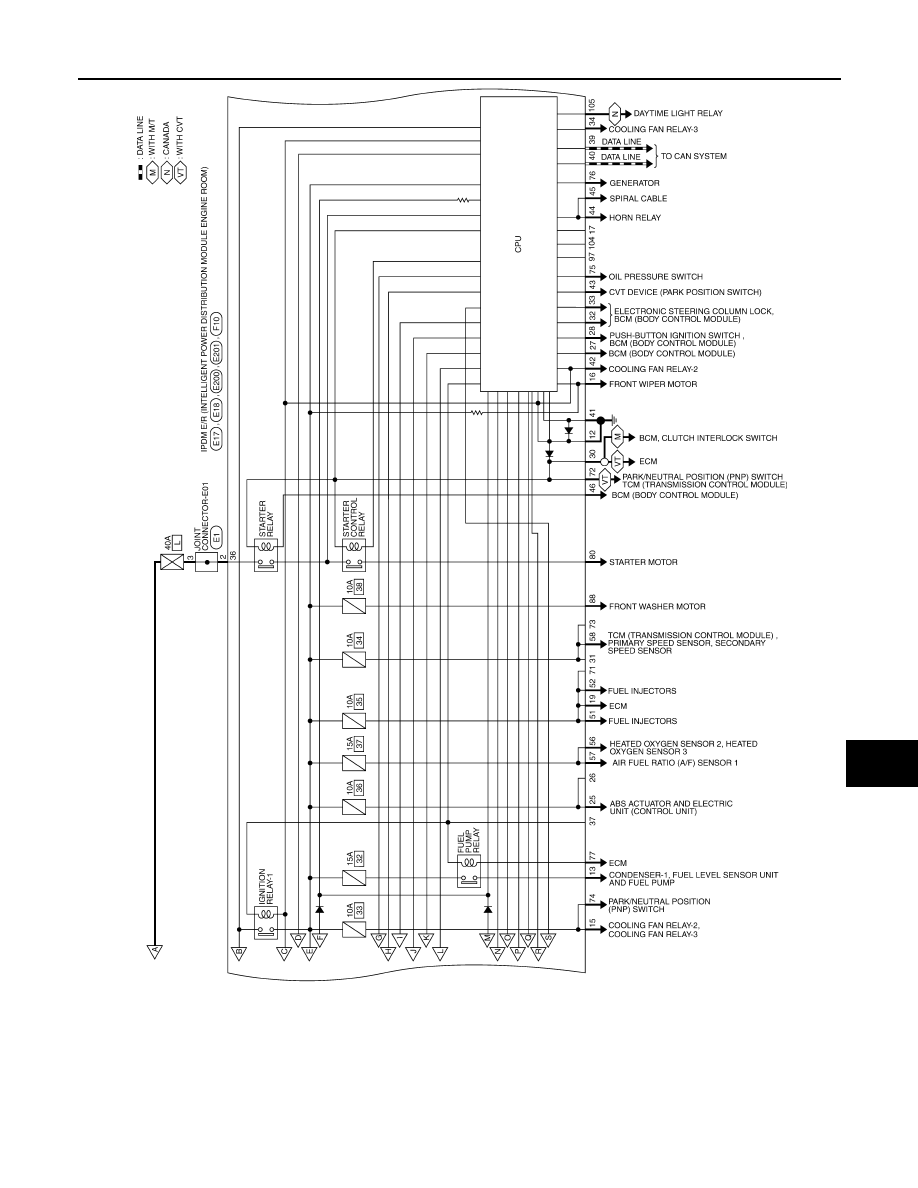

Wiring Diagram — Coupe
