TIMING CHAIN

c.

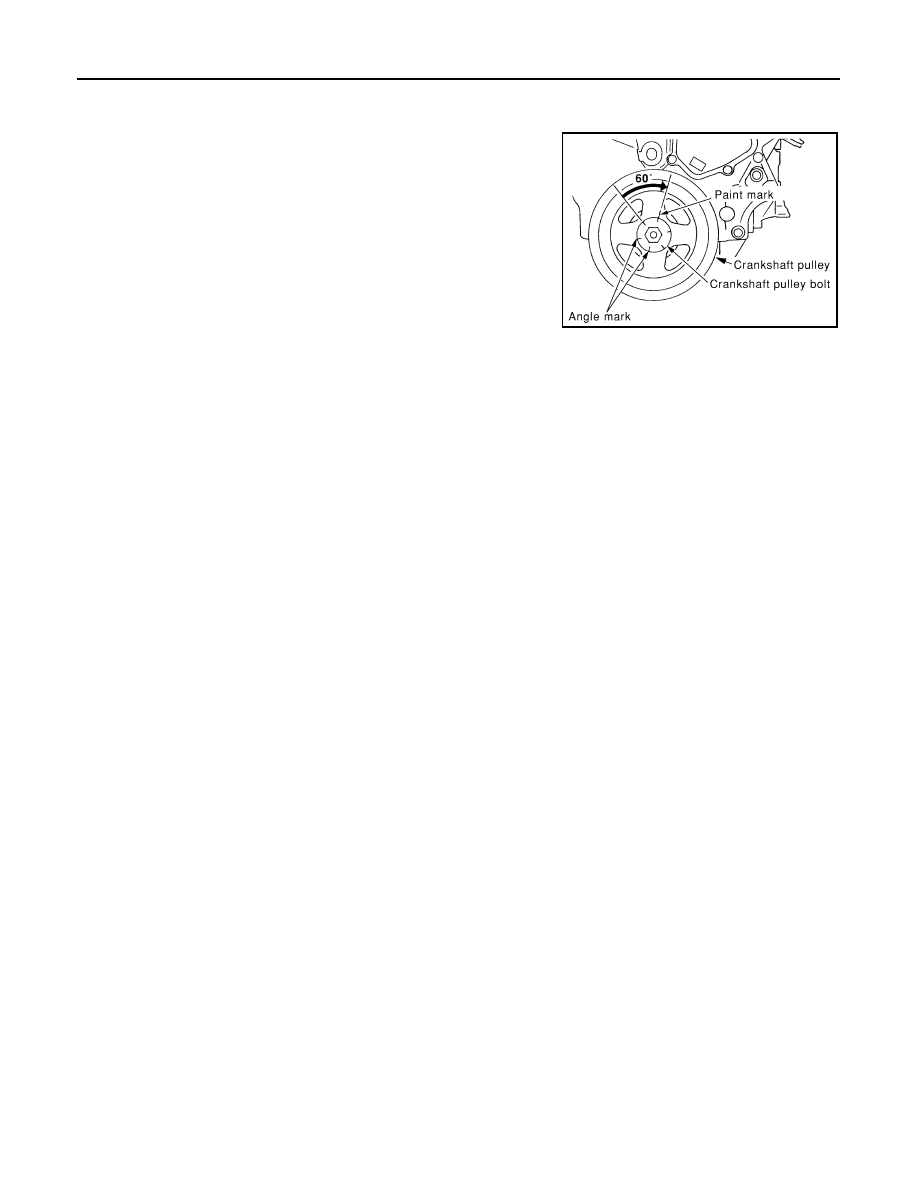

Apply a paint mark on the front cover, mating with any one of six

easy to recognize stamp marks on bolt flange.

d. Turn crankshaft pulley bolt another 60

° to 66° degrees [Target:

60

° degrees].

• Check vertical mounting angle with movement of one stamp

mark.

12. Installation of the remaining components is in the reverse order

of removal.

Crankshaft bolt

: 42.1 N·m (4.3 kg-m, 31 ft-lb)

SBIA0268E

OIL SEAL

EM-61

< ON-VEHICLE REPAIR >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

OIL SEAL

Removal and Installation of Valve Oil Seal

INFOID:0000000004202126

REMOVAL

1. Remove camshaft. Refer to

EM-41, "Removal and Installation"

.

2. Remove valve lifter. Refer to

EM-41, "Removal and Installation"

.

3. Rotate crankshaft, and set piston whose oil seal is to removed to top dead center. This prevents valve

from dropping inside cylinder.

CAUTION:

When rotating crankshaft, be careful to avoid scarring the front cover with the timing chain.

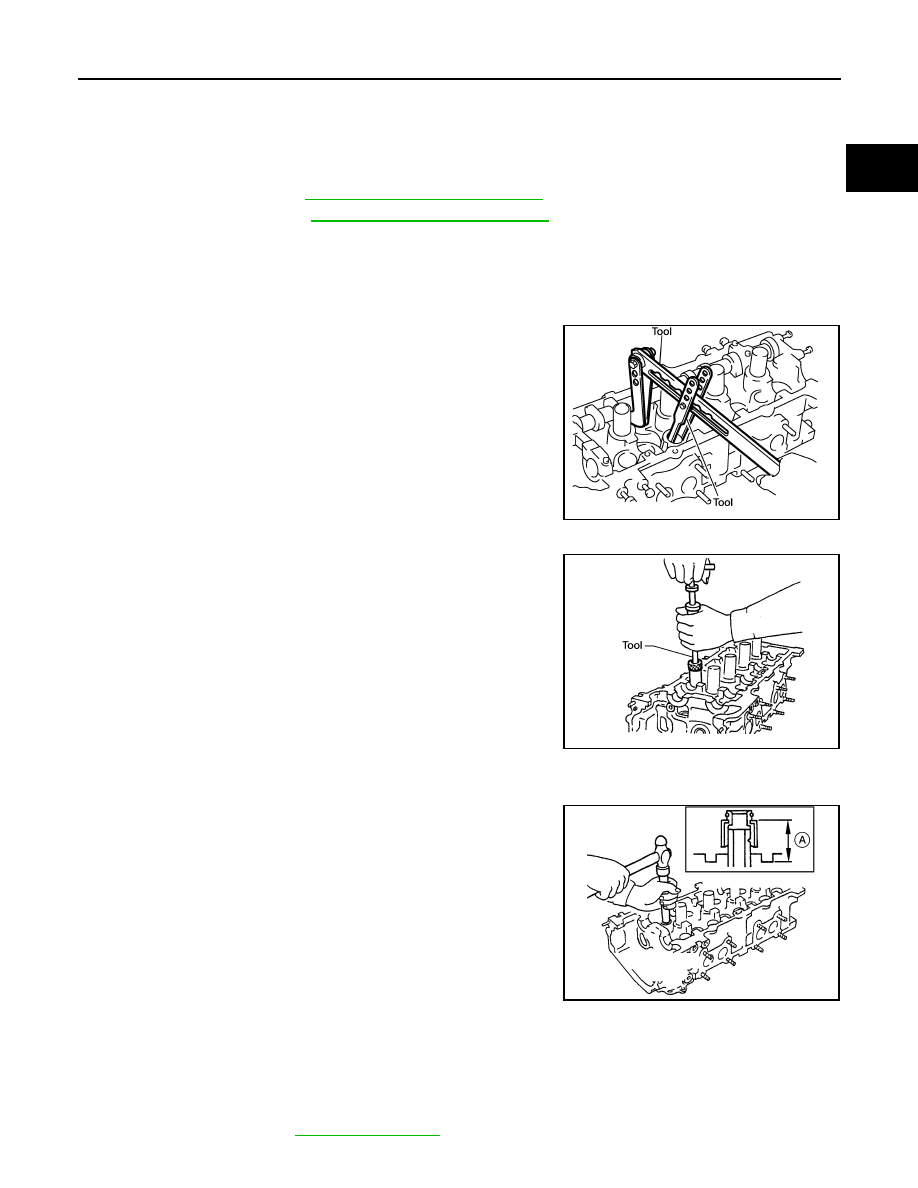

4. Remove valve collet, valve spring retainer and valve spring using Tool.

5. Remove valve oil seal using Tool.

INSTALLATION

1. Apply new engine oil to new valve oil seal joint surface and seal lip.
2. Press in valve oil seal to the position shown using Tool.

3. Installation of the remaining components is in the reverse order of removal.

Removal and Installation of Front Oil Seal

INFOID:0000000004202127

REMOVAL

1. Remove the following parts:

• RH front wheel. Refer to

WT-66, "Adjustment"

.

Tool number

: KV10116200 (J-26336-B)
: KV10115900 (J-26336-20)

WBIA0477E

Tool number

: KV10107902 (J-38959)

WBIA0478E

Oil seal installed height

: 12.1 mm (0.476 in)

Tool number

: KV10115600 (J-38958)

AWBIA0019ZZ

EM-62

< ON-VEHICLE REPAIR >

[QR25DE]

OIL SEAL

• Engine under cover using power tools.

• Drive belts. Refer to

EM-16

.

• Crankshaft pulley. Refer to

EM-52

.

2. Remove front oil seal from front cover.

CAUTION:

Be careful not to scratch front cover.

INSTALLATION

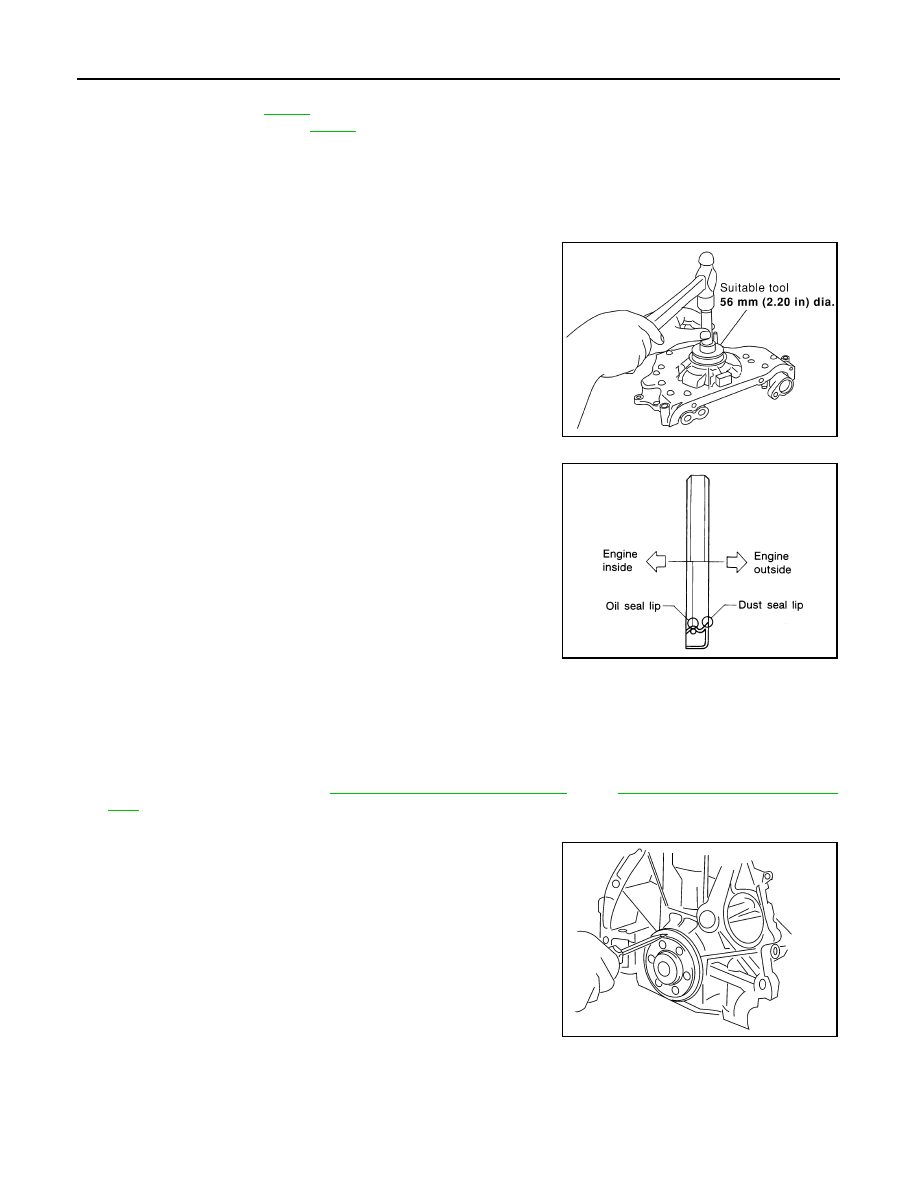

1. Install new front oil seal to front cover using suitable tool.

• Install new oil seal in until it is flush with front end surface of

front cover.

CAUTION:

• Do not reuse oil seal.

• Be careful not to cause damage to circumference of oil

seal.

• Install new oil seal in the direction shown.

2. Installation of the remaining components is in the reverse order of removal.

Removal and Installation of Rear Oil Seal

INFOID:0000000004202128

REMOVAL

1. Remove the transaxle. Refer to

TM-26, "Removal and Installation"

 (M/T),

TM-259, "Removal and Installa-

tion"

 (CVT).

2. Remove flywheel (MT) or drive plate (CVT).
3. Remove rear oil seal using suitable tool.

CAUTION:

 Be careful not to scratch rear oil seal retainer.

INSTALLATION

1. Apply new engine oil to new oil seal and install it using a suitable tool.

SBIA0266E

SEM715A

WBIA0204E

OIL SEAL

EM-63

< ON-VEHICLE REPAIR >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

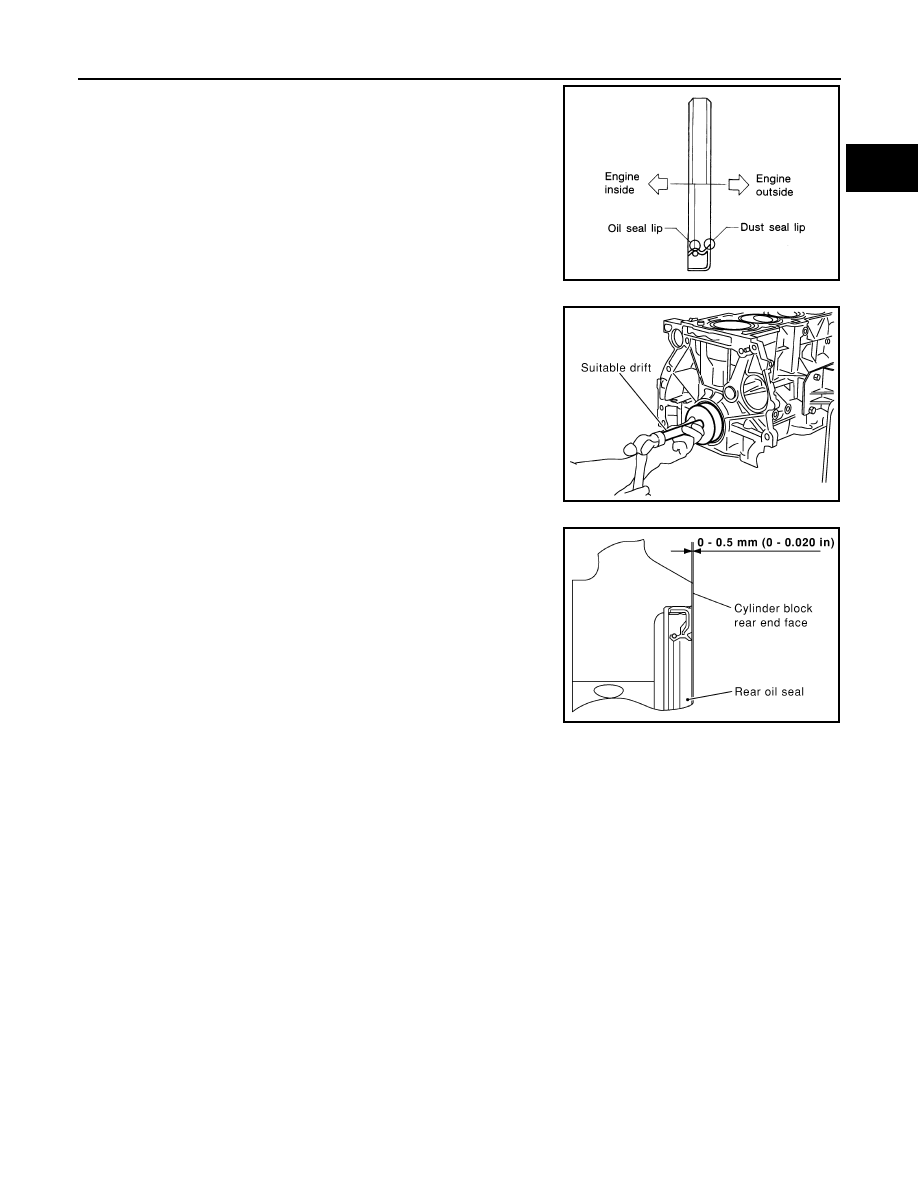

• Install new oil seal in the direction shown.

• Press fit new oil seal straight using a suitable drift, to avoid

causing burrs or tilting.

• Press in the new oil seal to the specified depth as shown.

2. Installation of the remaining components is in the reverse order of removal.

SEM715A

SBIA0280E

SBIA0281E
