1. Disconnect “fuel level sensor unit and fuel pump” harness connector.

2. Check the continuity between “fuel level sensor unit and fuel pump” harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 15.

NO

>> GO TO 14.

14.

DETECT MALFUNCTIONING PART

Check the following.

• Harness connectors B10, E29 (with rear view monitor)

• Harness for open or short between “fuel level sensor unit and fuel pump” and ground

>> Repair open circuit or short to power in harness or connectors.

15.

CHECK FUEL PUMP

Refer to

EC-1489, "Component Inspection (Fuel Pump)"

.

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> Replace fuel pump.

16.

CHECK INTERMITTENT INCIDENT

Refer to

GI-42, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> Replace IPDM E/R.

NO

>> Repair or replace harness or connectors.

Component Inspection (Fuel Pump)

INFOID:0000000004362370

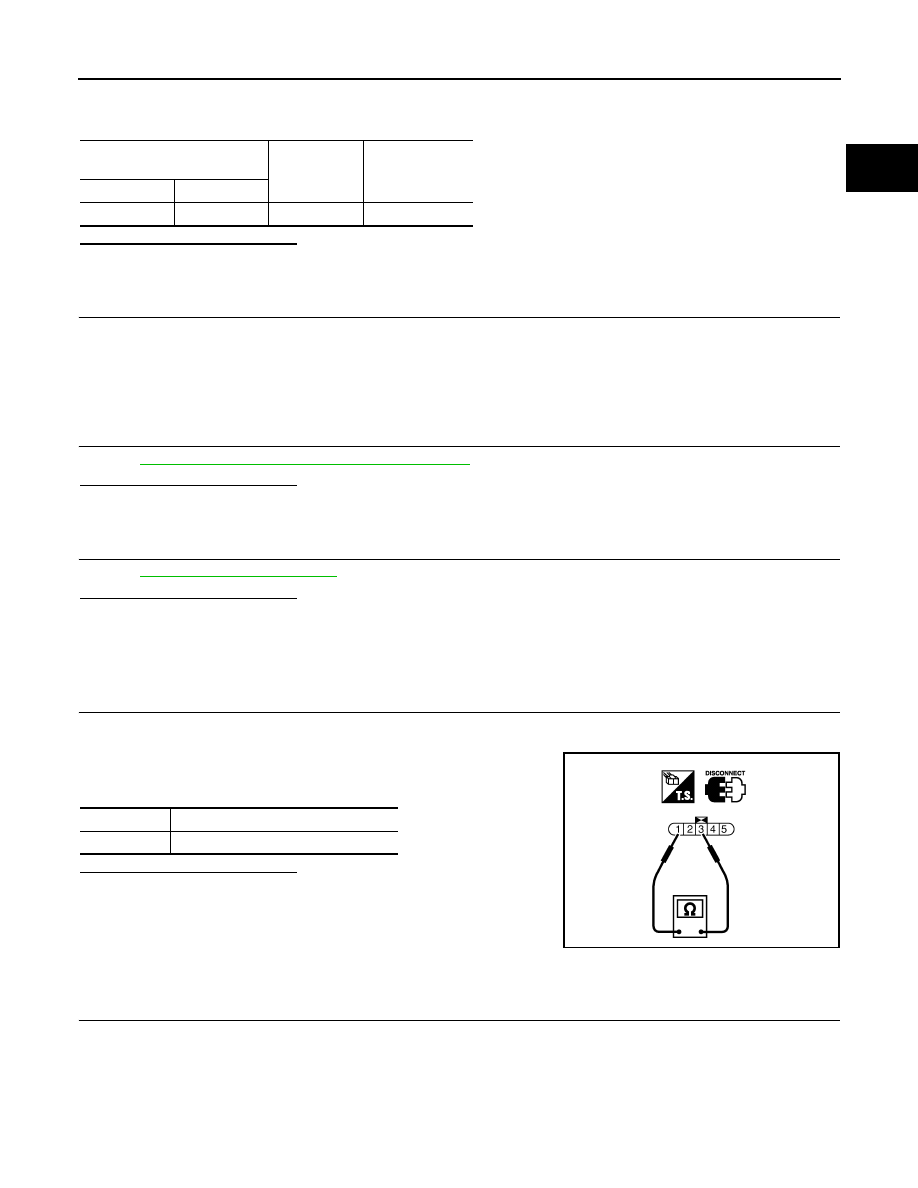

1.

CHECK FUEL PUMP

1. Turn ignition switch OFF.

2. Disconnect “fuel level sensor unit and fuel pump” harness connector.

3. Check resistance between “fuel level sensor unit and fuel pump”

terminals as per the following.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace “fuel level sensor unit and fuel pump”

Component Inspection (Condenser-1)

INFOID:0000000004458313

1.

CHECK CONDENSER

1. Turn ignition switch OFF.

2. Disconnect condenser-1 harness connector.

Fuel level sensor unit and fuel

pump

Ground

Continuity

Connector

Terminal

B42

3

Ground

Existed

Terminals

Resistance

1 and 3

0.2 - 5.0

Ω [at 25°C (77°F)]

SEC918C

EC-1490

< COMPONENT DIAGNOSIS >

[VQ35DE]

FUEL PUMP

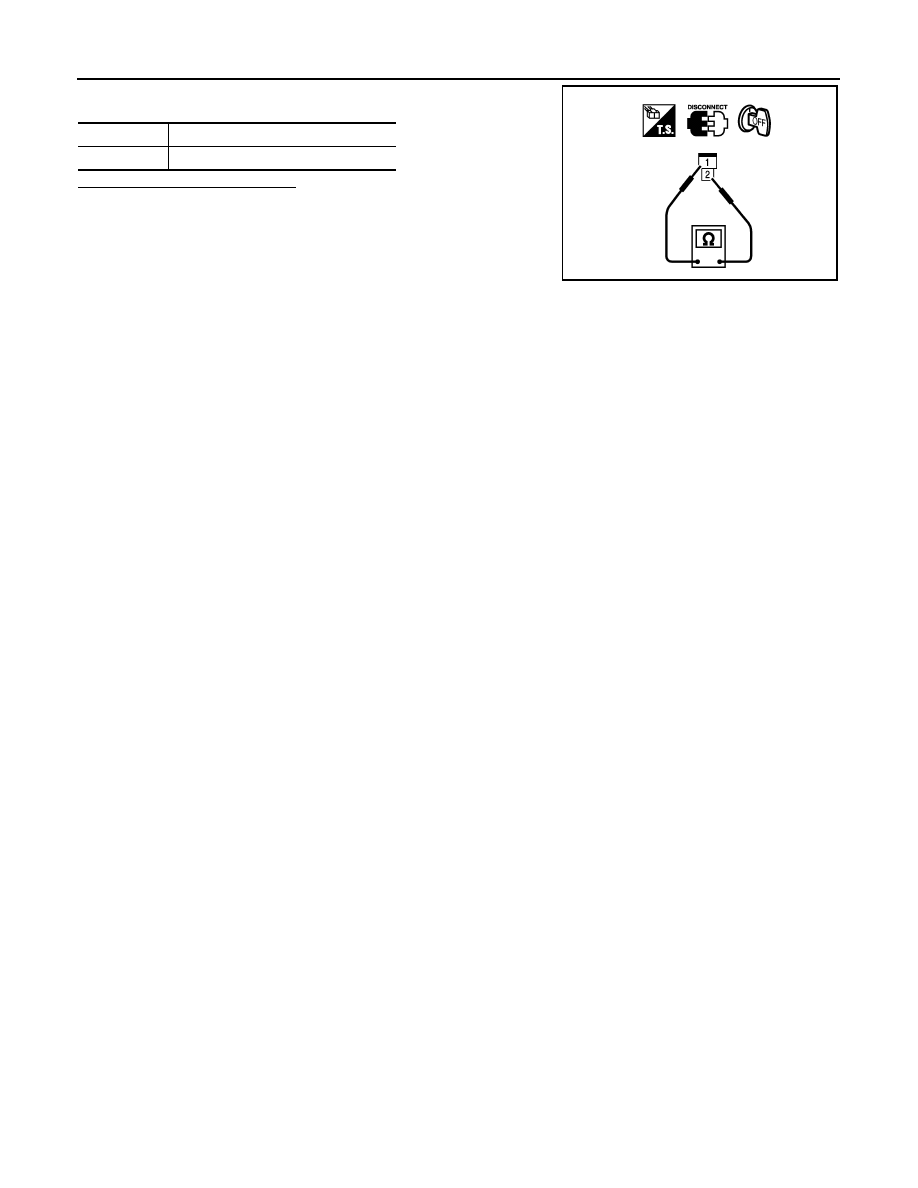

3. Check resistance between condenser-1 terminals as follows.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace condenser.

Terminals

Resistance

1 and 2

Above 1 M

Ω [at 25°C (77°F)]

PBIB0794E

IGNITION SIGNAL

EC-1491

< COMPONENT DIAGNOSIS >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

IGNITION SIGNAL

Description

INFOID:0000000004362371

The ignition signal from the ECM is sent to and amplified by the power transistor. The power transistor turns

ON and OFF the ignition coil primary circuit. This ON/OFF operation induces the proper high voltage in the coil

secondary circuit.

Component Function Check

INFOID:0000000004362372

1.

INSPECTION START

Turn ignition switch OFF, and restart engine.
Does the engine start?

YES-1 >> With CONSULT-III: GO TO 2.

YES-2 >> Without CONSULT-III: GO TO 3.

NO

>> Go to

EC-1491, "Diagnosis Procedure"

.

2.

CHECK IGNITION SIGNAL FUNCTION

With CONSULT-III

1. Perform “POWER BALANCE” in “ACTIVE TEST” mode with CONSULT-III.

2. Check that each circuit produces a momentary engine speed drop.
Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Go to

EC-1491, "Diagnosis Procedure"

.

3.

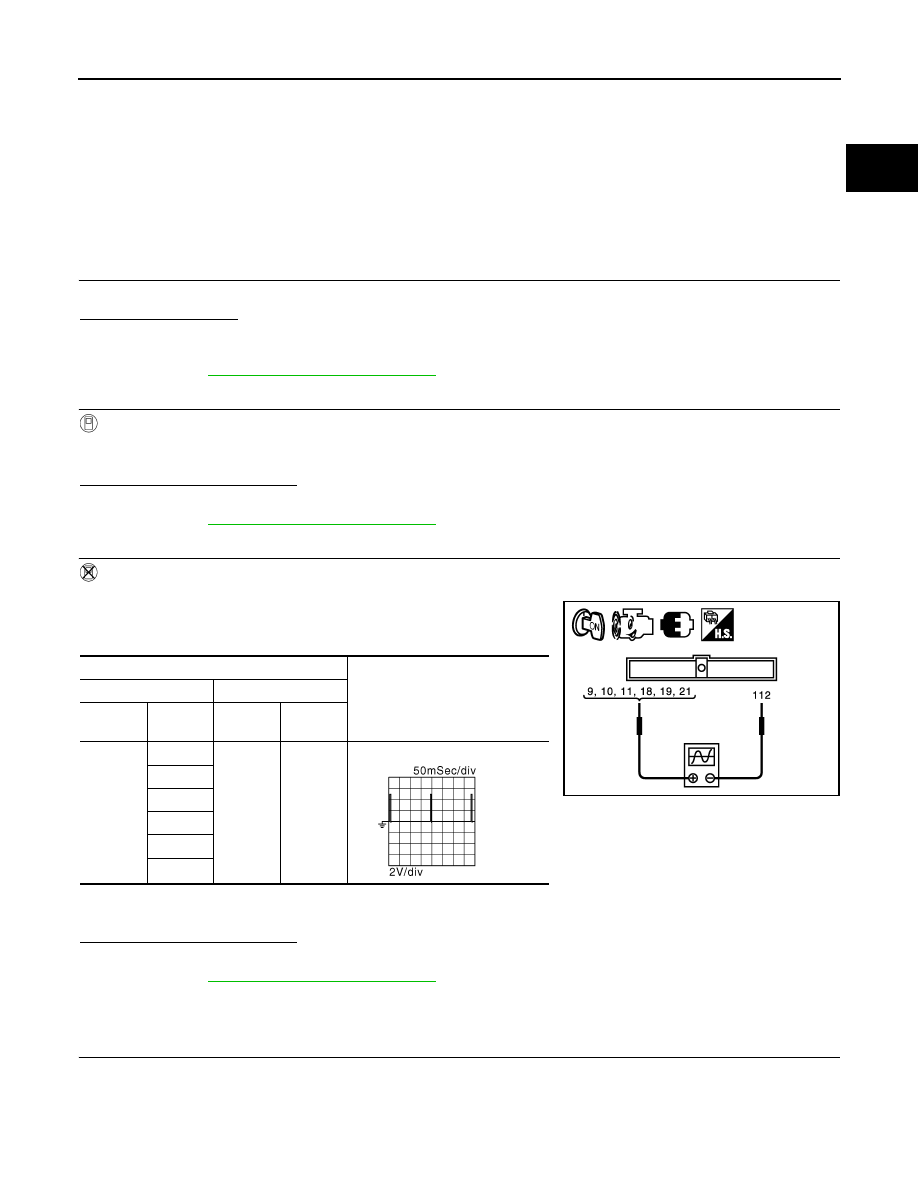

CHECK IGNITION SIGNAL FUNCTION

 Without CONSULT-III

1. Let engine idle.

2. Read the voltage signal between ECM harness connector termi-

nals with an oscilloscope.

NOTE:
The pulse cycle changes depending on rpm at idle.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Go to

EC-1491, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000004362373

1.

CHECK IGNITION COIL POWER SUPPLY CIRCUIT-I

1. Turn ignition switch OFF, wait at least 10 seconds and then turn it ON.

ECM

Voltage signal

+

–

Connec-

tor

Terminal

Connec-

tor

Terminal

F14

9

E10

112

10

11

18

19

21

JMBIA1886GB

JMBIA0035GB

EC-1492

< COMPONENT DIAGNOSIS >

[VQ35DE]

IGNITION SIGNAL

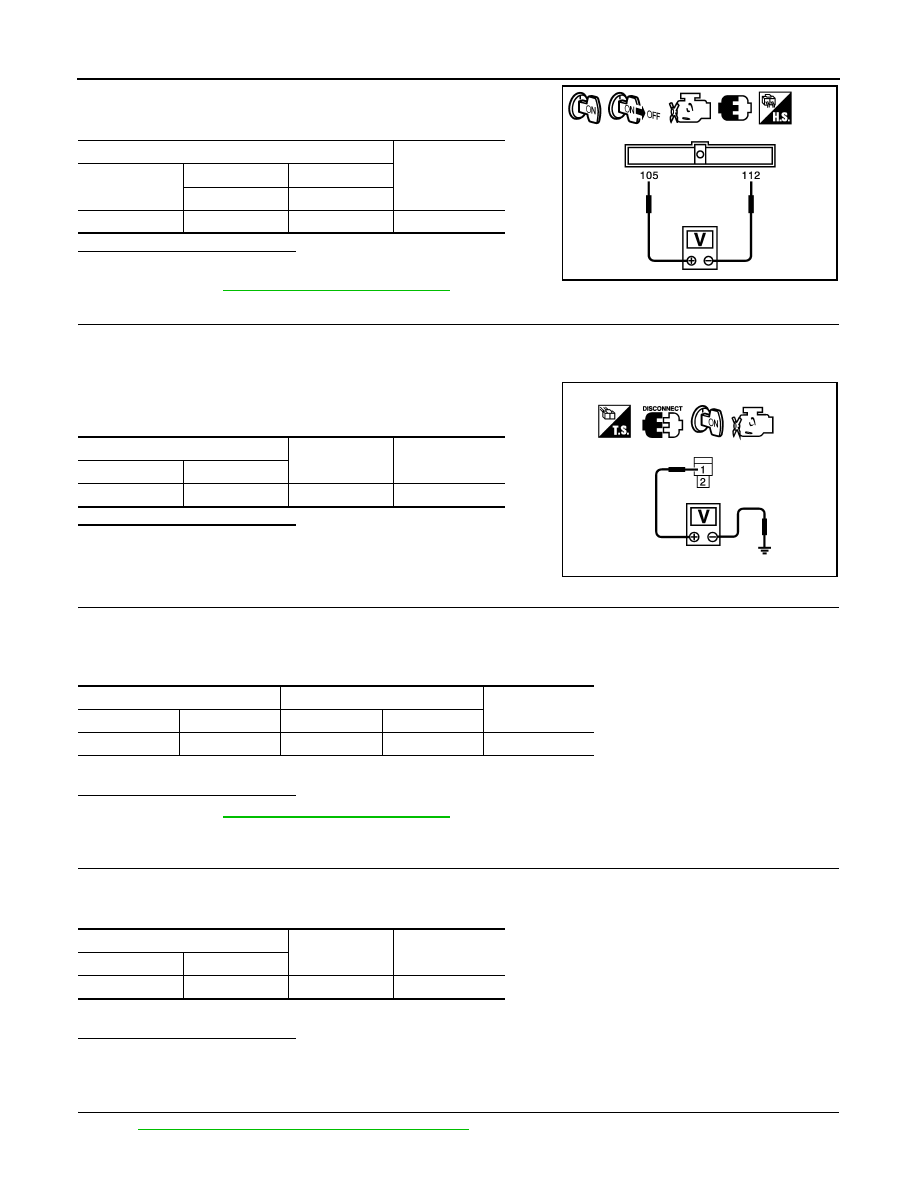

2. Check the voltage between ECM harness connector and

ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Refer to

EC-1175, "Diagnosis Procedure"

.

2.

CHECK IGNITION COIL POWER SUPPLY CIRCUIT-II

1. Turn ignition switch OFF.

2. Disconnect condenser harness connector.

3. Turn ignition switch ON.

4. Check the voltage between condenser harness connector and

ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 3.

3.

CHECK IGNITION COIL POWER SUPPLY CIRCUIT-III

1. Turn ignition switch OFF.

2. Disconnect IPDM E/R harness connector.

3. Check the continuity between IPDM E/R harness connector and condenser harness connector.

4. Also check harness for short to ground and short to power.
Is the inspection result normal?

YES

>> Refer to

EC-1175, "Diagnosis Procedure"

.

NO

>> Repair open circuit, short to ground or short to power in harness or connectors.

4.

CHECK CONDENSER GROUND CIRCUIT FOR OPEN AND SHORT

1. Turn ignition switch OFF.

2. Check the continuity between condenser harness connector and ground.

3. Also check harness for short to power.
Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair open circuit or short to power in harness or connectors.

5.

CHECK CONDENSER

Refer to

EC-1495, "Component Inspection (Condenser)"

ECM

Voltage

Connector

+

–

Terminal

Terminal

E10

105

112

Battery voltage

JMBIA1887ZZ

Condenser

Ground

Voltage

Connector

Terminal

F26

1

Ground

Battery voltage

PBIB0624E

IPDM E/R

Condenser

Continuity

Connector

Terminal

Connector

Terminal

F10

49

F26

1

Existed

Condenser

Ground

Continuity

Connector

Terminal

F26

2

Ground

Existed
