P0133, P0153 A/F SENSOR 1

Description

INFOID:0000000004362091

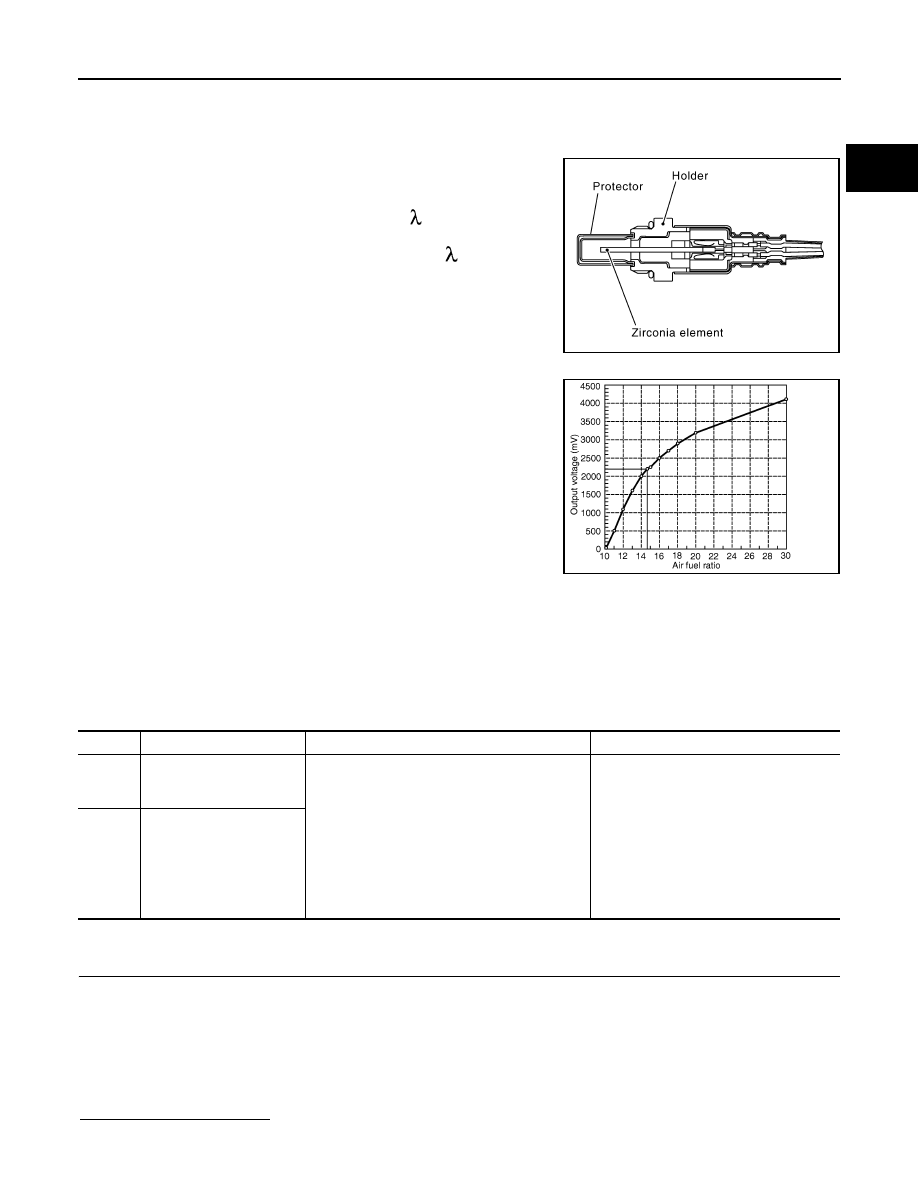

The air fuel ratio (A/F) sensor 1 is a planar one-cell limit current sen-

sor. The sensor element of the A/F sensor 1 is composed an elec-

trode layer, which transports ions. It has a heater in the element.
The sensor is capable of precise measurement   = 1, but also in the

lean and rich range. Together with its control electronics, the sensor
outputs a clear, continuous signal throughout a wide   range.

The exhaust gas components diffuse via the diffusion layer at the

sensor cell. An electrode layer is applied voltage, and this current

relative oxygen density in lean. Also this current relative hydrocar-

bon density in rich.

Therefore, the A/F sensor 1 is able to indicate air fuel ratio by this

electrode layer of current. In addition, a heater is integrated in the

sensor to ensure the required operating temperature of approxi-

mately 800

°C (1,472°F).

DTC Logic

INFOID:0000000004362092

DTC DETECTION LOGIC

To judge the malfunction of A/F sensor 1, this diagnosis measures response time of the A/F signal computed

by ECM from the A/F sensor 1 signal. The time is compensated by engine operating (speed and load), fuel

feedback control constant, and the A/F sensor 1 temperature index. Judgment is based on whether the com-

pensated time (the A/F signal cycling time index) is inordinately long or not.

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following before conduct-

ing the next test.

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION:

Before performing the following procedure, confirm that battery voltage is more than 11 V at idle.
Will CONSULT-III be used?

YES

>> GO TO 2.

JMBIA0112GB

PBIB3354E

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0133

Air fuel ratio (A/F) sensor 1
(bank 1) circuit slow re-
sponse

• The response of the A/F signal computed by

ECM from A/F sensor 1 signal takes more than
the specified time.

• Harness or connectors

(The sensor circuit is open or shorted.)

• A/F sensor 1
• A/F sensor 1 heater
• Fuel pressure
• Fuel injector
• Intake air leakage
• Exhaust gas leakage
• PCV
• Mass air flow sensor

P0153

Air fuel ratio (A/F) sensor 1
(bank 2) circuit slow re-
sponse

EC-1238

< COMPONENT DIAGNOSIS >

[VQ35DE]

P0133, P0153 A/F SENSOR 1

NO

>> GO TO 5.

2.

PERFORM DTC CONFIRMATION PROCEDURE-I

With CONSULT-III

1. Start engine and warm it up to normal operating temperature.

2. Turn ignition switch OFF and wait at least 10 seconds.

3. Turn ignition switch ON.

4. Turn ignition switch OFF and wait at least 10 seconds.

5. Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least 1 minute under no load.

6. Let engine idle for 1 minute.

7. Select “A/F SEN1(B1) P1278/P1279” (for DTC P0133) or “A/F SEN1(B2) P1288/P1289” (for DTC P0153)

of “A/F SEN1” in “DTC WORK SUPPORT” mode with CONSULT-III.

8. Touch “START”.
Is COMPLETED displayed?

YES

>> GO TO 3.

NO

>> GO TO 4.

3.

PERFORM DTC CONFIRMATION PROCEDURE-II

Check that “OK” is displayed after touching “SELF-DIAG RESULT”.
Is OK displayed?

YES

>> INSPECTION END

NO

>> Go to

EC-1239, "Diagnosis Procedure"

.

4.

PERFORM DTC CONFIRMATION PROCEDURE-III

1. After perform the following procedure, “TESTING” will be displayed on the CONSULT-III screen.

-

Increase the engine speed up to between 4,000 and 5,000 rpm and maintain that speed for 10 seconds.

-

Fully release accelerator pedal and then let engine idle for approximately 10 seconds.

If “TESTING” is not displayed after 10 seconds, go to

EC-1167, "Component Function Check"

.

2. Wait for approximately 20 seconds at idle under the condition that “TESTING” is displayed on the CON-

SULT-III screen.

3. Check that “TESTING” changes to “COMPLETED”.

If “TESTING” changed to “OUT OF CONDITION”, go to

EC-1167, "Component Function Check"

.

4. Check that “OK” is displayed after touching “SELF-DIAG RESULT”.
Is OK displayed?

YES

>> INSPECTION END

NO

>> Go to

EC-1239, "Diagnosis Procedure"

.

5.

CHECK MIXTURE RATIO SELF-LEARNING VALUE

With GST

1. Start engine and warm it up to normal operating temperature.

2. Select Service $01 with GST.

3. Calculate the total value of “Short term fuel trim” and “Long term fuel trim” indications.
Is the total percentage within

±15%?

YES

>> GO TO 7.

NO

>> GO TO 6.

6.

DETECT MALFUNCTIONING PART

Check the following.

• Intake air leakage

• Exhaust gas leakage

• Incorrect fuel pressure

• Lack of fuel

• Fuel injector

• Incorrect PCV hose connection

• PCV valve

• Mass air flow sensor

>> Repair or replace malfunctioning part.

P0133, P0153 A/F SENSOR 1

EC-1239

< COMPONENT DIAGNOSIS >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

7.

PERFORM DTC CONFIRMATION PROCEDURE-IV

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

4. Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least 1 minute under no load.

5. Let engine idle for 1 minute.

6. Increase the engine speed up to between 4,000 and 5,000 rpm and maintain that speed for 10 seconds.

7. Fully release accelerator pedal and then let engine idle for approximately 1 minute.

8. Check 1st trip DTC.
Is 1st trip DTC detected?

YES

>> Go to

EC-1239, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000004362093

1.

CHECK GROUND CONNECTION

1. Turn ignition switch OFF.

2. Check ground connection E9. Refer to Ground Inspection in

GI-45, "Circuit Inspection"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace ground connection.

2.

RETIGHTEN A/F SENSOR 1

Loosen and retighten the A/F sensor 1. Refer to

EM-136, "Removal and Installation"

.

>> GO TO 3.

3.

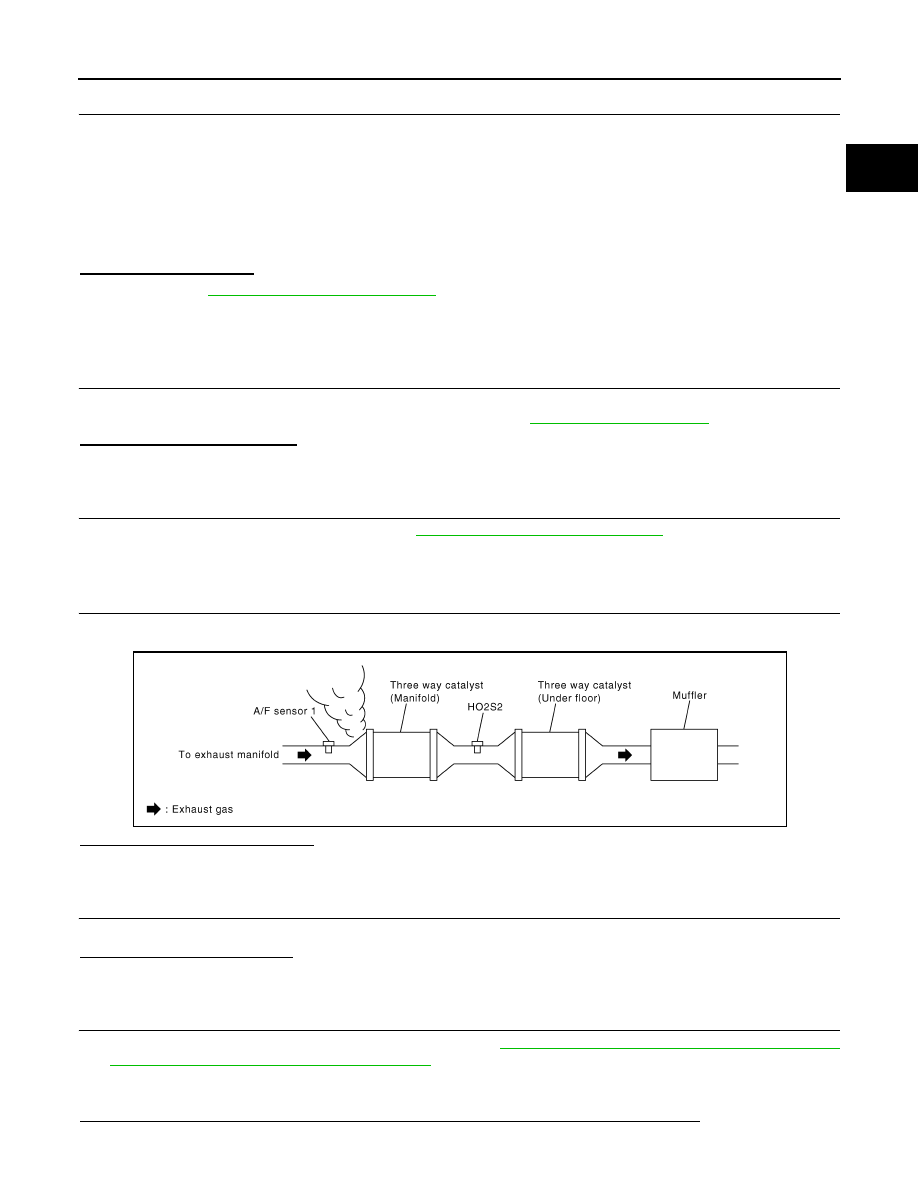

CHECK EXHAUST GAS LEAKAGE

1. Start engine and run it at idle.

2. Listen for an exhaust gas leakage before three way catalyst (manifold).

Is exhaust gas leakage detected?

YES

>> Repair or replace malfunctioning part.

NO

>> GO TO 4.

4.

CHECK FOR INTAKE AIR LEAKAGE

Listen for an intake air leakage after the mass air flow sensor.
Is intake air leakage detected?

YES

>> Repair or replace malfunctioning part.

NO

>> GO TO 5.

5.

CLEAR MIXTURE RATIO SELF-LEARNING VALUE

1. Clear the mixture ratio self-learning value. Refer to

EC-1055, "MIXTURE RATIO SELF-LEARNING

VALUE CLEAR : Special Repair Requirement"

.

2. Run engine for at least 10 minutes at idle speed.

3. Check 1st trip DTC.
Is the 1st trip DTC P0171, P0172, P0174 or P0175 detected? Is it difficult to start engine?

PBIB1216E

EC-1240

< COMPONENT DIAGNOSIS >

[VQ35DE]

P0133, P0153 A/F SENSOR 1

YES

>> Perform trouble diagnosis for DTC P0171, P0174 or P0172, P0175. Refer to

EC-1266, "DTC

Logic"

 or

EC-1270, "DTC Logic"

.

NO

>> GO TO 6.

6.

CHECK AIR FUEL RATIO (A/F) SENSOR 1 POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect A/F sensor 1 harness connector.

3. Turn ignition switch ON.

4. Check the voltage between A/F sensor 1 harness connector and

ground.

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> GO TO 7.

7.

DETECT MALFUNCTIONING PART

Check the following.

• IPDM E/R harness connector F10

• 15 A fuse (No. 37)

• Harness for open or short between A/F sensor 1 and IPDM E/R

>> Repair or replace harness or connectors.

8.

CHECK A/F SENSOR 1 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Check the continuity between A/F sensor 1 harness connector and ECM harness connector.

4. Check the continuity between A/F sensor 1 harness connector and ground, or ECM harness connector

ground.

DTC

A/F sensor 1

Ground

Voltage

Bank

Connector

Terminal

P0133

1

F12

4

Ground

Battery voltage

P0153

2

F61

4

PBIB3308E

DTC

A/F sensor 1

ECM

Continuity

Bank

Connector

Terminal

Connector

Terminal

P0133

1

F12

1

F13

45

Existed

2

49

P0153

2

F61

1

53

2

57

DTC

A/F sensor 1

Ground

Continuity

Bank

Connector

Terminal

P0133

1

F12

1

Ground

Not existed

2

P0153

2

F61

1

2
