VARIABLE INDUCTION AIR SYSTEM

EC-1137

< FUNCTION DIAGNOSIS >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

JMBIA1832GB

ALBIA0102ZZ

EC-1138

< FUNCTION DIAGNOSIS >

[VQ35DE]

VARIABLE INDUCTION AIR SYSTEM

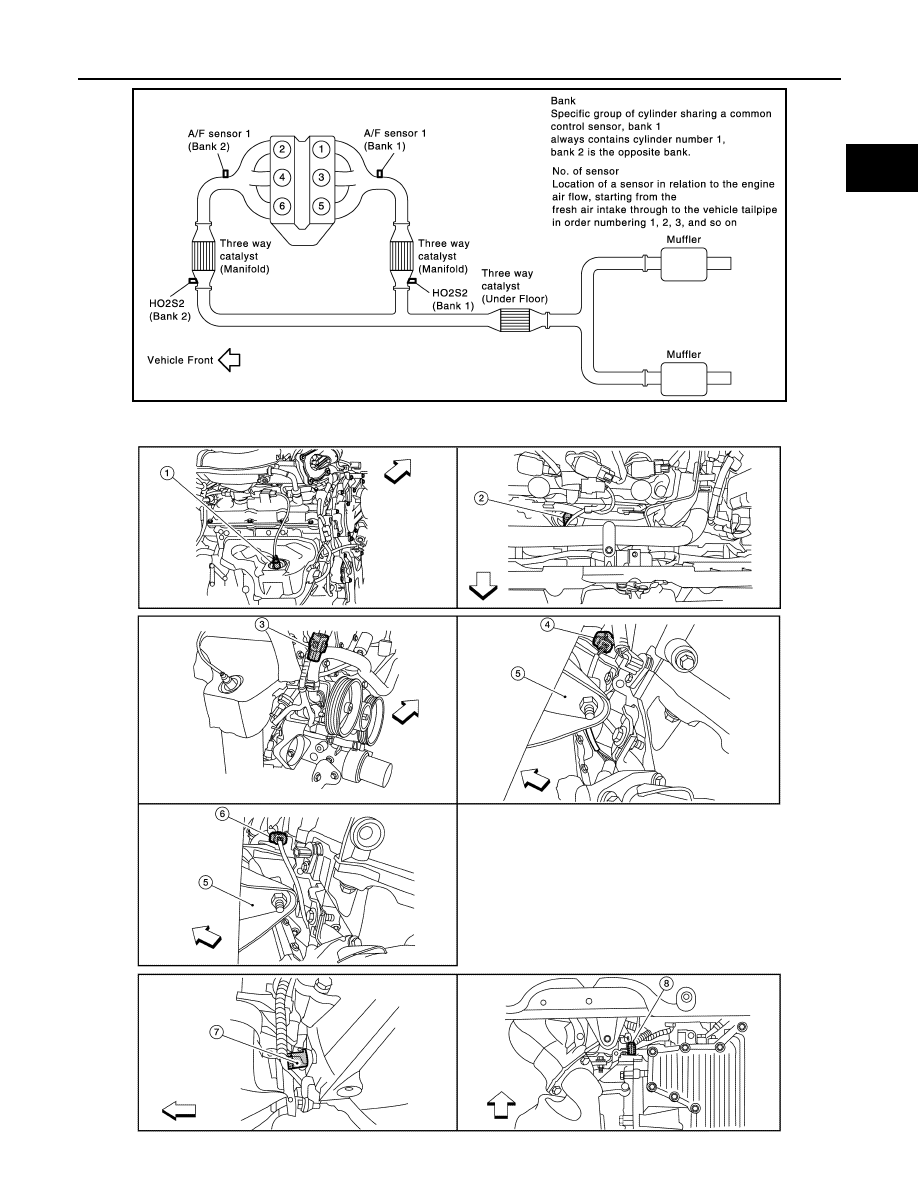

1.

A/F sensor 1 (bank 1)

2.

A/F sensor 1 (bank 2)

3.

HO2S2 (bank 1) harness connector

4.

HO2S2 (bank 2) harness connector
(CVT models)

5.

Front engine mount

6.

HO2S2 (bank 2) harness connector
(M/T models)

7.

Crankshaft position sensor (POS)
(M/T models)

8.

Crankshaft position sensor (POS)
(CVT models)

: Vehicle front

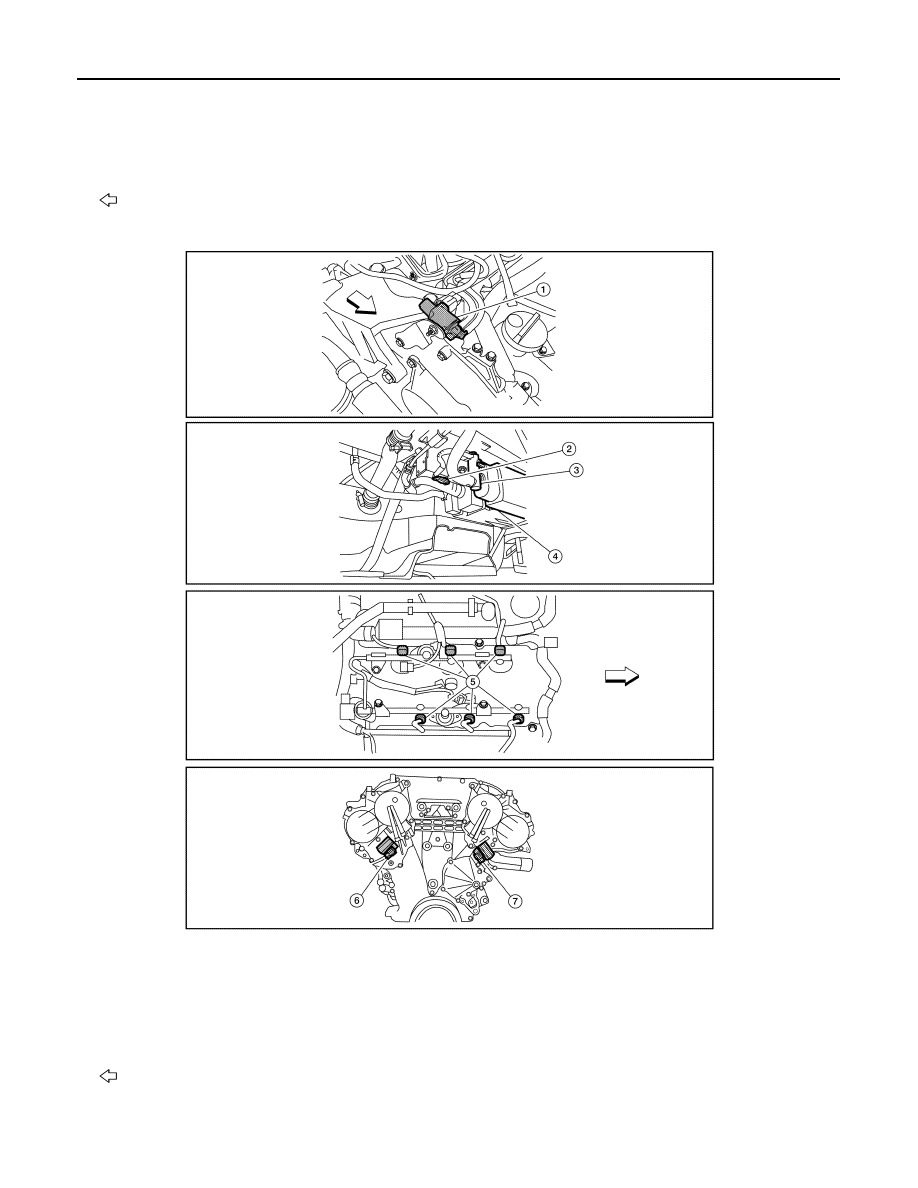

1.

Electronic controlled engine mount
control solenoid valve

2.

EVAP control system pressure sen-
sor

3.

EVAP canister vent control valve

4.

EVAP canister

5.

Injector harness connector

6.

Intake valve timing control solenoid
valve (bank 1)

7.

Intake valve timing control solenoid
valve (bank 2)
: Vehicle front

ALBIA0103ZZ

VARIABLE INDUCTION AIR SYSTEM

EC-1139

< FUNCTION DIAGNOSIS >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

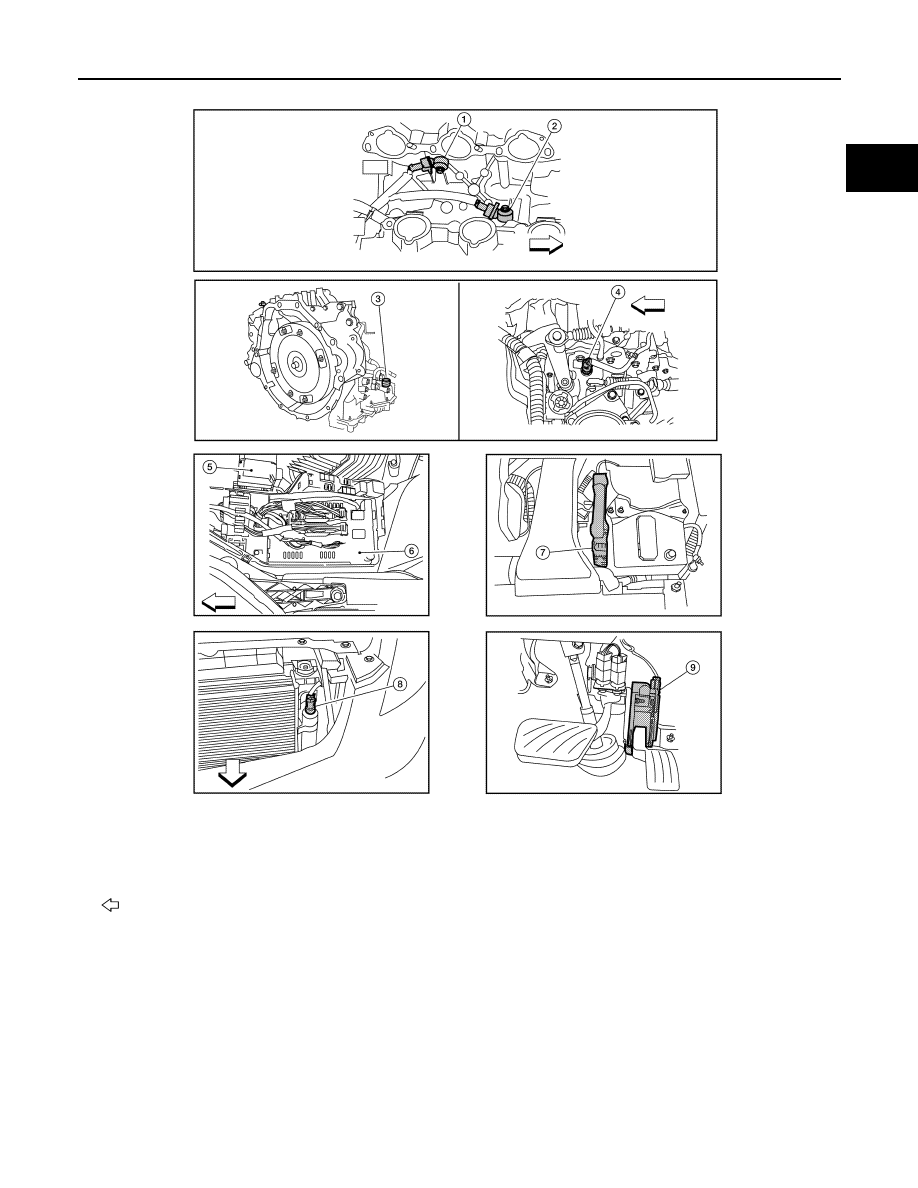

1.

Knock sensor (bank 2)

2.

Knock sensor (bank 1)

3.

PNP switch (CVT models)

4.

PNP switch (M/T models)

5.

Battery

6.

IPDM E/R

7.

ECM

8.

Refrigerant pressure sensor
(shown with front grill removed)

9.

Accelerator pedal

: Vehicle front

ALBIA0104ZZ

EC-1140

< FUNCTION DIAGNOSIS >

[VQ35DE]

VARIABLE INDUCTION AIR SYSTEM

Component Description

INFOID:0000000004362005

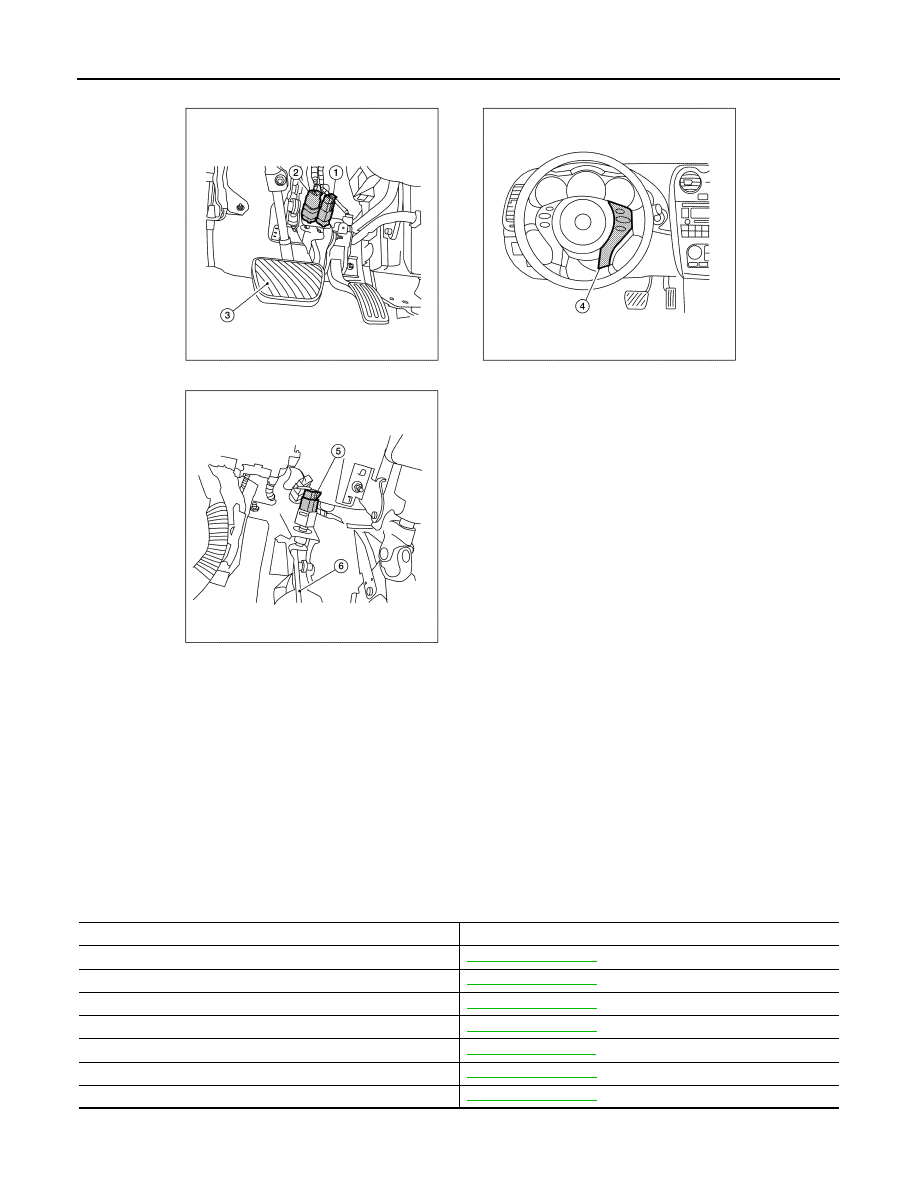

1.

ASCD brake switch

2.

Stop lamp switch

3.

Brake pedal

4.

ASCD steering switch

5.

ASCD clutch switch (M/T models)

6.

Clutch pedal

ALBIA0105ZZ

Component

Reference

Accelerator pedal position sensor

EC-1448, "Description"

Camshaft position sensor (PHASE)

EC-1296, "Description"

Crankshaft position sensor (POS)

EC-1292, "Description"

Engine coolant temperature sensor

EC-1210, "Description"

Mass air flow sensor

EC-1194, "Description"

Power valve 1 and 2

EC-1506, "Description"

Throttle position sensor

EC-1215, "Description"
