Nissan Altima L32. Manual - part 474

ECM

EC-1017

< ECU DIAGNOSIS >

[QR25DE EXCEPT FOR CALIFORNIA]

P0453

0453

EVAP SYS PRES SEN

—

EC-830

P0455

0455

EVAP GROSS LEAK

—

EC-835

P0456

0456

EVAP VERY SML LEAK

×*

EC-841

P0460

0460

FUEL LEV SEN SLOSH

—

EC-848

P0461

0461

FUEL LEVEL SENSOR

—

EC-849

P0462

0462

FUEL LEVL SEN/CIRC

—

EC-851

P0463

0463

FUEL LEVL SEN/CIRC

—

EC-851

P0500

0500

VEH SPEED SEN/CIRC*

—

EC-853

P0506

0506

ISC SYSTEM

—

EC-855

P0507

0507

ISC SYSTEM

—

EC-857

P0550

0550

PW ST P SEN/CIRC

—

EC-859

P0603

0603

ECM BACK UP/CIRCUIT

—

EC-862

P0605

0605

ECM

—

1 or 2

× or —

EC-864

P0607

0607*

ECM

—

1 (CVT)

2 (M/T)

× (CVT)

— (M/T)

EC-866

P0643

0643

SENSOR POWER/CIRC

—

EC-867

P0705

0705

PNP SW/CIRC

—

TM-307

P0710

0710

ATF TEMP SEN/CIRC*

—

TM-310

P0715

0715

INPUT SPD SEN/CIRC

—

TM-313

P0720

0720

VEH SPD SEN/CIR AT*

—

TM-318

P0740

0740

TCC SOLENOID/CIRC

—

TM-324

P0744

0744

A/T TCC S/V FNCTN

—

TM-327

P0745

0745

L/PRESS SOL/CIRC

—

TM-329

P0746

0746

PRS CNT SOL/A FCTN

—

TM-331

P0776

0776

PRS CNT SOL/B FCTN

—

TM-333

P0778

0778

PRS CNT SOL/B CIRC

—

TM-336

P0840

0840

TR PRS SENS/A CIRC

—

TM-341

P0850

0850

P-N POS SW/CIRCUIT

—

EC-870

P1148

1148

CLOSED LOOP-B1

—

EC-873

P1217

1217

ENG OVER TEMP

—

EC-874

P1225

1225

CTP LEARNING-B1

—

EC-878

P1226

1226

CTP LEARNING-B1

—

EC-880

P1421

1421

COLD START CONTROL

—

EC-882

P1550

1550

BAT CURRENT SENSOR

—

EC-884

P1551

1551

BAT CURRENT SENSOR

—

EC-887

P1552

1552

BAT CURRENT SENSOR

—

EC-887

P1553

1553

BAT CURRENT SENSOR

—

EC-890

P1554

1554

BAT CURRENT SENSOR

—

EC-893

P1564

1564

ASCD SW

—

EC-896

P1572

1572

ASCD BRAKE SW

—

EC-899

P1574

1574

ASCD VHL SPD SEN

—

EC-907

DTC*

Items

(CONSULT-III screen terms)

SRT code

Trip

MIL

Reference page

CONSULT-III

GST*

ECM*

EC-1018

< ECU DIAGNOSIS >

[QR25DE EXCEPT FOR CALIFORNIA]

ECM

*1: 1st trip DTC No. is the same as DTC No.
*2: This number is prescribed by SAE J2012.
*3: In Diagnostic Test Mode II (Self-diagnostic results), this number is controlled by NISSAN.
*4: The troubleshooting for this DTC needs CONSULT-III.
*5: When the fail-safe operations for both self-diagnoses occur, the MIL illuminates.
*6: SRT code will not be set if the self-diagnostic result is NG.
*7: When the ECM is in the mode of displaying SRT status, MIL may flash. For the details, refer to “How to Display SRT Status”.
*8: When erasing this DTC, always use CONSULT-III or GST.

How to Set SRT Code

INFOID:0000000004349979

To set all SRT codes, self-diagnosis for the items indicated above must be performed one or more times. Each

diagnosis may require a long period of actual driving under various conditions.

WITH CONSULT-III

Perform corresponding DTC CONFIRMATION PROCEDURE one by one based on Performance Priority in

the table on “SRT Item”.

WITHOUT CONSULT-III

P1610

1610

LOCK MODE

—

SEC-64

(Coupe)

SEC-263

(Se-

dan)

P1611

1611

ID DISCORD, IMMU-ECM

—

SEC-68

(Coupe)

SEC-267

(Se-

dan)

P1612

1612

CHAIN OF ECM-IMMU

—

SEC-69

(Coupe)

SEC-268

(Se-

dan)

P1615

1615

DIFFERENCE OF KEY

—

SEC-67

(Coupe)

SEC-266

(Se-

dan)

P1715

1715

IN PULY SPEED

—

EC-909

P1740

1740

LU-SLCT SOL/CIRC

—

TM-358

P1777

1777

STEP MOTOR CIRC

—

TM-361

P1778

1778

STEP MOTOR FNCT

—

TM-364

P1805

1805

BRAKE SW/CIRCUIT

—

EC-911

P2100

2100

ETC MOT PWR-B1

—

EC-914

P2101

2101

ETC FNCTN/CIRC-B1

—

EC-916

P2103

2103

ETC MOT PWR

—

EC-914

P2118

2118

ETC MOT-B1

—

EC-920

P2119

2119

ETC ACTR-B1

—

EC-922

P2122

2122

APP SEN 1/CIRC

—

EC-924

P2123

2123

APP SEN 1/CIRC

—

EC-924

P2127

2127

APP SEN 2/CIRC

—

EC-927

P2128

2128

APP SEN 2/CIRC

—

EC-927

P2135

2135

TP SENSOR-B1

—

EC-931

P2138

2138

APP SENSOR

—

EC-935

P2A00

2A00

A/F SENSOR1 (B1)

—

EC-939

DTC*

Items

(CONSULT-III screen terms)

SRT code

Trip

MIL

Reference page

CONSULT-III

GST*

ECM*

ECM

EC-1019

< ECU DIAGNOSIS >

[QR25DE EXCEPT FOR CALIFORNIA]

The most efficient driving pattern in which SRT codes can be properly set is explained on the below. The driv-

ing pattern should be performed one or more times to set all SRT codes.

DRIVING PATTERN

• The time required for each diagnosis varies with road surface conditions, weather, altitude, individual driving

habits, etc.

Zone A refers to the range where the time, required for the diagnosis under normal conditions*, is the short-

est.

PBIB3622E

EC-1020

< ECU DIAGNOSIS >

[QR25DE EXCEPT FOR CALIFORNIA]

ECM

Zone B refers to the range where the diagnosis can still be performed if the diagnosis is not completed within

zone A.

*: Normal conditions refer to the following:

• Sea level

• Flat road

• Ambient air temperature: 20 - 30

°C (68 - 86°F)

• Diagnosis is performed as quickly as possible under normal conditions.

Under different conditions [For example: ambient air temperature other than 20 - 30

°C (68 - 86°F)], diagno-

sis may also be performed.

Pattern 1:

• The engine is started at the engine coolant temperature of

−10 to 35°C (14 to 95°F)

(where the voltage between the ECM terminal 46 and ground is 3.0 - 4.3V).

• The engine must be operated at idle speed until the engine coolant temperature is greater than 70

°C

(158

°F) (where the voltage between the ECM terminal 46 and ground is lower than 1.4V).

• The engine is started at the fuel tank temperature of warmer than 0

°C (32°F) (where the voltage

between the ECM terminal 95 and ground is less than 4.1V).

Pattern 2:

• When steady-state driving is performed again even after it is interrupted, each diagnosis can be conducted.

In this case, the time required for diagnosis may be extended.

Pattern 3:

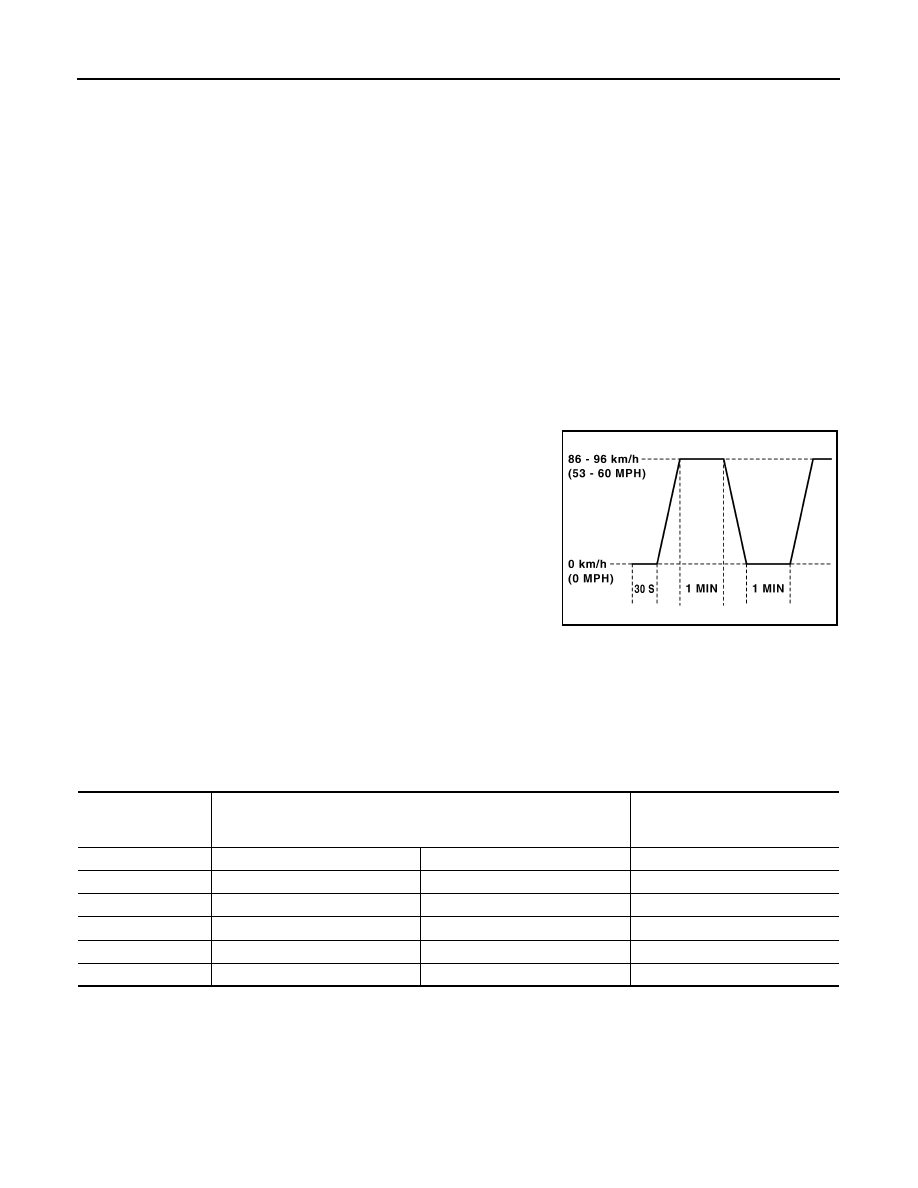

• Operate vehicle following the driving pattern shown in the figure.

• Release the accelerator pedal during decelerating vehicle speed

from 90 km/h (56 MPH) to 0 km/h (0 MPH).

Pattern 4:

• The accelerator pedal must be held very steady during steady-

state driving.

• If the accelerator pedal is moved, the test must be conducted all

over again.

*1: Depress the accelerator pedal until vehicle speed is 90 km/h (56

MPH), then release the accelerator pedal and keep it released for

more than 10 seconds. Depress the accelerator pedal until vehicle

speed is 90 km/h (56 MPH) again.

*2: Checking the vehicle speed with GST is advised.

Suggested Transmission Gear Position for CVT Models

Set the selector lever in the D position.

Suggested Upshift Speeds for M/T Models

Shown below are suggested vehicle speeds for shifting into a higher gear. These suggestions relate to fuel

economy and vehicle performance. Actual upshift speeds will vary according to road conditions, the weather

and individual driving habits.

Test Value and Test Limit

INFOID:0000000004351812

The following is the information specified in Service $06 of SAE J1979.

The test value is a parameter used to determine whether a system/circuit diagnostic test is OK or NG while

being monitored by the ECM during self-diagnosis. The test limit is a reference value which is specified as the

maximum or minimum value and is compared with the test value being monitored.

These data (test value and test limit) are specified by On Board Monitor ID(OBDMID), Test ID (TID), Unit and

Scaling ID and can be displayed on the GST screen.

PBIB2244E

For normal acceleration in low altitude areas

[less than 1,219 m (4,000 ft)]:

For quick acceleration in low alti-

tude areas and high altitude areas

[over 1,219 m (4,000 ft)]:

Gear change

ACCEL shift position km/h (MPH)

CRUISE shift point km/h (MPH)

km/h (MPH)

1st to 2nd

24 (15)

13 (8)

2nd to 3rd

40 (25)

27 (17)

3rd to 4th

53 (33)

40 (25)

4th to 5th

71 (44)

58 (36)

5th to 6th

82 (51)
