Nissan Altima L32. Manual - part 322





P2004 TUMBLE CONTROL VALVE

EC-409

< COMPONENT DIAGNOSIS >

[QR25DE FOR CALIFORNIA]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P2004 TUMBLE CONTROL VALVE

Description

INFOID:0000000004349459

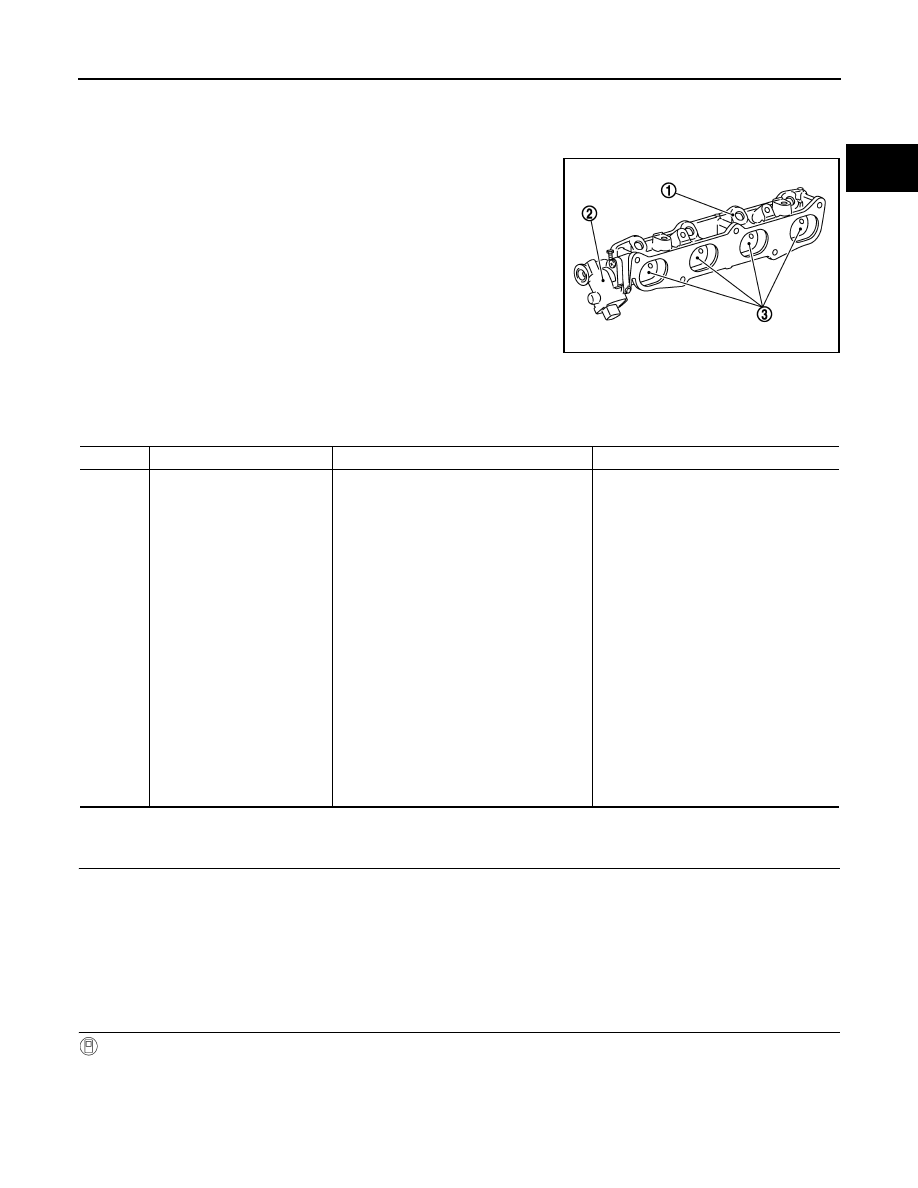

Tumble control valve (3) is installed in the intake manifold adapter

(1).

Tumble control valve actuator (2) is connected to the front end of the

valve shaft.

Tumble control valve actuator consists of motor and position sensor,

etc.

The motor opens or closes the valve by the output signal of the

ECM.

The sensor consists of a permanent magnet and Hall IC. It senses

the valve shaft movement and feeds the voltage signals to the ECM.

DTC Logic

INFOID:0000000004349460

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at

least 10 seconds before conducting the next test.

TESTING CONDITION:

• Before performing the following procedure, confirm that battery voltage is more than 11V at idle.

• Always perform the test at a temperature above 0

°C (32°F)

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

 With CONSULT-III

1. Turn ignition switch ON.

2. Select “DATA MONITOR” mode with CONSULT-III.

3. Make sure that “COOLAN TEMP/S” indicates between 5

°C (41°F) to 60°C (140°F).

If not, cool engine down or warm engine up until “COOLAN TEMP/S” indicates between 5

°C (41°F) to

60

°C (140°F). Then go to the following steps.

JMBIA0117ZZ

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P2004

Tumble control valve stuck

The target angle of tumble control valve con-
trolled by ECM and the input signal from
tumble control valve position sensor is not in
the normal range.

• Harness or connectors

(Tumble control valve motor circuit is
open or shorted.)
(Tumble control valve position sensor
circuit is open or shorted.)
(Accelerator pedal position sensor 2 cir-
cuit is shorted.)
[Crankshaft position sensor (POS) cir-
cuit is shorted.]
(EVAP control system pressure sensor
circuit is shorted.)
(Refrigerant pressure sensor circuit is
shorted.)

• Tumble control valve actuator

(Tumble control valve motor)
(Tumble control valve position sensor)

• Accelerator pedal position sensor

(APP sensor 2)

• Crankshaft position sensor (POS)
• EVAP control system pressure sensor
• Refrigerant pressure sensor

EC-410

< COMPONENT DIAGNOSIS >

[QR25DE FOR CALIFORNIA]

P2004 TUMBLE CONTROL VALVE

4. Fully release accelerator pedal and wait at least 5 seconds.

5. Depress accelerator pedal and wait at least 5 seconds.

6. Check 1st trip DTC.

 With GST

Following the procedure “With CONSULT-III” above.
Is 1st trip DTC detected?

YES

>> Go to

EC-410, "Diagnosis Procedure"

.

NO

>> INSPECTION END

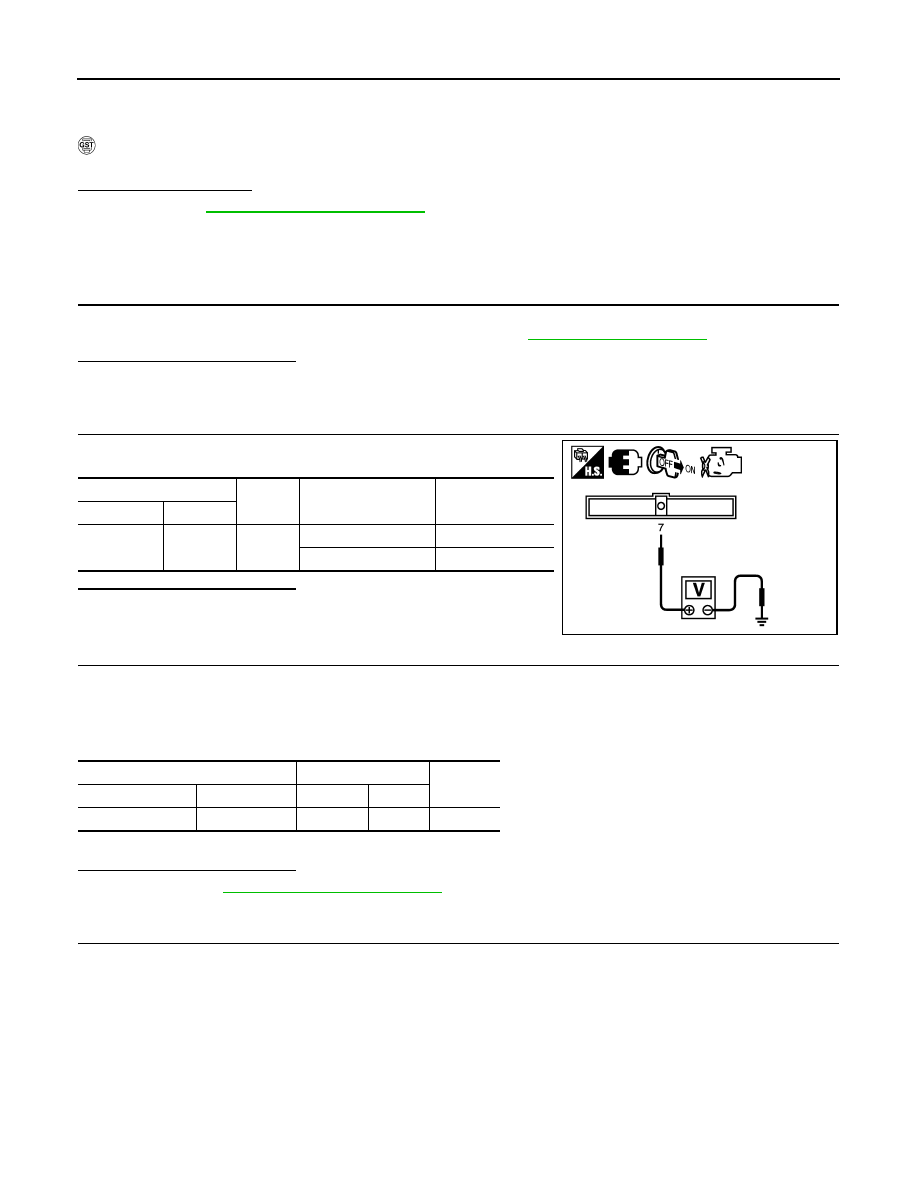

Diagnosis Procedure

INFOID:0000000004349461

1.

CHECK GROUND CONNECTION

1. Turn ignition switch OFF.

2. Check ground connection E9. Refer to Ground Inspection in

GI-45, "Circuit Inspection"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace ground connection.

2.

CHECK TUMBLE CONTROL VALVE MOTOR POWER SUPPLY CIRCUIT-I

Check the voltage between ECM harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 3.

3.

CHECK TUMBLE CONTROL VALVE MOTOR POWER SUPPLY CIRCUIT-II

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Disconnect IPDM E/R harness connector.

4. Check the continuity between IPDM E/R harness connector and ECM harness connector.

5. Also check harness for short to ground and short to power.
Is the inspection result normal?

YES

>> Refer to

EC-144, "Diagnosis Procedure"

.

NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

4.

CHECK TUMBLE CONTROL VALVE MOTOR OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1. Disconnect tumble control valve actuator harness connector.

2. Disconnect ECM harness connector.

3. Check the continuity between tumble control valve actuator harness connector and ECM harness connec-

tor.

ECM

Ground

Condition

Voltage

Connector

Terminal

F14

7

Ground

Ignition switch OFF

Approx. 0 V

Ignition switch ON

Battery voltage

JMBIA1621ZZ

IPDM E/R

ECM

Continuity

Connector

Terminal

Connector Terminal

F10

53

F14

7

Existed

P2004 TUMBLE CONTROL VALVE

EC-411

< COMPONENT DIAGNOSIS >

[QR25DE FOR CALIFORNIA]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

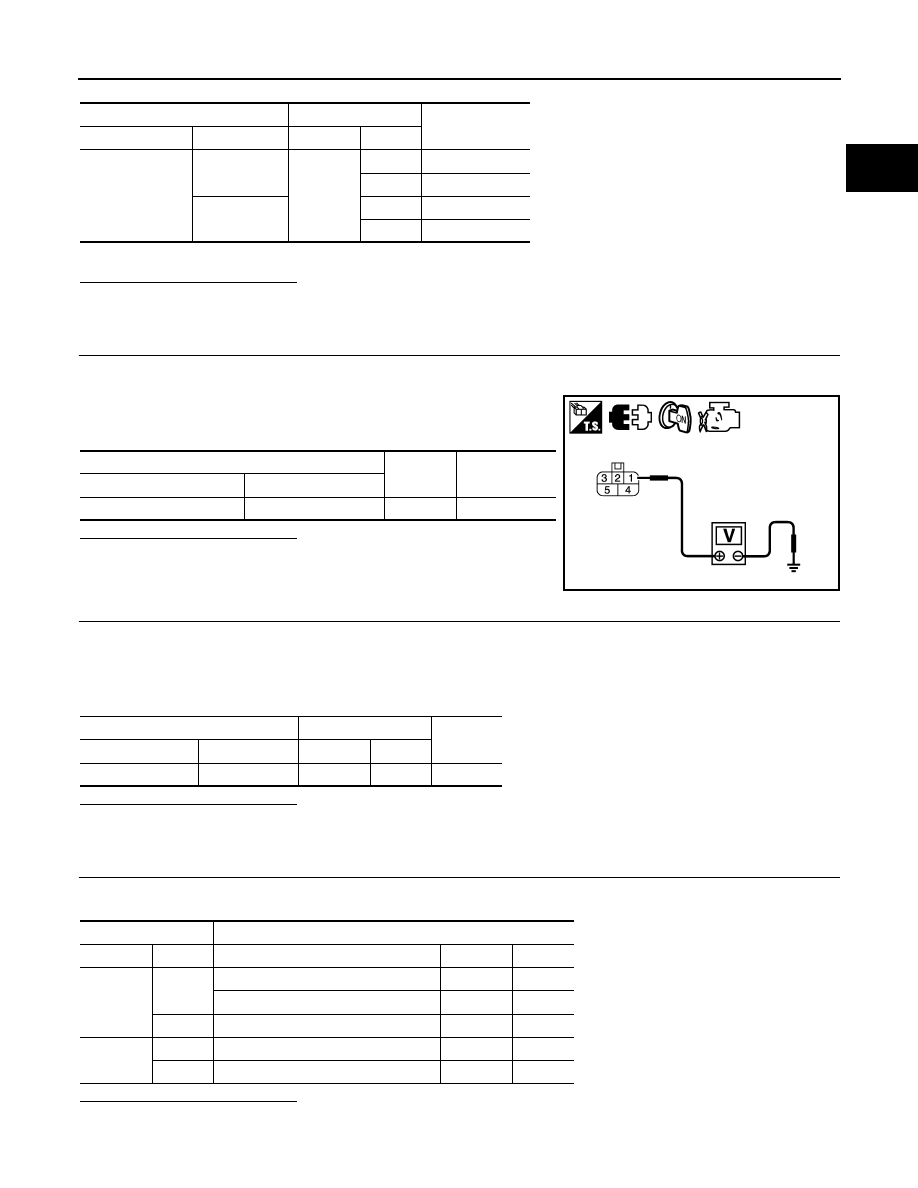

4. Also check harness for short to ground and short to power.
Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

5.

CHECK TUMBLE CONTROL VALVE POSITION SENSOR POWER SUPPLY CIRCUIT-I

1. Reconnect ECM harness connector disconnected.

2. Turn ignition switch ON.

3. Check the voltage between tumble control valve actuator har-

ness connector and ground.

Is the inspection result normal?

YES

>> GO TO 11.

NO

>> GO TO 6.

6.

CHECK TUMBLE CONTROL VALVE POSITION SENSOR POWER SUPPLY CIRCUIT-II

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Check the continuity between tumble control valve actuator harness connector and ECM harness connec-

tor.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> Repair open circuit.

7.

CHECK TUMBLE CONTROL VALVE POSITION SENSOR POWER SUPPLY CIRCUIT-III

Check harness for short to power and short to ground, between the following terminals.

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> Repair short to ground or short to power in harness or connectors.

Tumble control valve actuator

ECM

Continuity

Connector

Terminal

Connector Terminal

F43

4

F14

1

Not existed

3

Existed

5

1

Existed

3

Not existed

Tumble control valve actuator

Ground

Voltage

Connector

Terminal

F43

1

Ground

Approx. 5 V

JMBIA1606ZZ

Tumble control valve actuator

ECM

Continuity

Connector

Terminal

Connector Terminal

F43

1

F13

72

Existed

ECM

Sensor

Connector Terminal

Name

Connector Terminal

F13

72

Tumble control valve actuator

F43

1

Refrigerant pressure sensor

E219

1

76

CKP sensor (POS)

F30

1

E10

87

APP sensor

E40

6

91

EVAP control system pressure sensor

B41

3

EC-412

< COMPONENT DIAGNOSIS >

[QR25DE FOR CALIFORNIA]

P2004 TUMBLE CONTROL VALVE

8.

CHECK COMPONENTS

Check the following.

• Refrigerant pressure sensor (Refer to

EC-482, "Diagnosis Procedure"

.)

• Crankshaft position sensor (POS) (Refer to

EC-281, "Component Inspection"

.)

• EVAP control system pressure sensor (Refer to

EC-318, "Component Inspection"

.)

Is the inspection result normal?

YES

>> GO TO 9.

NO

>> Replace malfunctioning components.

9.

CHECK APP SENSOR

Refer to

EC-429, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 14.

NO

>> GO TO 10.

10.

REPLACE ACCELERATOR PEDAL ASSEMBLY

1. Replace accelerator pedal assembly.

2. Refer to

EC-429, "Special Repair Requirement"

.

>> INSPECTION END

11.

CHECK TUMBLE CONTROL VALVE POSITION SENSOR GROUND CIRCUIT FOR OPEN AND SHORT

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Check the continuity between tumble control valve actuator harness connector and ECM harness connec-

tor.

4. Also check harness for short to ground and short to power.
Is the inspection result normal?

YES

>> GO TO 12.

NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

12.

CHECK TUMBLE CONTROL VALVE POSITION SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND

SHORT
1. Check the continuity between tumble control valve actuator harness connector and ECM harness connec-

tor.

2. Also check harness for short to ground and short to power.
Is the inspection result normal?

YES

>> GO TO 13.

NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

13.

CHECK TUMBLE CONTROL VALVE

Refer to

EC-413, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 14.

NO

>> Replace intake manifold adapter.

Tumble control valve actuator

ECM

Continuity

Connector

Terminal

Connector Terminal

F43

2

F13

52

Existed

Tumble control valve actuator

ECM

Continuity

Connector

Terminal

Connector Terminal

F43

3

F13

54

Existed
