PREPARATION

CO-5

< PREPARATION >

[QR25DE]

PREPARATION

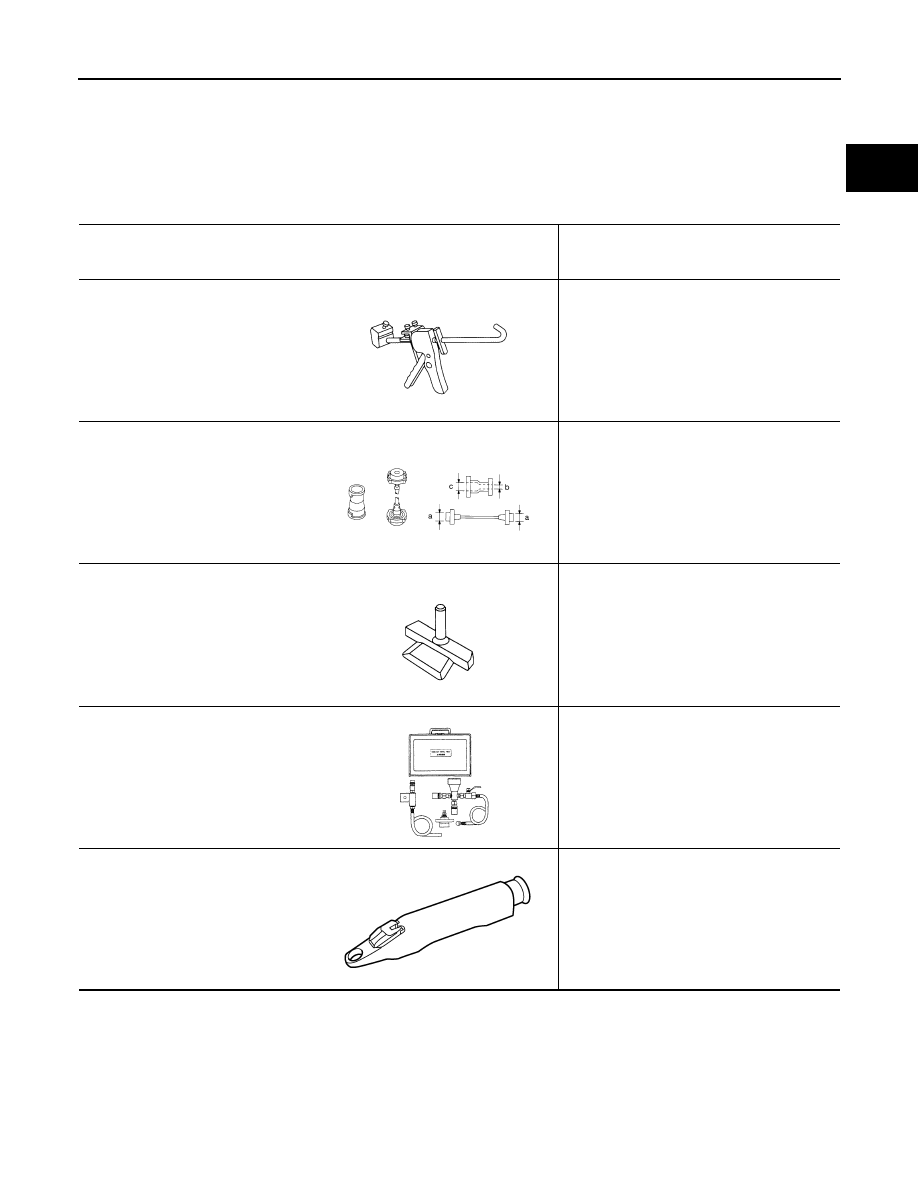

Special Service Tool

INFOID:0000000004205438

The actual shape of the Kent-Moore tools may differ from those tools illustrated here.

Commercial Service Tool

INFOID:0000000004205439

Tool number
(Kent-Moore No.)

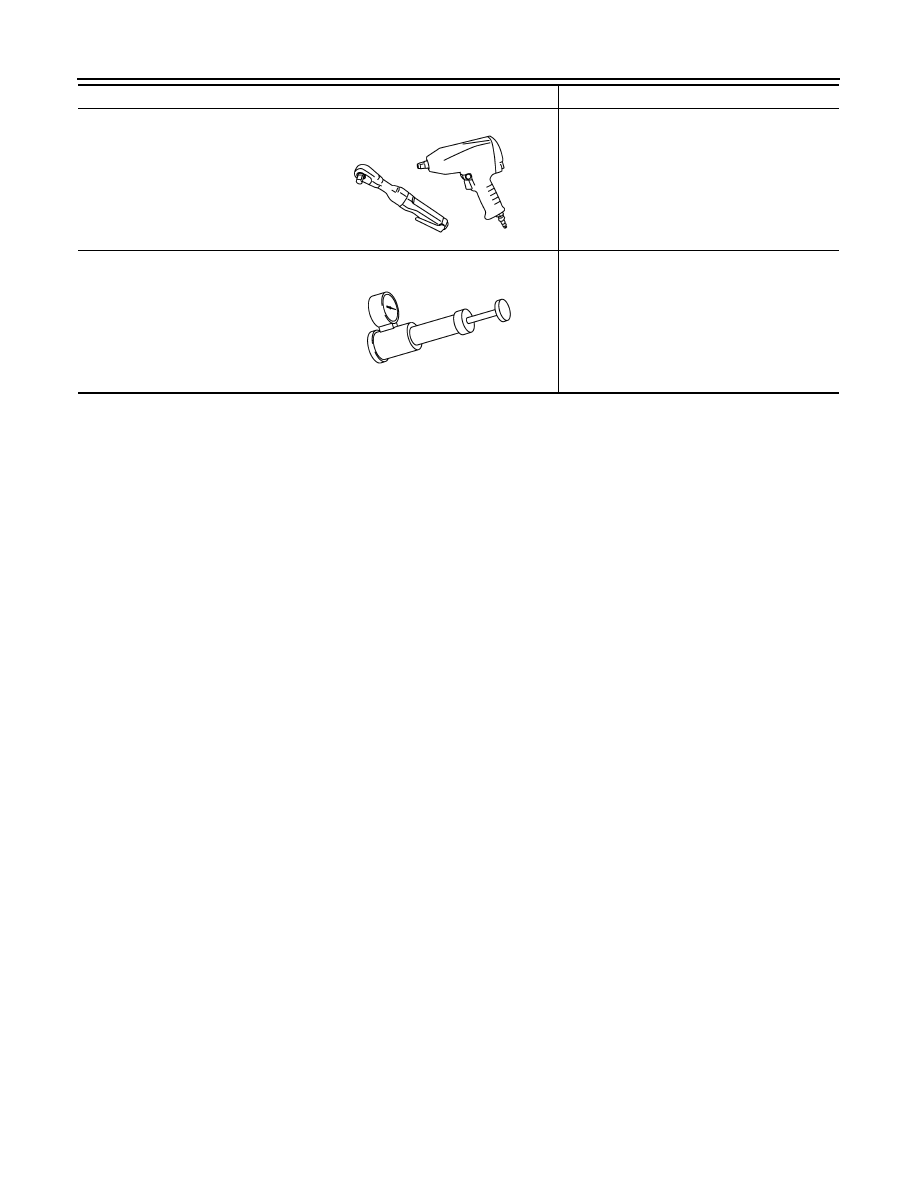

Tool name

Description

WS39930000
(

—

)

Tube presser

Pressing the tube of liquid gasket

EG17650301
(J-33984-A)
Radiator cap tester adapter

Adapting radiator cap tester to radiator cap
and radiator filler neck
a: 28 (1.10) dia.
b: 31.4 (1.236) dia.
c: 41.3 (1.626) dia.
Unit: mm (in)

KV10111100
(J-37228)
Seal cutter

Removing chain tensioner cover and water
pump cover

KV991J0070
(J-45695)
Coolant Refill Tool

Refilling engine cooling system

—

(J-23688)
Engine coolant refractometer

Checking concentration of ethylene glycol in
engine coolant

S-NT052

S-NT564

NT046

LMA053

WBIA0539E

CO-6

< PREPARATION >

[QR25DE]

PREPARATION

Tool name

Description

Power tool

Loosening bolts and nuts

Radiator cap tester

Testing radiator cap

PBIC0190E

PBIC1982E

COOLING SYSTEM

CO-7

< FUNCTION DIAGNOSIS >

[QR25DE]

FUNCTION DIAGNOSIS

COOLING SYSTEM

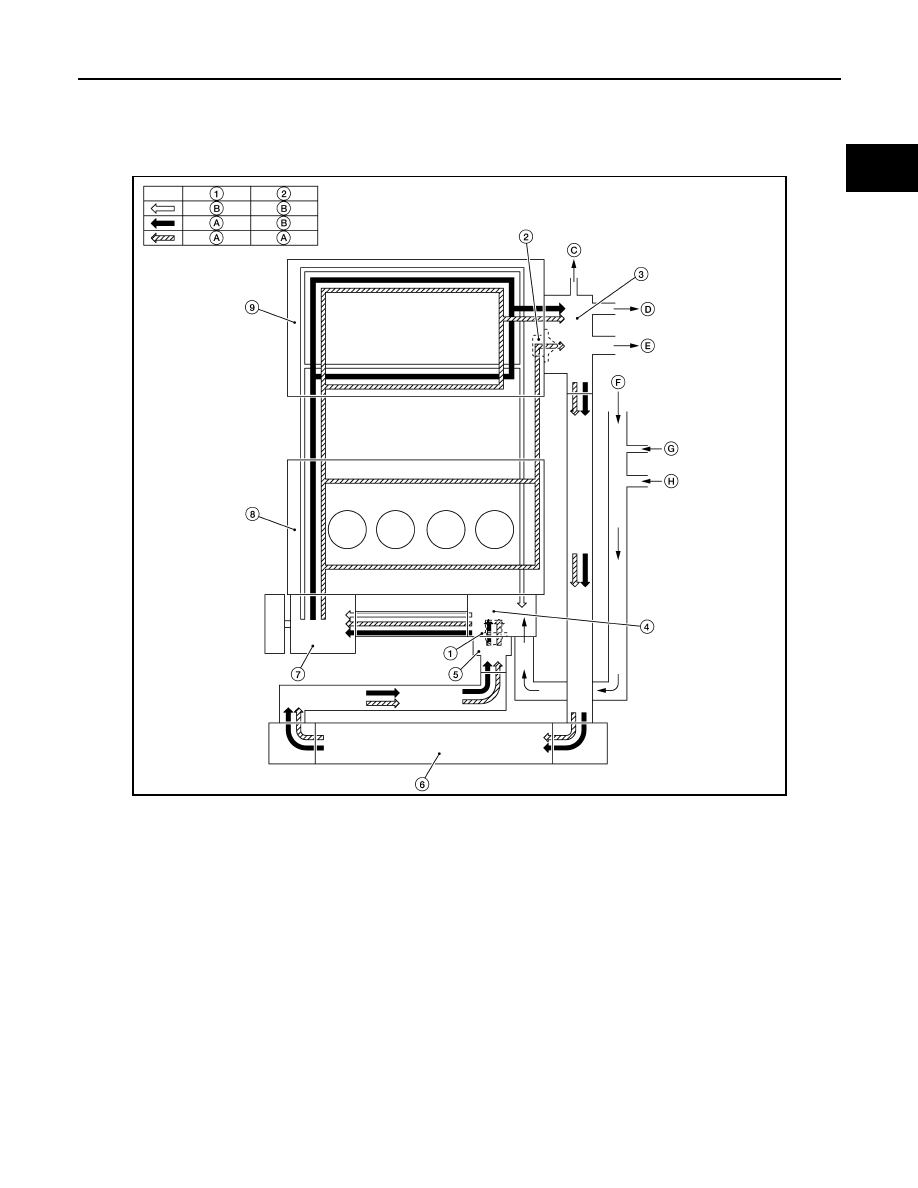

Cooling Circuit

INFOID:0000000004205440

AWBIA0036ZZ

1. Thermostat

2. Water control valve

3. Water control valve housing (Water outlet)

4. Cylinder block (Thermostat housing) 5. Water inlet

6. Radiator

7. Water pump

8. Cylinder block

9. Cylinder head

A. Open

B. Closed

C. To electric throttle control

D. To oil cooler

E. To heater

F. From heater

G. From electric throttle control

H. From oil cooler

CO-8

< FUNCTION DIAGNOSIS >

[QR25DE]

COOLING SYSTEM

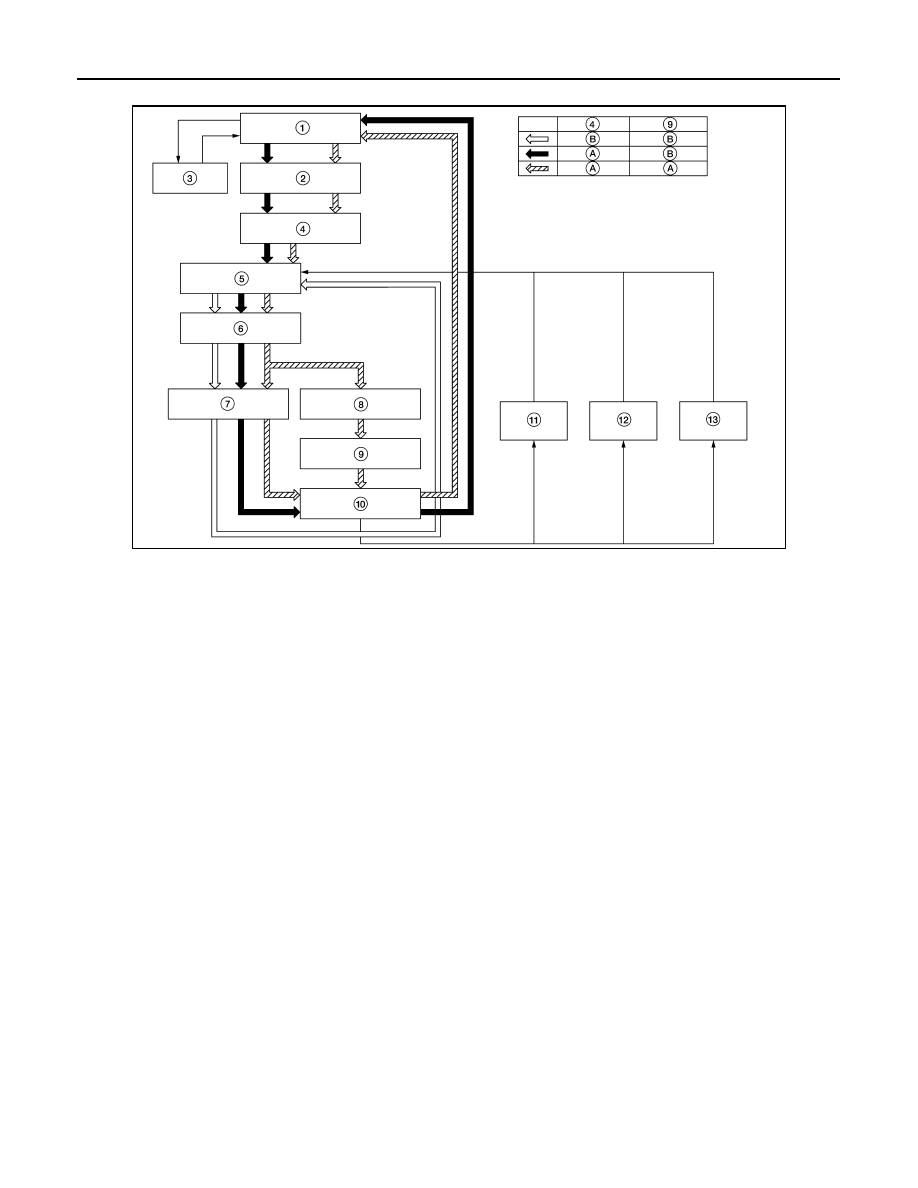

Schematic

INFOID:0000000004205441

AWBIA0037ZZ

1. Radiator

2. Water inlet

3. Reservoir tank

4. Thermostat

5. Thermostat housing

6. Water pump

7. Cylinder head

8. Cylinder block

9. Water control valve

10. Water control valve housing

11. Heater

12. Oil cooler

13. Electric throttle control

A. Open

B. Closed
